el12 Power sources Power supplies TR-12 mains transformer

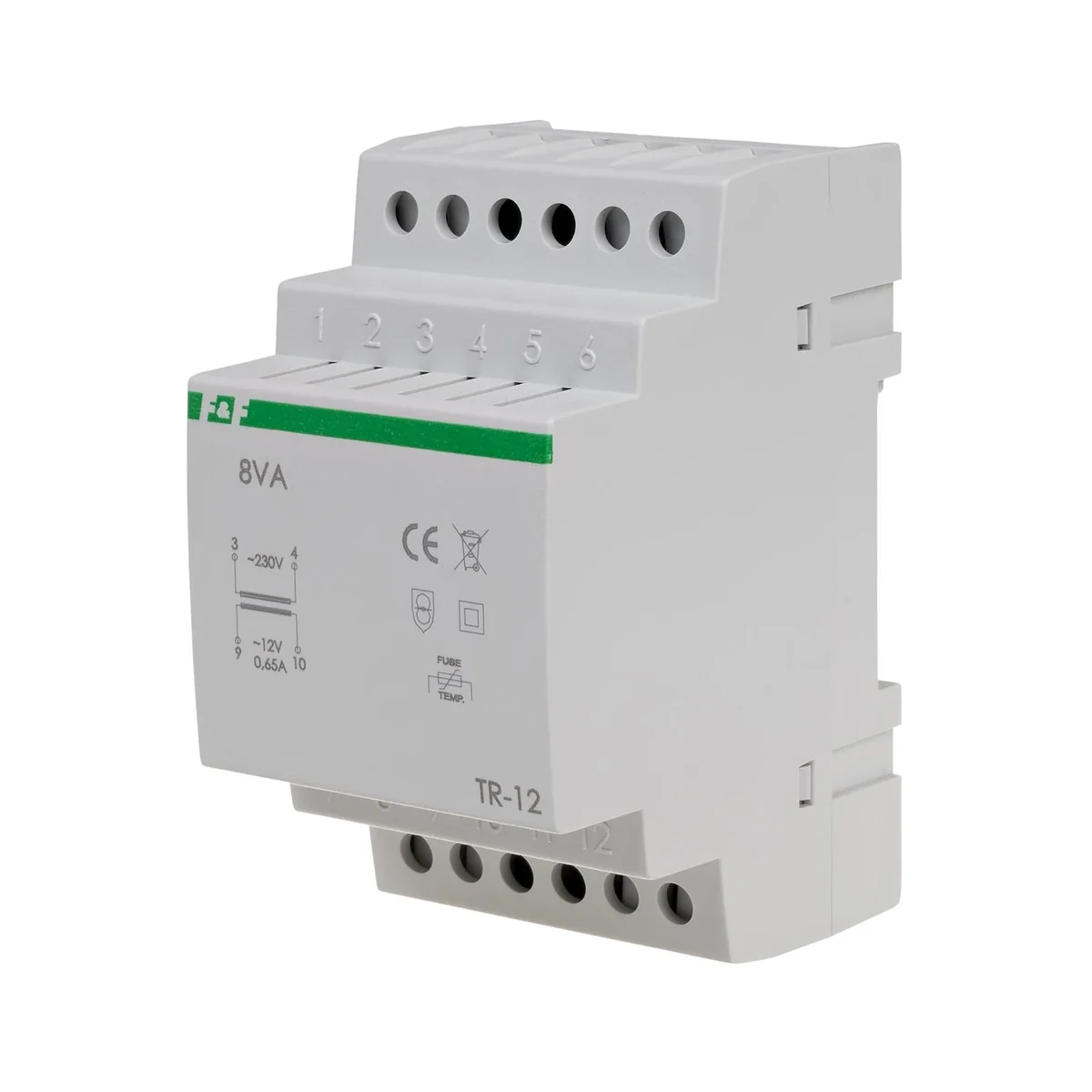

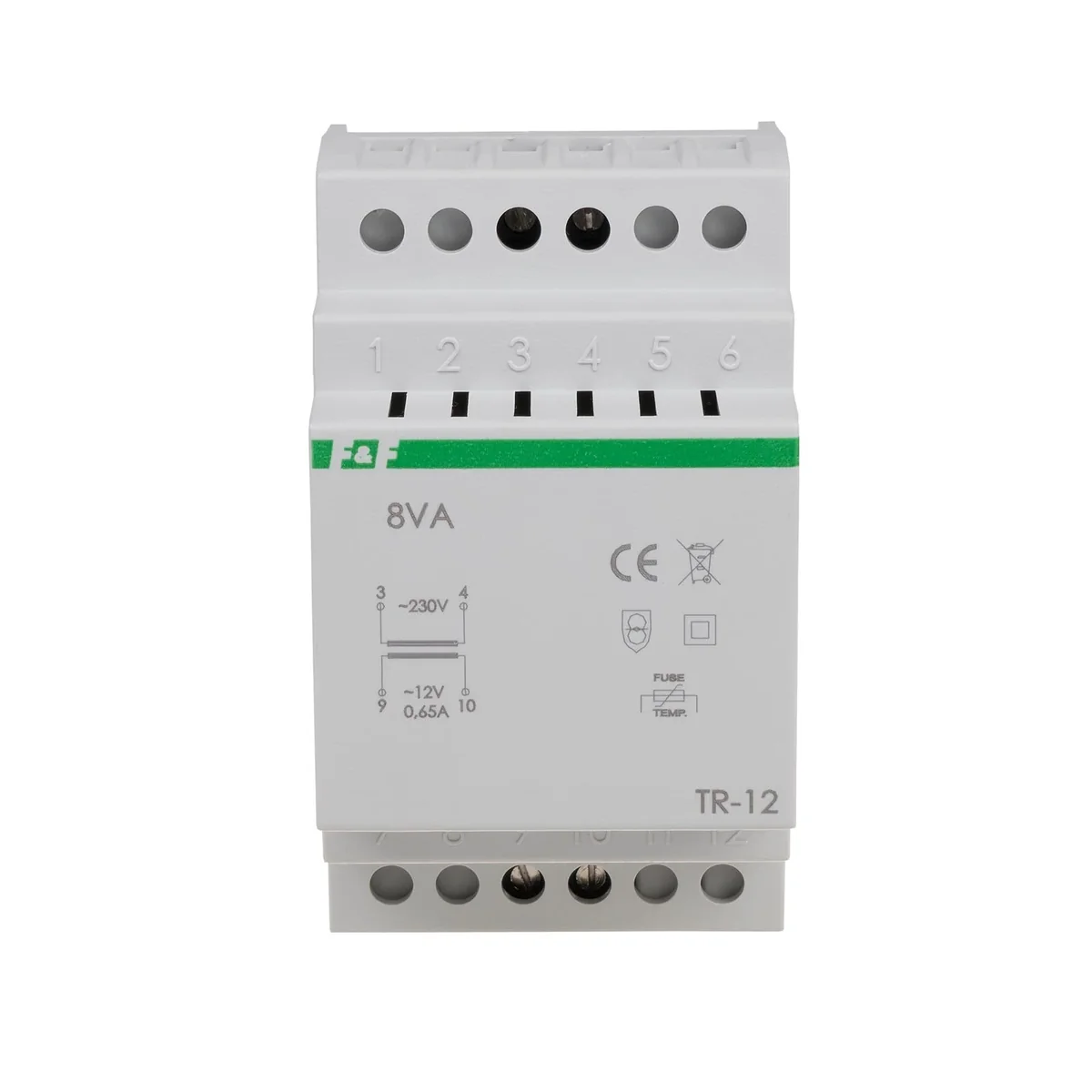

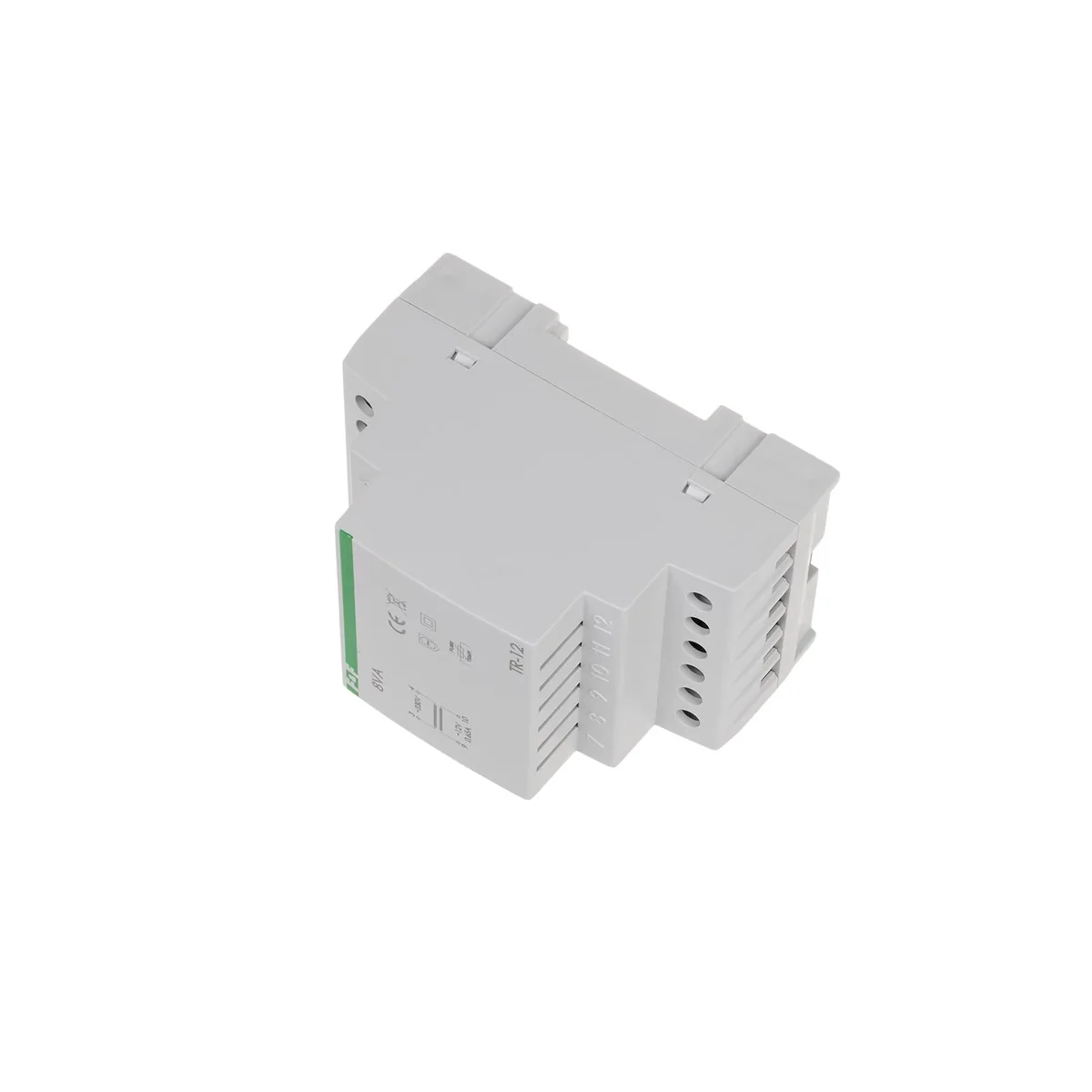

TR-12 mains transformer

Click on the photo to enlarge

TR-12 mains transformer
F&F

TR-12 mains transformer TR-12

local index:
AUU025FIFQ
Catalog No:
TR-12
EAN code:
5908312596103
Price:
18,55 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Use
TR is used to power electrical and electronic devices that do not require a stable, filtered supply voltage independent of changes in mains voltage. Note!
TR has a one-time electronic thermal fuse protecting the transformer against exceeding the temperature of 115°C. For complete protection of the receiver, it is recommended to connect an additional 1.5A overcurrent protection (e.g. BZ-1 fuse module) on the secondary side.


Print the product sheet Report an error

Technical data

  • Output power [W]
    8VA
  • Input voltage [V]
    230
  • Working temperature [°C]
    -25-35
  • Dimensions
    3 modules (52.5mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0, 31
  • Installation
    On the TH-35 rail
  • Output current [A]
    0.66A
  • Weight [g]
    310
  • Thermal protection
    Disposable thermal fuse
  • Package width [mm]
    60
  • Output current [A]
    0.66A

Other technical data

  • Built as safety transformer
    no
  • Built as energy saving transformer
    no
  • Secondary voltage 1
    12 ... 12 V
  • Short-circuit-proof
    no
  • Height
    90 mm
  • Degree of protection (IP)
    IP20
  • Suitable for mounting on PCB
    no
  • Built as isolating transformer
    yes
  • Primary voltage 1
    230 ... 230 V
  • Rated apparent power
    8 VA
  • Width
    52.5 mm
  • Depth
    65 mm
  • Ring core
    no
  • Modular version
    yes
