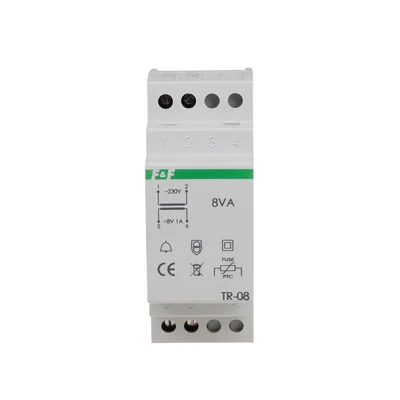

TR-08 mains transformer TR-08
local index:
AUU030FIFQ
Catalog No:
TR-08
EAN code:
5908312591313
Price:
18,25 €
gross / pcs.
(including VAT 23%)
61,66 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Use
TR is used to power electrical and electronic devices that do not require a stable, filtered supply voltage independent of changes in mains voltage. Note!
The PTC posistor is included in the transformer system as overcurrent protection.
For complete protection of the receiver, it is recommended to connect an additional 1.5A overcurrent protection (e.g. BZ-1 fuse module see p.14) after secondary page.
Technical data
-
Output power [W]8VA
-
Input voltage [V]230
-
Working temperature [°C]-25-35
-
Dimensions2 modules (35mm)
-
Package height [mm]150
-
Package weight [kg]0.296
-
PKWIU27.11.42.0
-
InstallationOn the TH-35 rail
-
Output current [A]1A
-
Weight [g]296
-
Thermal protectionPTC posistor
-
Package width [mm]40
-
Output current [A]1A
Other technical data
-
Built as safety transformerNo
-
Built as energy saving transformerNo
-
Secondary voltage 18 ... 8 V
-
Short-circuit-proofNo
-
Height90 mm
-
Degree of protection (IP)IP20
-
Suitable for mounting on PCBNo
-
Built as isolating transformerYes
-
Primary voltage 1230 ... 230 V
-
Rated apparent power8 VA
-
Width35 mm
-
Depth65 mm
-
Ring coreNo
-
Modular versionYes
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,310 |
| Width (m) | 0,041 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
