Switching power supply ZI-21 ZI-21

local index:
AUU022FIFQ
Catalog No:
ZI-21
EAN code:
5908312596318
Manufacturer: F&F
Switching frequency [kHz]: 70
Output power [W]: 12
Installation: On the TH-35 rail
Price:
30,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

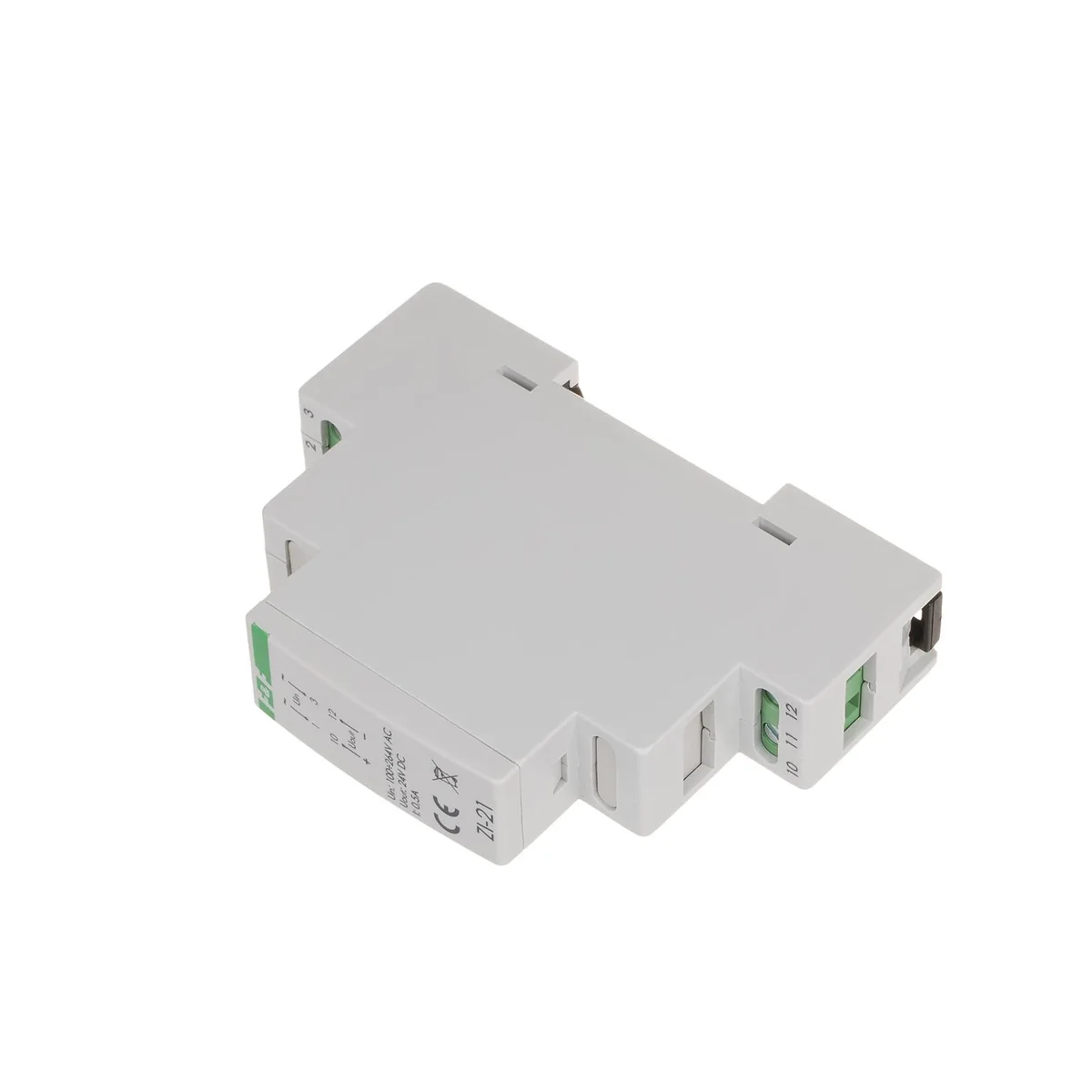

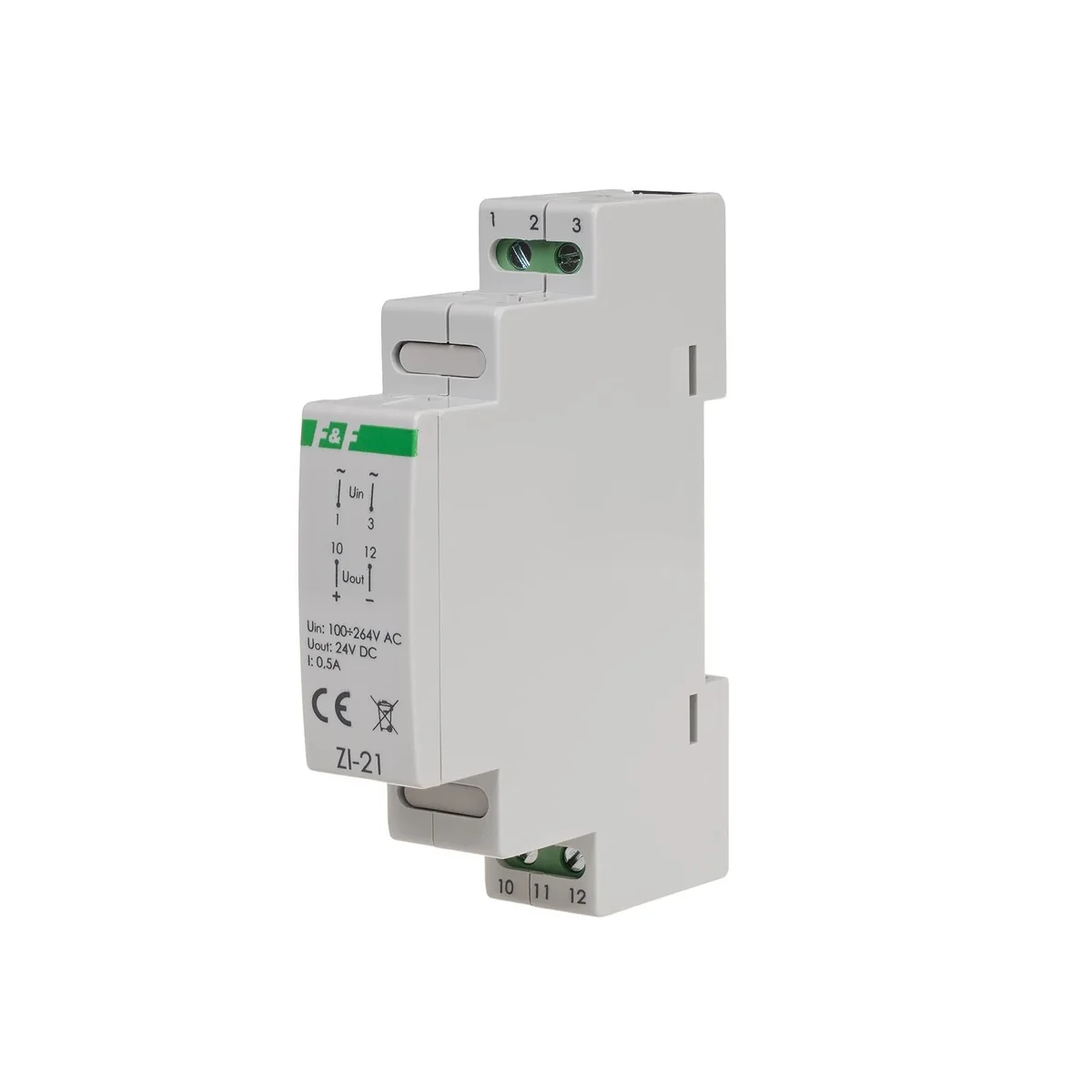

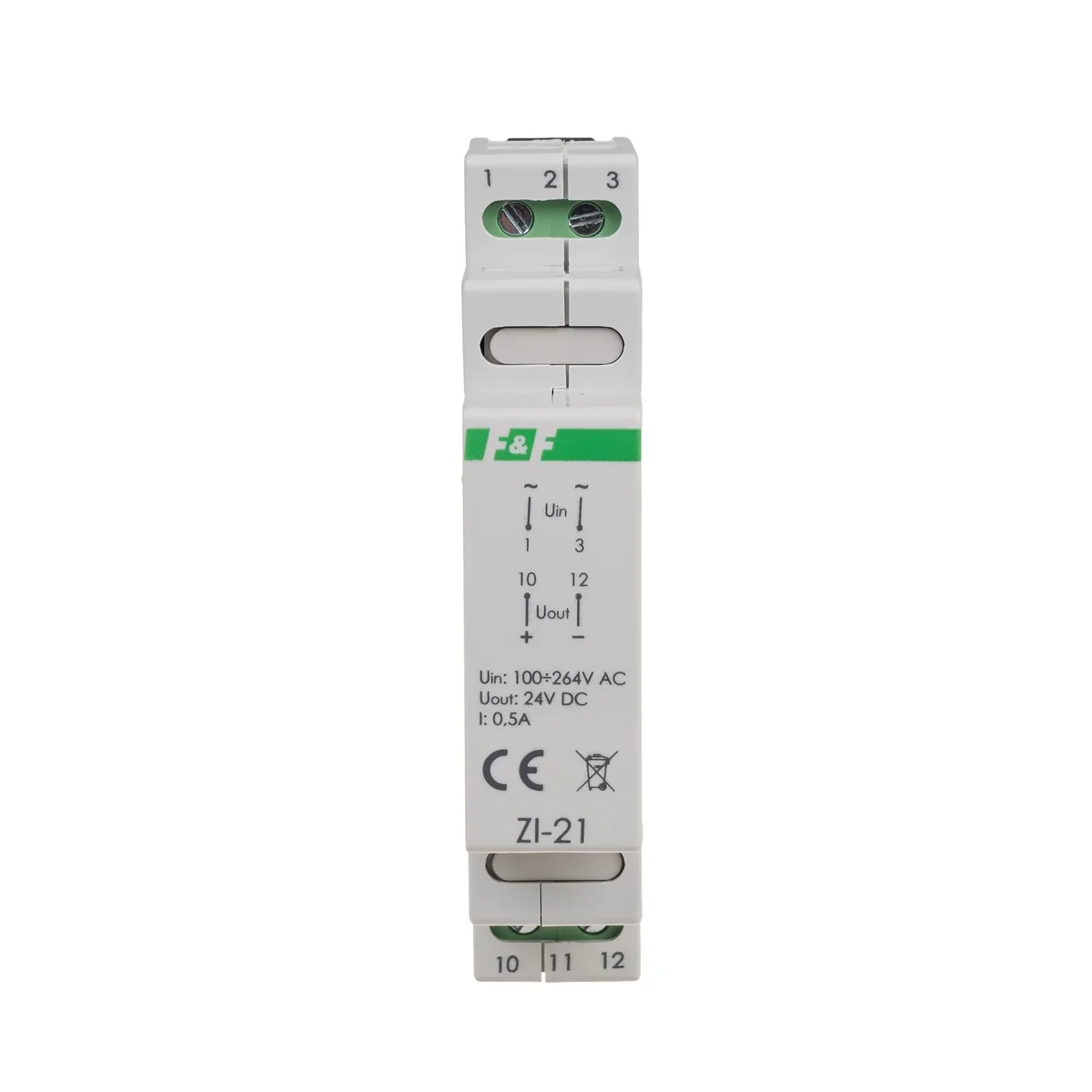

ZI-21 switching power supply.

Technical data

  • Switching frequency [kHz]
    70
  • Installation
    On the TH-35 rail
  • Current limit [A]
    110
  • Working temperature [°C]
    -10-40
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.11.42.0
  • Output power [W]
    12
  • Input voltage [V]
    85-264
  • connection
    2.5mm screw terminals
  • Weight [g]
    80
  • Package height [mm]
    150
  • Package weight [kg]
    0.08

Other technical data

  • Voltage type (supply voltage)
    AC
  • Max. output current 1
    0.5 A
  • Short-circuit-proof
    yes
  • Rated supply voltage AC 60 Hz
    100 ... 264 V
  • Power consumption
    12 VA
  • Stabilized
    yes
  • Rail mounting possible
    yes
  • Modular version
    yes
  • Built-in height
    65 mm
  • Width
    18 mm
  • Depth
    65 mm
  • Degree of protection (IP)
    IP20
  • 1st secondary output voltage
    24 ... 24 V
  • Secondary voltage adjustable
    no
  • Rated supply voltage AC 50 Hz
    100 ... 264 V
  • Output voltage stabilized
    yes
  • Power output
    12 W
  • Type of electric connection
    Screw-/spring clamp connection
  • Wall mounting possible
    no
  • Width in number of modular spacings
    1
  • Direct mounting possible
    yes
  • Height
    90 mm
  • Suitable for safety functions
    no

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,060
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
