Power sources
Power supplies
Switching power supply ZI-20 ZI-20
local index:
AUU012FIFQ
Catalog No:
ZI-20
EAN code:
5908312596417
Click on the photo to enlarge
Manufacturer:
F&F
Switching frequency [kHz]:
70
Power [W]:
12
Installation:
On the TH-35 rail
See full description
Price:
31,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description

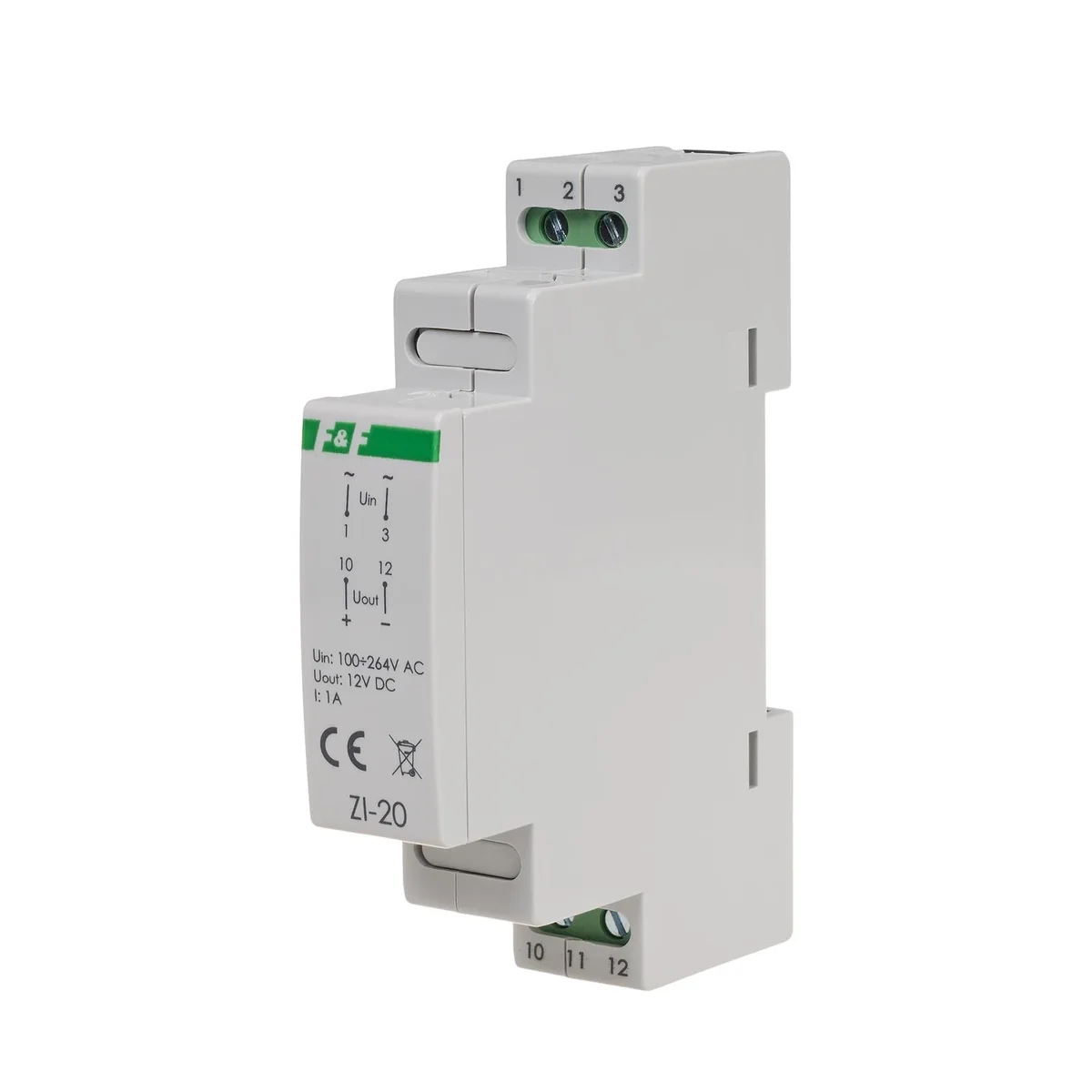

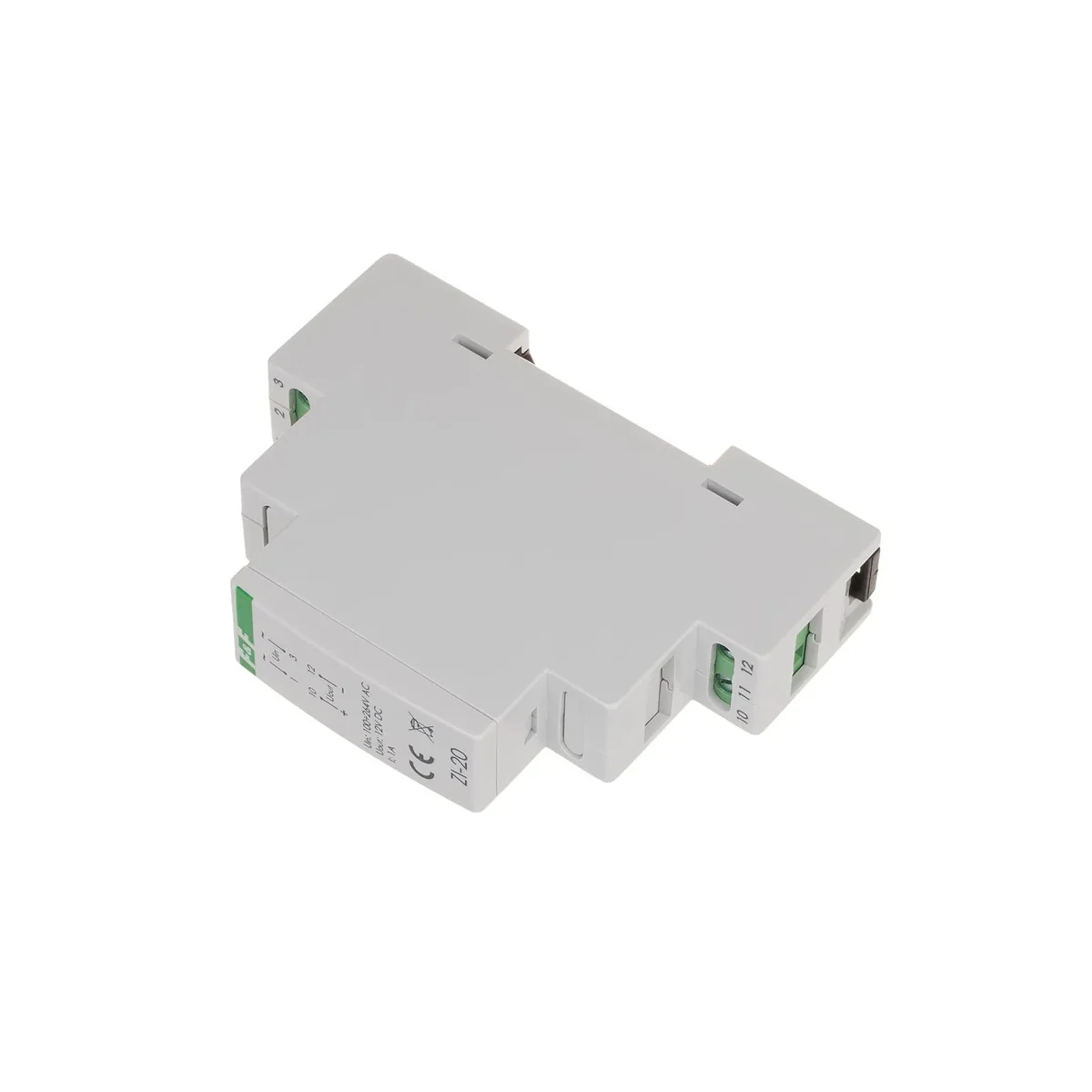

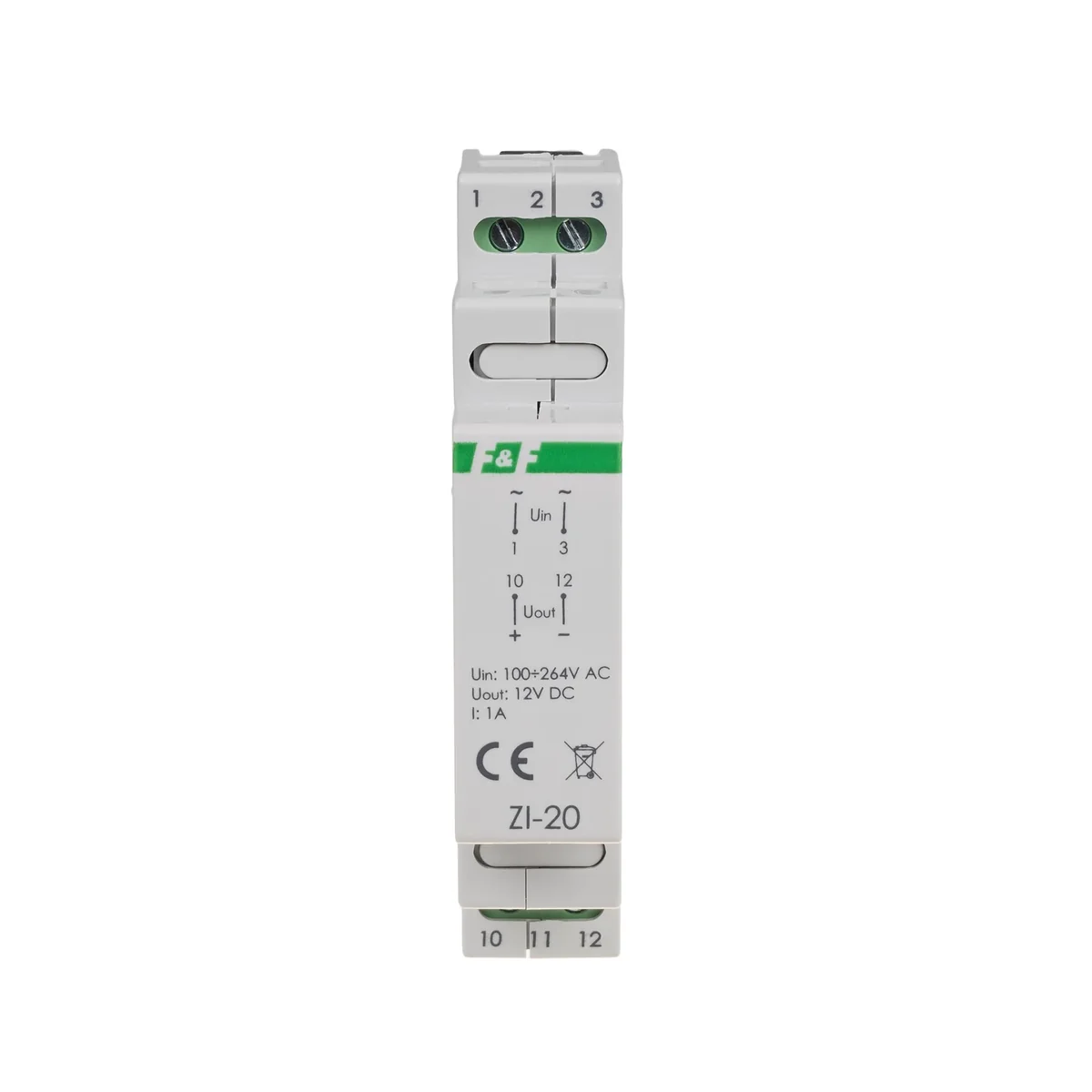

Switching power supply ZI-20
Technical data
Switching frequency [kHz]
70
Installation
On the TH-35 rail
connection
2.5mm screw terminals
Dimensions
1 module (18mm)
Package width [mm]
20
PKWIU
27.11.42.0
Power [W]
12
Input voltage [V]
85-264
Working temperature [°C]
-10-40
Package height [mm]
150
Package weight [kg]
0.1
Other technical data
Voltage type (supply voltage)
AC
Max. output current 1
1 A
Short-circuit-proof
Yes
Rated supply voltage AC 60 Hz
100 ... 264 V
Power consumption
12 VA
Stabilized
Yes
Rail mounting possible
Yes
Modular version
Yes
Built-in width
18 mm
Direct mounting possible
Yes
Height
65 mm
Suitable for safety functions
No
1st secondary output voltage
12 ... 12 V
Secondary voltage adjustable
No
Rated supply voltage AC 50 Hz
100 ... 264 V
Output voltage stabilized
Yes
Power output
12 W
Type of electric connection
Screw-/spring clamp connection
Wall mounting possible
No
Width in number of modular spacings
1
Built-in height
90 mm
Width
18 mm
Depth
90 mm
Degree of protection (IP)
IP20
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Weight (kg)
0,060
Width (m)
0,019
Length (m)
0,095
Depth (m)
0,070
Files to download
FF_RoHS_2022.pdf
FF014_ZS_ZI_ZT_ECH_MST_PLD_dek_zgod_CE.pdf
FF_RoHS_2022.pdf
FF014_ZS_ZI_ZT_ECH_MST_PLD_dek_zgod_CE.pdf
