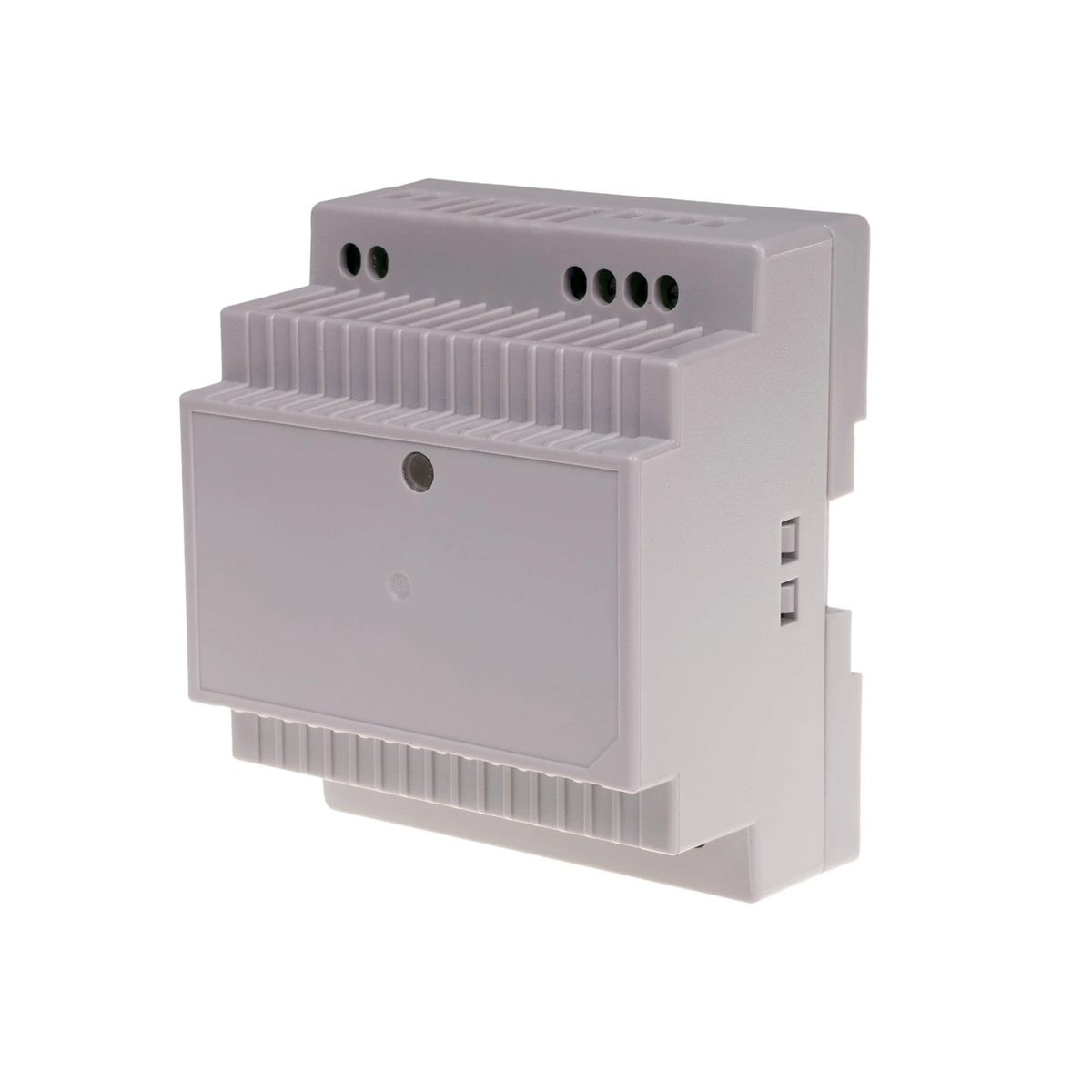

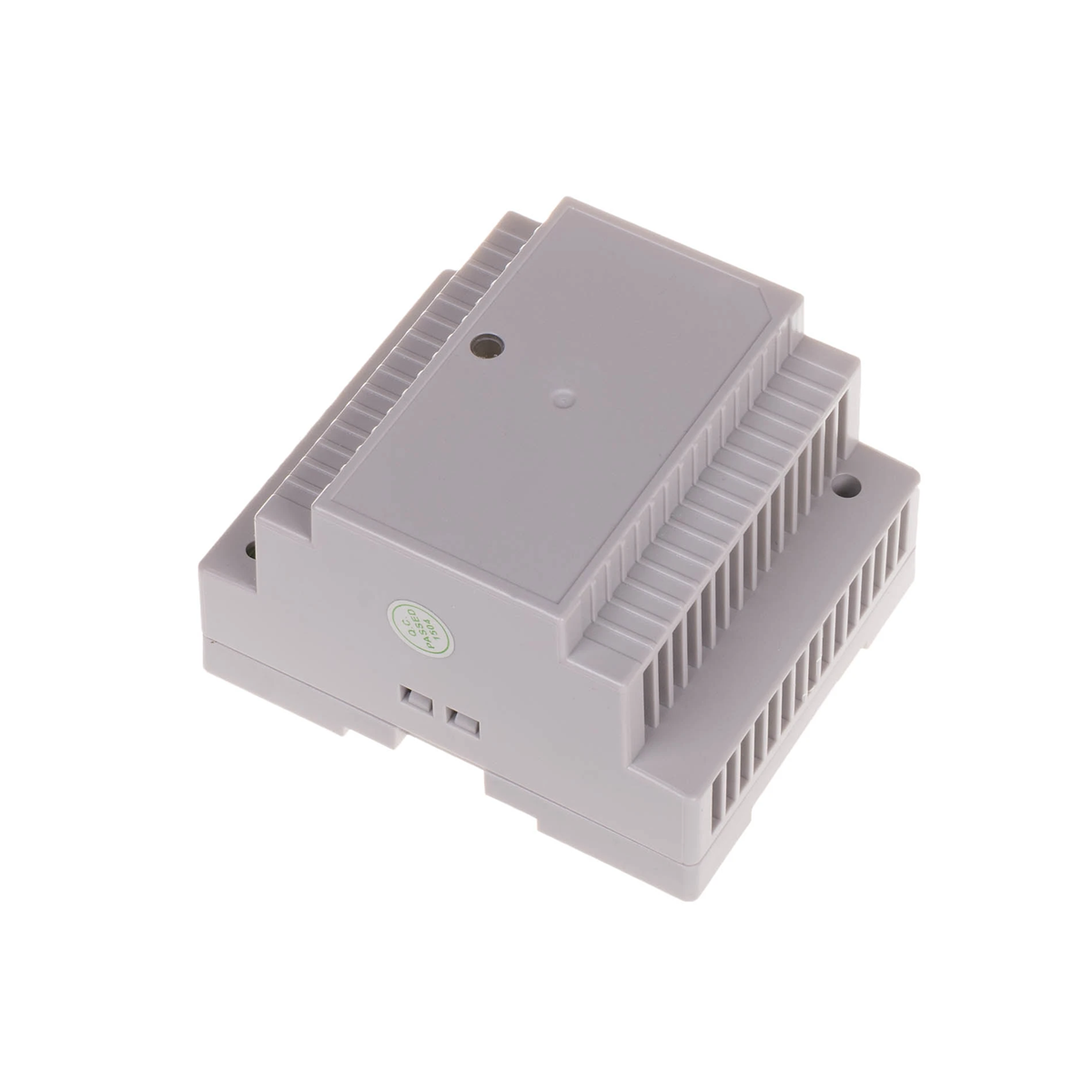

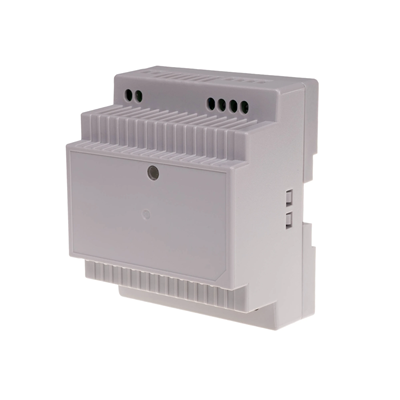

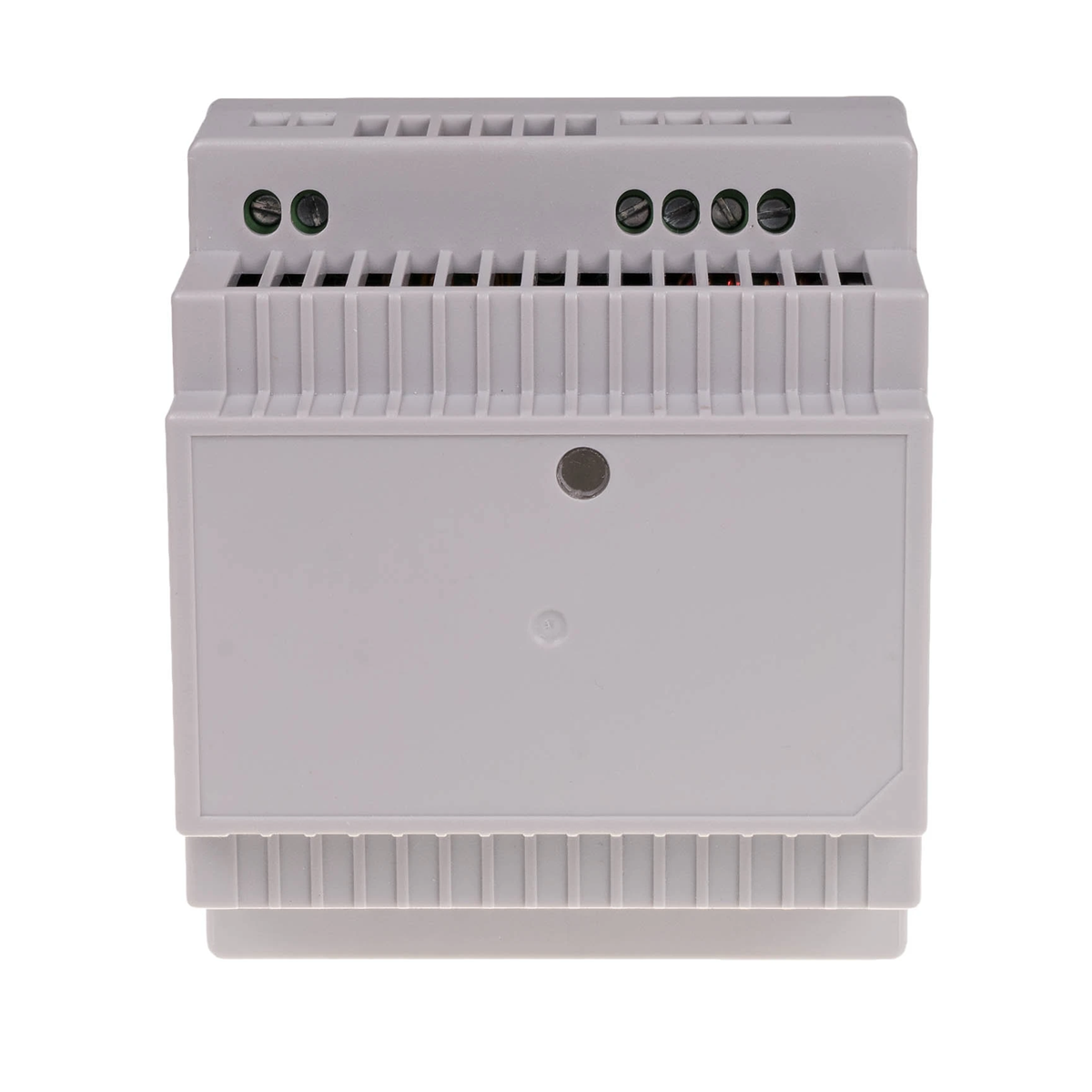

Switching power supply 60W 185-265V-AC 24V-DC ZI-61-24V

local index:
AUD004FIFQ
Catalog No:
ZI-61-24V
EAN code:
5908312599760
Manufacturer: F&F
Power [W]: 60
Input voltage [V]: 185-266
Price:
35,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switching power supply with input voltage 185-265V AC and output voltage 24V DC (60W)

Technical data

  • Power [W]
    60
  • PKWIU
    27.11.42.0
  • Input voltage [V]
    185-266

Other technical data

  • Voltage type (supply voltage)
    DC
  • Max. output current 1
    2.5 A
  • Nominal value output voltage 1
    24 V
  • Output voltage stabilized
    Yes
  • Stabilized
    Yes
  • Rail mounting possible
    Yes
  • Modular version
    Yes
  • Direct mounting possible
    No
  • Degree of protection (IP)
    IP20
  • 1st secondary output voltage
    36 ... 45 V
  • Secondary voltage adjustable
    Yes
  • Rated supply voltage AC 50 Hz
    180 ... 264 V
  • Power output
    60 W
  • Type of electric connection
    Screw connection
  • Wall mounting possible
    No
  • Width in number of modular spacings
    4.5
  • Width
    78 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
