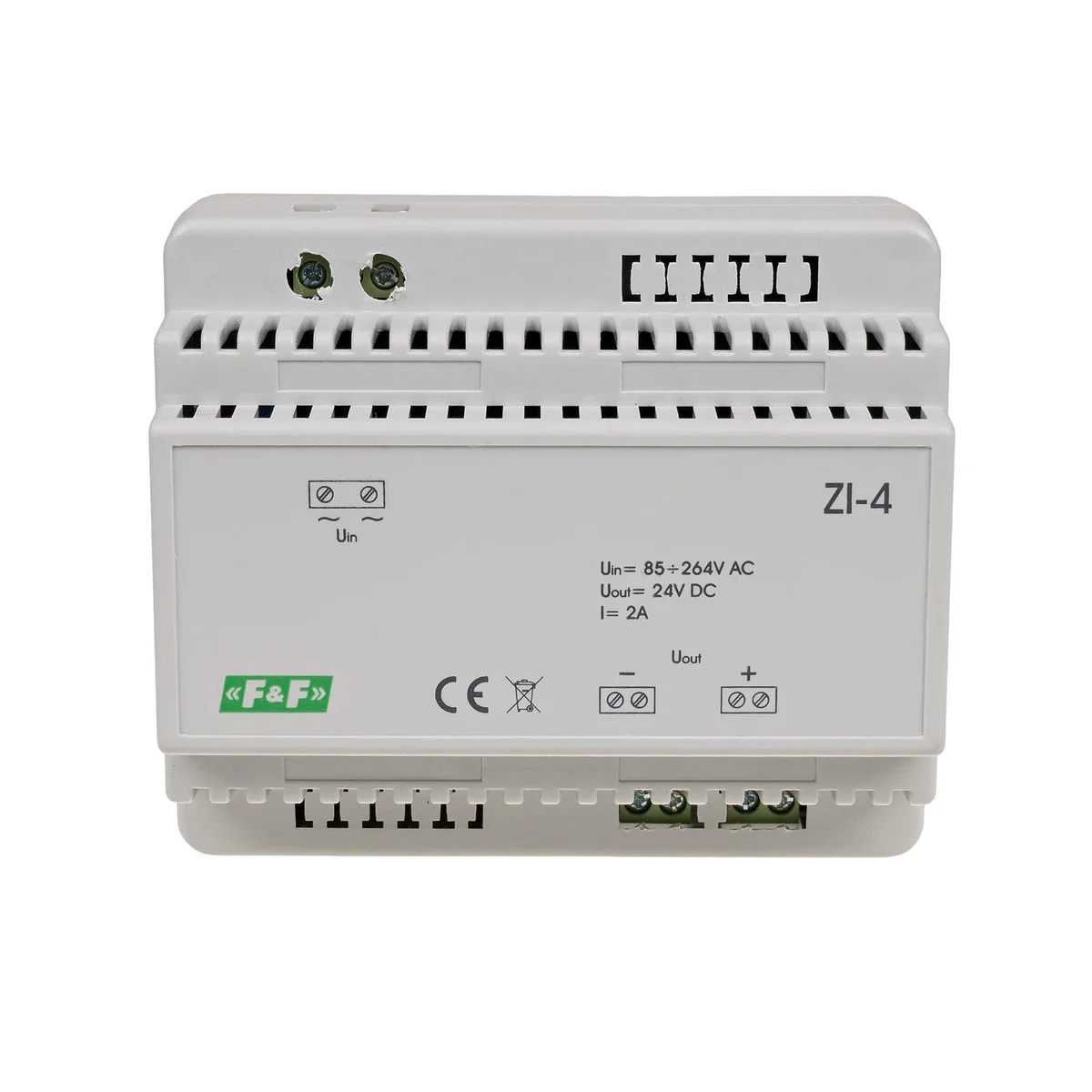

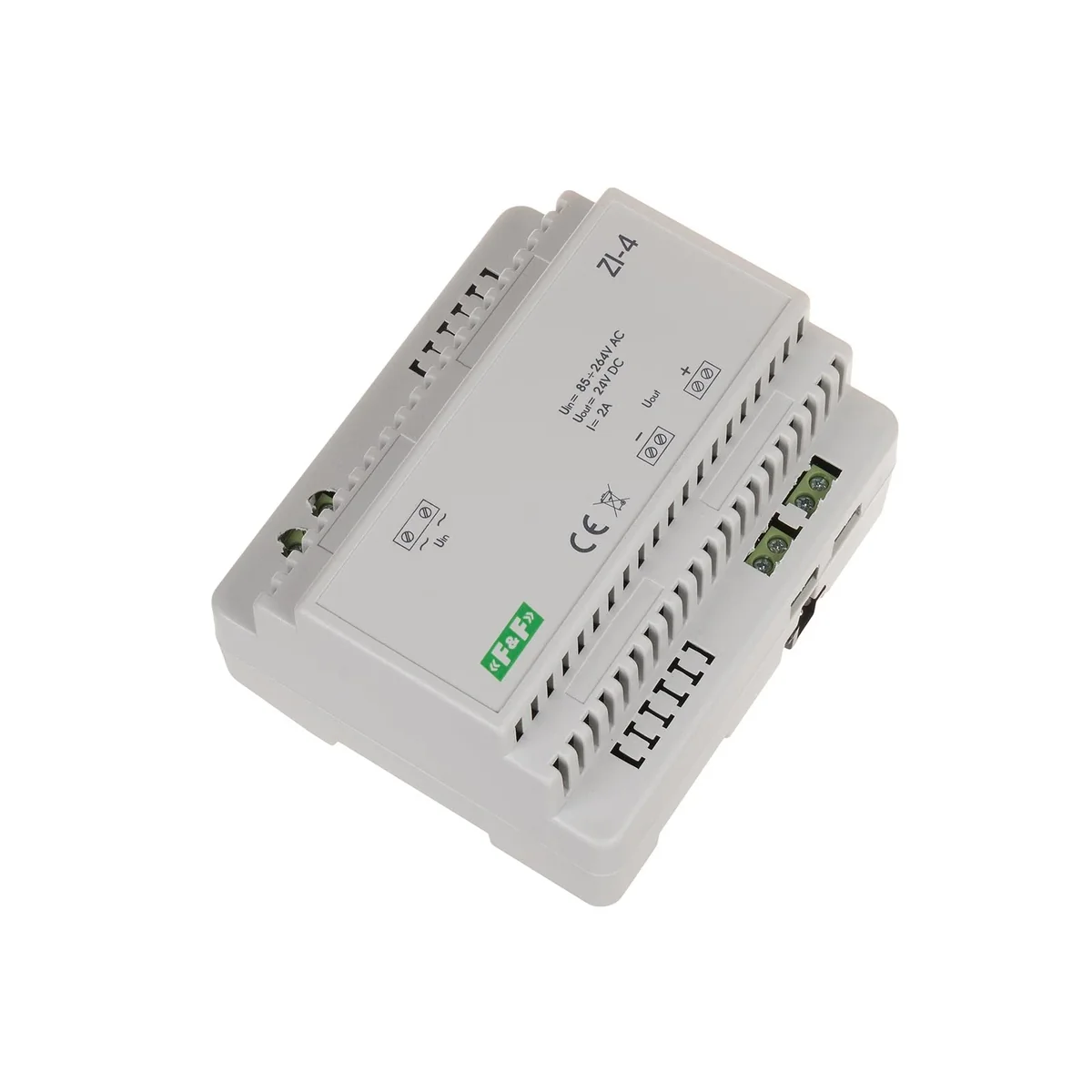

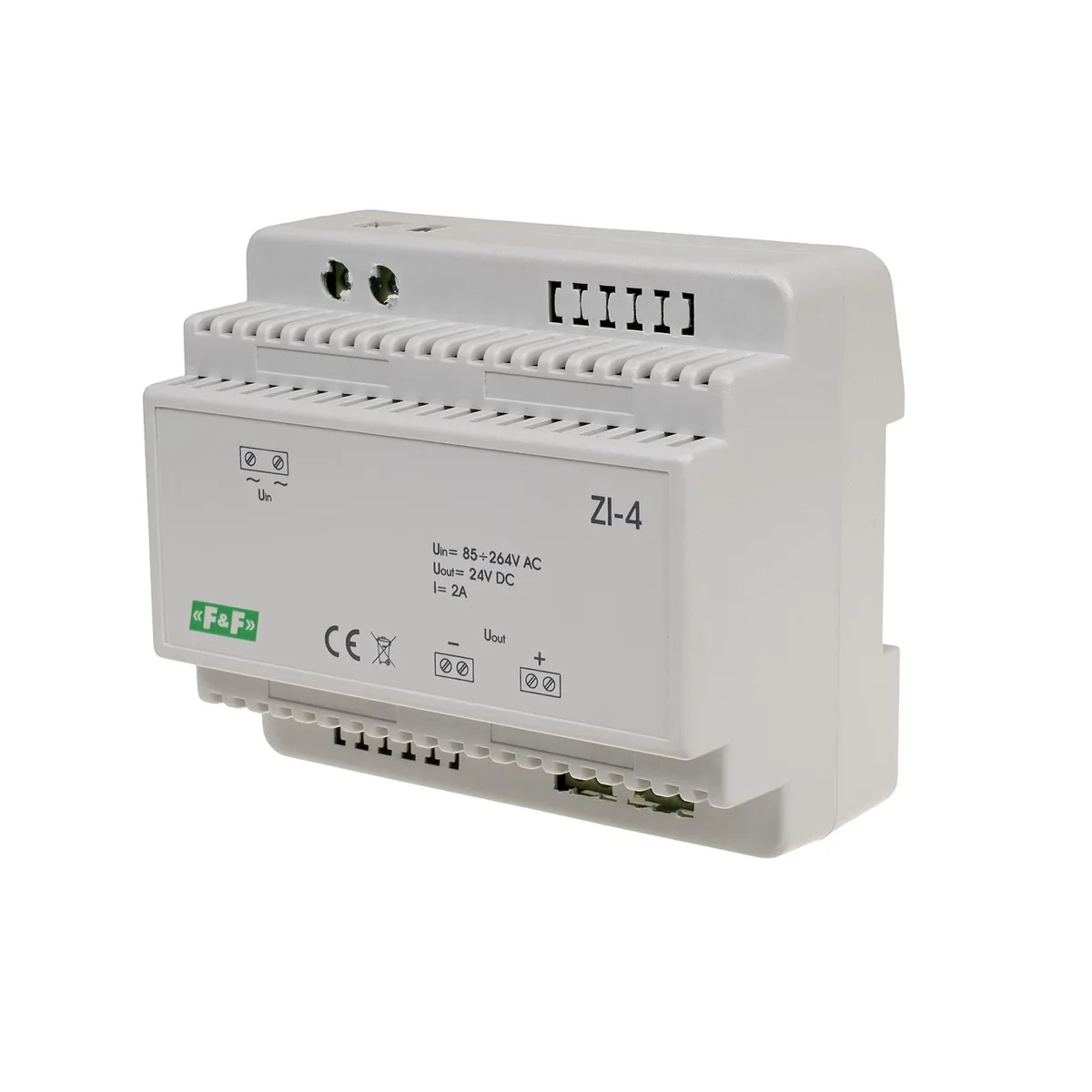

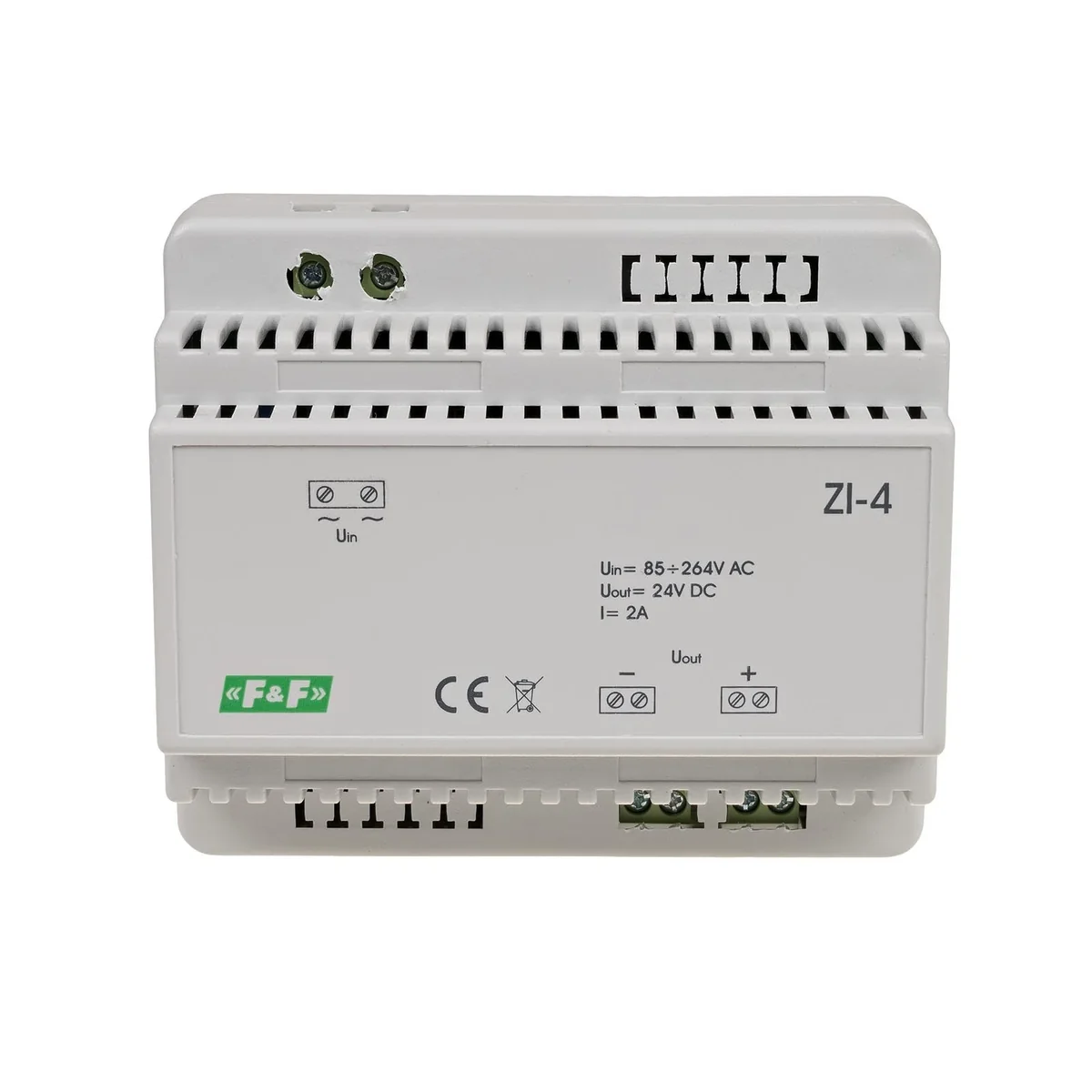

Switching power supply 24V ZI-4 ZI-4

local index:
AUU006FIFQ
Catalog No:
ZI-4
EAN code:
5908312595809
Manufacturer: F&F
Switching frequency [kHz]: 70
Output power [W]: 50
Installation: On the TH-35 rail
Price:
48,40 €
gross / pcs.
(including VAT 23%)
254,74 € gross/kg.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Note!
*Below 160V input voltage, the power supply will continue to stabilize the output voltage, but the maximum output current will decrease as the input voltage decreases.
* Due to the high operating frequency of the inverter, some highly sensitive radio or microprocessor devices may malfunction. It is recommended to install an OP-230 filter (see item 18) between the power supply and the receiver.
*When the load is increased above Imax, the power supply will stabilize the current and the voltage. out will fall. If the voltage out drops to approx. 40%, the power supply will turn off and will be on every 1.5÷2sec. try. The same will happen when connecting a receiver that draws a large starting current (e.g. a cold bulb). If the overload is not too large, the power supply will start after a few attempts (e.g. gradual warming up of the bulb filament). If the load is too large, the power supply will keep trying until the load is removed.

Technical data

  • Switching frequency [kHz]
    70
  • Installation
    On the TH-35 rail
  • Current limit [A]
    110
  • Working temperature [°C]
    -10-40
  • Dimensions
    6 modules (105mm)
  • Package width [mm]
    130
  • PKWIU
    27.11.42.0
  • Output power [W]
    50
  • Input voltage [V]
    85-264
  • connection
    2.5mm screw terminals
  • Weight [g]
    190
  • Package height [mm]
    150
  • Package weight [kg]
    0.19

Other technical data

  • Voltage type (supply voltage)
    DC
  • Max. output current 1
    2 A
  • Rated supply voltage AC 50 Hz
    85 ... 264 V
  • Output voltage stabilized
    Yes
  • Power output
    50 W
  • Type of electric connection
    Screw-/spring clamp connection
  • Wall mounting possible
    No
  • Width in number of modular spacings
    6
  • Direct mounting possible
    No
  • Height
    89 mm
  • Degree of protection (IP)
    IP20
  • 1st secondary output voltage
    24 ... 24 V
  • Secondary voltage adjustable
    No
  • Rated supply voltage AC 60 Hz
    85 ... 264 V
  • Power consumption
    60 VA
  • Stabilized
    Yes
  • Rail mounting possible
    Yes
  • Modular version
    Yes
  • Built-in height
    65 mm
  • Width
    105 mm
  • Depth
    65 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,272
Width (m) 0,105
Length (m) 0,120
Depth (m) 0,070
