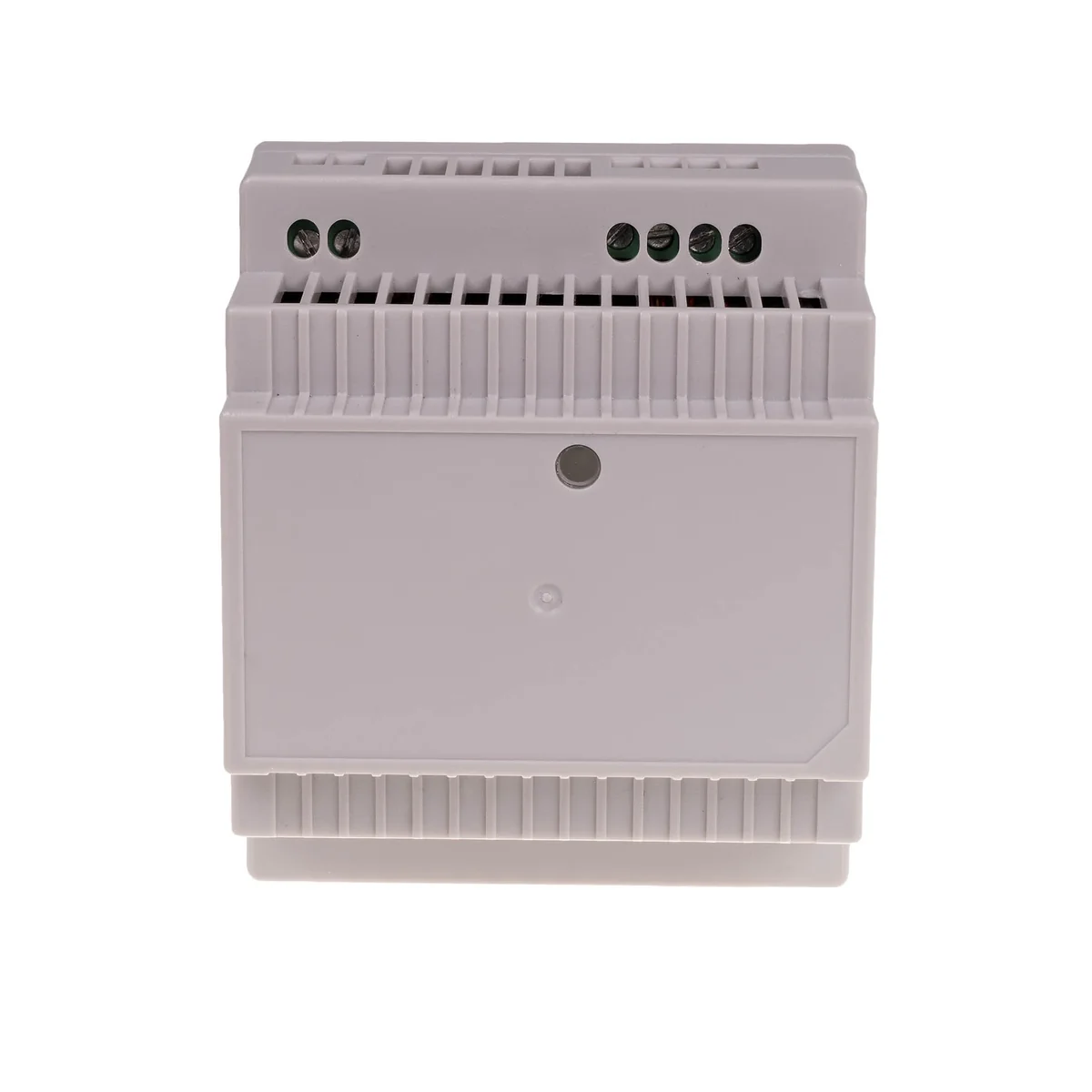

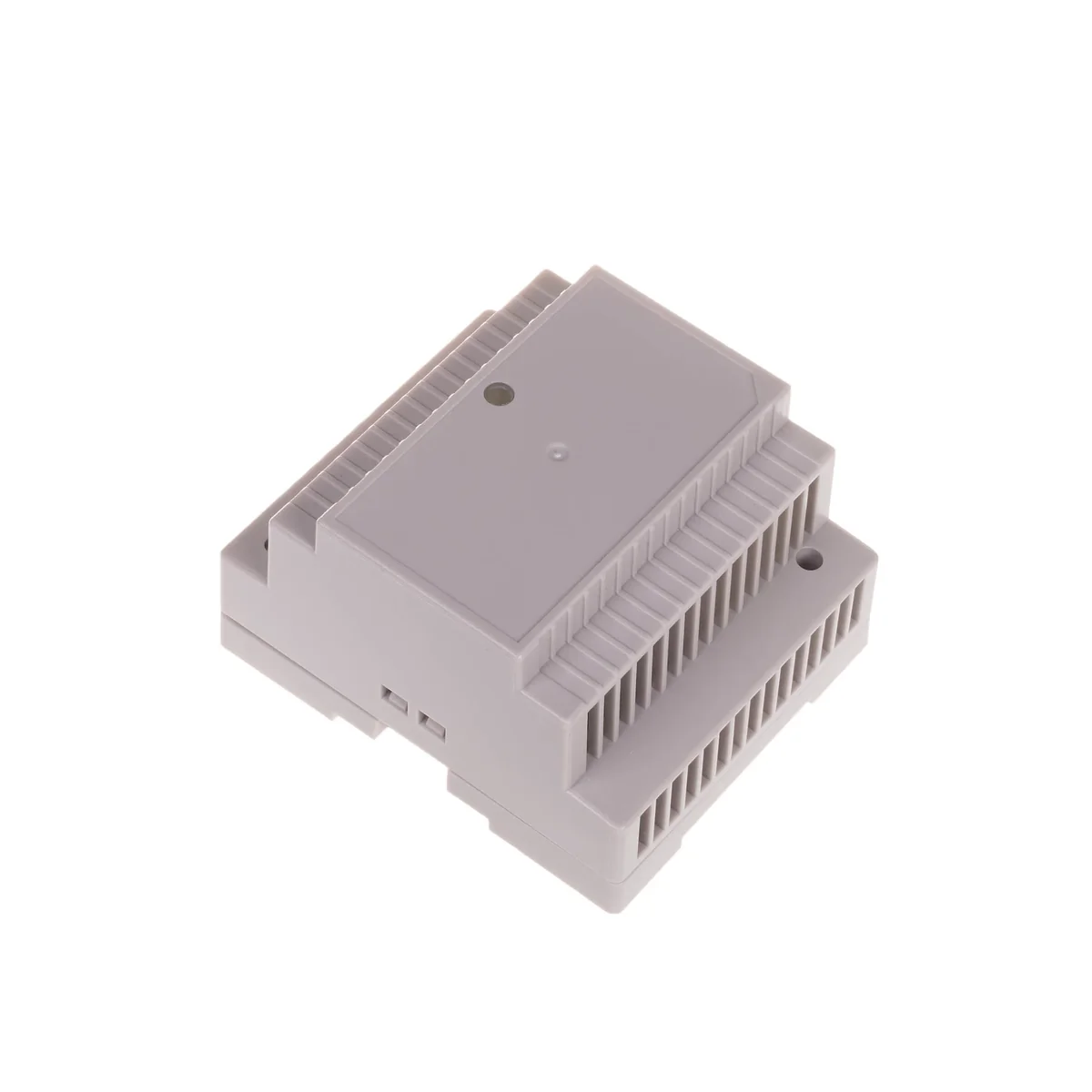

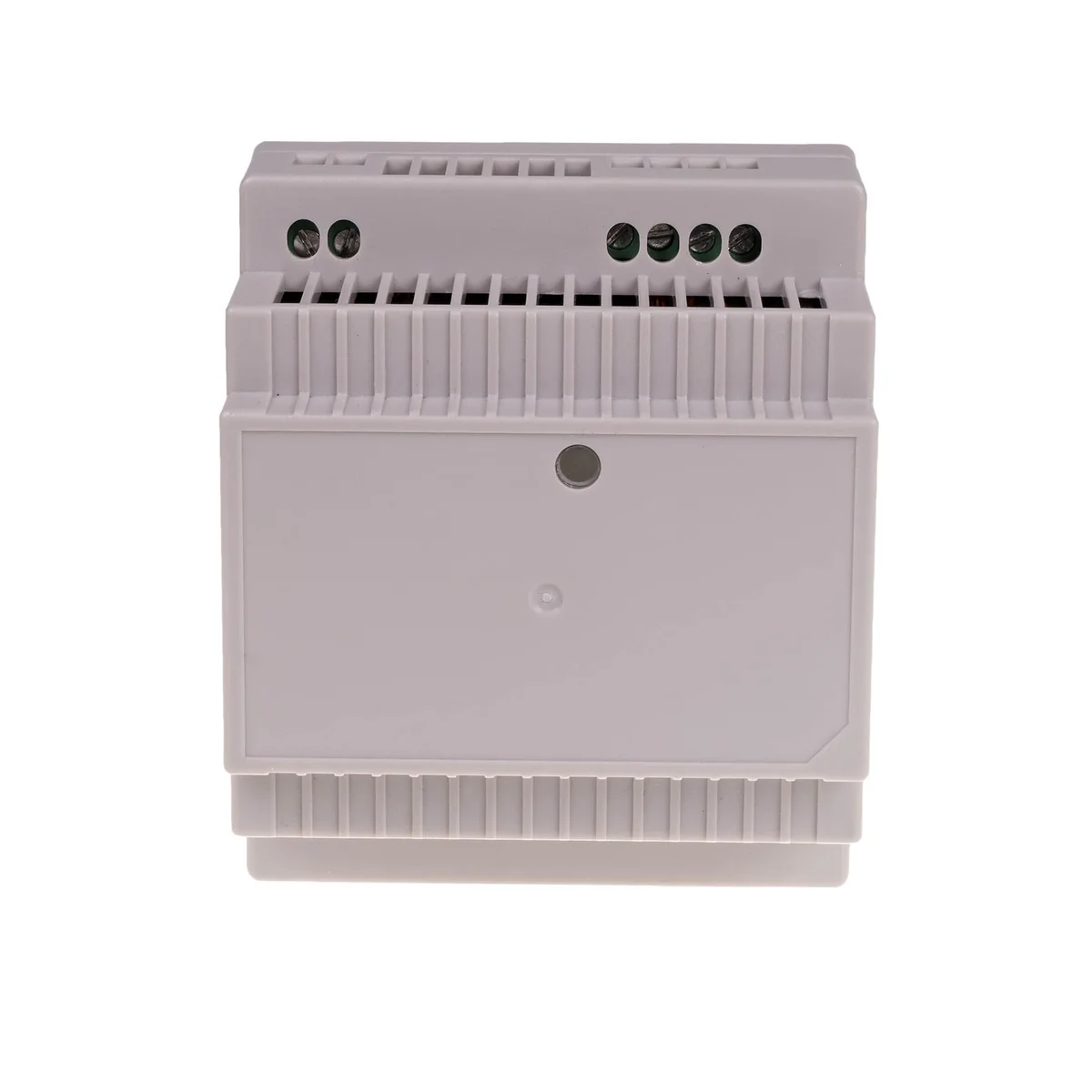

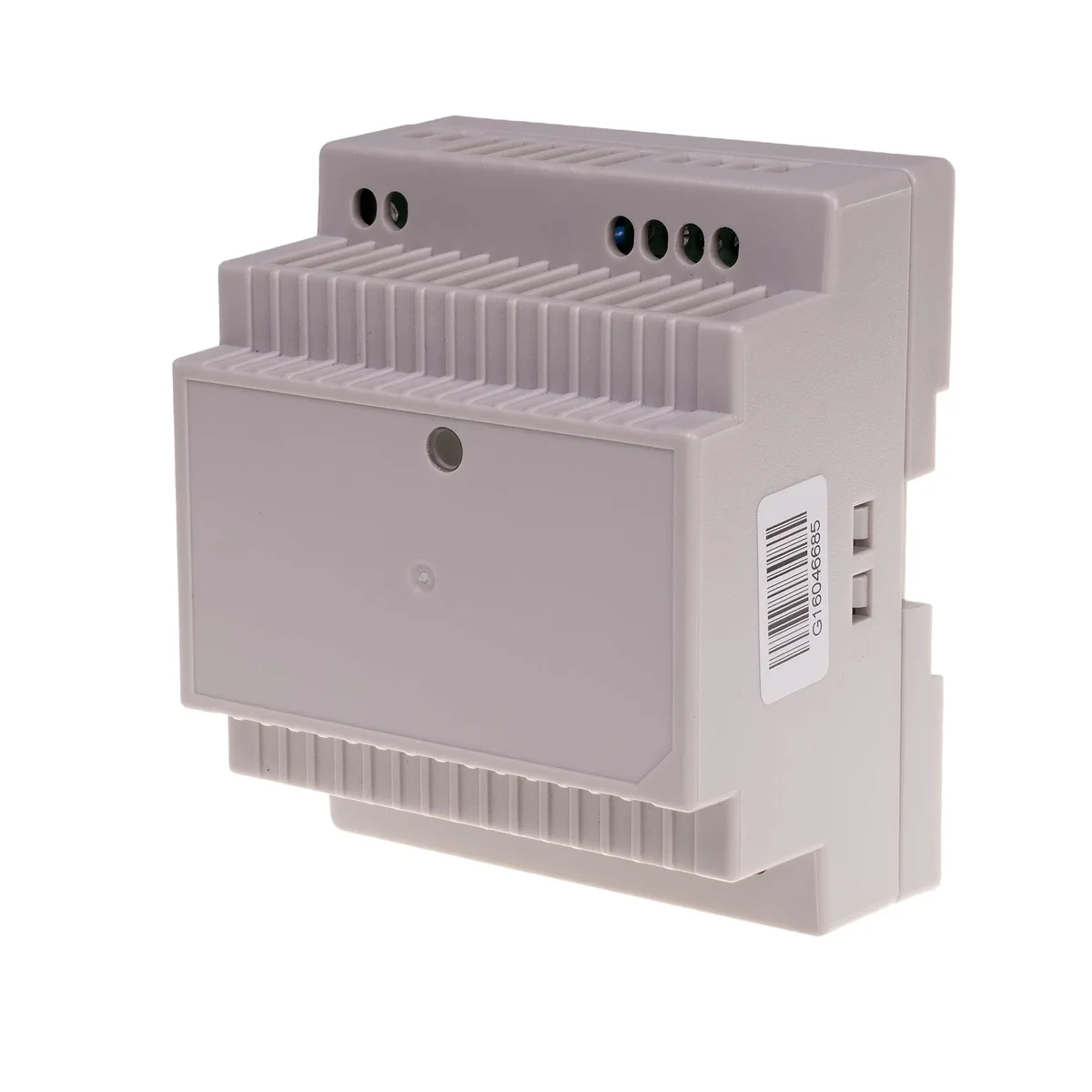

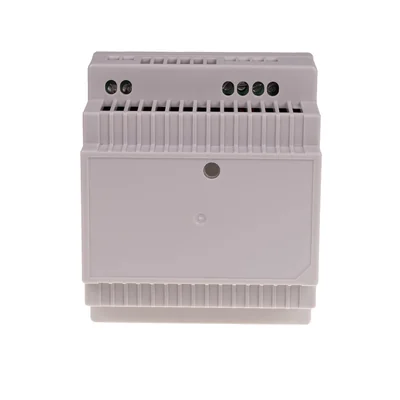

Switching power supply 12V DC 5A 60W ZI-61-12V

local index:
AUU038FIFQ
Catalog No:
ZI-61-12V
EAN code:
5908312599753
Manufacturer: F&F
Power [W]: 60
Tightening torque [Nm]: 0.4
DC output voltage [V]: 12
Price:
35,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switching power supply from the F&F manufacturer. The product catalog number is ZI-61-12V. It is intended for powering electrical and electronic devices that require a stable, filtered supply voltage independent of mains voltage changes.



Securities:

  • short-circuit - in case of overload or short-circuit , the output voltage is automatically disconnected. The PSU cyclically tries to switch on the power supply and when the cause of the protection actuation disappears, the rated supply voltage will be restored.
  • overvoltage - cutting off the output voltage. The return to normal operation is possible only after turning the power off and on again.
  • thermal - cutting off the output voltage. The voltage will be restored when the temperature reaches a safe value again.



Features:

  • Output voltage stabilization - when changing the output voltage: ±1%.
  • Stabilization of the output voltage - when changing the output current: ±1%.
  • Ripple and noise: 240 mVp- p.
  • Overload: 120÷180% Iout
  • Overvoltage protection threshold: 18÷23 V.
  • Thermal protection threshold: 135÷165°C.
  • Dimensions: 4.5 modules (78 mm).
  • Mounting: on 35 mm rail.

Technical data

  • Power [W]
    60
  • DC output voltage [V]
    12
  • Rated current [A]
    5
  • Level of security
    IP20
  • AC supply voltage [V]
    180÷264
  • Terminal type
    Threaded
  • Tightening torque [Nm]
    0.4
  • leakage current [mA]
    1
  • PSU efficiency [%]
    87
  • Voltage regulation range [V]
    10.8÷13.8
  • Starting current [A]
    40
  • PKWIU
    27.11.42.0

Other technical data

  • Voltage type (supply voltage)
    DC
  • Max. output current 1
    5 A
  • Nominal value output voltage 1
    12 V
  • Output voltage stabilized
    Yes
  • Stabilized
    Yes
  • Rail mounting possible
    Yes
  • Modular version
    Yes
  • Direct mounting possible
    No
  • Degree of protection (IP)
    IP20
  • 1st secondary output voltage
    10.8 ... 13.8 V
  • Secondary voltage adjustable
    Yes
  • Rated supply voltage AC 50 Hz
    180 ... 264 V
  • Power output
    60 W
  • Type of electric connection
    Screw connection
  • Wall mounting possible
    No
  • Width in number of modular spacings
    4.5
  • Width
    78 mm
