Switched-mode power supply on the primary side with control and charging unit, Classic, 1-phase, output voltage 24 V DC, output current 5 A, with communication capability, 10.00 mm² 787-1675

Name: Switched-mode power supply on the primary side with control and charging unit, Classic, 1-phase, output voltage 24 V DC, output current 5 A, with communication capability, 10.00 mm²
Brand: WAGO ELWAG
SKU: AUU011WAGO
Price: 1268.49 PLN
Availability: BackOrder

Index local:

AUU011WAGO

Numéro de catalogue:

787-1675

Code EAN:

4050821502616

Switched-mode power supply on the primary side with control and charging unit, Classic, 1-phase, output voltage 24 V DC, output current 5 A, with communication capability, 10.00 mm²

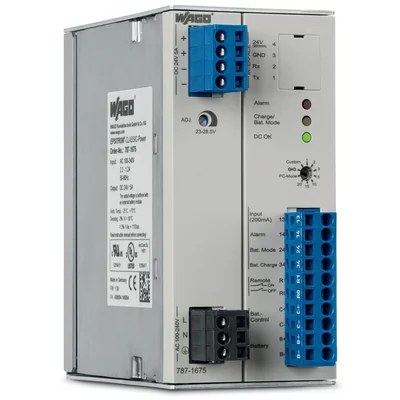

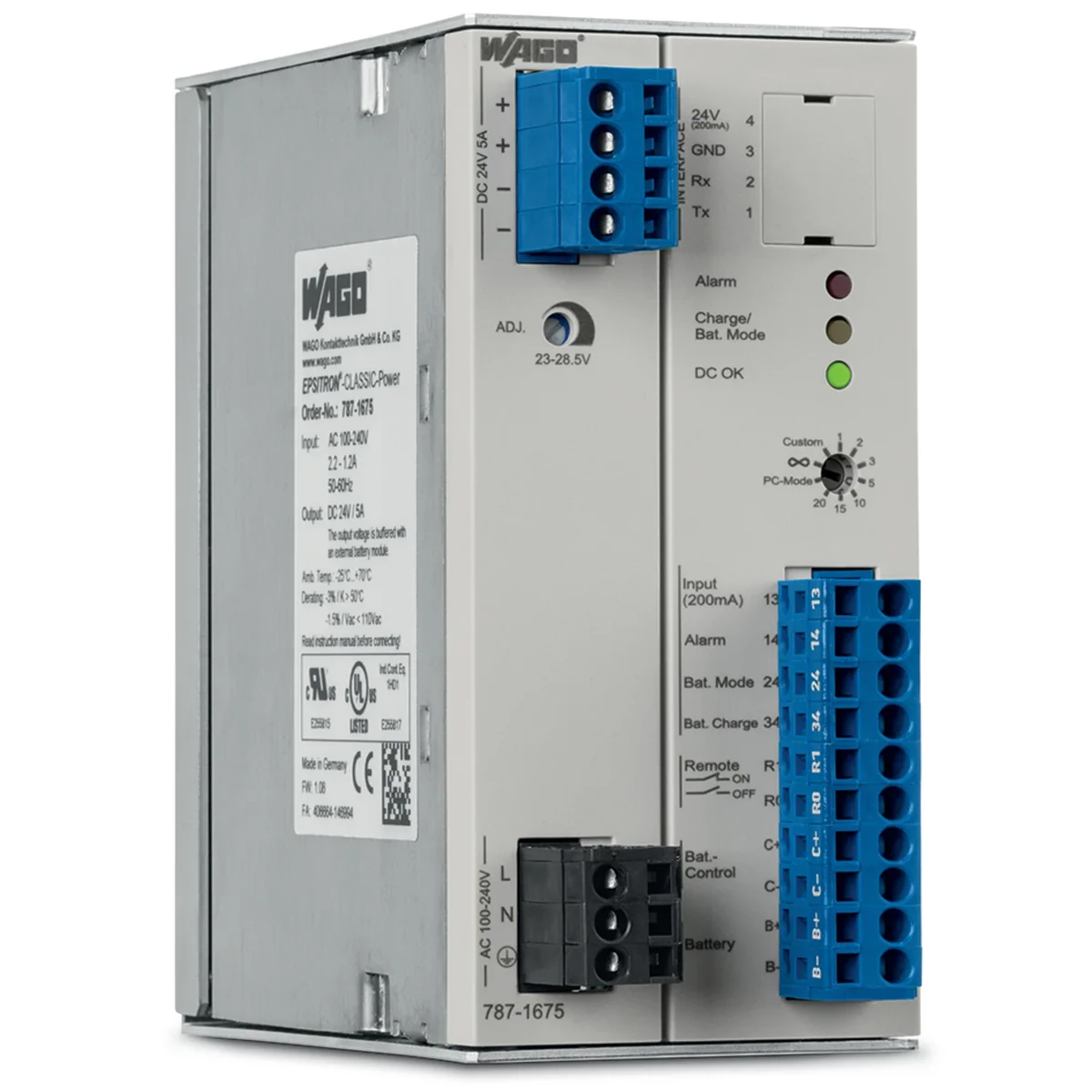

Cliquer sur la photo pour l'agrandir

Producteur: WAGO ELWAG

Prix:

1 268,49 zł

gross / pcs.

(y compris la TVA 23%)

2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Emballage en vrac

Données techniques

Autres données techniques

Voltage type (supply voltage)

AC
2nd secondary output voltage

18.5 ... 27.5 V
Secondary voltage adjustable

Yes
Nominal value output current 1

5 A
Rated supply voltage AC 50 Hz

85 ... 264 V
Output voltage stabilized

Yes
Type of electric connection

Spring clamp connection
Wall mounting possible

No
Width in number of modular spacings

4
Width

60 mm
Depth

135.5 mm
Degree of protection (IP)

IP20

1st secondary output voltage

23 ... 28.5 V
Max. output current 1

5 A
Nominal value output voltage 1

24 V
Short-circuit-proof

Yes
Rated supply voltage AC 60 Hz

85 ... 264 V
Stabilized

Yes
Rail mounting possible

Yes
Modular version

No
Direct mounting possible

No
Height

127 mm
Suitable for safety functions

No

Détails du fabricant

Producteur

WAGO GmbH & Co. KG
Adresse

32423 Minden Hansastraße 27 Niemcy
E-mail

wago.elwag@wago.com

Emballage en vrac

Une sorte de paquet	Karton	Karton
Quantité	1 pcs.	1 pcs.
poids (kg)	0,916	0,916
Volume (m3)	0,000	0,000
Largeur (m)	0,191	0,191
Longueur (m)	0,208	0,208
Profondeur (m)	0,102	0,102
