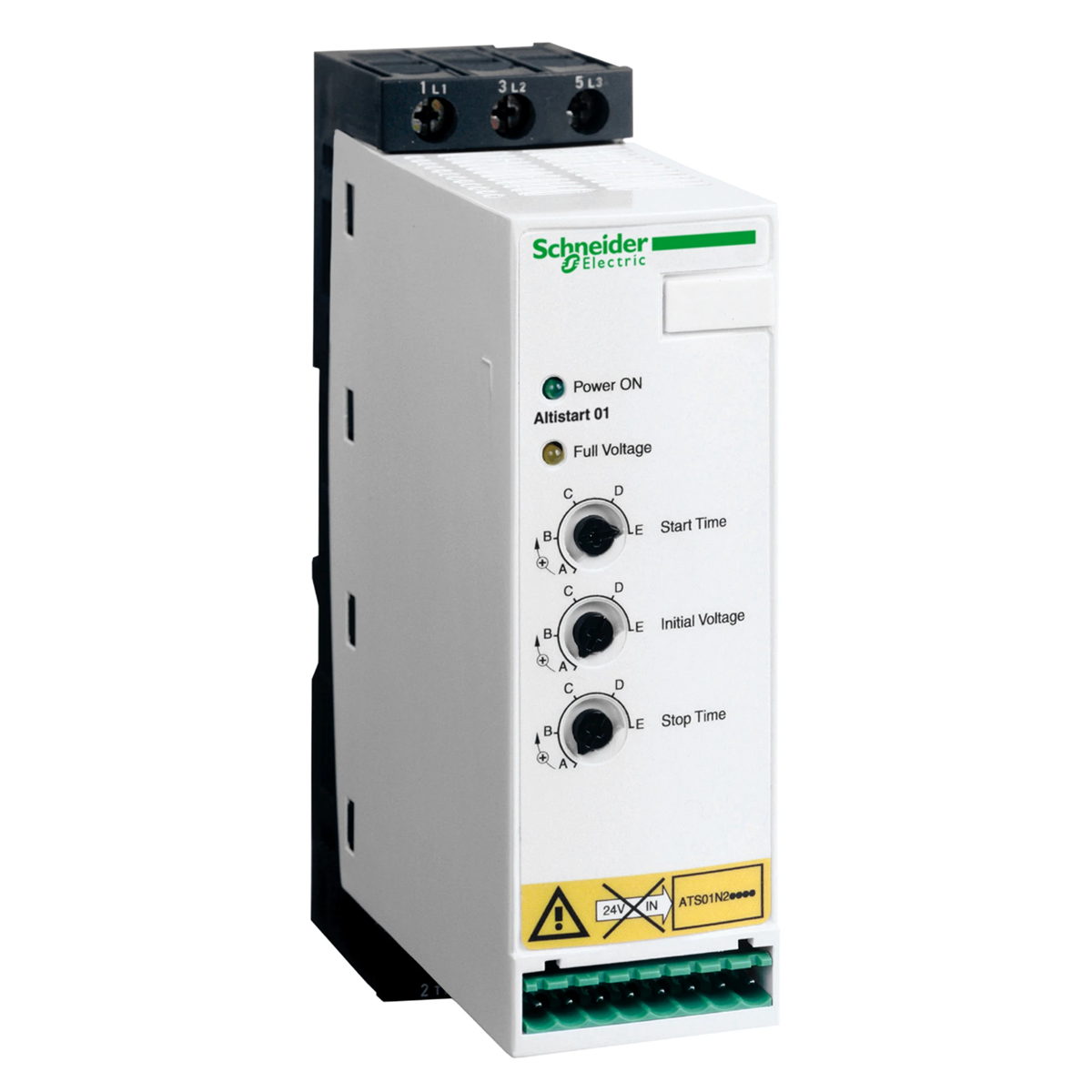

Soft starter ATS01 3 phase 380/415VAC 50/60Hz 11kW 22A IP20 ATS01N222QN

local index:
AUS012SCHN
Catalog No:
ATS01N222QN
EAN code:
3389110667318
Manufacturer: SCHNEIDER ELECTRIC
Rated voltage [V]: 400
Rated current [A]: 22
Price:
328,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Soft starter ATS01 3 phase 380/415VAC 50/60Hz 11kW 22A IP20

Technical data

  • Rated voltage [V]
    400
  • PKWIU
    27.90.41.0
  • Rated current [A]
    22

Other technical data

  • Rated operation current Ie at 40 °C Tu
    22 A
  • Rated power three-phase motor, inline, at 400 V
    7.5 kW
  • Internal bypass
    Yes
  • Torque control
    No
  • Voltage type for actuating
    AC/DC
  • Release class
    Other
  • Rated operating voltage Ue
    380 ... 415 V
  • Function
    Single direction
  • With display
    Yes
  • Rated surrounding temperature without derating
    40 °C
  • Integrated motor overload protection
    No
  • Degree of protection (IP)
    IP20
