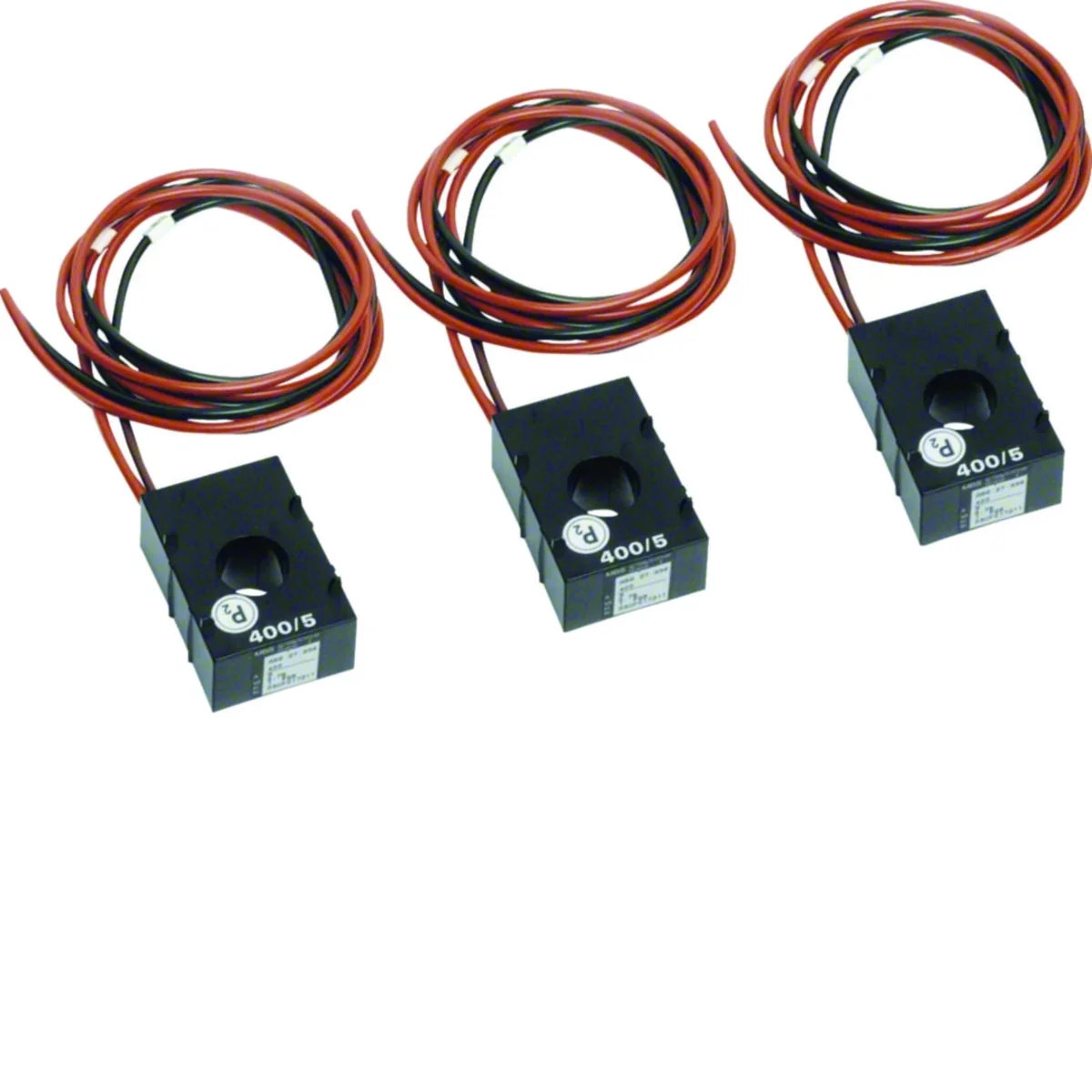

Set of current transformers NH1/2/3 400/5 class 1 LZ258
local index:
AUK045HAGE
Catalog No:
LZ258
EAN code:
3250614262586
Price:
142,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Set of current transformers for NH1/2/3 fuse switch disconnectors:
- maximum primary current: 400 A,
- maximum secondary current : 5A,
- accuracy class: 1.
Technical data
-
Length [mm]60
-
Input power [VA]3.75
-
FamilyLT
-
Width [mm]260
-
Height [mm]150
-
Accuracy [s]1
-
Opening width [mm]30.5
-
storage temperature [°C]from -5 to 40
-
Rated insulation voltage [kV]3
-
Power [VA]3.75
-
FixingClamps
-
Level of securityIP20
-
Connection typeScrew connection
-
Operating temperature range [°C]from -5 to 40
-
Gear400;5
-
Opening diameter [mm]21
-
Opening height [mm]12.5
-
PKWIU27.11.42.0
Other technical data
-
ModelAttachable current transformer
-
Rated secondary current5 A
-
Overcurrent limiting factorFS 5
-
Opening diameter21 mm
-
Number of primary inputs1
-
Rated primary current400 A
-
Rated secondary apparent power3.75 VA
-
With shock protectionYes
-
With copper railNo
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 250 pcs. |
| Weight (kg) | 0,240 | 0,795 | 222,500 |
| Width (m) | 0,260 | 0,225 | 0,800 |
| Length (m) | 0,150 | 0,050 | 1,200 |
| Depth (m) | 0,060 | 0,230 | 1,200 |
