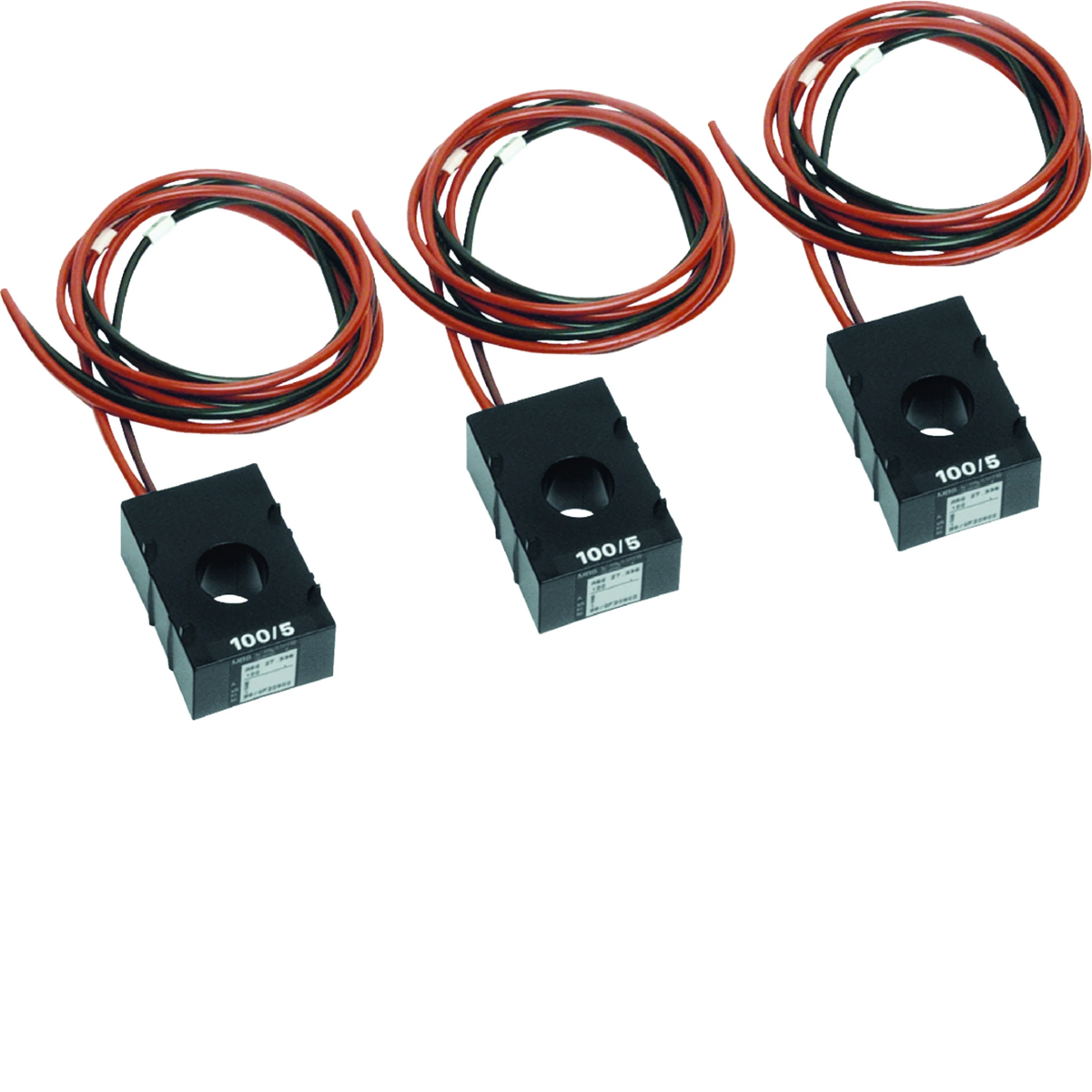

Set of current transformers NH1/2/3 100/5 class 1 LZ255

local index:
AUK042HAGE
Catalog No:
LZ255
EAN code:
3250614262555
Manufacturer: HAGER
Length [mm]: 60
Power [VA]: 2
Input power [VA]: 2
Price:
108,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Set of current transformers for NH1/2/3 fuse switch disconnectors:

  • maximum primary current: 100 A,
  • maximum secondary current : 5A,
  • accuracy class: 1.

Technical data

  • Length [mm]
    60
  • Input power [VA]
    2
  • Family
    LT
  • Width [mm]
    240
  • Height [mm]
    180
  • Accuracy [s]
    1
  • Opening width [mm]
    30.5
  • storage temperature [°C]
    from -5 to 40
  • Rated insulation voltage [kV]
    3
  • Power [VA]
    2
  • Fixing
    Clamps
  • Level of security
    IP20
  • Connection type
    Screw connection
  • Operating temperature range [°C]
    from -5 to 40
  • Gear
    100;5
  • Opening diameter [mm]
    21
  • Opening height [mm]
    12.5
  • PKWIU
    27.11.42.0

Other technical data

  • Model
    Attachable current transformer
  • Rated secondary current
    5 A
  • Overcurrent limiting factor
    FS 5
  • Opening diameter
    21 mm
  • Number of primary inputs
    1
  • Rated primary current
    100 A
  • Rated secondary apparent power
    2 VA
  • With shock protection
    Yes
  • With copper rail
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 250 pcs.
Weight (kg) 0,791 0,792 223,000
Width (m) 0,210 0,210 0,800
Length (m) 0,040 0,040 0,990
Depth (m) 0,210 0,210 1,200
