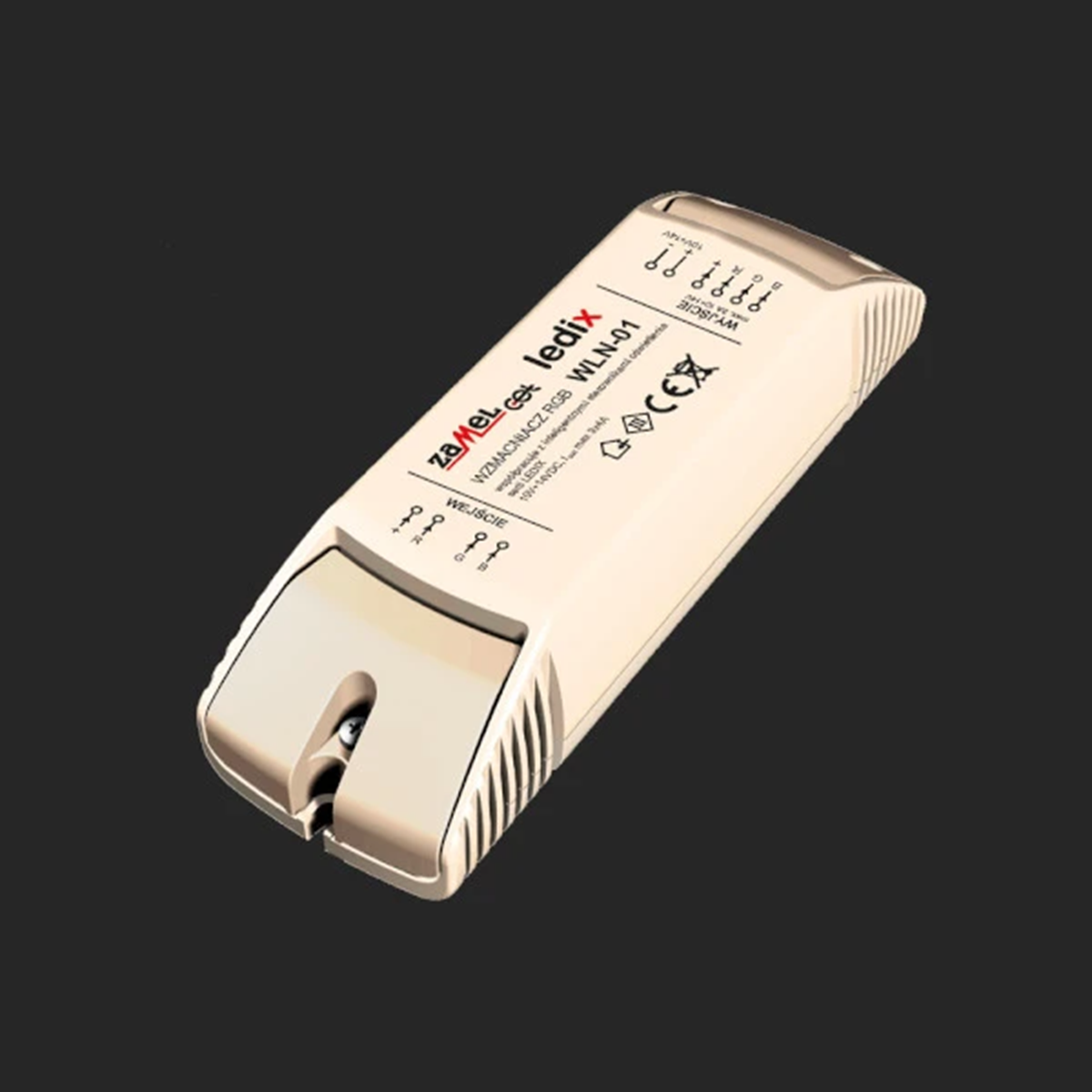

RGB amplifier LDX10000011

local index:
AUD007ZAME
Catalog No:
LDX10000011
EAN code:
5903669040866
Manufacturer: ZAMEL
Number of channels: 4
Protection class: III
Maximum cross-section of wires [mm2]: 2.5
Price:
21,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The RGB amplifier is designed to work with RGB controllers. It is used when the load of RGB products exceeds the maximum current carrying capacity of the controller. Amplifiers are also used in very long RGB installations to ensure synchronous operation of all modules. The device has three MOSFET outputs with a maximum continuous load of 4A. All connections are made with screw terminals. The amplifier enables the implementation of serial and parallel circuits. The surface-mounted housing allows for easy installation, e.g. in plasterboard, furniture and recesses.

Technical data

  • Number of channels
    4
  • Maximum cross-section of wires [mm2]
    2.5
  • Rated voltage [V]
    12
  • Level of security
    IP20
  • Protection class
    III
  • Power [W]
    0.155
  • Duct load [A]
    4
  • PKWIU
    27.12.40.0
