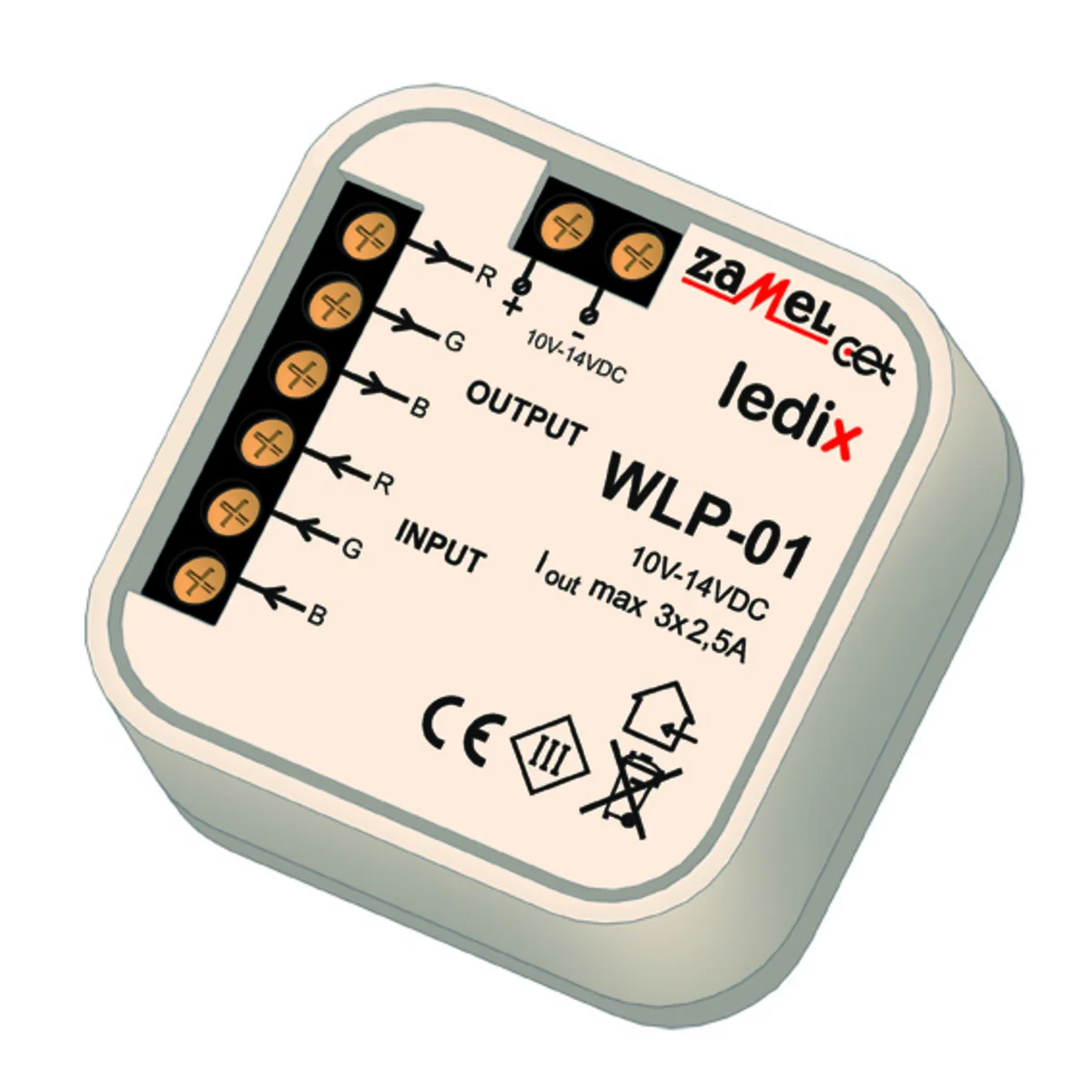

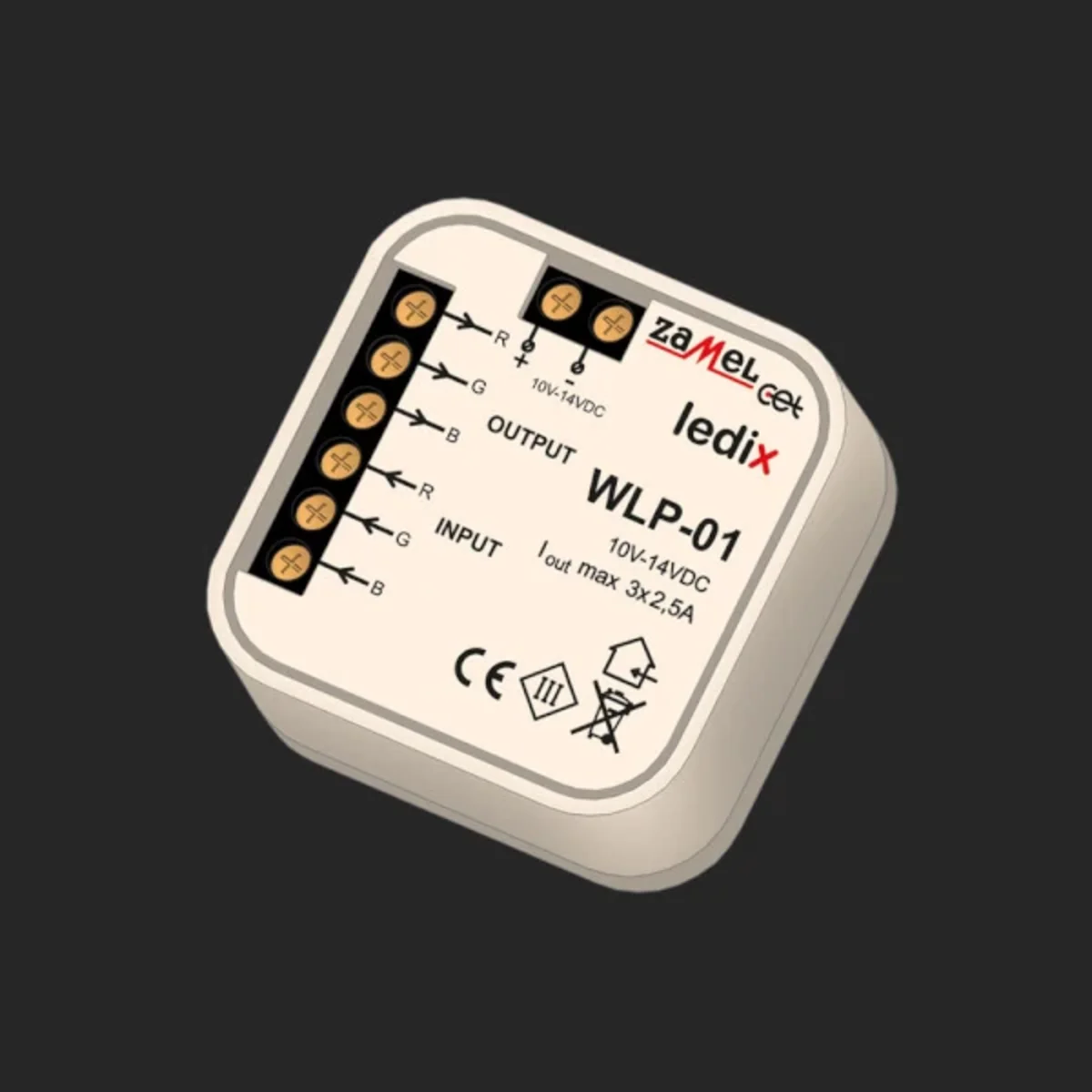

Recessed RGB amplifier LDX10000012-WPL

The WLP-01 amplifier is designed to work with RGB controllers. It is used when the load of RGB products exceeds the maximum current carrying capacity of the controller. Amplifiers are also used in very long RGB installations to ensure synchronous operation of all modules. The amplifier has three MOSFET type outputs with a maximum continuous load capacity of 2.5 A. All connections are made using screw terminals. The amplifier enables the implementation of serial and parallel circuits. Recessed housing of small size enables easy installation in installation boxes with a diameter of Ø=60 mm.
