Recessed RGB amplifier LDX10000012

local index:
AUD011ZAME
Catalog No:
LDX10000012
EAN code:
5903669040873
Manufacturer: ZAMEL
Number of channels: 3
Protection class: III
Maximum cross-section of wires [mm2]: 2.5
Price:
18,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

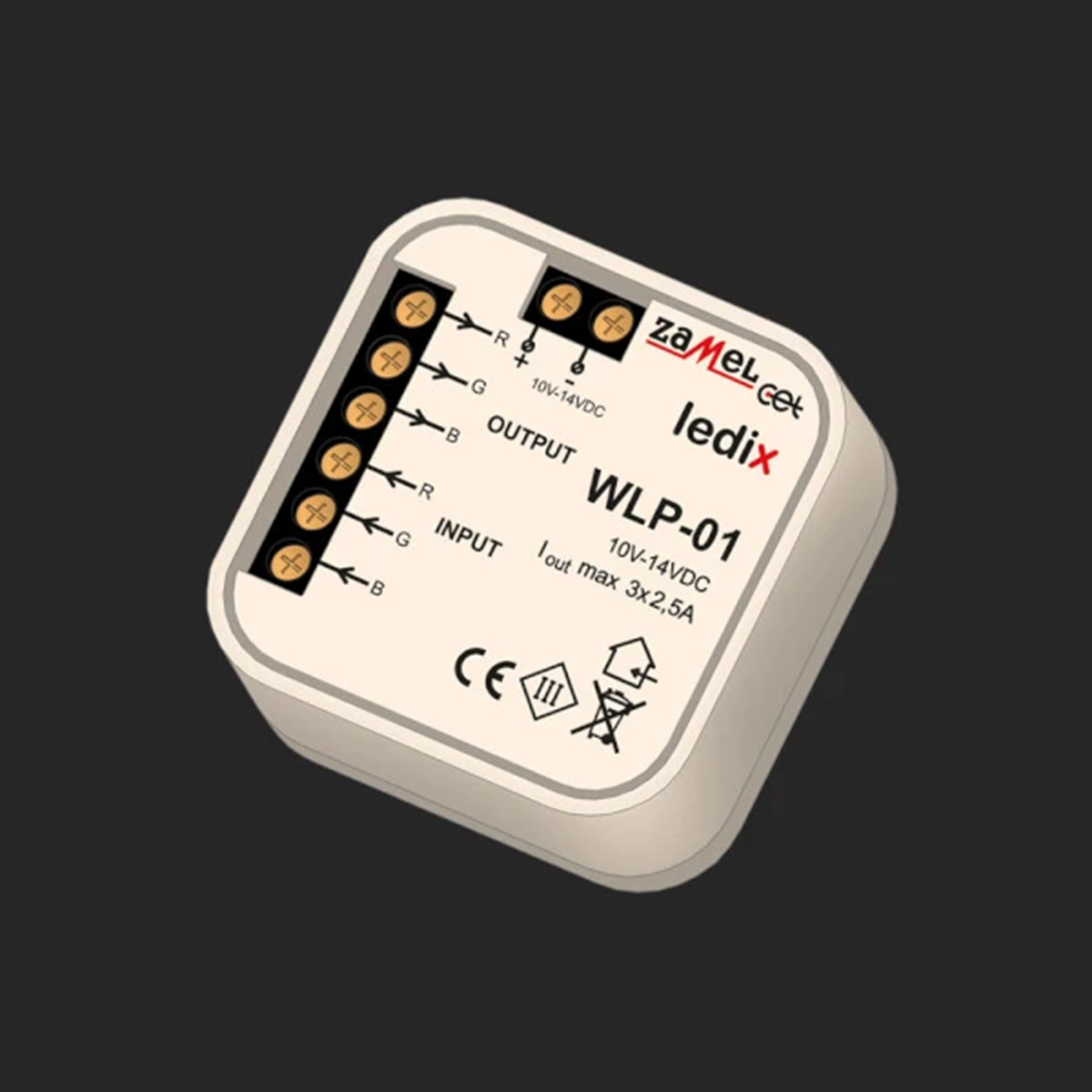

The WLP-01 amplifier is designed to work with RGB controllers. It is used when the load of RGB products exceeds the maximum current carrying capacity of the controller. Amplifiers are also used in very long RGB installations to ensure synchronous operation of all modules. The amplifier has three MOSFET type outputs with a maximum continuous load capacity of 2.5 A. All connections are made using screw terminals. The amplifier enables the implementation of serial and parallel circuits. Recessed housing of small size enables easy installation in installation boxes with a diameter of Ø=60 mm.

Technical data

  • Number of channels
    3
  • Maximum cross-section of wires [mm2]
    2.5
  • Rated voltage [V]
    12
  • Level of security
    IP20
  • Protection class
    III
  • Power [W]
    0.1
  • Duct load [A]
    2.5
  • PKWIU
    27.12.40.0
