Recessed LED power supply 12V DC 8W LDX10000028

local index:
AUD025ZAME
Catalog No:
LDX10000028
EAN code:
5903669040996
Manufacturer: ZAMEL
Rated frequency [Hz]: 50
Protection class: II
Power [W]: 8
Price:
21,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 23 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

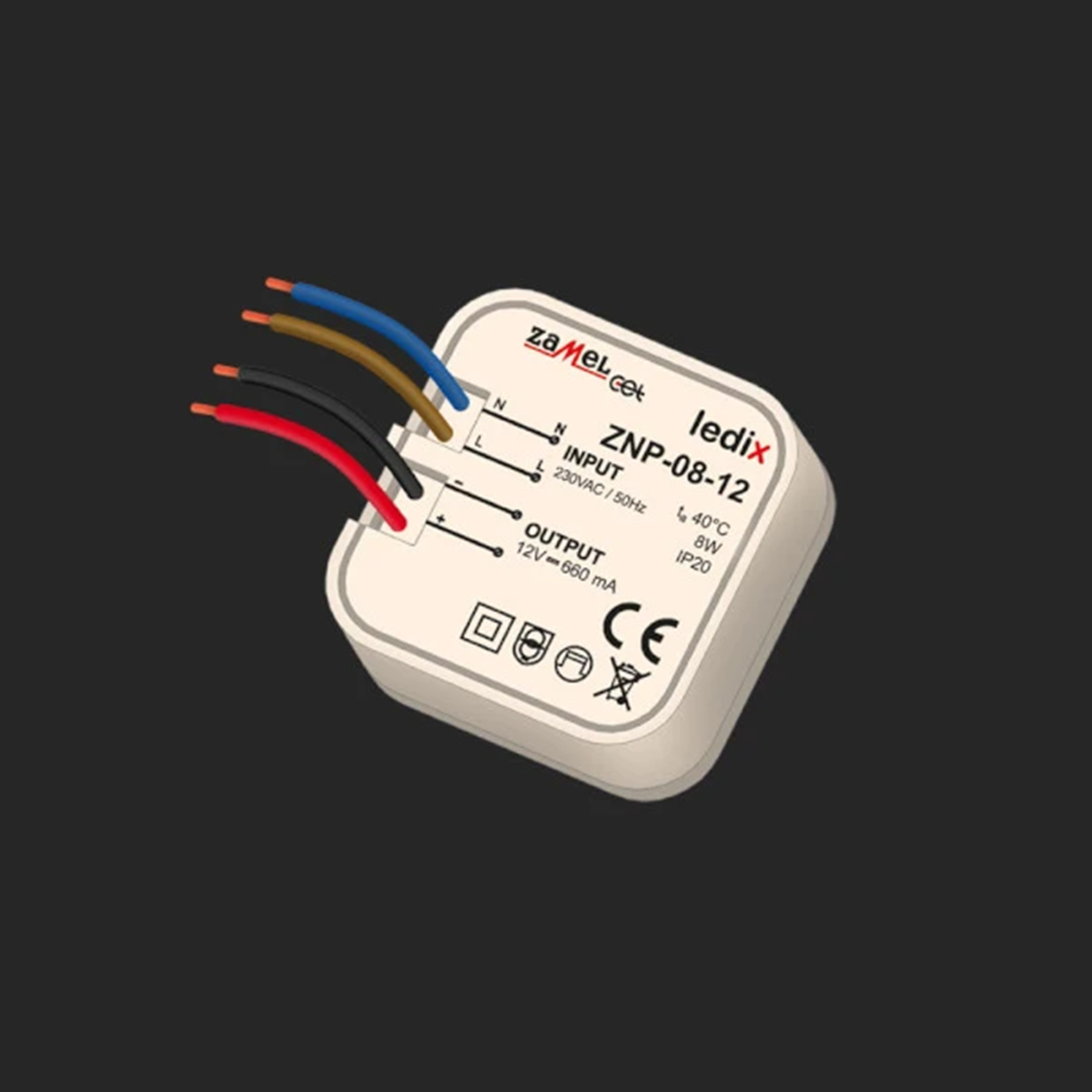

The ZNP-08-12 power supply is a professional switching power supply with an output voltage of 12 V DC and a rated power of 8 W. The power supply is designed to work with LEDIX products such as radio controllers and receivers and other LED products powered with a voltage of 12 V DC. It is designed for direct mounting in an installation box. The product has short-circuit and overload protection, which increases the safety of its use. High efficiency and very low power consumption in standby mode make it a very economical solution, designed for continuous operation.

Technical data

  • Rated frequency [Hz]
    50
  • Power [W]
    8
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • PKWIU
    27.11.50.0
  • Protection class
    II
  • DC output voltage [V]
    12
  • Initial starting current [A]
    20
  • Rated output current [A]
    0.65
