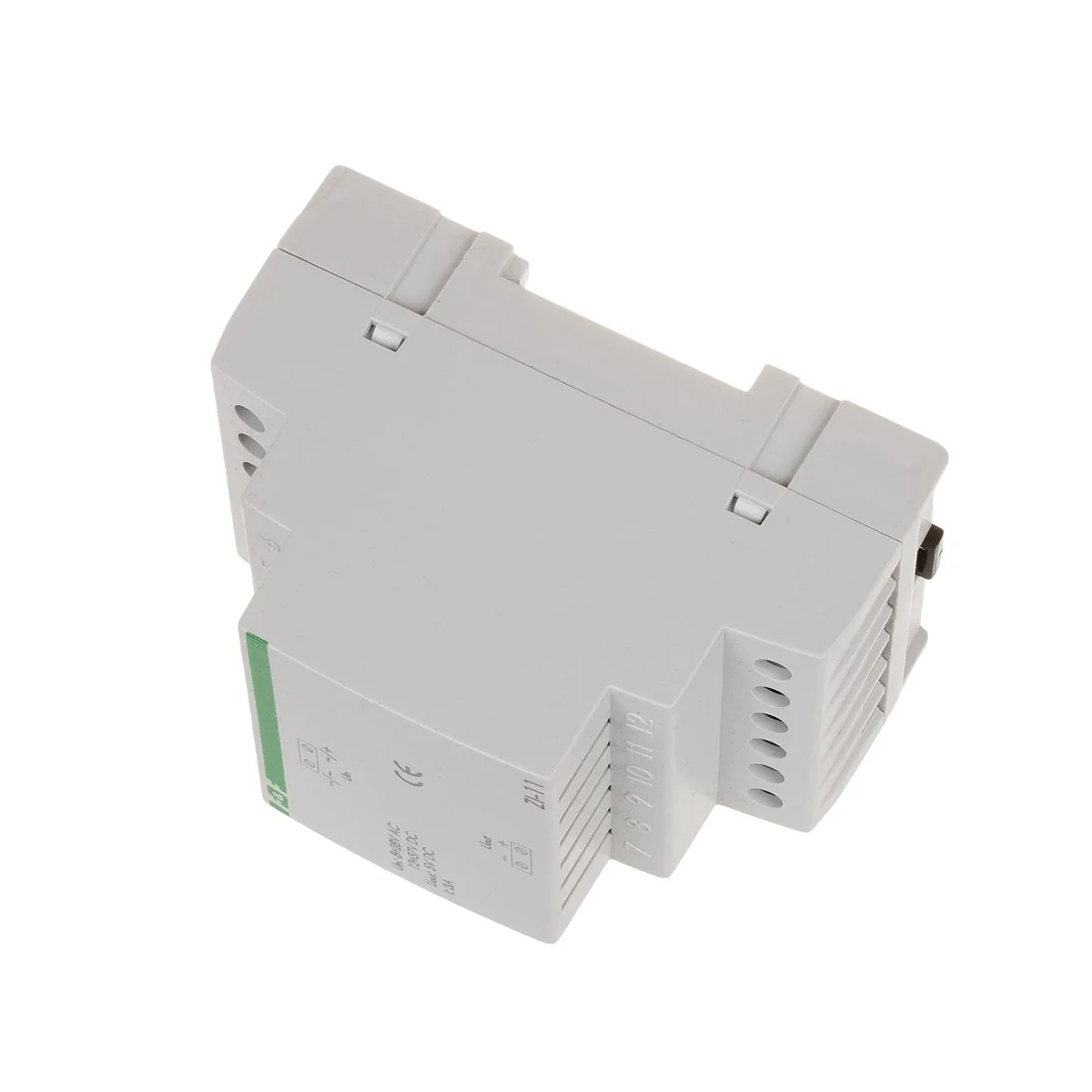

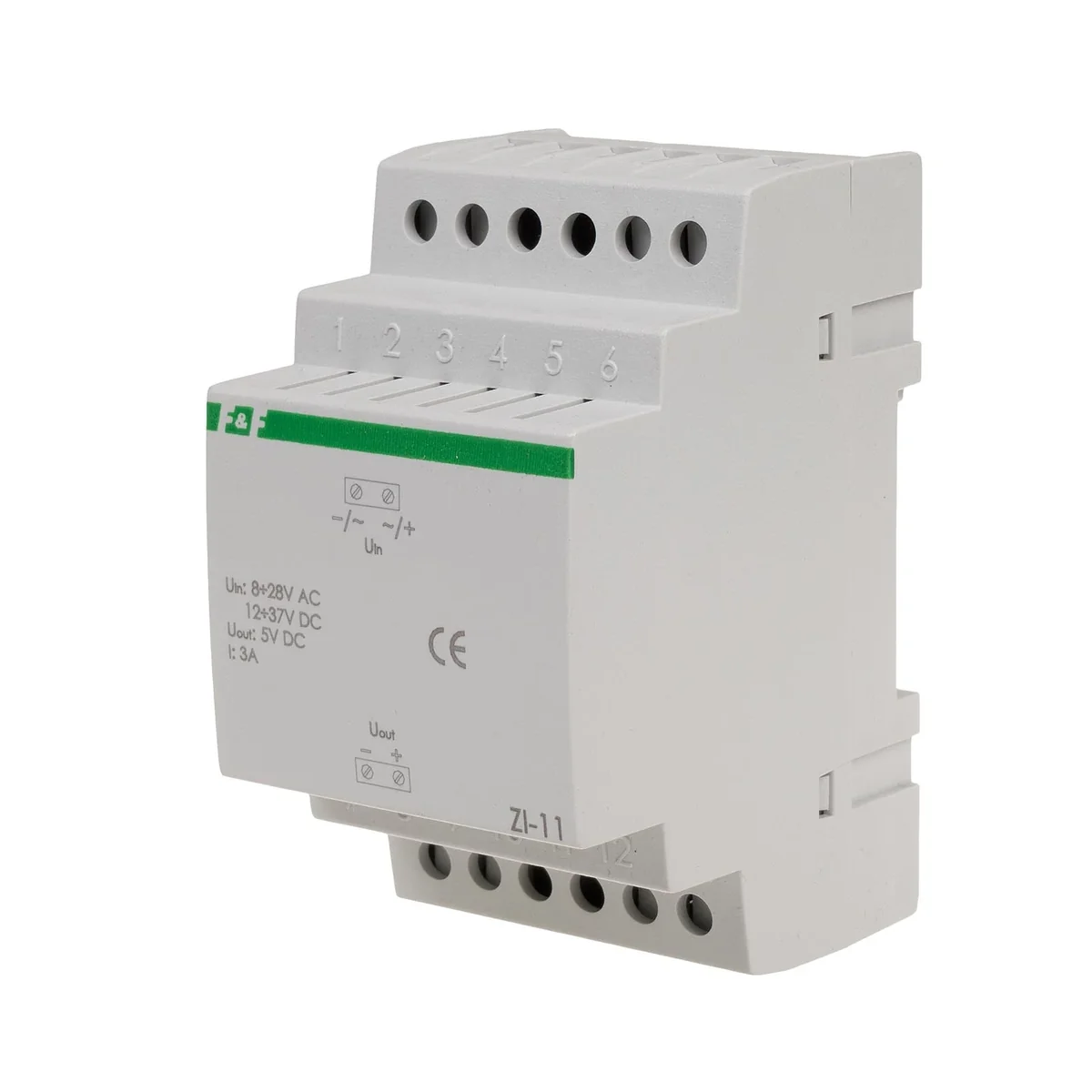

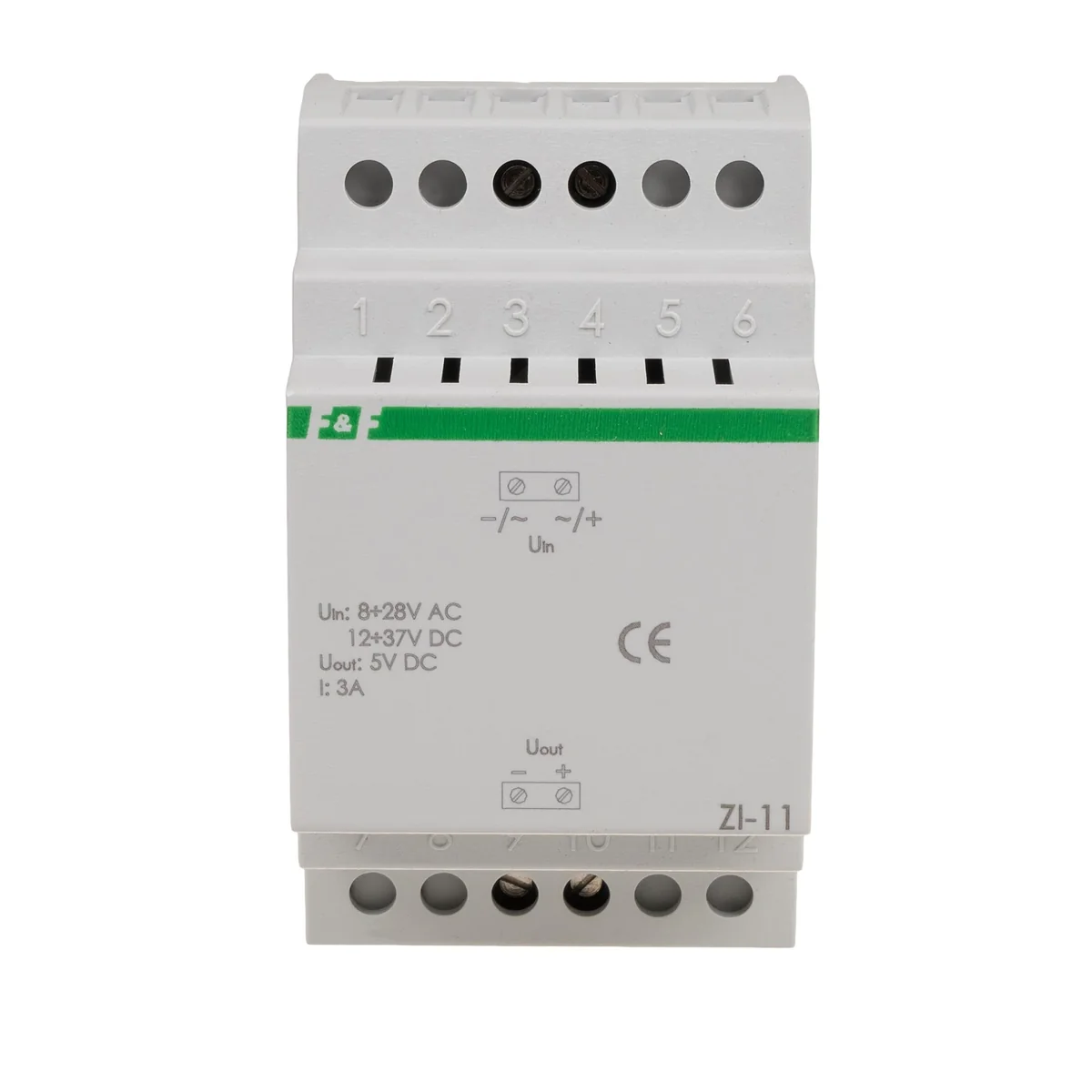

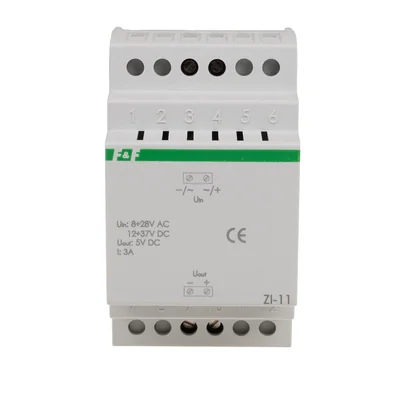

Pulse stabilizer 5V ZI-11 ZI-11

local index:
AUU010FIFQ
Catalog No:
ZI-11
EAN code:
5908312595885
Manufacturer: F&F
Switching frequency [kHz]: 52
Installation: On the TH-35 rail
Current limit [A]: 110
Price:
26,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Operation
You can connect voltage to the input terminals. alternating or constant (pulsating or filtered). Due to the high operating frequency of the inverter, some highly sensitive radio or microprocessor devices may malfunction. It is recommended to install an additional filter (consisting of a current-compensated choke with an inductance of 2×5÷15mH and a capacitor C=0.33÷1µF) between the power supply and the receiver. When the load is increased above Imax, the power supply will stabilize the current, and the voltage out will fall. When the output terminals are shorted, the power supply operates at a frequency of approx. 1.5kHz, which is manifested by a clear squeak.

Technical data

  • Switching frequency [kHz]
    52
  • Current limit [A]
    110
  • connection
    2.5mm screw terminals
  • Weight [g]
    150
  • Package height [mm]
    150
  • Package weight [kg]
    0, 15
  • PKWIU
    27.11.42.0
  • Installation
    On the TH-35 rail
  • Output current [A]
    3
  • Working temperature [°C]
    -10-40
  • Dimensions
    3 modules (52.5mm)
  • Package width [mm]
    60
  • Output current [A]
    3

Other technical data

  • Primary voltage
    28 V
  • Rated power
    15 VA
  • Ambient temperature during operating
    -10 ... 40 °C
  • Secondary voltage
    5 V
  • Rated secondary current
    3 A
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,130
Width (m) 0,107
Length (m) 0,060
Depth (m) 0,070
