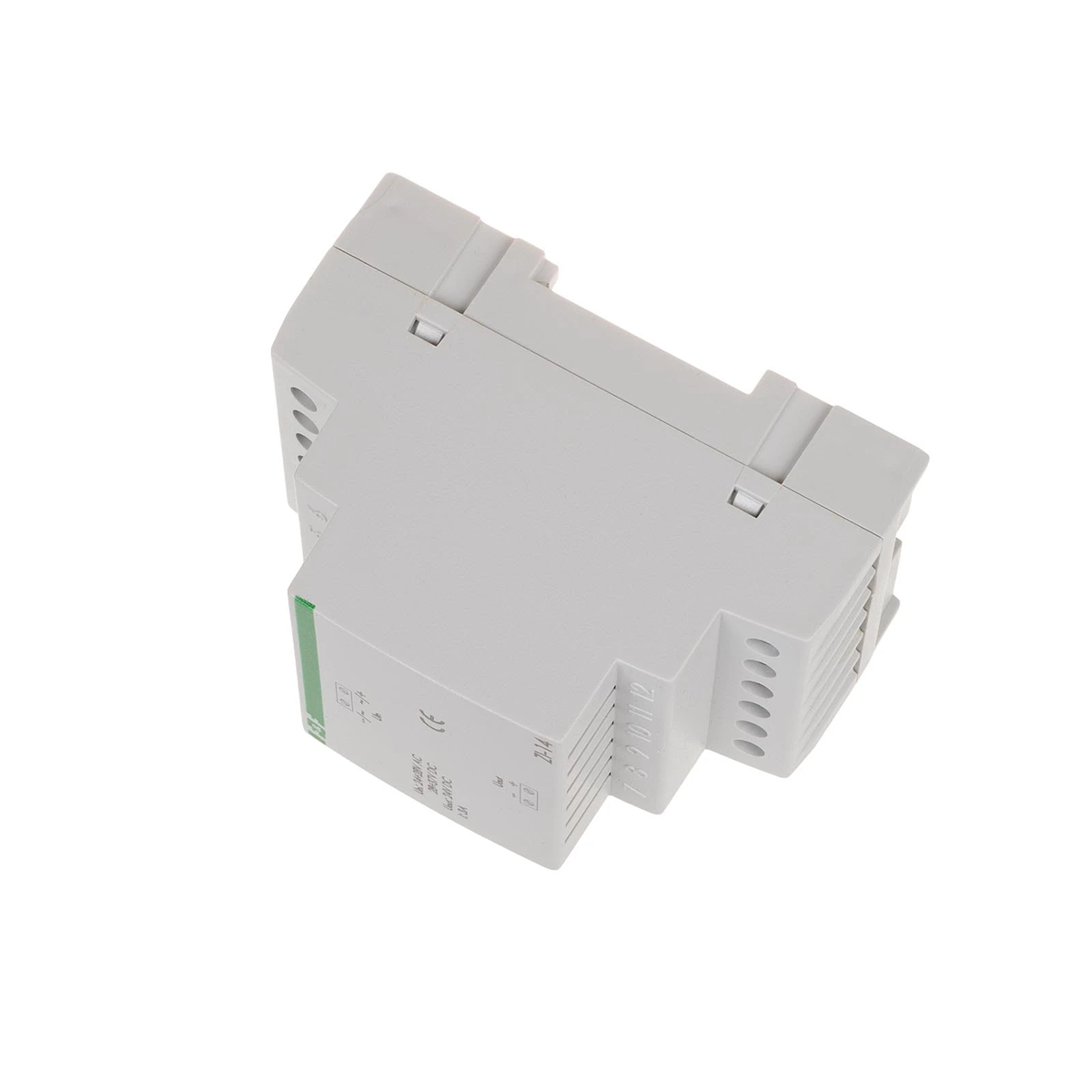

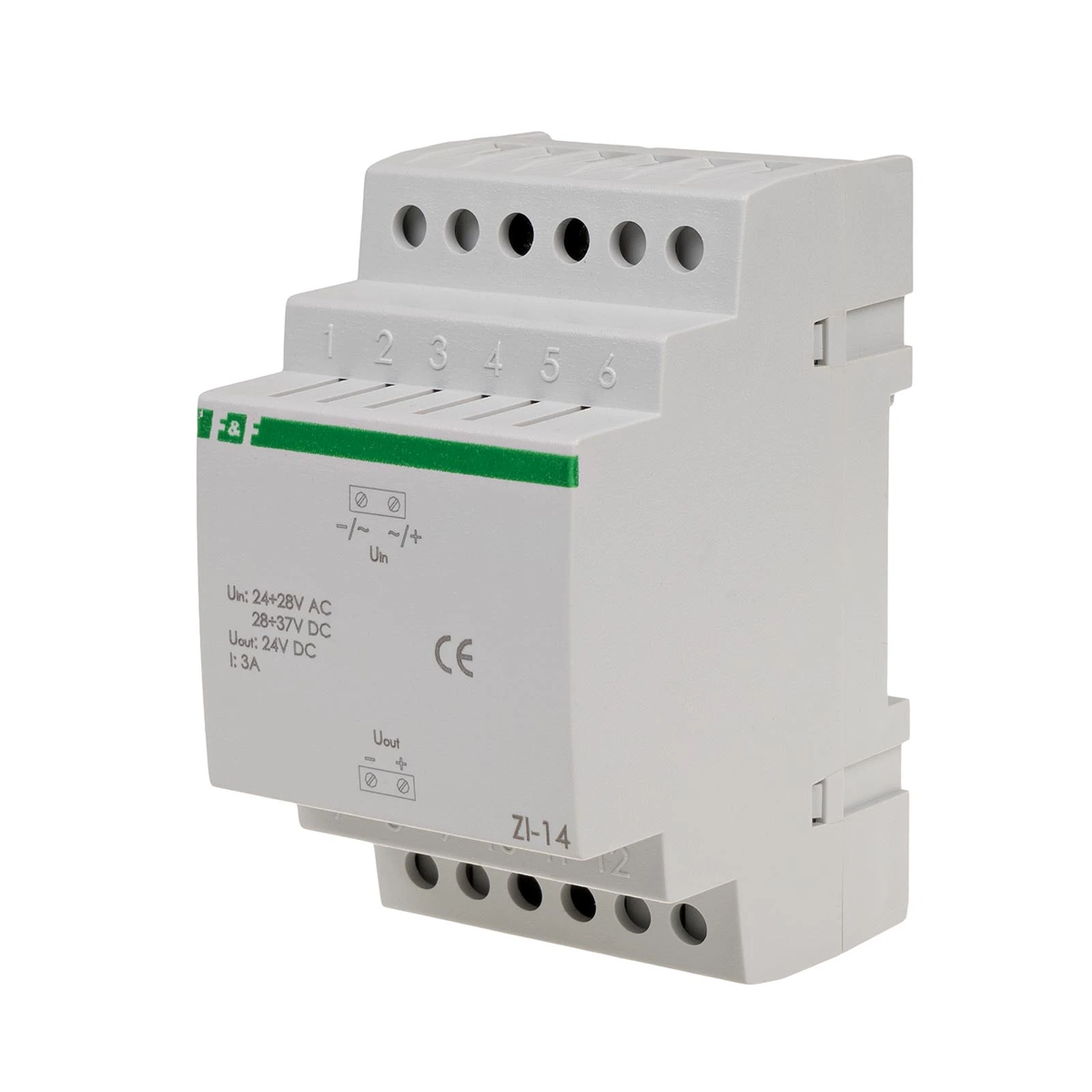

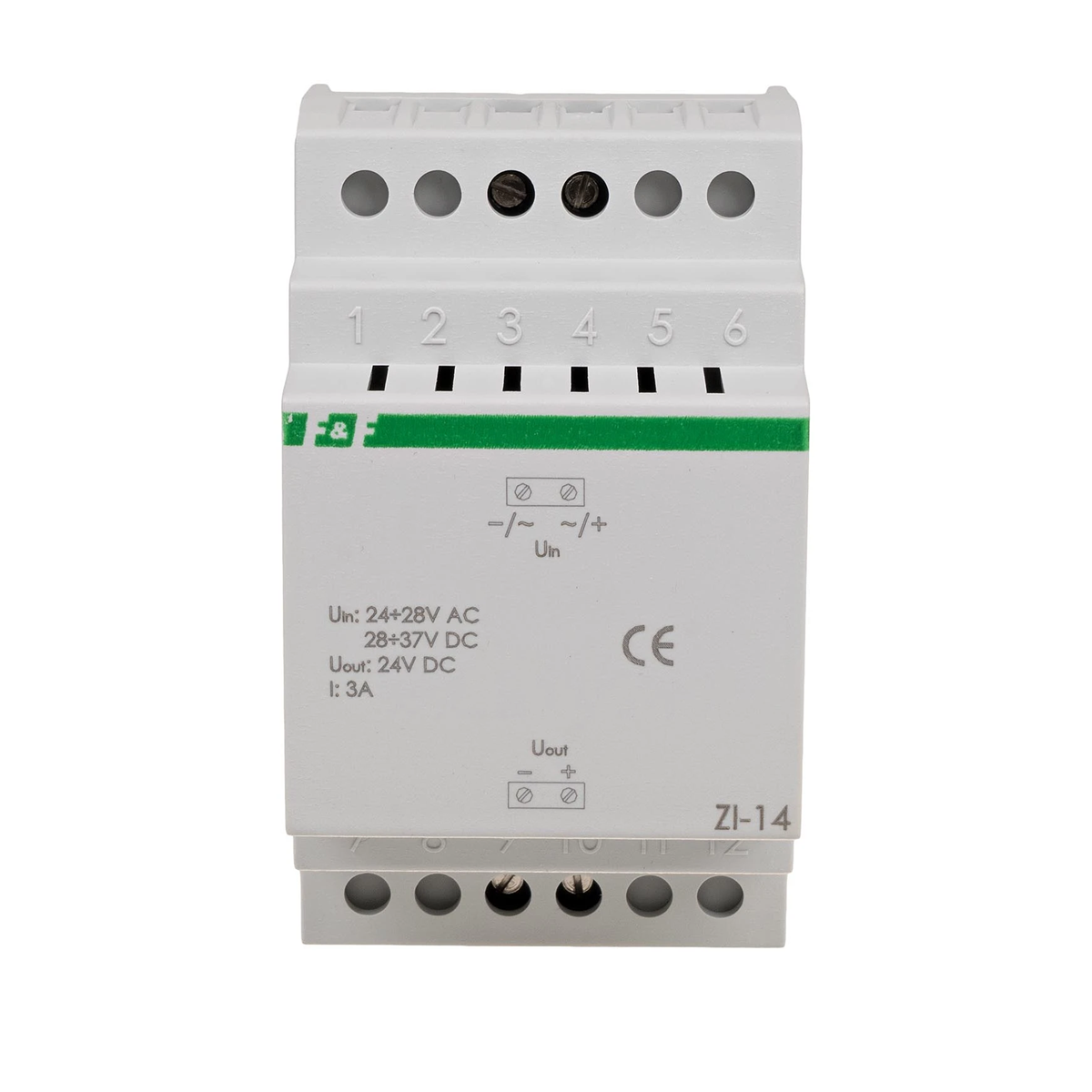

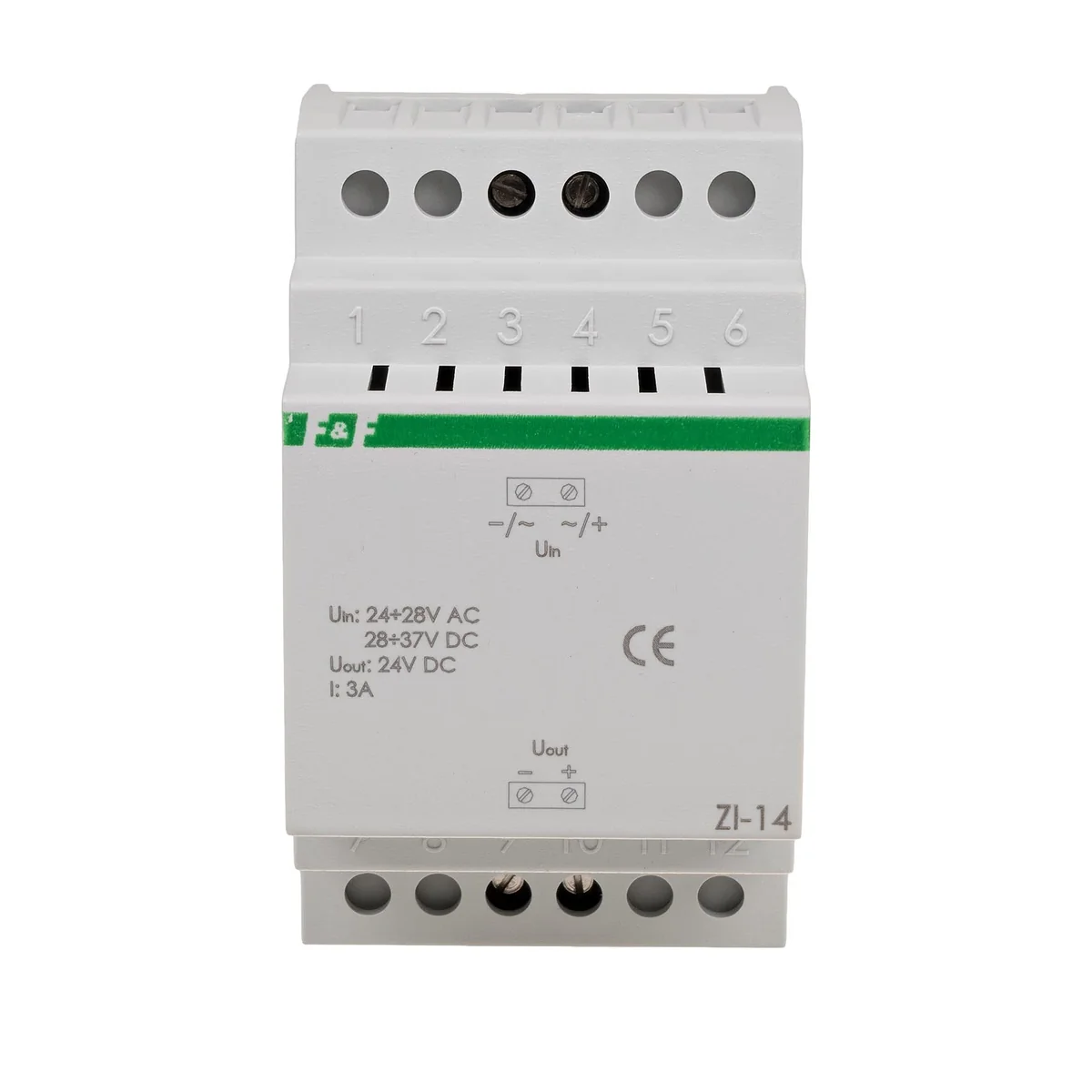

Click on the photo to enlarge

F&F

Pulse stabilizer 24V ZI-14 ZI-14

local index:
AUU013FIFQ
Catalog No:
ZI-14
EAN code:
5908312595960
Price:
27,20 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Operation
You can connect voltage to the input terminals. alternating or constant (pulsating or filtered). Due to the high operating frequency of the inverter, some highly sensitive radio or microprocessor devices may malfunction. It is recommended to install an additional filter (consisting of a current-compensated choke with an inductance of 2×5÷15mH and a capacitor C=0.33÷1µF) between the power supply and the receiver. When the load is increased above Imax, the power supply will stabilize the current, and the voltage out will fall. When the output terminals are shorted, the power supply operates at a frequency of approx. 1.5 kHz, which is manifested by a clear squeak.

Technical data

  • Switching frequency [kHz]
    52
  • Current limit [A]
    110
  • connection
    2.5mm screw terminals
  • Weight [g]
    150
  • Package height [mm]
    150
  • Package weight [kg]
    0.15
  • Installation
    On the TH-35 rail
  • Output current [A]
    3
  • Working temperature [°C]
    -10-40
  • Dimensions
    3 modules (52.5mm)
  • Package width [mm]
    60
  • Output current [A]
    3

Other technical data

  • Primary voltage
    28 V
  • Rated power
    72 VA
  • Degree of protection (IP)
    IP20
  • Secondary voltage
    24 V
  • Ambient temperature during operating
    -10 ... 40 °C
