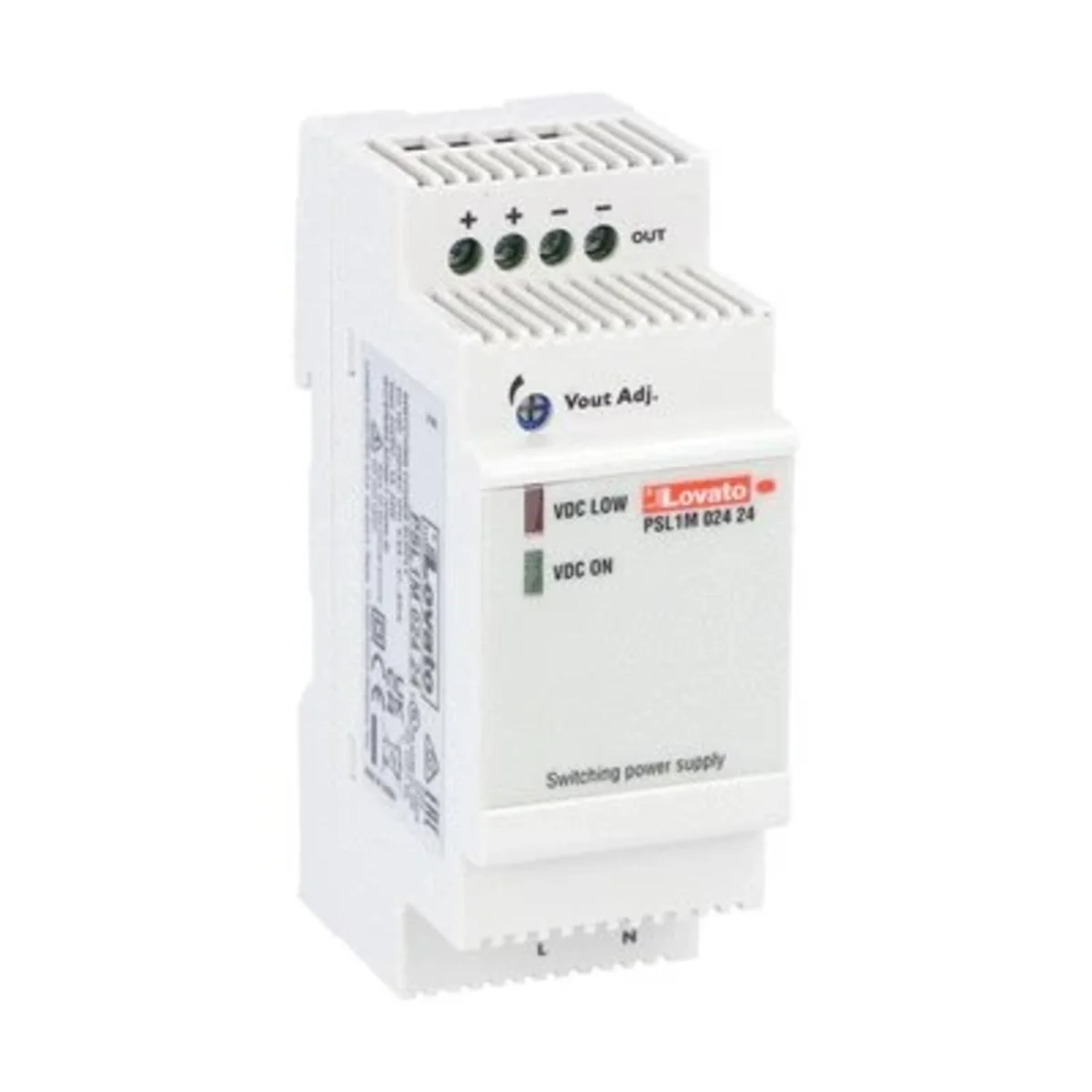

PSL1M02424 Single-phase power supply, output: 24VDC, 1A, 24W PSL1M02424

Indice locale:
AUU002LOVA
Numero di catalogo:
PSL1M02424
Codice EAN:
8013975180297
Produttore: LOVATO
Prezzo:
209,47 zł
gross / pezzi
(inclusa IVA 23%)
fino a 2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Dati tecnici

  • PKWIU
    27.11.42.0

Altri dati tecnici

  • Voltage type (supply voltage)
    AC
  • Max. output current 1
    1 A
  • Nominal value output voltage 1
    24 V
  • Short-circuit-proof
    Yes
  • Output voltage stabilized
    Yes
  • Stabilized
    Yes
  • Rail mounting possible
    Yes
  • Width in number of modular spacings
    2
  • Height
    96 mm
  • Degree of protection (IP)
    IP20
  • 1st secondary output voltage
    24 ... 24 V
  • Secondary voltage adjustable
    Yes
  • Nominal value output current 1
    1 A
  • Rated supply voltage AC 50 Hz
    100 ... 240 V
  • Power output
    24 W
  • Type of electric connection
    Screw connection
  • Modular version
    Yes
  • Width
    35 mm
  • Depth
    56.2 mm

Dettagli del produttore

  • Produttore
    LOVATO ELECTRIC S.P.A.
  • Indirizzo
    24020 GORLE (Bergamo) Via Don E. Mazza 12 Włochy

Imballaggio sfuso

Una specie di pacchetto Sztuka
Quantità 1 pezzi
Peso (kg) 0,176
Larghezza (m) 0,091
Lunghezza (m) 0,132
Profondità (m) 0,046
