Power mechanism for KNX RF KNX RF attachments 85020100
local index:
AUU006BERK
Catalog No:
85020100
EAN code:
4011334375869
Price:
51,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

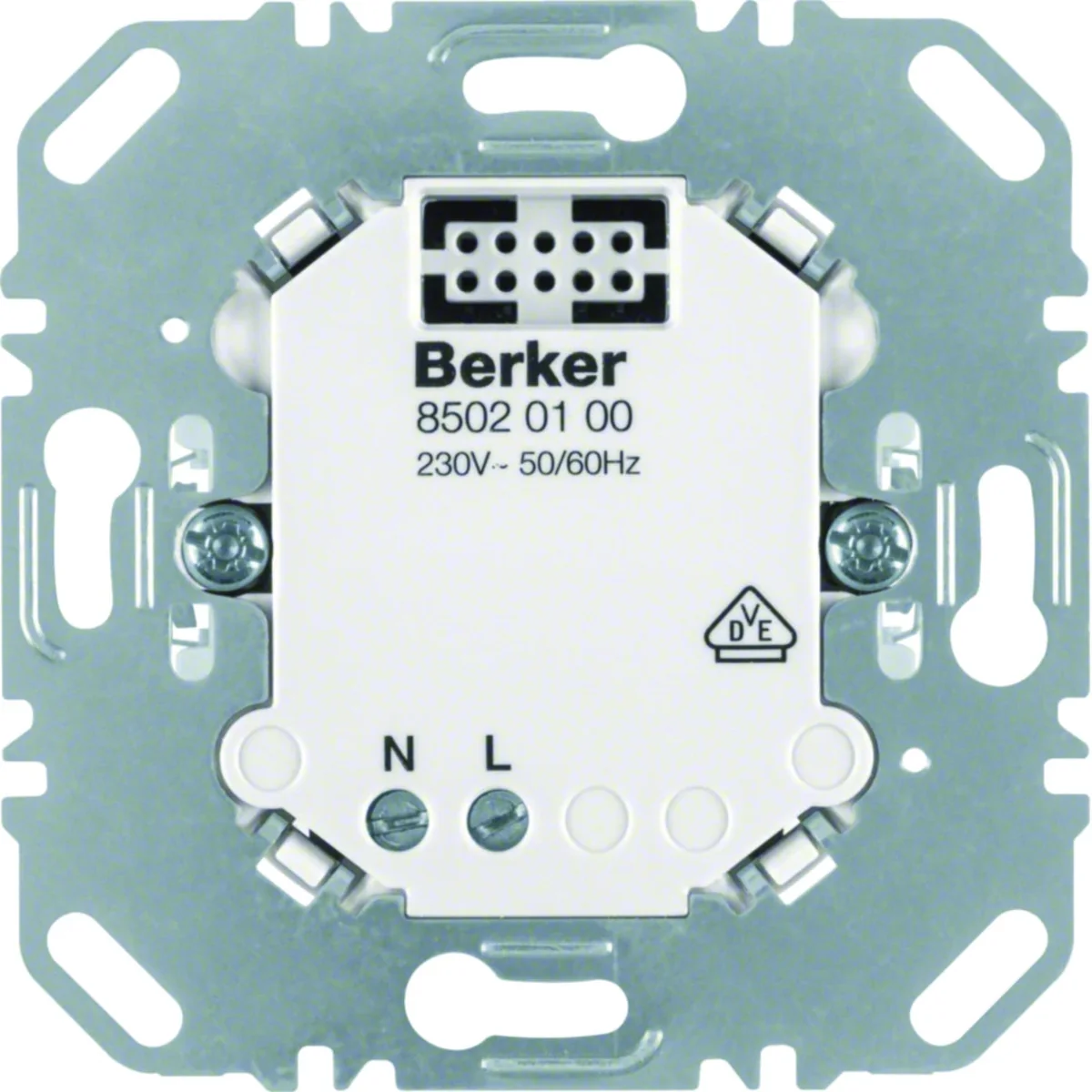

Power mechanism for KNX RF KNX RF attachments
Technical data
-
Number of contacts1
-
FixingExpanding claws
-
Mounting depth [mm]22
-
Connection typeWith screw terminals
-
PKWIU27.11.62.0
-
MaterialPlastic Metal
-
Operating temperature range [°C]from -5 to 45
-
AC operating voltage [V]230
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
Other technical data
-
Bus system KNXNo
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalYes
-
Width in number of modular spacings0
-
Type of fasteningMounting with claw and screw
-
Bus system KNX-RF (Radio Frequent)Yes
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
Number of connections sensor/actuator1
-
Min. depth of built-in installation box35 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,077 | 0,085 | 5,430 | 135,800 |
| Width (m) | 0,071 | 0,085 | 0,300 | 0,800 |
| Length (m) | 0,034 | 0,070 | 0,345 | 1,050 |
| Depth (m) | 0,071 | 0,085 | 0,400 | 1,200 |
