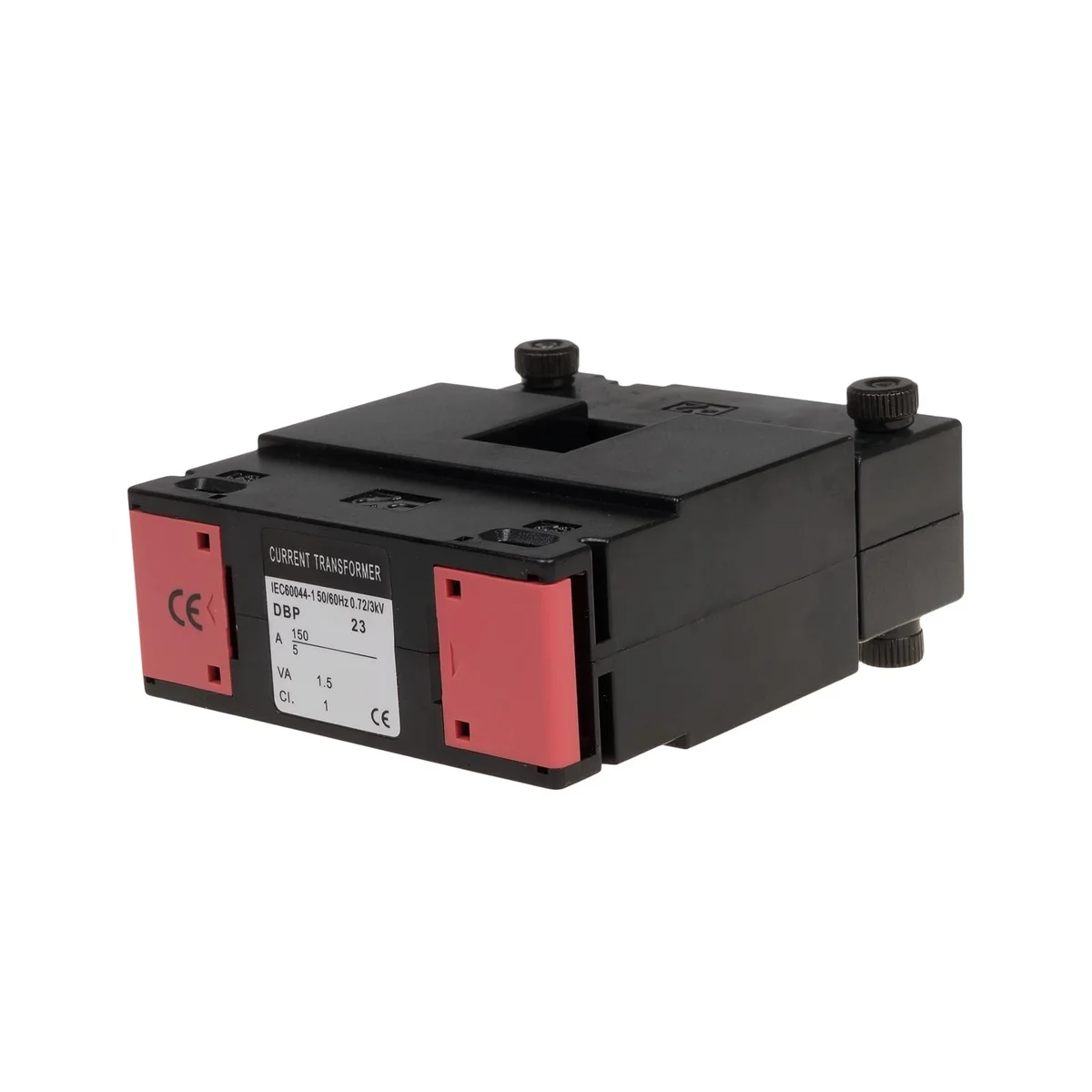

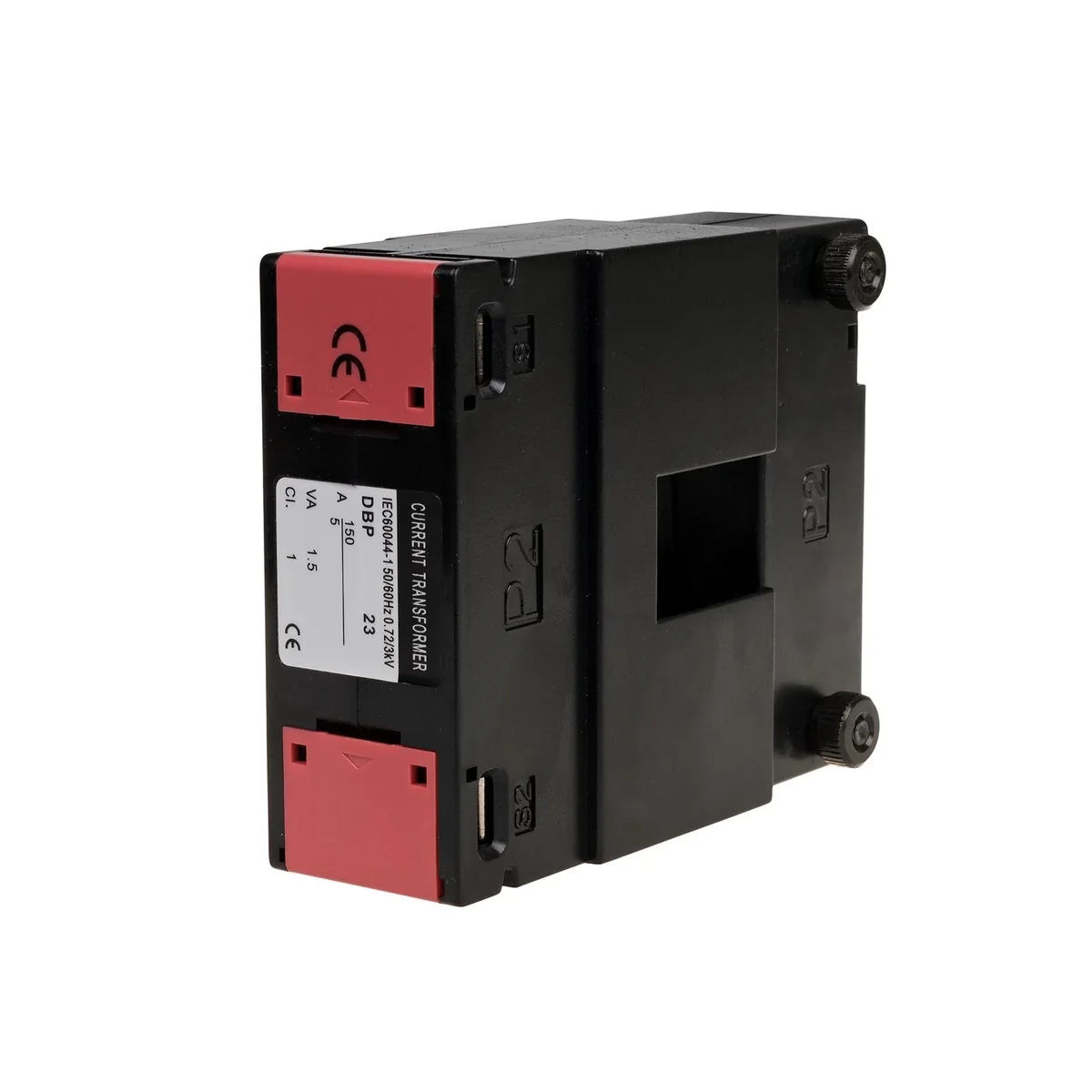

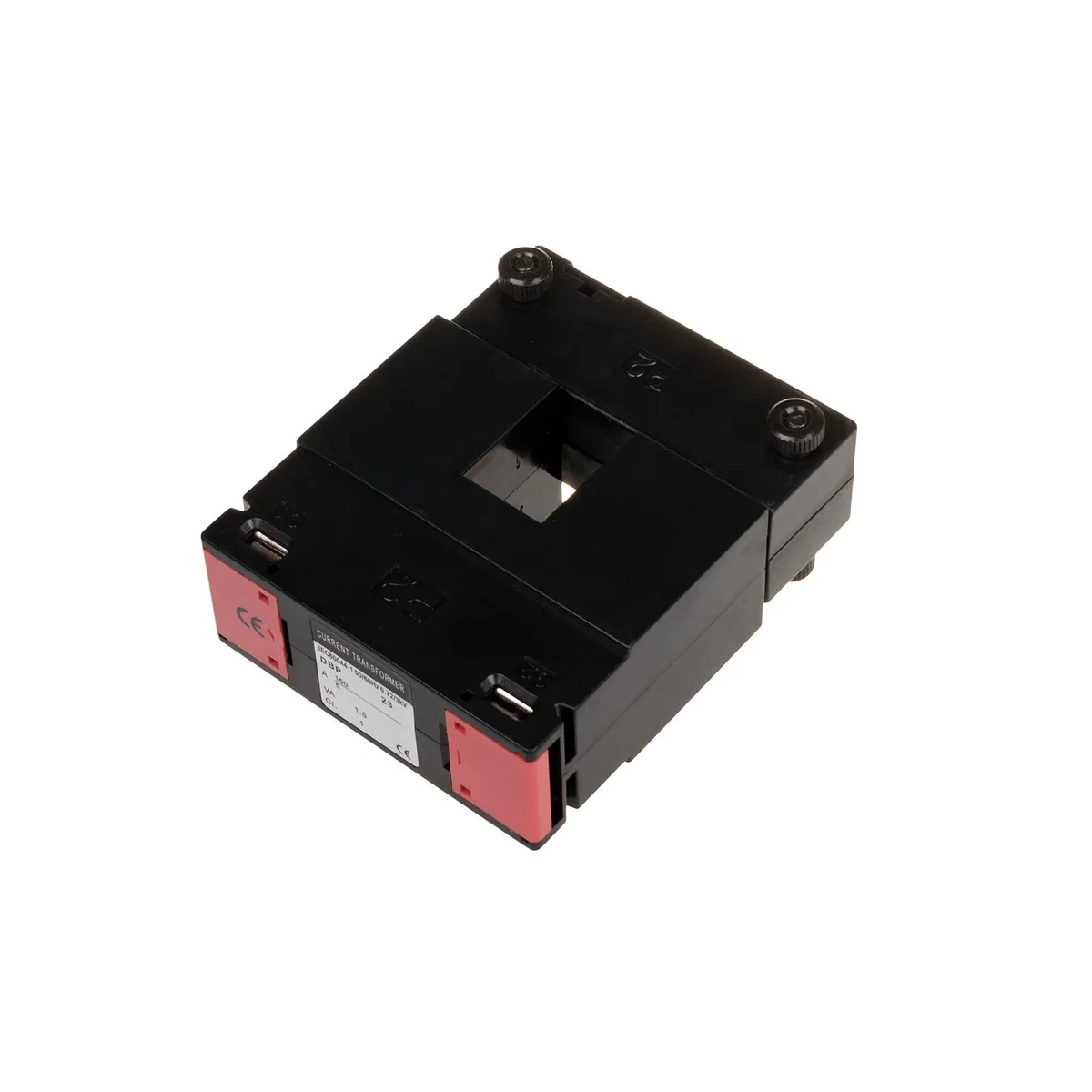

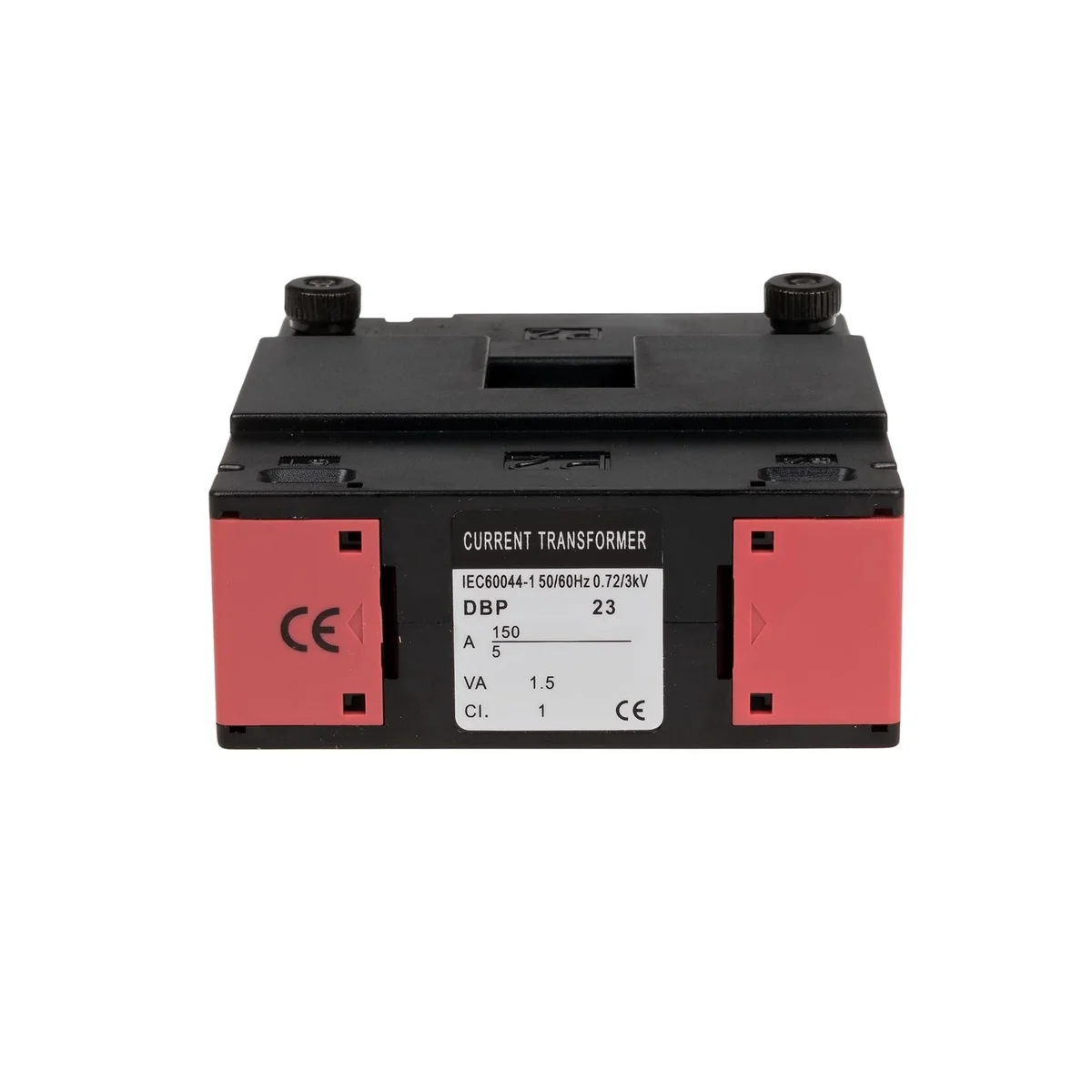

Open core current transformer 150-5A class 1 TO-150-5
local index:
AUK013FIFQ
Catalog No:
TO-150-5
EAN code:
5908312590842
Price:
71,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The current transformer is used to proportionally change high currents to lower values, adapted to the measuring ranges of control and measuring devices
Technical data
-
Power [W]3
-
Working temperature [°C]-15÷40
-
Level of securityIP20
-
PKWIU27.11.42.0
Other technical data
-
ModelThrough-feed current converter
-
Rated secondary current5 A
-
Overcurrent limiting factorFS 5
-
Snap mountingNo
-
Secondary connectionScrew connection
-
Rated primary current150 A
-
Rated secondary apparent power3 VA
-
With shock protectionYes
-
With copper railNo
-
Number of primary inputs1
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,780 |
| Width (m) | 0,089 |
| Length (m) | 0,105 |
| Depth (m) | 0,032 |
