Modular LED power supply 12V DC 8W LDX10000016

local index:
AUU024ZAME
Catalog No:
LDX10000016
EAN code:
5903669040927
Manufacturer: ZAMEL
Rated frequency [Hz]: 50
Protection class: II
Power [W]: 8
Price:
26,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

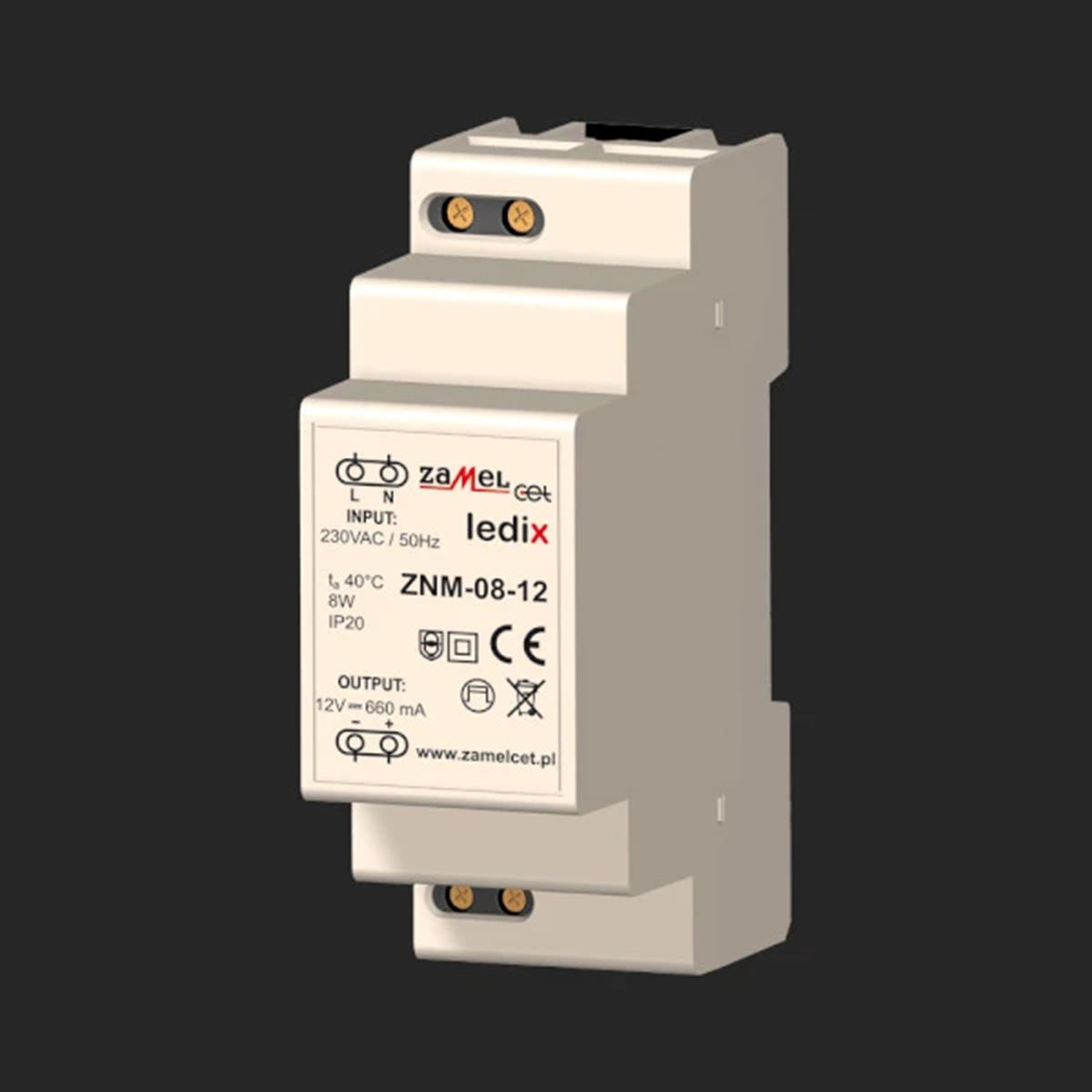

The ZNM-08-12 power supply is a professional impulse power supply designed for installation in switchboards on a TH35 rail. The output power of the power supply is 8 W, and the nominal value of the output voltage is 12 V DC. The power supply is designed to work with LEDIX accessories such as controllers, radio receivers and other LED products powered with a voltage of 12 V DC. The product has short-circuit and overload protection, which increases the safety of its use.

Technical data

  • Rated frequency [Hz]
    50
  • Power [W]
    8
  • DC output voltage [V]
    12
  • Initial starting current [A]
    20
  • Rated output current [A]
    0.66
  • Protection class
    II
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    230
  • Level of security
    IP56
  • PKWIU
    27.11.50.0
