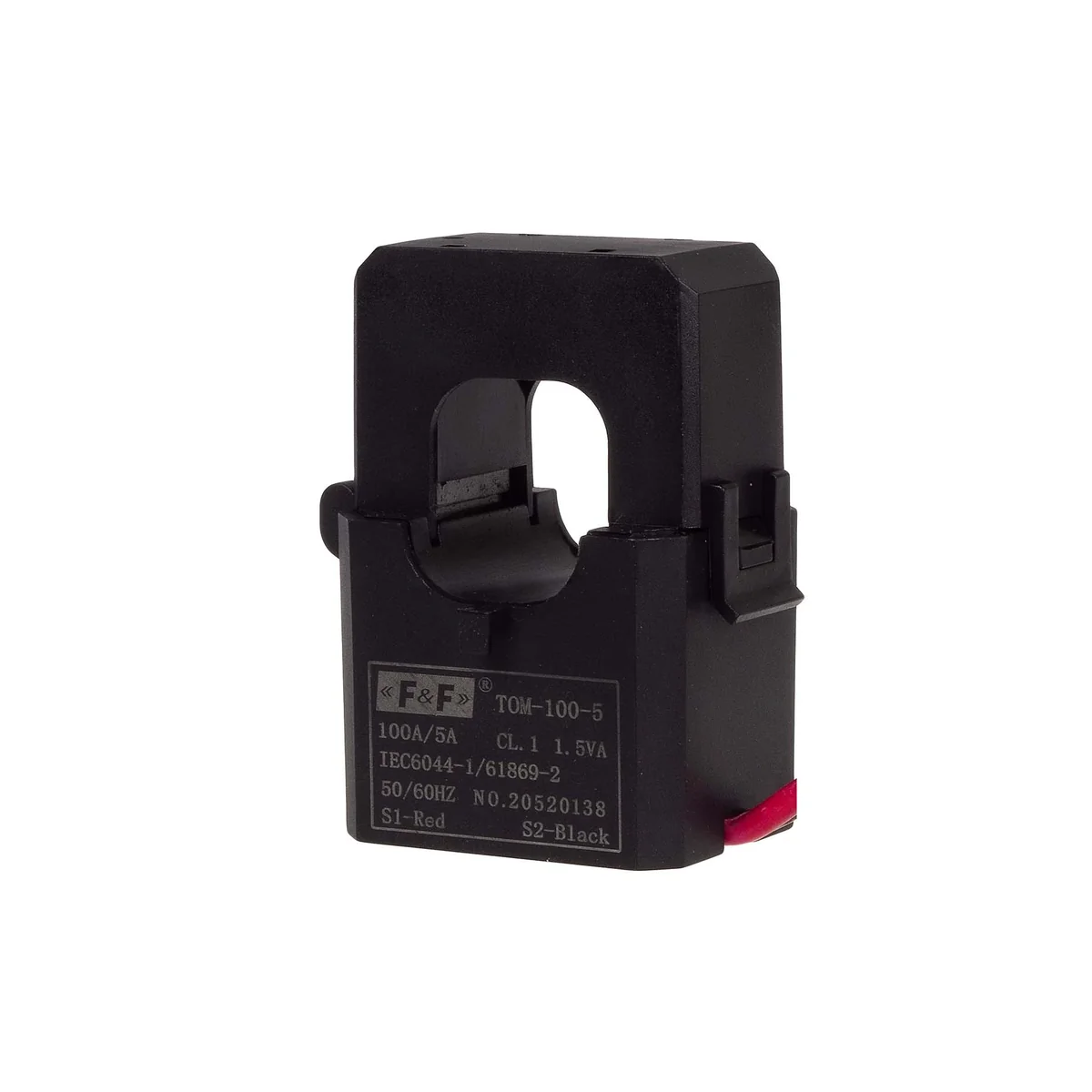

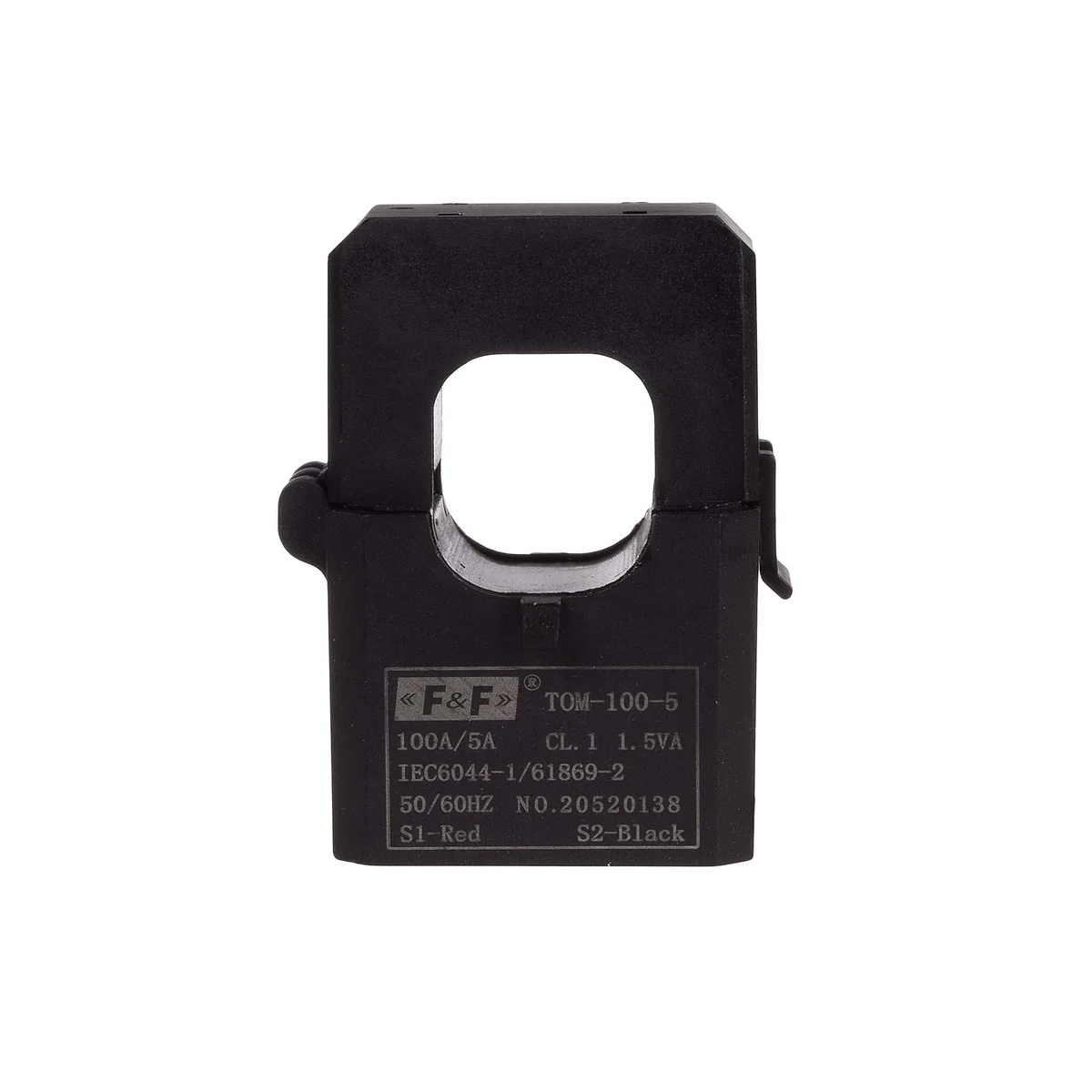

Miniature split-core current transformer 100-5A class 1 TOM-100-5
local index:
AUK019FIFQ
Catalog number:
TOM-100-5
EAN code:
5902431674070
Manufacturer:
F&F
Price:
191,88 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
PKWIU27.11.42.0
Other technical data
-
ModelAttachable current transformer
-
Rated secondary current5 A
-
Power consumption0 W
-
Overcurrent limiting factorFS 5
-
With shock protectionYes
-
Width opening0 ... 23 mm
-
Snap mountingNo
-
Secondary connectionCable
-
Rated primary current100 A
-
Rated secondary apparent power1.5 VA
-
Accuracy class1
-
CalibratedNo
-
Height opening0 ... 24 mm
-
Opening diameter0 mm
-
With copper railNo
-
Number of primary inputs1
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,780 |
| Width (m) | 0,089 |
| Length (m) | 0,105 |
| Depth (m) | 0,032 |
