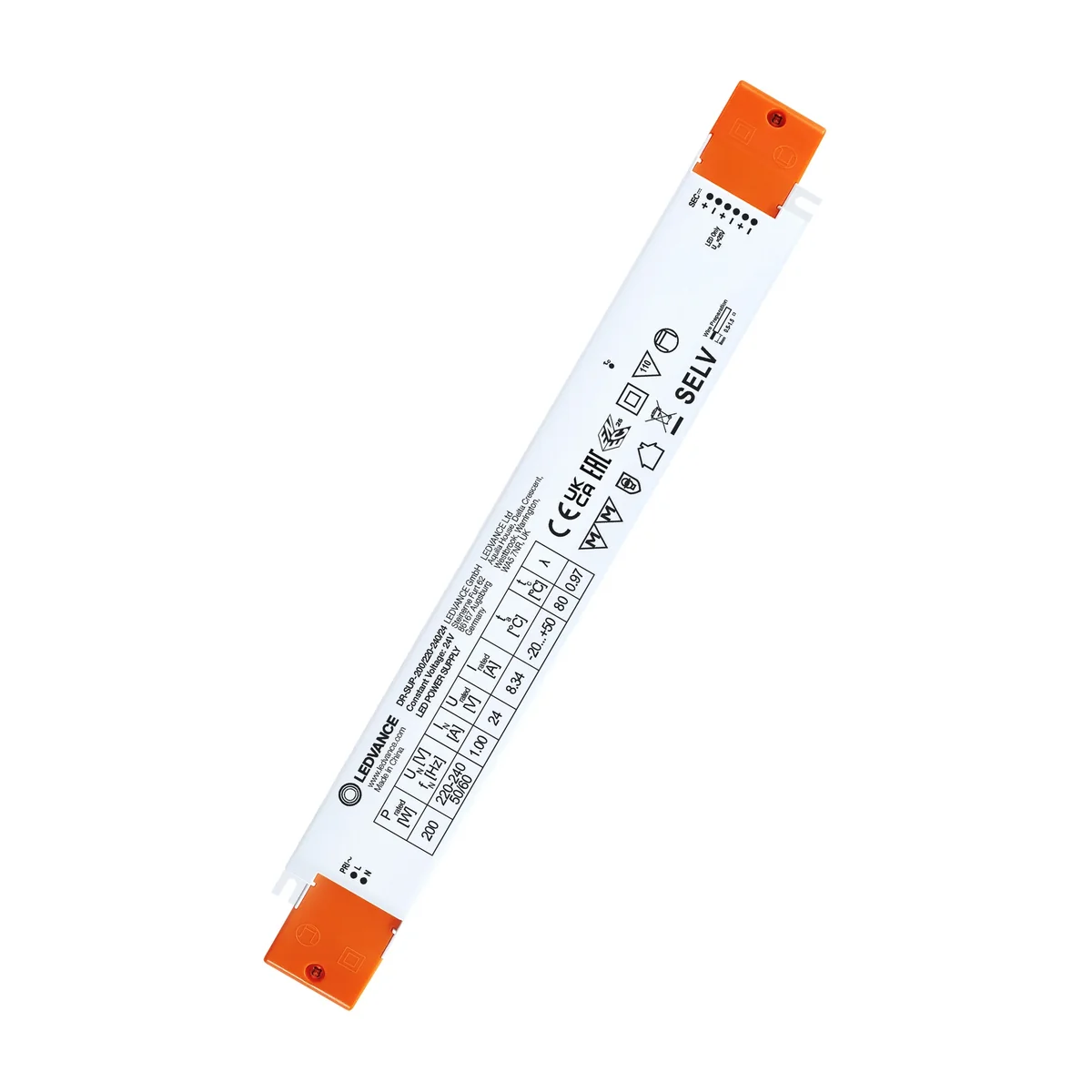

LED SUPERIOR power supply 200W 24V IP20 4058075437845
Index local:
AUD035LEDV
Numéro de catalogue:
4058075437845
Code EAN:
4058075437845
Prix:
444,01 zł
gross / pcs.
(y compris la TVA 23%)
1 286,99 zł gross/kg.
Ajouter à la demande de devis
Imprimer
Renseignez-vous sur le produit
Description du produit
Constant voltage power supply LED DRIVER SUPERIOR
Product advantages
- Perfect fit for universal 24 V LED strips
- Long durability and reliability at maximum permissible temperatures
- 5-year warranty
- Maintenance-free operation and minimal installation costs
- Quick and easy installation
- Very high efficiency and reliability
Areas of application
- Alcove lighting, even in places with limited space
- Floorlight for effect lighting in living rooms, dining rooms, bedrooms and entrances
- Offices, shopping centers/malls, hospitals, restaurants, hotels
- Suitable for indoor lighting installations SELV
Product Features
- Integrated cable clamp allows independent installation
- Lifespan: up to 60,000 h (at max. tc point temperature)
- Low current ripple <5%
- Operation below 60 V: Safety Extra Low Voltage (SELV)
- Reversible overheating, overload and short circuit protection
Données techniques
-
Length [mm]328
-
Materialplastic
-
DC output voltage [V]24
-
Initial starting current [A]130
-
FamilySUPERIOR
-
power loss [W]16
-
Durability [h]60000
-
Height [mm]thirty
-
Thermal protectionYes
-
Rated output current [mA]8340
-
Resistance to impulse voltage [kV]1
-
Protection classII
-
Power [W]200
-
Rated voltage [V]230
-
Rated current [mA]1000
-
Level of securityIP20
-
Width [mm]43
-
Weight [g]345
-
Overload protectionYes
-
Operating temperature range [°C]-20...45
-
Efficiency [%]92
-
Short circuit protectionYes
Autres données techniques
-
Suitable for outdoor useNo
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Dimming LineSwitchNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-onNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming with push-buttonNo
-
HousingPlastic housing
-
Suitable for constant voltageYes
-
Efficiency92 %
-
Overtemperature protectionYes
-
Degree of protection (IP)IP20
-
Trwałość sterownika60000 h
-
Width43 mm
-
Operation by BluetoothNo
-
DimmableNo
-
Dimming 1-10 VNo
-
Dimming DALI-2No
-
Dimming DSINo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-offNo
-
Dimming potentiometer (integrated)No
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming ZigbeeNo
-
Suitable for constant currentNo
-
Suitable for DC-voltage (primary side)No
-
Overload protectionYes
-
Ambient temperature-20 ... 50 °C
-
Protection classII
-
Length328 mm
-
Height30 mm
Détails du fabricant
-
ProducteurLEDVANCE GmbH
-
Adresse85748 Garching Parkring 29-33 Niemcy
-
