LED power supply OT 20/220-240/24 20W 24V 4050300618111

local index:
AUD002LEDV
Catalog No:
4050300618111
EAN code:
4050300618111
Manufacturer: LEDVANCE
Power [W]: 20
Rated voltage [V]: 230
Price:
45,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

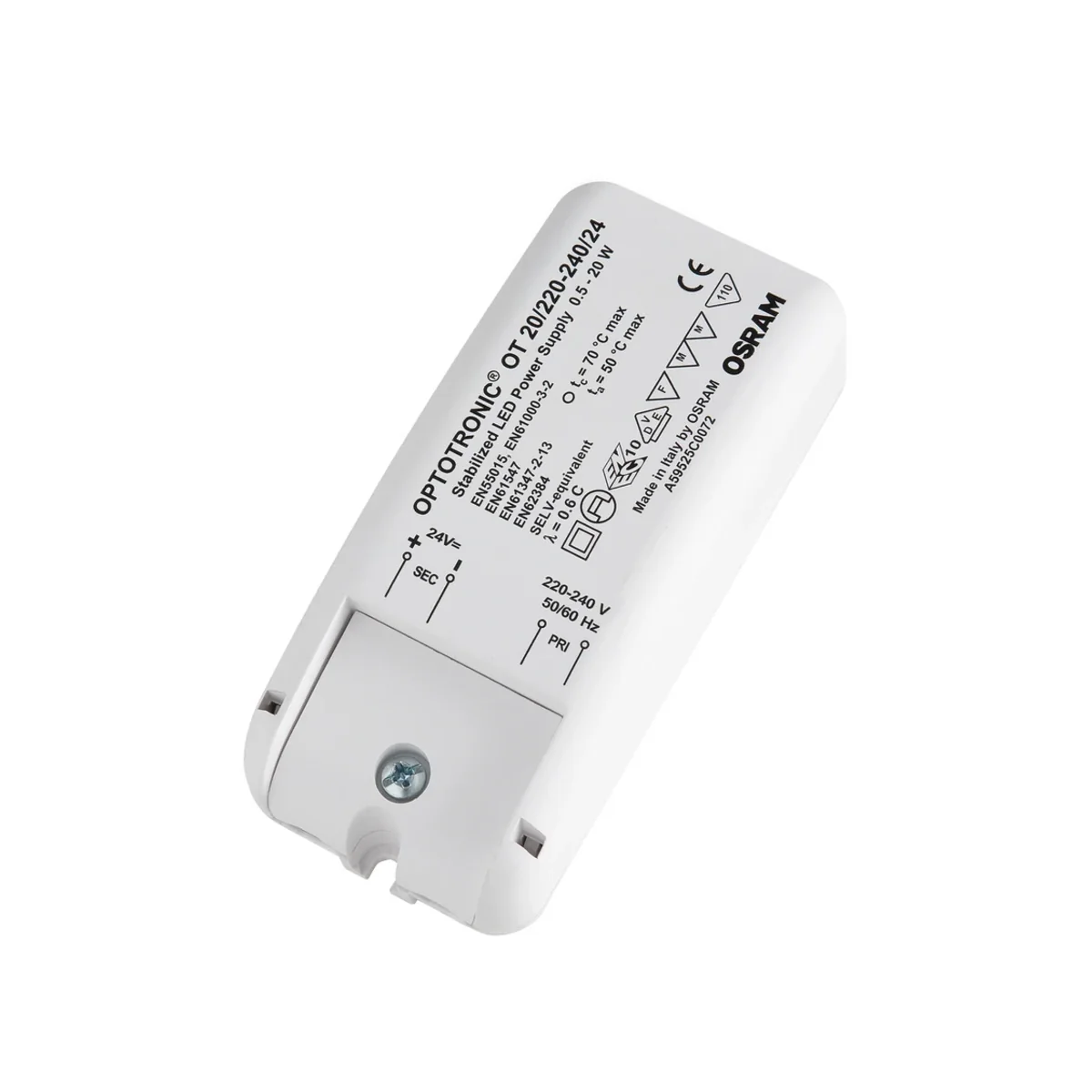

LED power supply OT 20/220-240/24 20W 24V

Technical data

  • Power [W]
    20
  • PKWIU
    27.11.50
  • Rated voltage [V]
    230

Other technical data

  • Model
    Static
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Suitable for constant current
    No
  • Output voltage
    24 ... 24 V
  • Output power
    20 ... 20 W
  • Protection class
    II

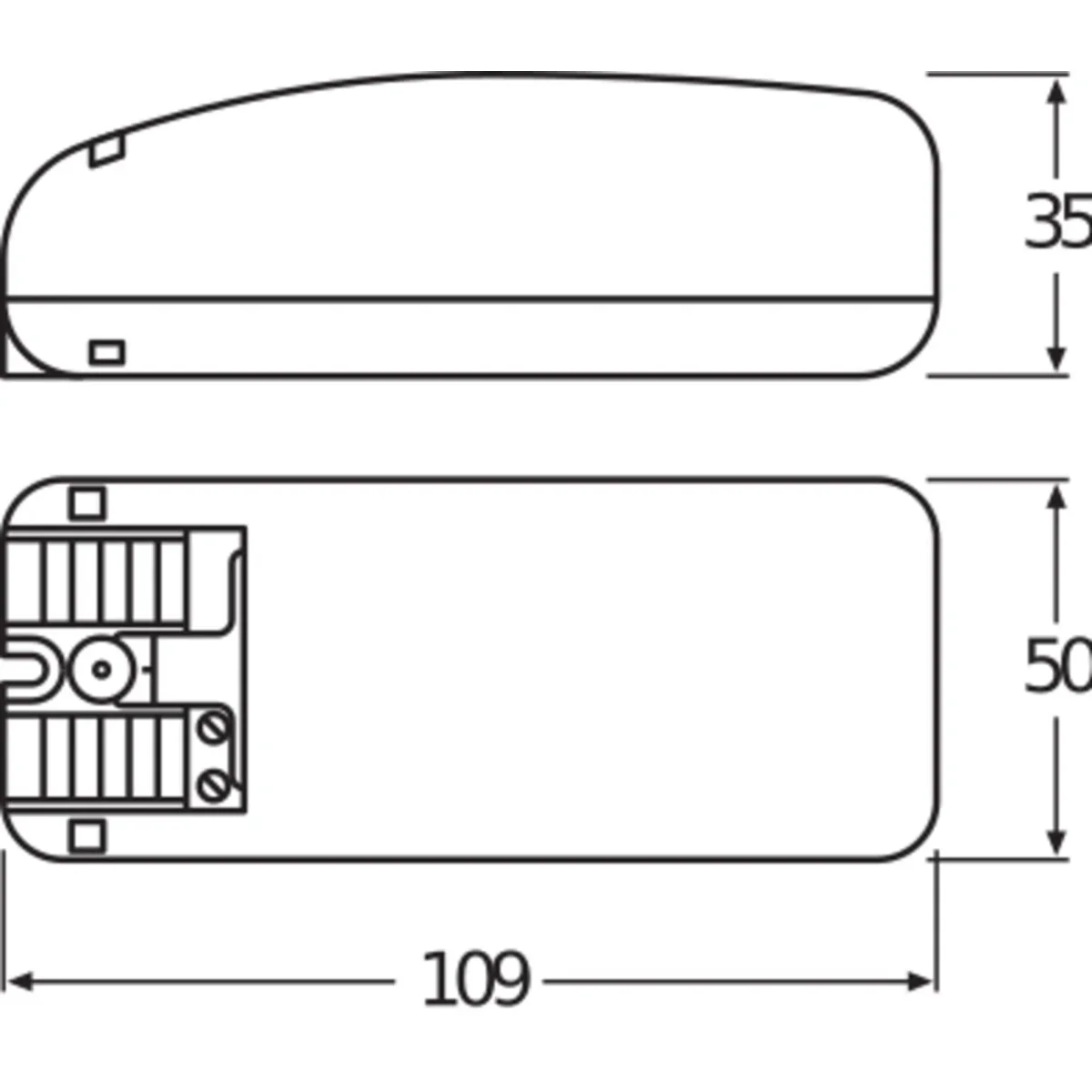

  • Height
    35.0 mm
  • Suitable for outdoor use
    No
  • Dimming 1-10 V
    No
  • Dimming DSI
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Housing
    Plastic housing
  • Suitable for constant voltage
    Yes
  • Suitable for DC-voltage (primary side)
    No
  • Degree of protection (IP)
    IP20
  • Length
    109.0 mm

Bulk packaging

A kind of package Torebka Karton
Quantity 1 pcs. 1 pcs. 20 pcs.
Weight (kg) 0,108 0,108 2,396
Volume (m3) - - 0,006
Width (m) - - 0,110
Length (m) - - 0,270
Depth (m) - - 0,230
