el12 Power sources Power supplies

LED DRIVER VALUE Constant voltage LED driver 230/24V 30W 230/24V IP20 4058075240056

Indice locale:
AUD110LEDV
Numero di catalogo:
4058075240056
Codice EAN:
4058075240056

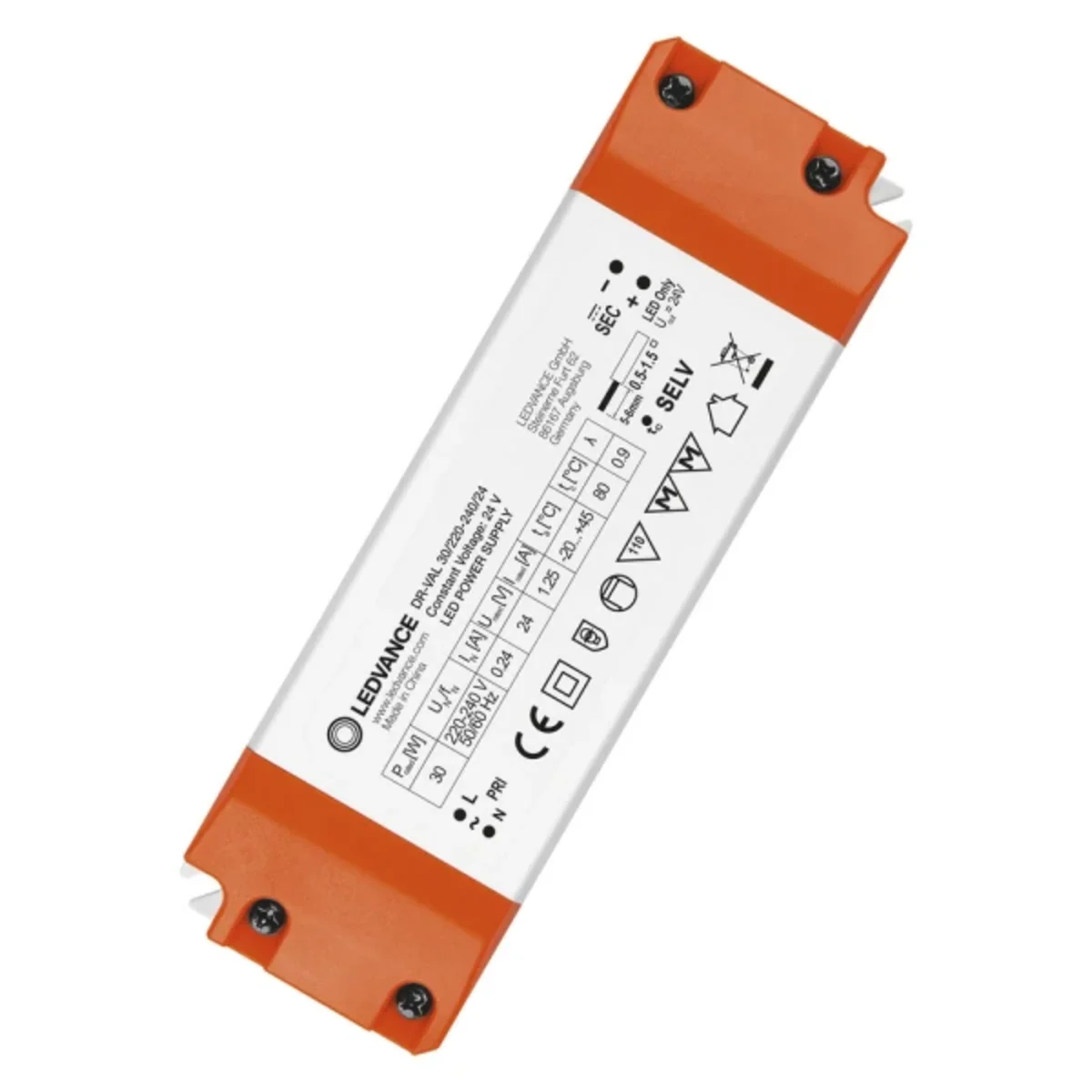

LED DRIVER VALUE Constant voltage LED driver 230/24V 30W 230/24V IP20
LED DRIVER VALUE Constant voltage LED driver 230/24V 30W 230/24V IP20
LED DRIVER VALUE Constant voltage LED driver 230/24V 30W 230/24V IP20
LED DRIVER VALUE Constant voltage LED driver 230/24V 30W 230/24V IP20
LED DRIVER VALUE Constant voltage LED driver 230/24V 30W 230/24V IP20
LED DRIVER VALUE Constant voltage LED driver 230/24V 30W 230/24V IP20

Clicca sulla foto per ingrandire

Produttore: LEDVANCE
Length [mm]: 142
Power [W]: thirty
Initial starting current [A]: 20
Vedi la descrizione completa
Prezzo:
85,24 zł
gross / pezzi
(inclusa IVA 23%)
Esaurito
Aggiungi alla richiesta di preventivo
Stampa
Descrizione del prodotto Dati tecnici Dettagli del produttore

Descrizione del prodotto

Areas of application

  • Lighting of recesses, even in confined spaces
  • Floodlight for effect lighting in living rooms, dining rooms, bedrooms and entrances
  • Suitable for SELV indoor lighting
  • Offices, shopping malls, hospitals, restaurants and hotels

Product benefits

  • Perfect match for universal 24V LED strips
  • Excellent price/performance ratio
  • Quick and easy installation
    • < li>Good performance and reliability

Product features

  • Integrated cable clamp allows standalone installation
  • Operating below 60V: safe low voltage (SELV)
  • Reversible protection against overheating, overload, short circuit and open circuit

Dati tecnici

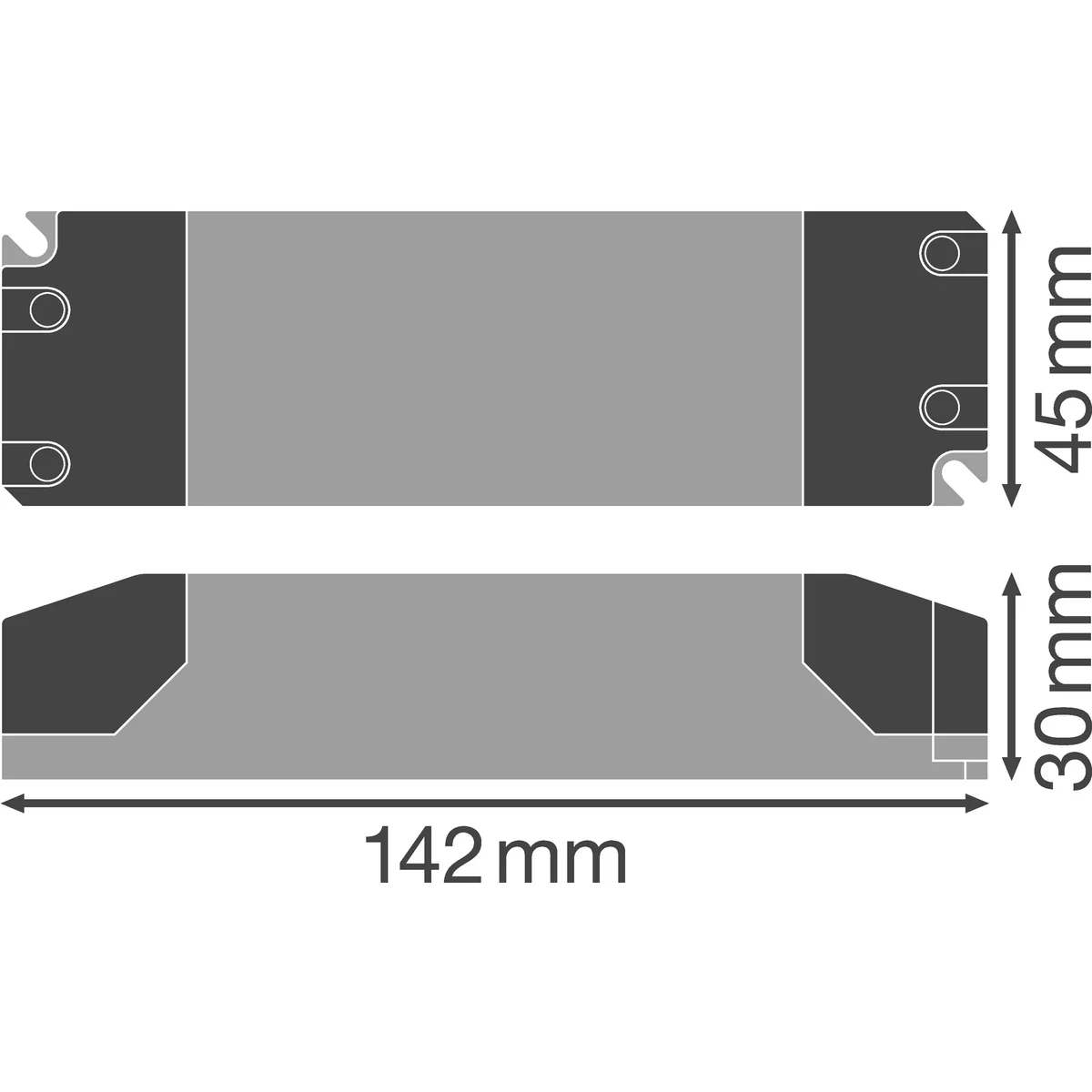

  • Length [mm]
    142
  • Initial starting current [A]
    20
  • Level of security
    IP20
  • Width [mm]
    45
  • Height [mm]
    thirty
  • Rated input voltage [V]
    230
  • Power factor [λ]
    0.9
  • Efficiency [%]
    87
  • Power [W]
    thirty
  • Family
    LED DRIVE VALUE
  • power loss [W]
    3.9
  • Durability [h]
    35000
  • Rated impulse voltage [kV]
    1
  • Rated output voltage [V]
    24
  • Rated output current [mA]
    1250
  • PKWIU
    27.11.50

Altri dati tecnici

  • Model
    Static
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Suitable for constant current
    No
  • Output voltage
    24 ... 24 V
  • Suitable for DC-voltage (primary side)
    No
  • Degree of protection (IP)
    IP20
  • Length
    142.0 mm
  • Suitable for outdoor use
    No
  • Dimming 1-10 V
    No
  • Dimming DSI
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Housing
    Plastic housing
  • Suitable for constant voltage
    Yes
  • Output current
    1250 ... 1250 mA
  • Output power
    30 ... 30 W
  • Protection class
    II
  • Height
    30.0 mm

Dettagli del produttore

  • Produttore
    LEDVANCE Sp z o.o
  • Indirizzo
    02-797 Warszawa Klimczaka 1 klatka E
  • NIP
    1130104862
