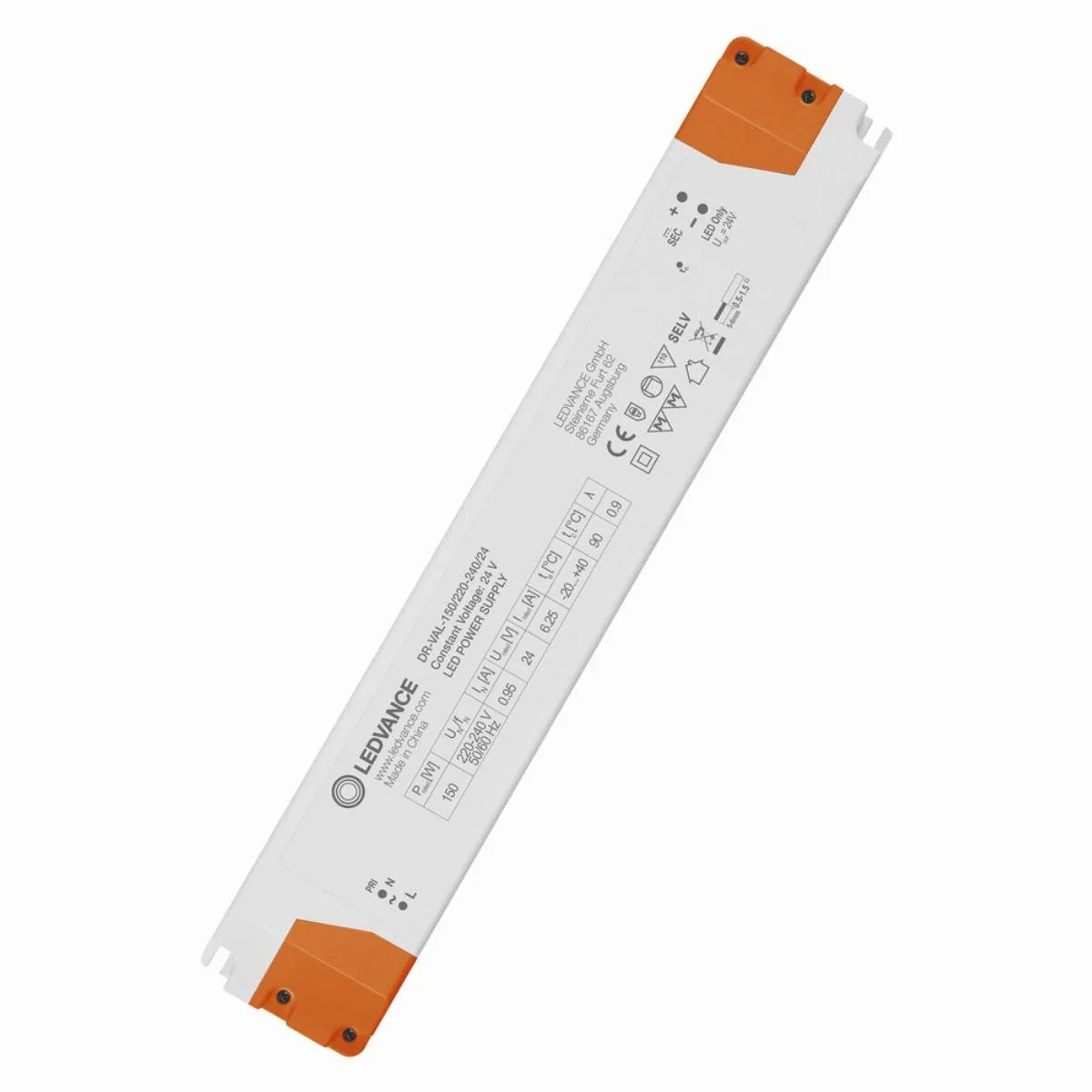

LED DRIVER VALUE Constant voltage LED driver 230/24V 150W 230/24V IP20 4058075240179
Index local:
AUD113LEDV
Numéro de catalogue:
4058075240179
Code EAN:
4058075240179
Prix:
245,39 zł
gross / pcs.
(y compris la TVA 23%)
Ajouter à la demande de devis
Imprimer
Renseignez-vous sur le produit
Description du produit
Areas of application
- Lighting of recesses, even in confined spaces
- Floodlight for effect lighting in living rooms, dining rooms, bedrooms and entrances
- Suitable for SELV indoor lighting
- Offices, shopping malls, hospitals, restaurants and hotels
Product benefits
- Perfect match for universal 24V LED strips
- Excellent price/performance ratio
- Quick and easy installation < li>Good performance and reliability
Product features
- Integrated cable clamp allows standalone installation
- Operating below 60V: safe low voltage (SELV)
- Reversible protection against overheating, overload, short circuit and open circuit
Données techniques
-
Length [mm]255
-
Initial starting current [A]90
-
Level of securityIP20
-
Width [mm]45
-
Height [mm]thirty
-
Rated input voltage [V]230
-
Power factor [λ]0.9
-
Efficiency [%]87
-
Power [W]150
-
FamilyLED DRIVE VALUE
-
power loss [W]19.5
-
Durability [h]35000
-
Rated impulse voltage [kV]1
-
Rated output voltage [V]24
-
Rated output current [mA]1250
-
PKWIU27.11.50
Autres données techniques
-
ModelStatic
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
Suitable for constant currentNo
-
Output voltage24 ... 24 V
-
Suitable for DC-voltage (primary side)No
-
Degree of protection (IP)IP20
-
Length255.0 mm
-
Suitable for outdoor useNo
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
HousingPlastic housing
-
Suitable for constant voltageYes
-
Output current6250 ... 6250 mA
-
Output power150 ... 150 W
-
Protection classII
-
Height32.0 mm
Détails du fabricant
-
ProducteurLEDVANCE Sp z o.o
-
Adresse02-797 Warszawa Klimczaka 1 klatka E
-
Numéro identifiant TVA1130104862
