LED DRIVER VALUE -150/220-240/24 4058075835917
Indice locale:
AUD023LEDV
Numero di catalogo:
4058075835917
Codice EAN:
4058075835917
Prezzo:
152,31 zł
gross / pezzi
(inclusa IVA 23%)
435,17 zł gross/kg.
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Chiedi informazioni sul prodotto
Descrizione del prodotto

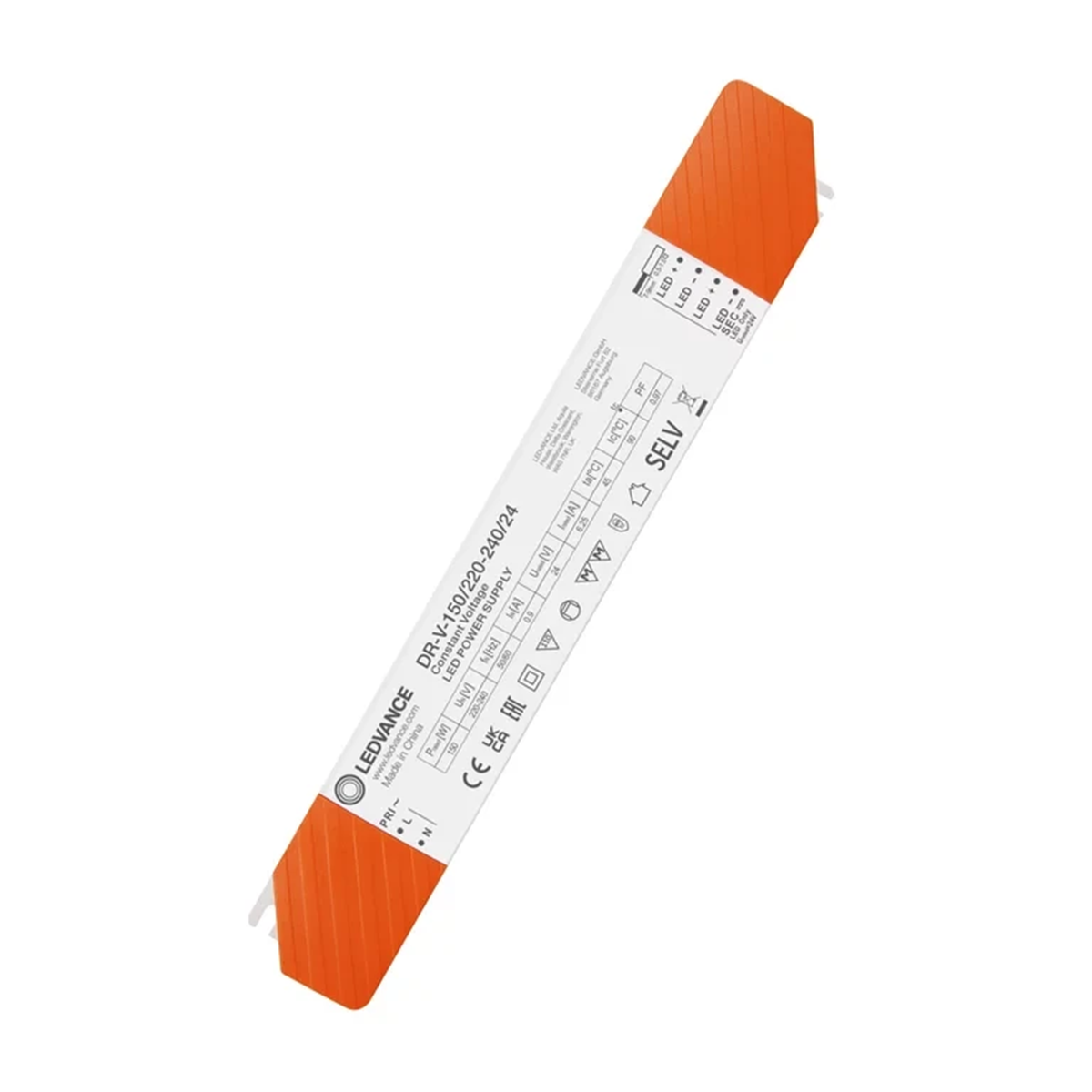

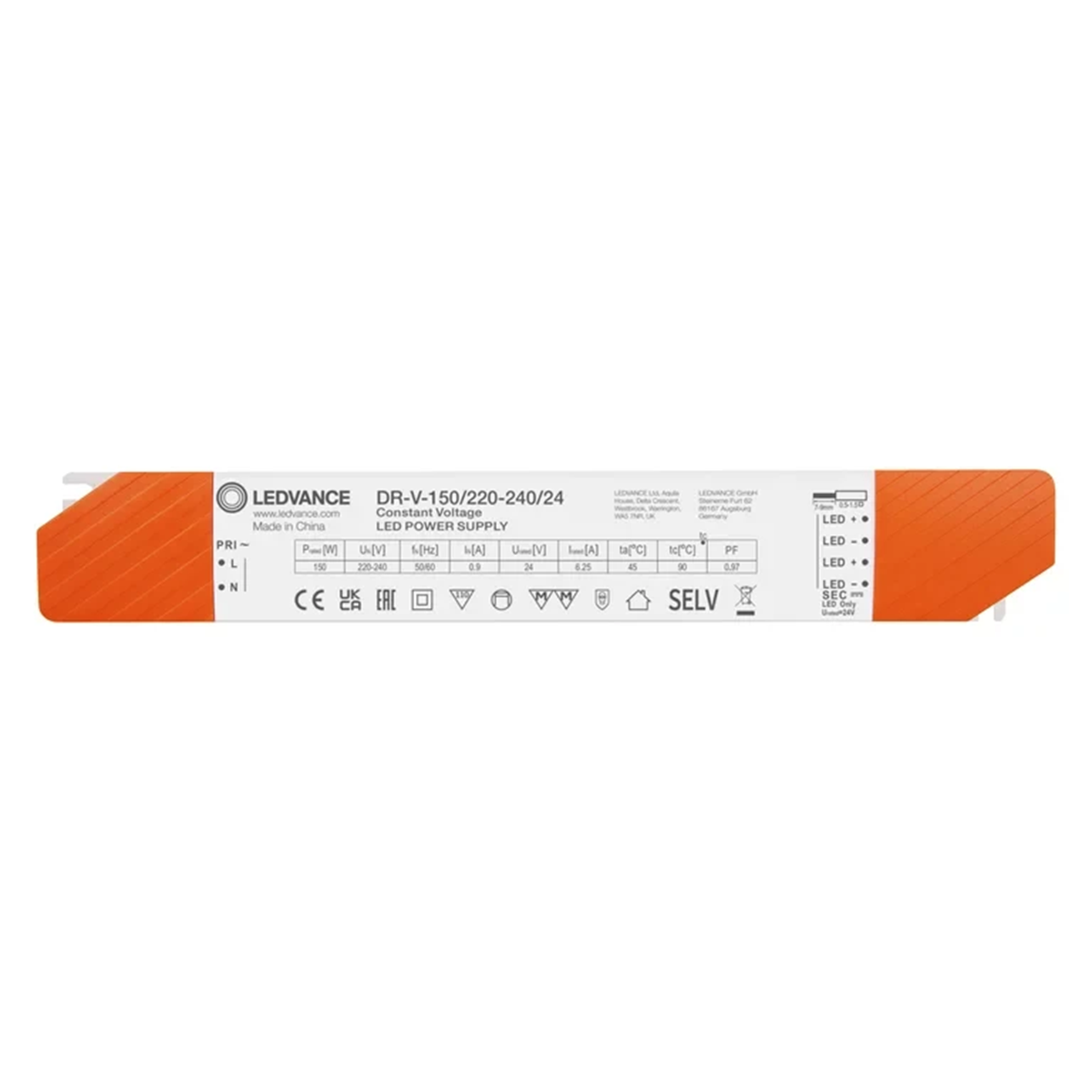

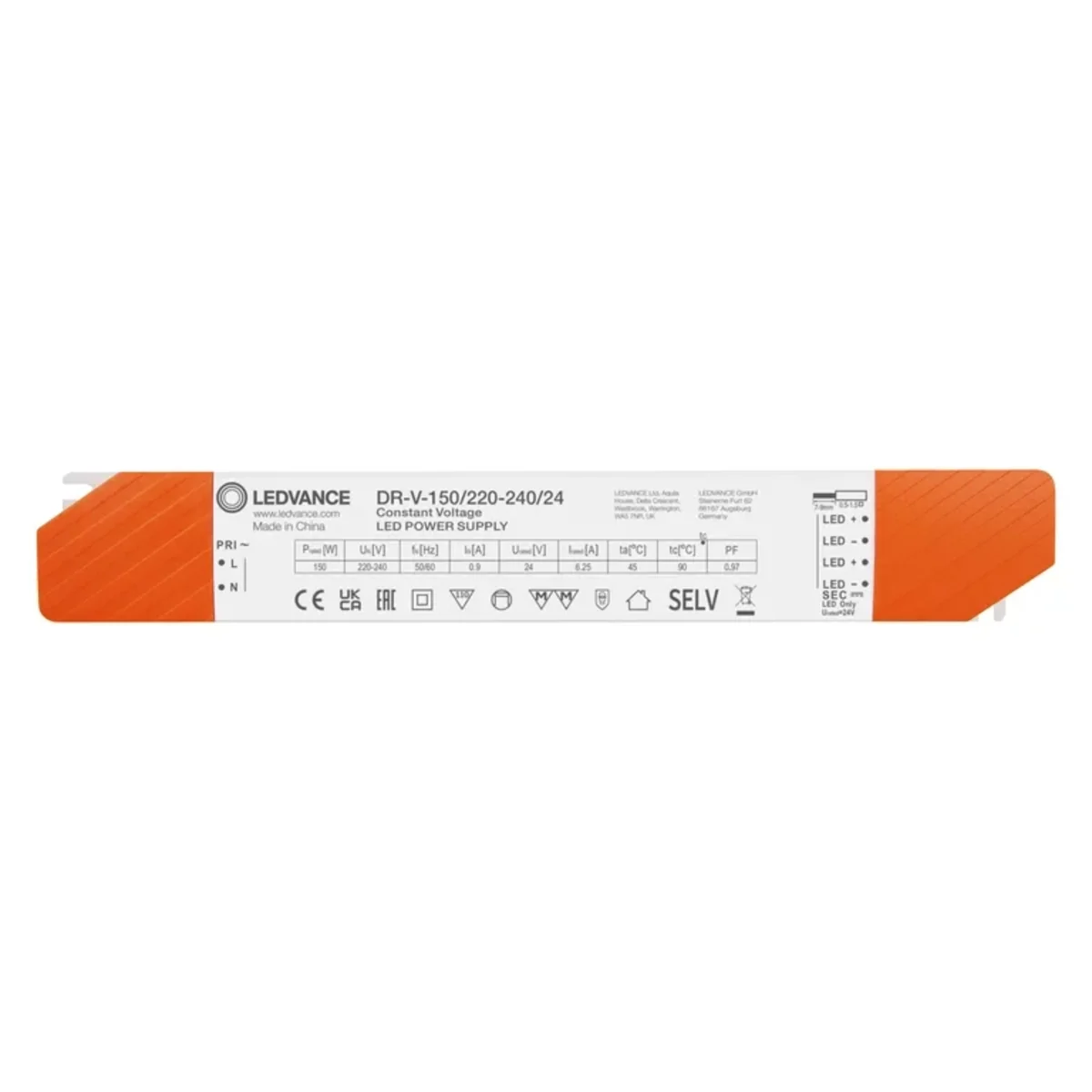

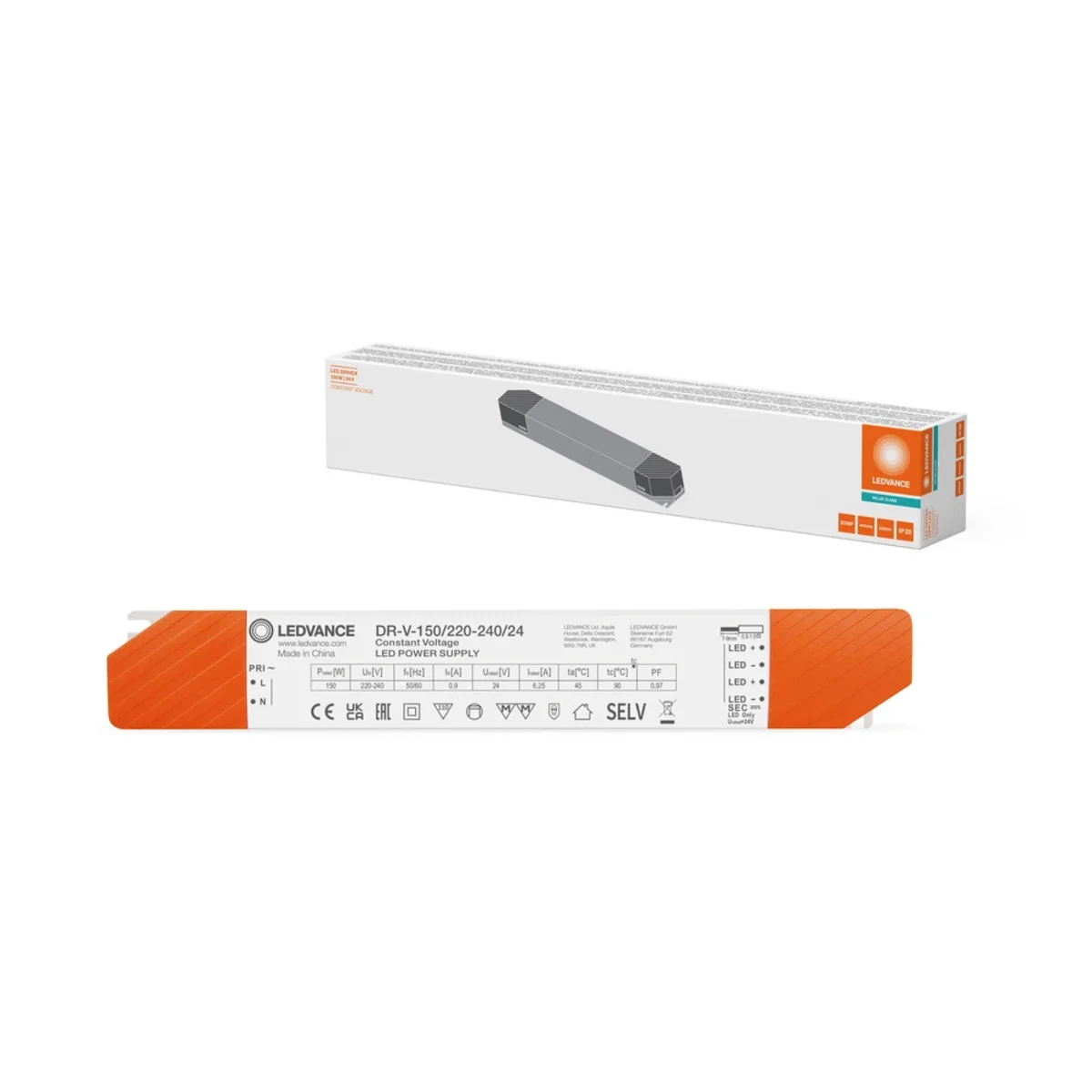

Constant voltage LED DRIVER VALUE
Product advantages
- Perfect fit for universal 24V LED strips
- Excellent price/performance ratio
- 3-year warranty
- Quick and easy installation
- Good efficiency and reliability
Areas of application
- Alcove lighting, even in places with limited space
- Floorlight for effect lighting in living rooms, dining rooms, bedrooms and entrances
- Suitable for SELV indoor lighting installations
- Offices, shopping centers/malls, hospitals, restaurants, hotels
Features Product Information
- Integrated cable clamp allows for independent installation
- Lifespan: up to 35,000 hours (at max. tc temperature)
- Operation below 60V: safety extra low voltage (SELV)
- Reversible protection against overheating, overload and short circuit
Dati tecnici
-

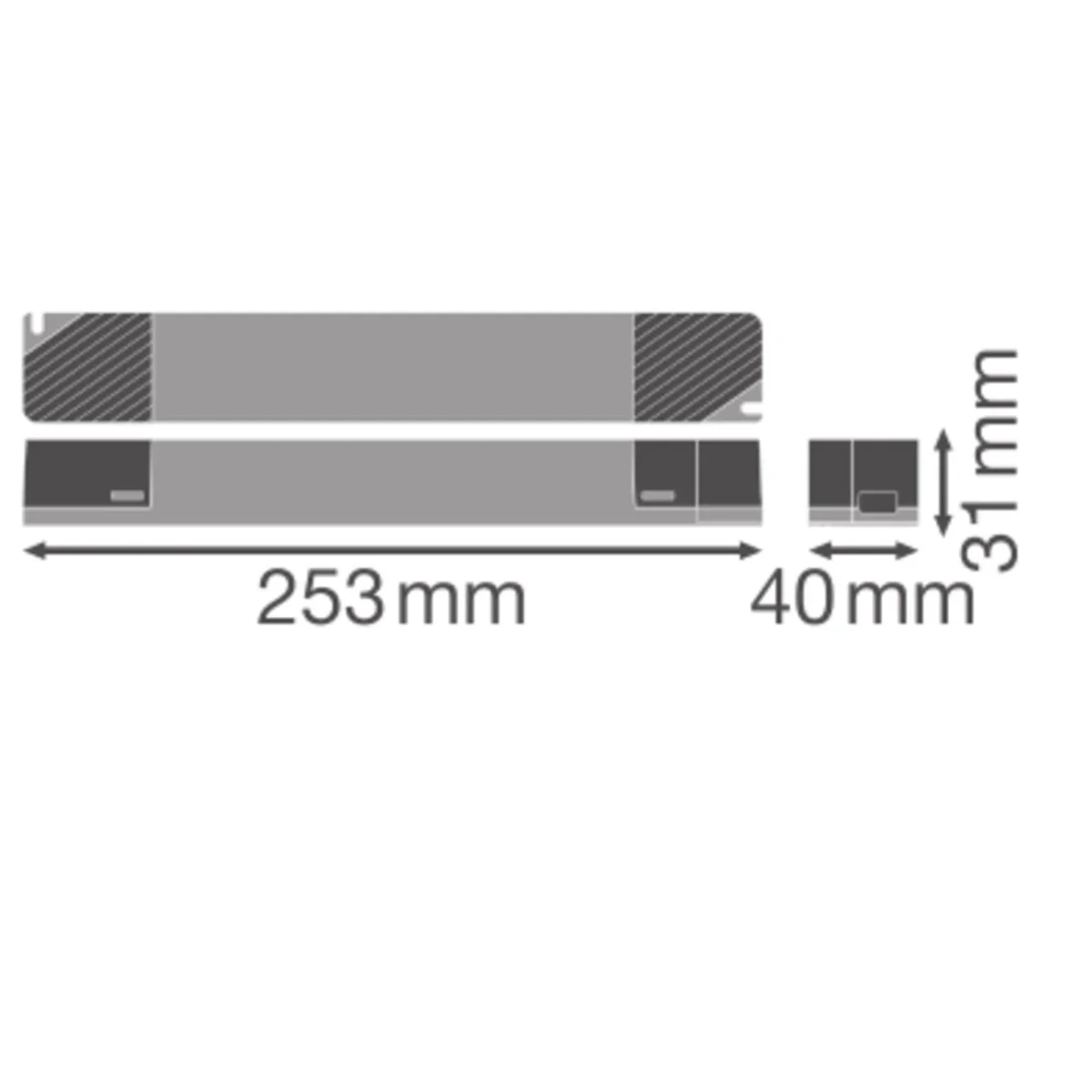

Length [mm]253
-
Materialplastic
-
DC output voltage [V]24
-
Initial starting current [A]46
-
FamilyVALUE
-
power loss [W]11.2
-
Durability [h]35000
-
Height [mm]31
-
Thermal protectionYes
-
Rated output current [mA]6250
-
Resistance to impulse voltage [kV]1
-
Protection classII
-
Power [W]150
-
Rated voltage [V]230
-
Rated current [mA]900
-
Level of securityIP20
-
Width [mm]40
-
Weight [g]350
-
Overload protectionYes
-
Operating temperature range [°C]-20...45
-
Efficiency [%]89
-
Short circuit protectionYes
Altri dati tecnici
-
Suitable for outdoor useNo
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Dimming LineSwitchNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-onNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming with push-buttonNo
-
Constant light output (CLO)No
-
Suitable for constant currentNo
-
Suitable for DC-voltage (primary side)No
-
Overload protectionYes
-
Ambient temperature-20 ... 45 °C
-
Protection classII
-
Length253 mm
-
Height31 mm
-
Compatible with Apple HomeKitNo
-
Compatible with Amazon AlexaNo
-
IFTTT support availableNo
-
DimmableNo
-
Dimming 1-10 VNo
-
Dimming DALI-2No
-
Dimming DSINo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-offNo
-
Dimming potentiometer (integrated)No
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming ZigbeeNo
-
HousingPlastic housing
-
Suitable for constant voltageYes
-
Efficiency91 %
-
Overtemperature protectionYes
-
Degree of protection (IP)IP20
-
Trwałość sterownika35000 h
-
Width40 mm
-
Operation by BluetoothNo
-
Compatible with Google AssistantNo
-
Compatible with CasambiNo
Dettagli del produttore
-
ProduttoreLEDVANCE GmbH
-
Indirizzo85748 Garching Parkring 29-33 Niemcy
-
Email
Imballaggio sfuso
| Una specie di pacchetto | Skrzynia | Karton |
| Quantità | 1 pezzi | 20 pezzi |
| Peso (kg) | 0,370 | 7,938 |
| Volume (m3) | 0,000 | 0,012 |
| Larghezza (m) | 0,040 | 0,240 |
| Lunghezza (m) | 0,040 | 0,290 |
| Profondità (m) | 0,260 | 0,170 |
