el12 Power sources Power supplies

LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66 4058075239913

local index:
AUD126LEDV
Catalog number:
4058075239913
EAN code:
4058075239913

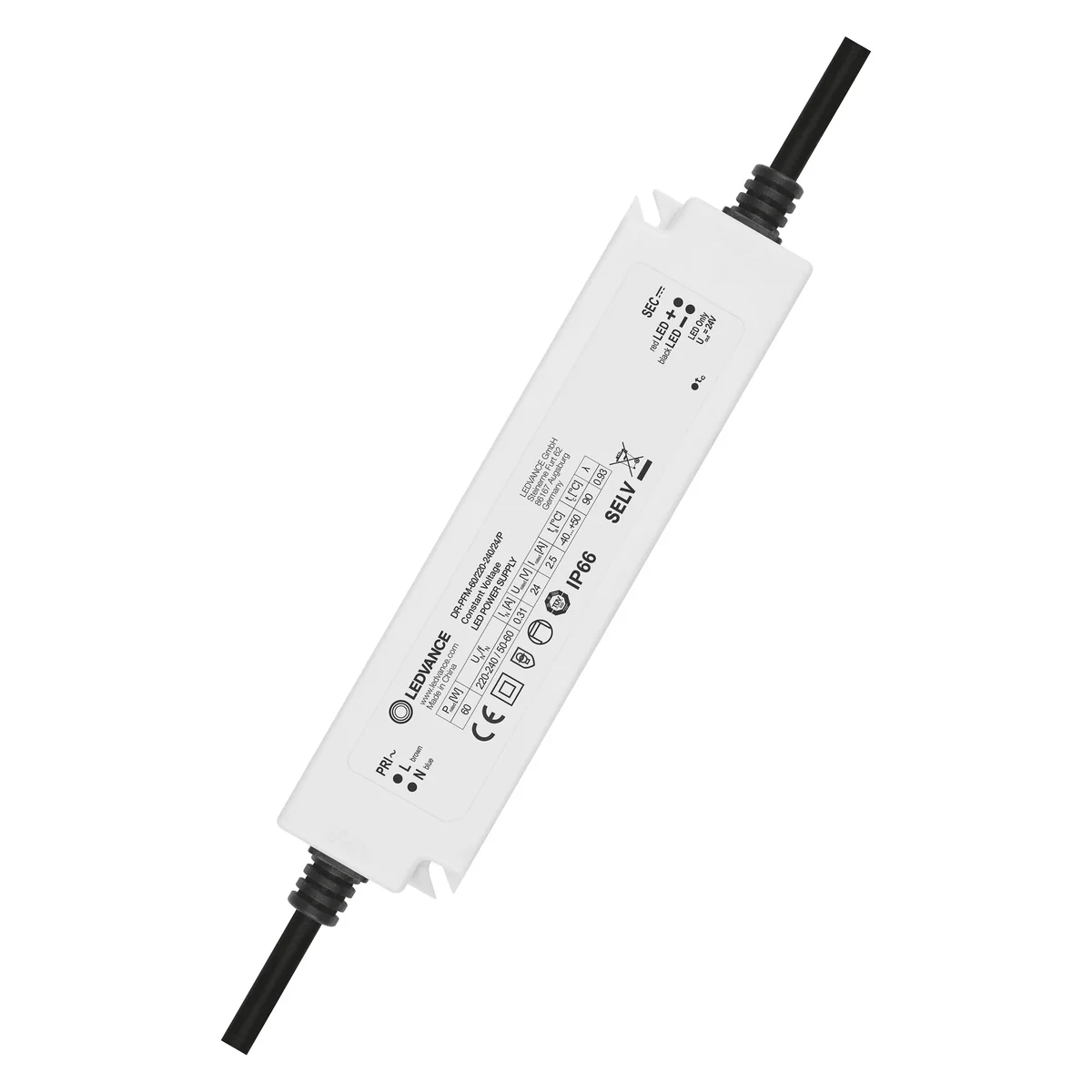

LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66
LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66
LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66
LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66
LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66
LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66
LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66
LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66
LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66
LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 60W 230/24V IP66

Click on the photo to enlarge

Manufacturer: LEDVANCE
Length [mm]: 163
Power [W]: 60
Initial starting current [A]: 44
See full description
Price:
226,18 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Product benefits

  • Perfect match for universal 24V LED strips
  • Very stable output power
  • Quick and easy installation thanks to internal wiring
  • High efficiency and reliability
  • Can be installed in very cold or hot environments

Application area< /strong>

  • Suitable for indoor and outdoor installations
  • Façade and building lighting
  • Perfect solution for lighting public spaces
    • < li>Bathrooms, Kitchens and Outdoors
  • Offices, Shopping Malls, Hospitals, Restaurants and Hotels

Product Features

< ul>
  • Electrical short circuit and overload protection

    • Technical data

    • Length [mm]
      163
    • Initial starting current [A]
      44
    • Level of security
      IP66
    • Width [mm]
      43
    • Height [mm]
      32
    • Rated input voltage [V]
      230
    • Power factor [λ]
      0.93
    • Efficiency [%]
      88
    • Power [W]
      60
    • Family
      LED DRIVER OUTDOOR PERFORMANCE
    • power loss [W]
      7.7
    • Durability [h]
      50000
    • Rated impulse voltage [kV]
      4
    • Rated output voltage [V]
      24
    • Rated output current [mA]
      1250
    • PKWIU
      27.11.50

    Other technical data

    • Suitable for outdoor use
      Yes
    • Dimming 0-10 V
      No
    • Dimming DALI
      No
    • Dimming DMX
      No
    • Dimming LineSwitch
      No
    • Dimming manufacturer's proprietary system
      No
    • Dimming phase cut-on
      No
    • Dimming programmable
      No
    • Dimming Sine Wave Reduction
      No
    • Dimming with push-button
      No
    • Housing
      Plastic housing
    • Suitable for constant voltage
      Yes
    • Efficiency
      88 %
    • Overtemperature protection
      No
    • Degree of protection (IP)
      IP66
    • Trwałość sterownika
      50000 h
    • Width
      43 mm
    • Operation by Bluetooth
      No
    • Dimmable
      No
    • Dimming 1-10 V
      No
    • Dimming DALI-2
      No
    • Dimming DSI
      No
    • Dimming mains voltage modulation
      No
    • Dimming phase cut-off
      No
    • Dimming potentiometer (integrated)
      No
    • Dimming RF
      No
    • Dimming Touch and Dim
      No
    • Dimming Zigbee
      No
    • Suitable for constant current
      No
    • Suitable for DC-voltage (primary side)
      No
    • Overload protection
      No
    • Ambient temperature
      -40 ... 50 °C
    • Protection class
      II
    • Length
      163 mm
    • Height
      32 mm

    Manufacturer details

    • Manufacturer
      LEDVANCE GmbH
    • Address
      85748 Garching Parkring 29-33 Niemcy
    • E-mail
      InfoPL@ledvance.com

    Bulk packaging

    A kind of package Skrzynia Karton
    Quantity 1 pcs. 10 pcs.
    Weight (kg) 0,447 4,739
    Volume (m3) 0,001 0,009
    Width (m) 0,070 0,160
    Length (m) 0,220 0,240
    Depth (m) 0,040 0,230
