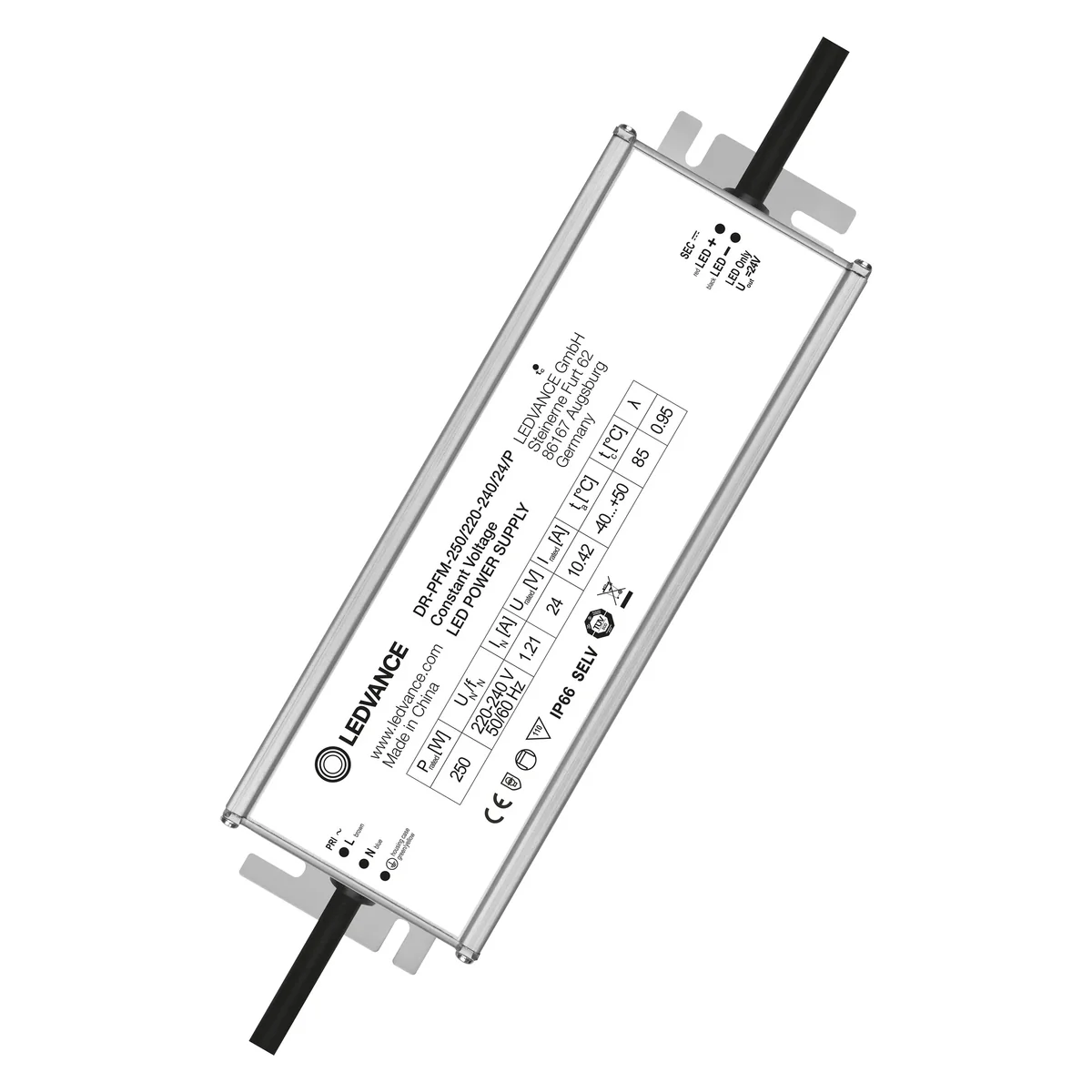

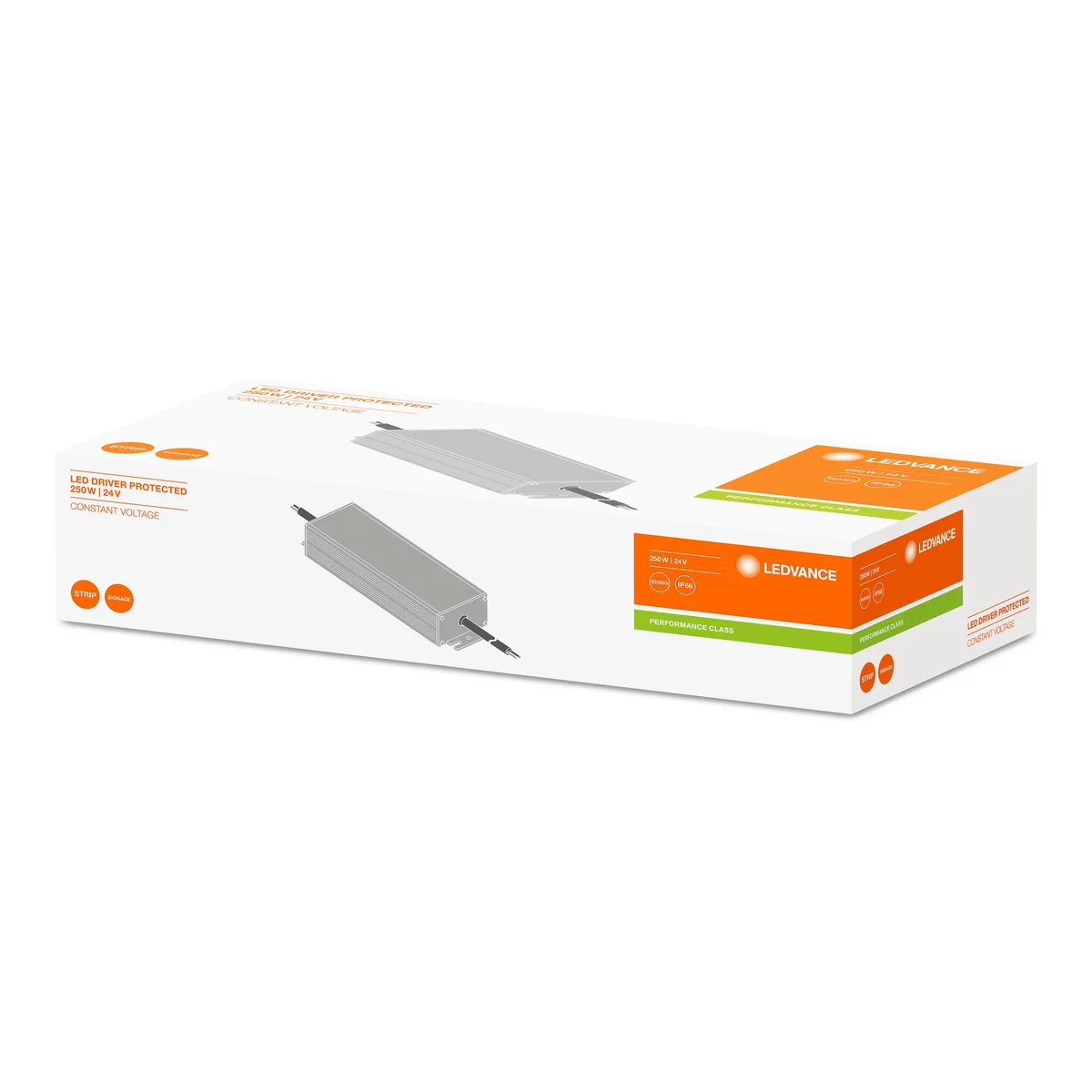

LED DRIVER OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use 250W 230/24V IP66 4058075240032

local index:
AUD124LEDV
Catalog No:
4058075240032
EAN code:
4058075240032
Manufacturer: LEDVANCE
Length [mm]: 233
Power [W]: 250
Initial starting current [A]: 60
Price:
196,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Product benefits

  • Perfect match for universal 24V LED strips
  • Very stable output power
  • Quick and easy installation thanks to internal wiring
  • High efficiency and reliability
  • Can be installed in very cold or hot environments

Application area< /strong>

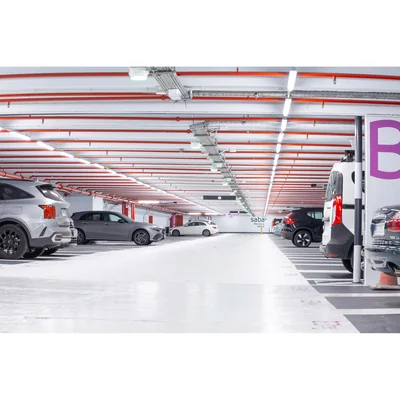

  • Suitable for indoor and outdoor installations
  • Façade and building lighting
  • Perfect solution for lighting public spaces
  • < li>Bathrooms, Kitchens and Outdoors
  • Offices, Shopping Malls, Hospitals, Restaurants and Hotels

Product Features

< ul>
  • Electrical short circuit and overload protection
  • Technical data

    • Length [mm]
      233
    • Initial starting current [A]
      60
    • Level of security
      IP66
    • Width [mm]
      74
    • Height [mm]
      42
    • Rated input voltage [V]
      230
    • Power factor [λ]
      0.95
    • Efficiency [%]
      92
    • Power [W]
      250
    • Family
      LED DRIVER OUTDOOR PERFORMANCE
    • power loss [W]
      22
    • Durability [h]
      50000
    • Rated impulse voltage [kV]
      6
    • Rated output voltage [V]
      24
    • Rated output current [mA]
      1250
    • PKWIU
      27.11.50

    Other technical data

    • Model
      Static
    • Dimming 0-10 V
      No
    • Dimming DALI
      No
    • Dimming DMX
      No
    • Ściemniacz GPRS
      No
    • Dimming manufacturer's proprietary system
      No
    • Dimming phase cut-off
      No
    • Dimming programmable
      No
    • Dimming Sine Wave Reduction
      No
    • Dimming Zigbee
      No
    • No dim function
      Yes
    • Suitable for constant current
      No
    • Output voltage
      24 ... 24 V
    • Suitable for DC-voltage (primary side)
      No
    • Degree of protection (IP)
      IP66
    • Length
      233.0 mm
    • Suitable for outdoor use
      Yes
    • Dimming 1-10 V
      No
    • Dimming DSI
      No
    • Dimming potentiometer (integrated)
      No
    • Dimming LineSwitch
      No
    • Dimming mains voltage modulation
      No
    • Dimming phase cut-on
      No
    • Dimming RF
      No
    • Dimming Touch and Dim
      No
    • Dimming with push-button
      No
    • Housing
      Metal housing
    • Suitable for constant voltage
      Yes
    • Output current
      10420 ... 10420 mA
    • Output power
      250 ... 250 W
    • Protection class
      I
    • Height
      42.0 mm

    Bulk packaging

    A kind of package Skrzynia Karton
    Quantity 1 pcs. 1 pcs. 10 pcs.
    Weight (kg) 1,200 0,996 13,161
    Volume (m3) - 0,001 0,018
    Width (m) - 0,100 0,220
    Length (m) - 0,280 0,290
    Depth (m) - 0,050 0,280
