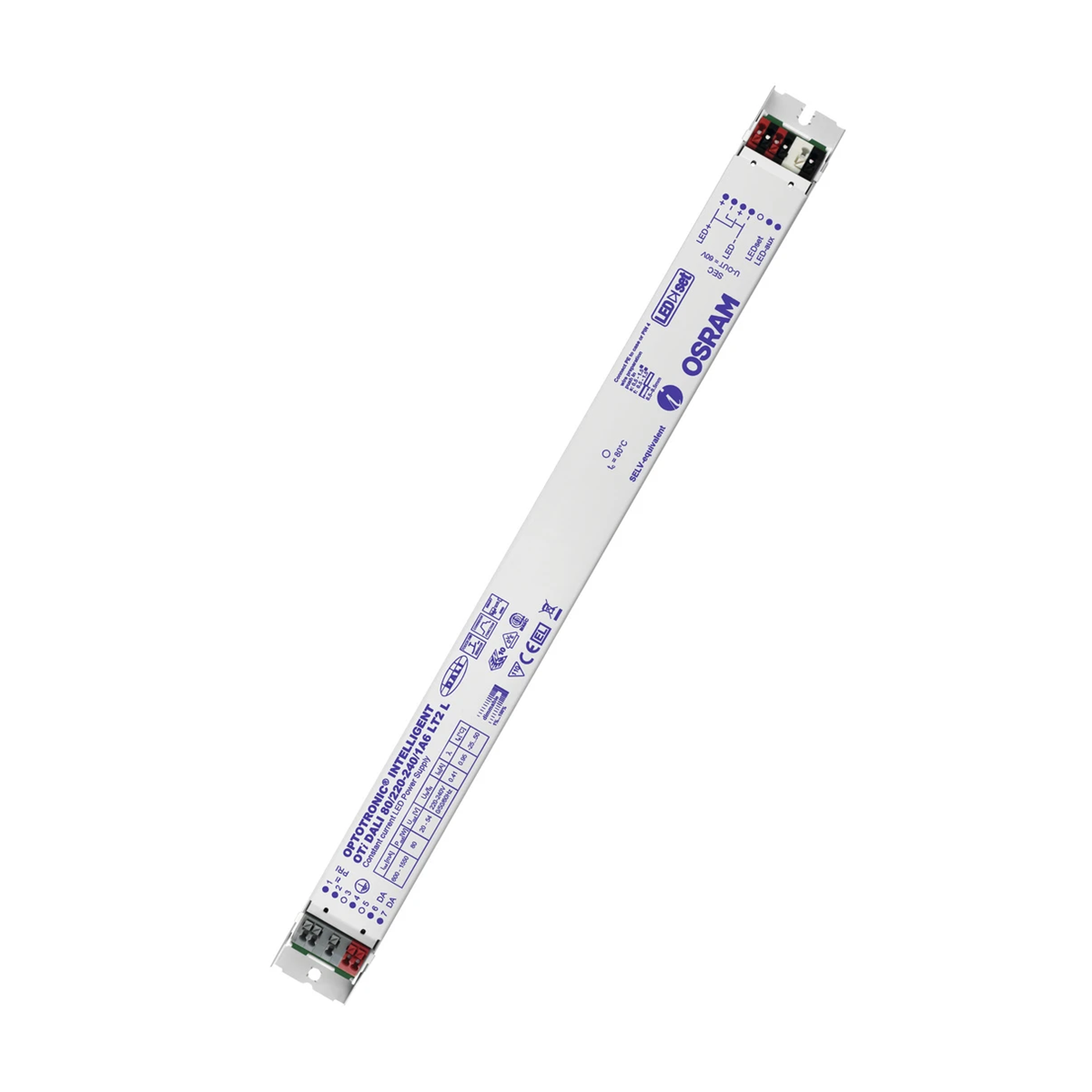

LED driver OTi DALI 80 220-240V 1A6 LT2 L 600-1550mA 4052899028074
local index:
AUD012LEDV
Catalog No:
4052899028074
EAN code:
4052899028074
Price:
90,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Product benefits
- Versatile DALI window driver up to 90W due to flexible output characteristics
- Very high efficiency and reliability
- System protection with heat dissipation and Smart Control
- Installation in emergency lighting systems according to IEC 61347-2-13, Annex J
- Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
- Suitable for indoor installations with and without SELV
- Designed for luminaires with protection class I
- li>
- Power Supply: 220…240V
- Line Frequency: 0Hz | 50 Hz | 60 Hz
- Mains voltage: 198…264 V
- Safety in accordance with EN 61347-1, 61347-2-3, 61347-2-13, 62384
- IR suppression in accordance with PN-EN 55015:2007+A1:2007/CDN
- Harmonic current:u in accordance with PN-EN 61000-3-2
- Durability: up to 100,000 hours (Tc = 65 °C, max. 10% damage factor)
Technical data
-

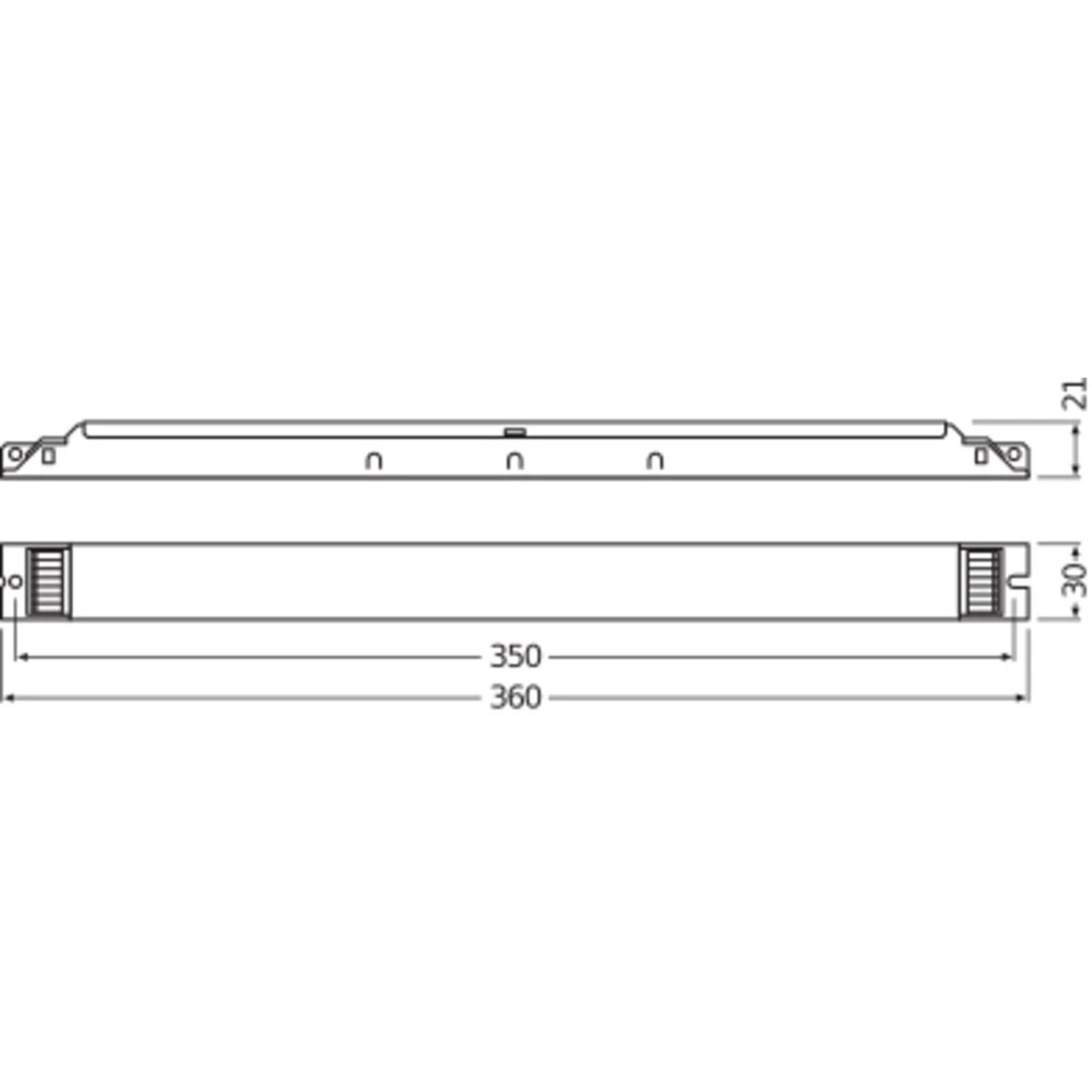

Length [mm]360
-
Level of securityIP20
-
Width [mm]thirty
-
Height [mm]21
-
Rated output voltage [V]20-54
-
Package weight [kg]0.3
-
Power factor [λ]>0.95
-
Ambient temperature range [°C]-20 - +50
-
Rated voltage [V]230
-
Power dissipation [W]8.5
-
Durability [h]50000
-
Rated input voltage [V]198-264
-
Package width [mm]40
-
Package length [mm]400
-
Rated output current [mA]600-1550
-
PKWIU27.11.50
Other technical data
-
ModelDynamic
-
Dimming 0-10 VNo
-
Dimming DALIYes
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemYes
-
Dimming phase cut-offNo
-
Dimming programmableYes
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionNo
-
Suitable for constant currentYes
-
Suitable for DC-voltage (primary side)Yes
-
Protection classI
-
Height21.0 mm
-
Suitable for outdoor useNo
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimYes
-
Dimming with push-buttonYes
-
HousingMetal housing
-
Suitable for constant voltageNo
-
Degree of protection (IP)IP20
-
Length360.0 mm
Manufacturer details
-
ManufacturerLEDVANCE GmbH
-
Address85748 Garching Parkring 29-33 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Torebka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 20 pcs. |
| Weight (kg) | 0,285 | 0,285 | 5,871 |
| Volume (m3) | - | - | 0,006 |
| Width (m) | - | - | 0,160 |
| Length (m) | - | - | 0,390 |
| Depth (m) | - | - | 0,100 |
