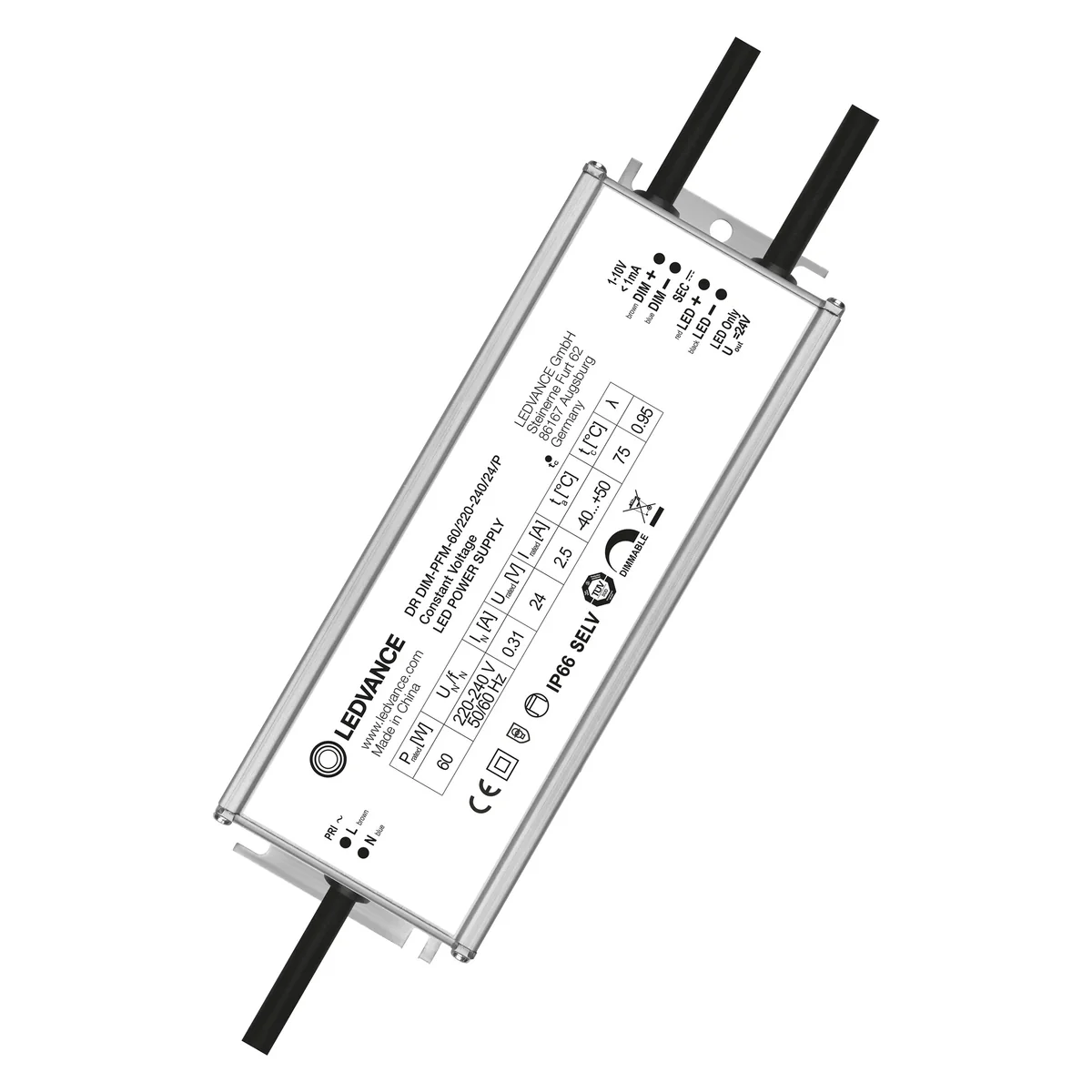

LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use with 1-10V 60W 230/24V IP66 interface 4058075379190

local index:
AUD121LEDV
Catalog No:
4058075379190
EAN code:
4058075379190
Manufacturer: LEDVANCE
Length [mm]: 179
Power [W]: 60
Initial starting current [A]: 25
Price:
110,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Product benefits

  • Perfect match for universal 24V LED strips
  • Very stable output power
  • Quick and easy installation thanks to internal wiring
  • High efficiency and reliability
  • Can be installed in very cold or hot environments

Application area< /strong>

  • Suitable for indoor and outdoor installations
  • Lighting for facades and buildings
  • Perfect solution for lighting public spaces
  • Bathrooms, kitchens and outdoor spaces
  • Offices, shopping malls, hospitals, restaurants and hotels

Product features

  • Adjustable with 1...10V analog regulator
  • 10...100% adjustable
  • Electrical short circuit and overload protection

Technical data

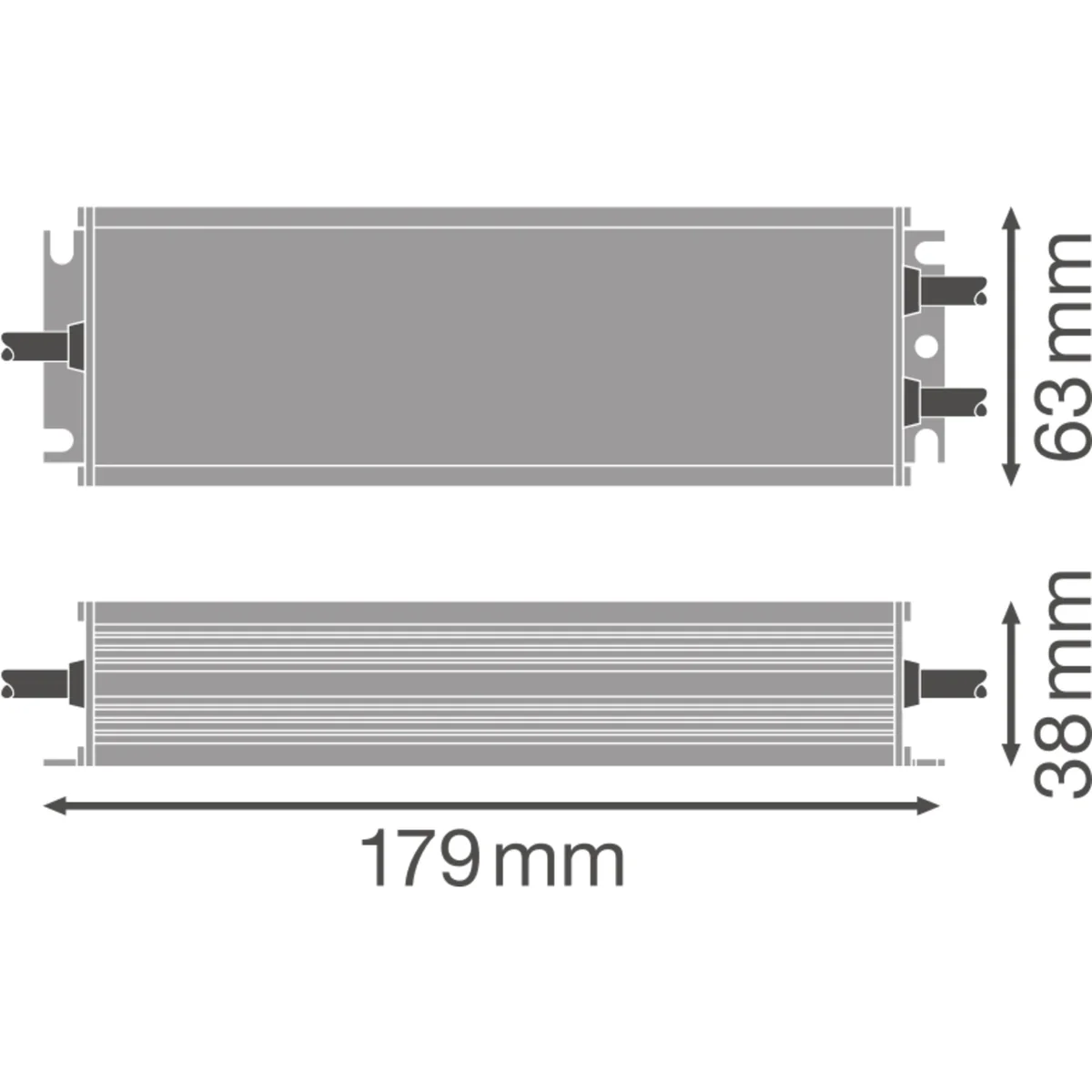

  • Length [mm]
    179
  • Initial starting current [A]
    25
  • Level of security
    IP66
  • Width [mm]
    63
  • Durability [h]
    50000
  • Rated impulse voltage [kV]
    6
  • Rated output voltage [V]
    24
  • Rated output current [mA]
    830
  • Dimmable interface [V]
    1-10
  • Power [W]
    60
  • Family
    LED DRIVER 1-10V DIM OUTDOOR PERFORMANCE
  • power loss [W]
    9.1
  • Darkening
    Yes
  • Height [mm]
    38
  • Rated input voltage [V]
    230
  • Power factor [λ]
    0.95
  • Efficiency [%]
    87

Other technical data

  • Model
    Dynamic
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    No
  • Suitable for constant current
    No
  • Output voltage
    24 ... 24 V
  • Suitable for DC-voltage (primary side)
    No
  • Degree of protection (IP)
    IP66
  • Length
    179.0 mm
  • Suitable for outdoor use
    Yes
  • Dimming 1-10 V
    Yes
  • Dimming DSI
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    Yes
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Housing
    Metal housing
  • Suitable for constant voltage
    Yes
  • Output current
    2500 ... 2500 mA
  • Output power
    60 ... 60 W
  • Protection class
    II
  • Height
    38.0 mm

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,740 0,793 8,307
Volume (m3) - 0,001 0,013
Width (m) - 0,090 0,200
Length (m) - 0,240 0,250
Depth (m) - 0,050 0,260
