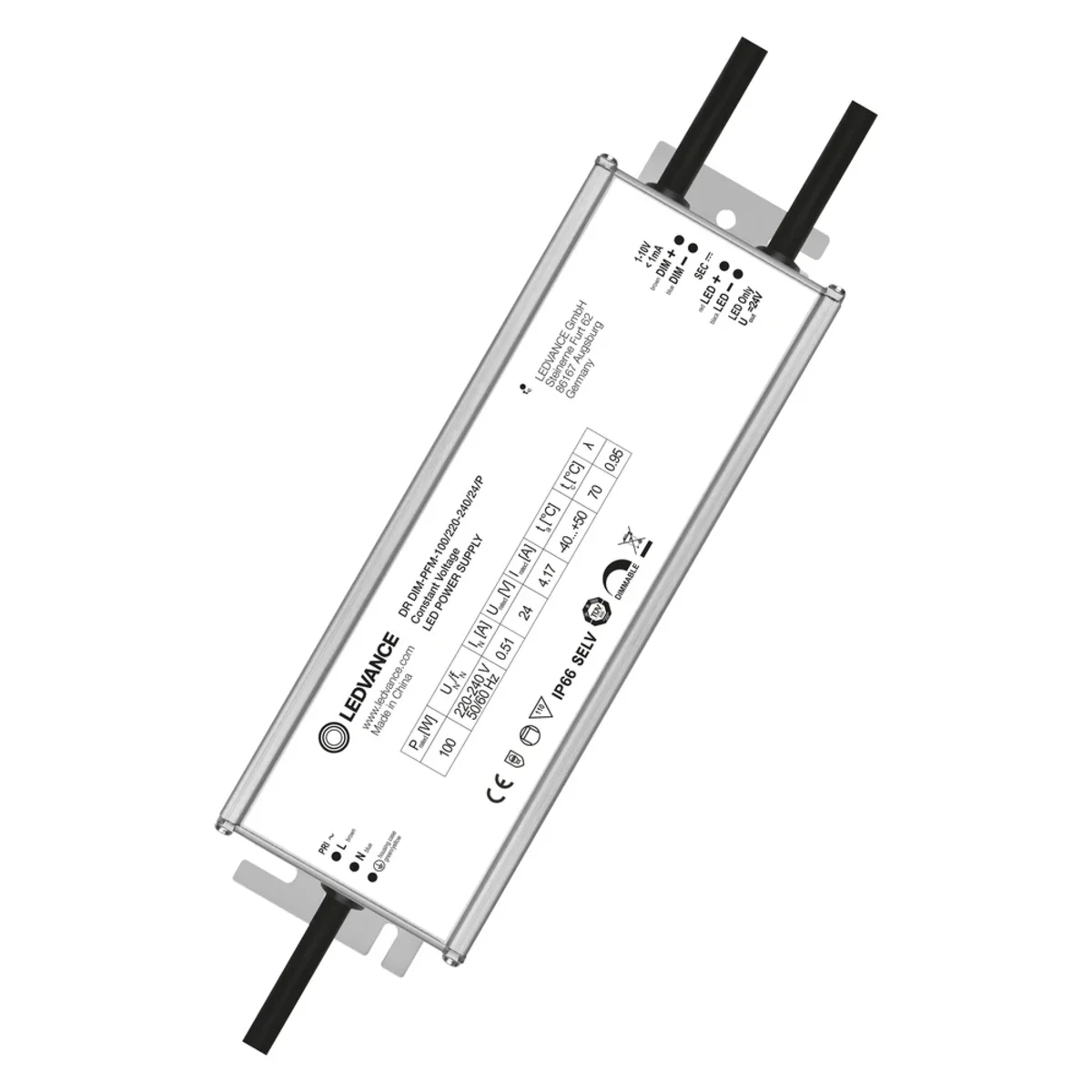

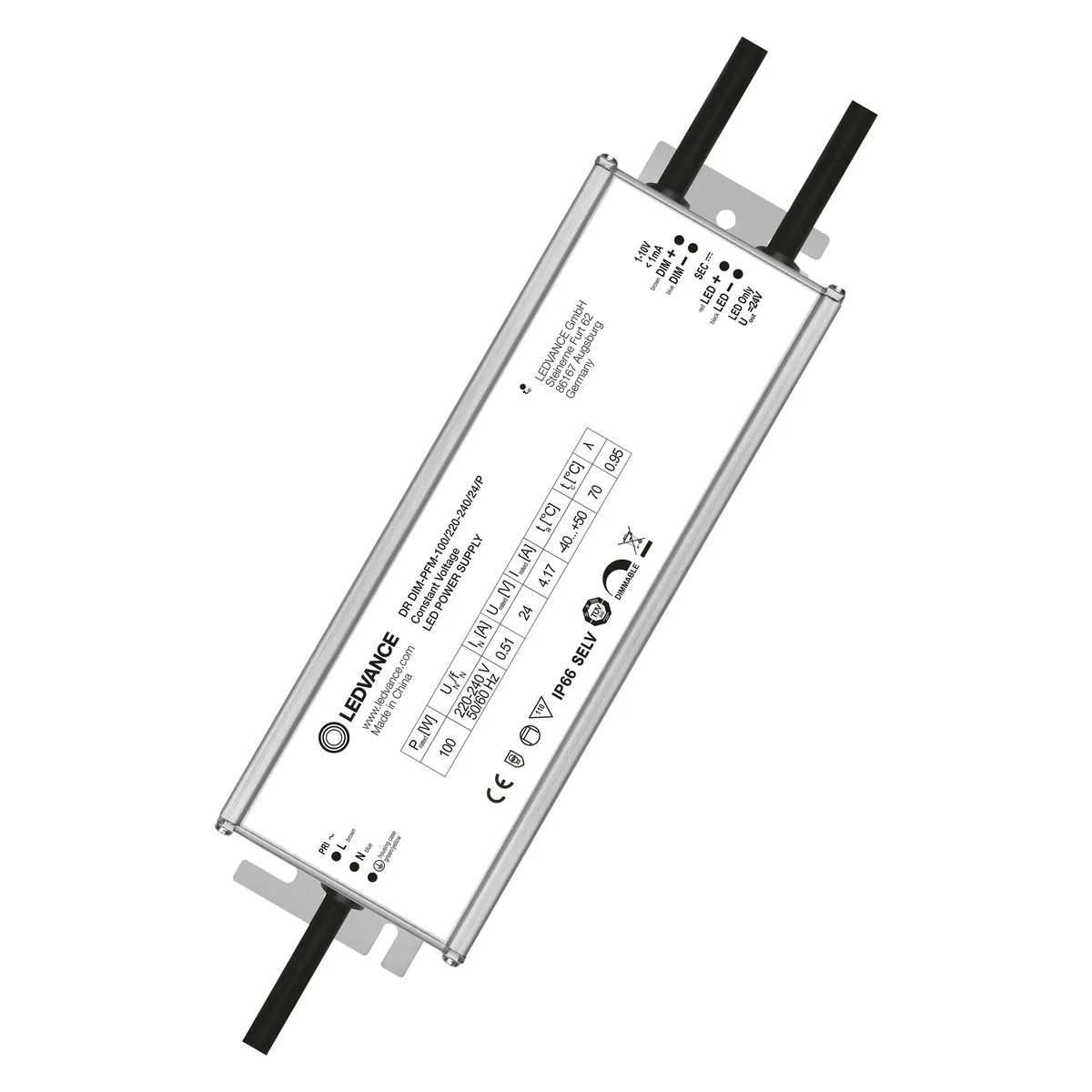

LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE Constant voltage LED driver for outdoor use with 1-10V 100W 230/24V IP66 interface 4058075240070

local index:
AUD117LEDV
Catalog No:
4058075240070
EAN code:
4058075240070
Manufacturer: LEDVANCE
Length [mm]: 233
Power [W]: 100
Initial starting current [A]: 46
Price:
150,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Product benefits



  • Perfect match for universal 24V LED strips


  • Very stable power output

  • < li>
    Quick and easy installation thanks to internal wiring

  • High performance and reliability


  • Can be installed in very cold or hot environment


Area of application



  • Suitable for indoor and outdoor installations


  • Facade and building lighting


  • The perfect solution for lighting public spaces


  • Bathrooms, kitchens and outdoor spaces


  • Offices, centers shops, hospitals, restaurants and hotels


Product Features



  • 1…10 V analog regulator control


  • 10…100% regulation
  • < br/>

  • Electrical short circuit and overload protection

Technical data

  • Length [mm]
    233
  • Initial starting current [A]
    46
  • Level of security
    IP66
  • Width [mm]
    74
  • Durability [h]
    50000
  • Rated impulse voltage [kV]
    6
  • Rated output voltage [V]
    24
  • Rated output current [mA]
    830
  • Dimmable interface [V]
    1-10
  • Power [W]
    100
  • Family
    LED DRIVER 1-10V DIM OUTDOOR PERFORMANCE
  • power loss [W]
    9.5
  • Darkening
    Yes
  • Height [mm]
    42
  • Rated input voltage [V]
    230
  • Power factor [λ]
    0.95
  • Efficiency [%]
    91
  • PKWIU
    27.11.50

Other technical data

  • Model
    Dynamic
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    No
  • Suitable for constant current
    No
  • Output voltage
    24 ... 24 V
  • Suitable for DC-voltage (primary side)
    No
  • Degree of protection (IP)
    IP66
  • Length
    233.0 mm
  • Suitable for outdoor use
    Yes
  • Dimming 1-10 V
    Yes
  • Dimming DSI
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    Yes
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Housing
    Metal housing
  • Suitable for constant voltage
    Yes
  • Output current
    4170 ... 4170 mA
  • Output power
    100 ... 100 W
  • Protection class
    I
  • Height
    42.0 mm

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 1,190 1,259 13,061
Volume (m3) - 0,001 0,018
Width (m) - 0,100 0,220
Length (m) - 0,280 0,290
Depth (m) - 0,050 0,280
