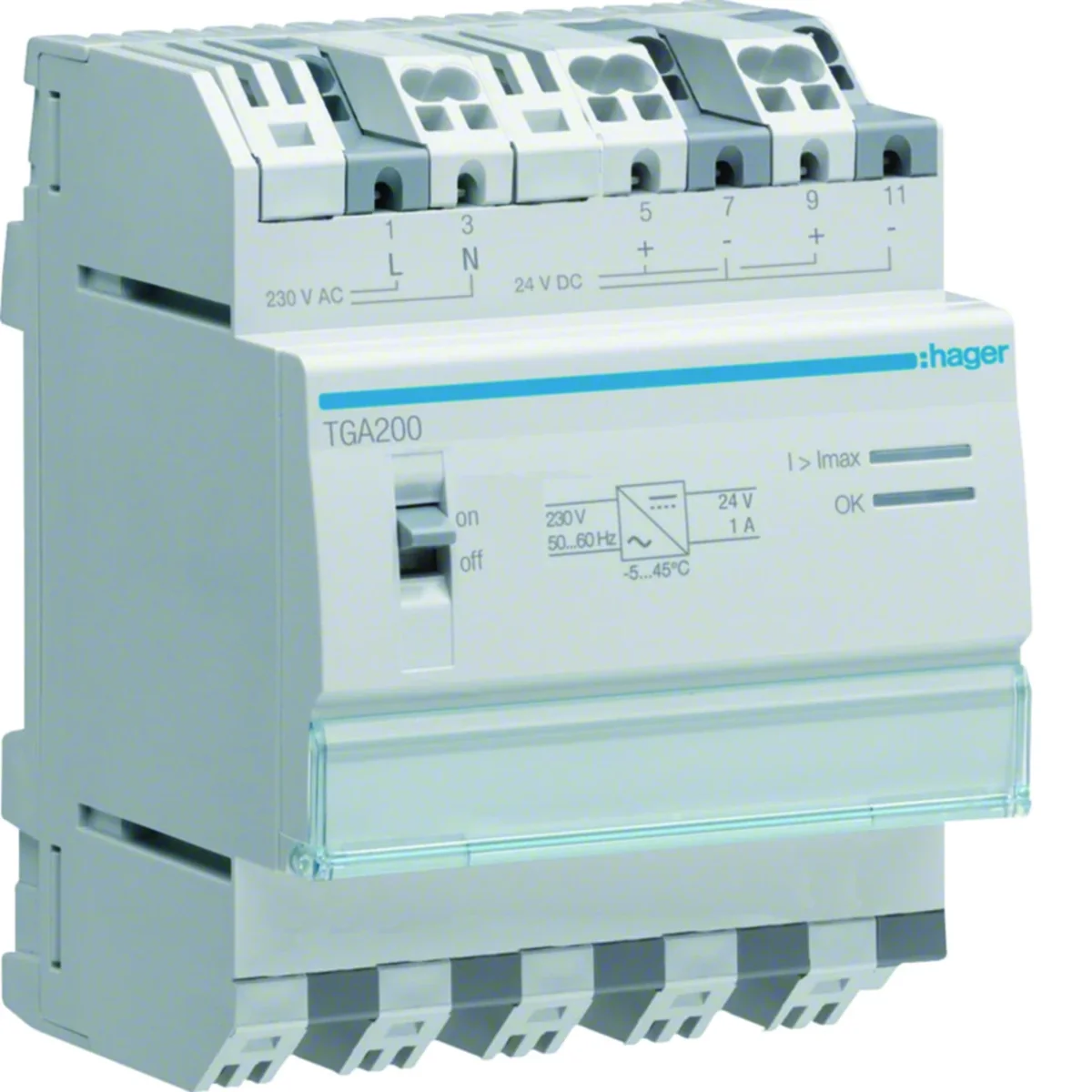

KNX easy Power supply 24V DC, 1A, DMS 4 mod TGA200

local index:
AUU001HAGE
Catalog No:
TGA200
EAN code:
3250615979964
Manufacturer: HAGER
Rated frequency [Hz]: 60
Length [mm]: 64
Depth [mm]: 64
Price:
245,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

KNX easy Power supply 24V DC, 1A, DMS 4 mod

Technical data

  • Rated frequency [Hz]
    60
  • Depth [mm]
    64
  • Input power [W]
    16
  • Level of security
    IP20
  • Width [mm]
    72
  • Height [mm]
    90
  • Rated output voltage [V]
    24
  • storage temperature [°C]
    from -20 to 70
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5
  • Length [mm]
    64
  • Color
    Gray
  • Supply voltage [V]
    230
  • power loss [W]
    15
  • Connection type
    Quick Connect
  • Operating temperature range [°C]
    from 0 to 45
  • Number of modules
    4
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.11.62.0

Other technical data

  • Voltage type (supply voltage)
    AC
  • Max. output current 1
    1 A
  • Max. output current 3
    0 A
  • Nominal value output voltage 1
    24 V
  • Nominal value output current 2
    0 A
  • Short-circuit-proof
    Yes
  • Rated supply voltage AC 60 Hz
    230 ... 230 V
  • Output voltage stabilized
    Yes
  • Power output
    15 W
  • Type of electric connection
    Plug-in connection
  • Wall mounting possible
    No
  • Width in number of modular spacings
    4
  • Built-in height
    68 mm
  • Width
    72 mm
  • Depth
    64 mm
  • SIL according to IEC 61508
    1
  • Degree of protection (IP)
    IP20
  • 1st secondary output voltage
    24 ... 24 V
  • Max. output current 2
    0 A
  • Secondary voltage adjustable
    No
  • Nominal value output current 1
    1 A
  • Nominal value output current 3
    0 A
  • Rated supply voltage AC 50 Hz
    230 ... 230 V
  • Rated supply voltage DC
    24 ... 24 V
  • Power consumption
    16 VA
  • Stabilized
    Yes
  • Rail mounting possible
    Yes
  • Modular version
    Yes
  • Built-in width
    72 mm
  • Direct mounting possible
    No
  • Height
    90 mm
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    Level a

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,214 0,225 8,690 231,560
Width (m) 0,066 0,080 0,310 0,800
Length (m) 0,071 0,075 0,235 1,050
Depth (m) 0,090 0,095 0,365 1,200
