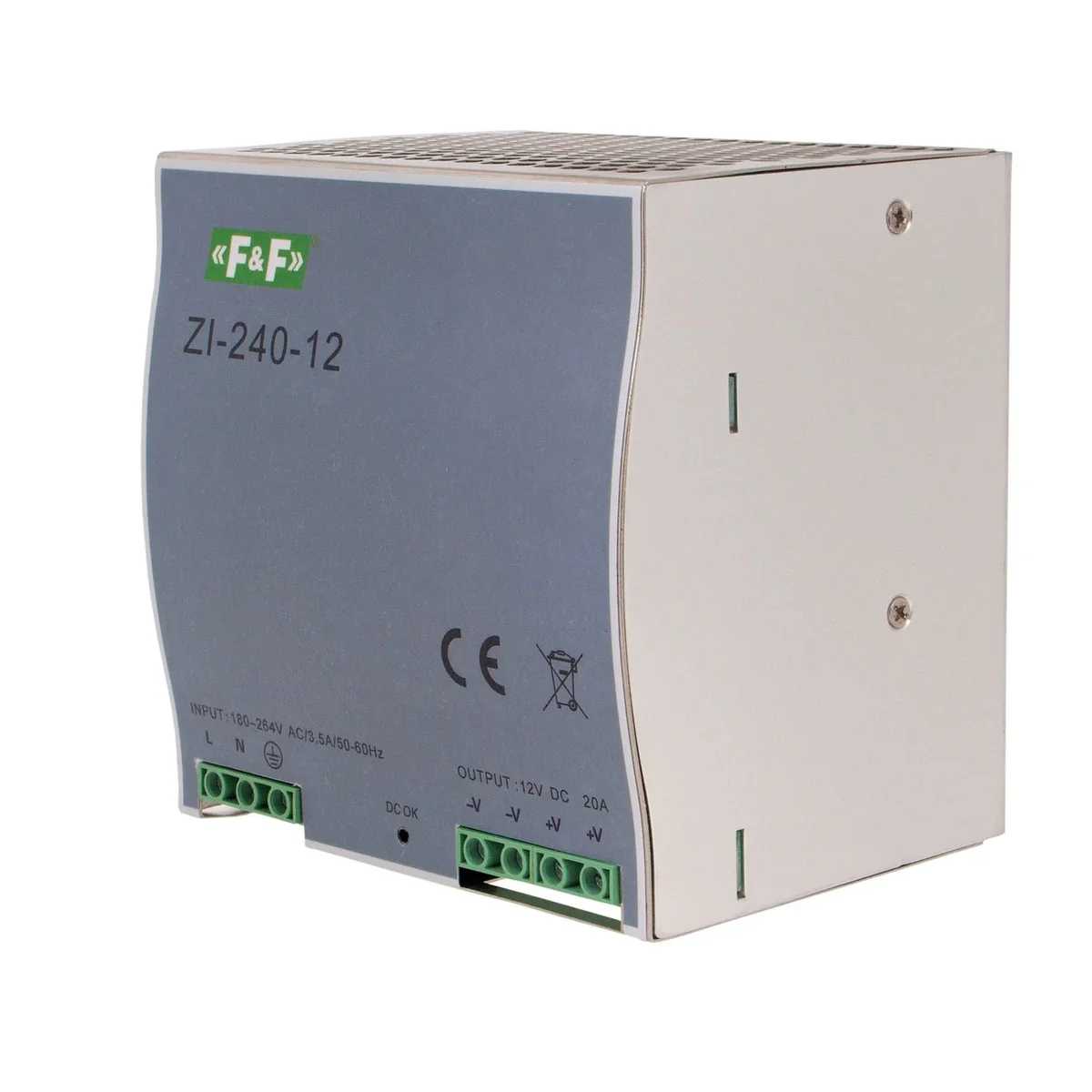

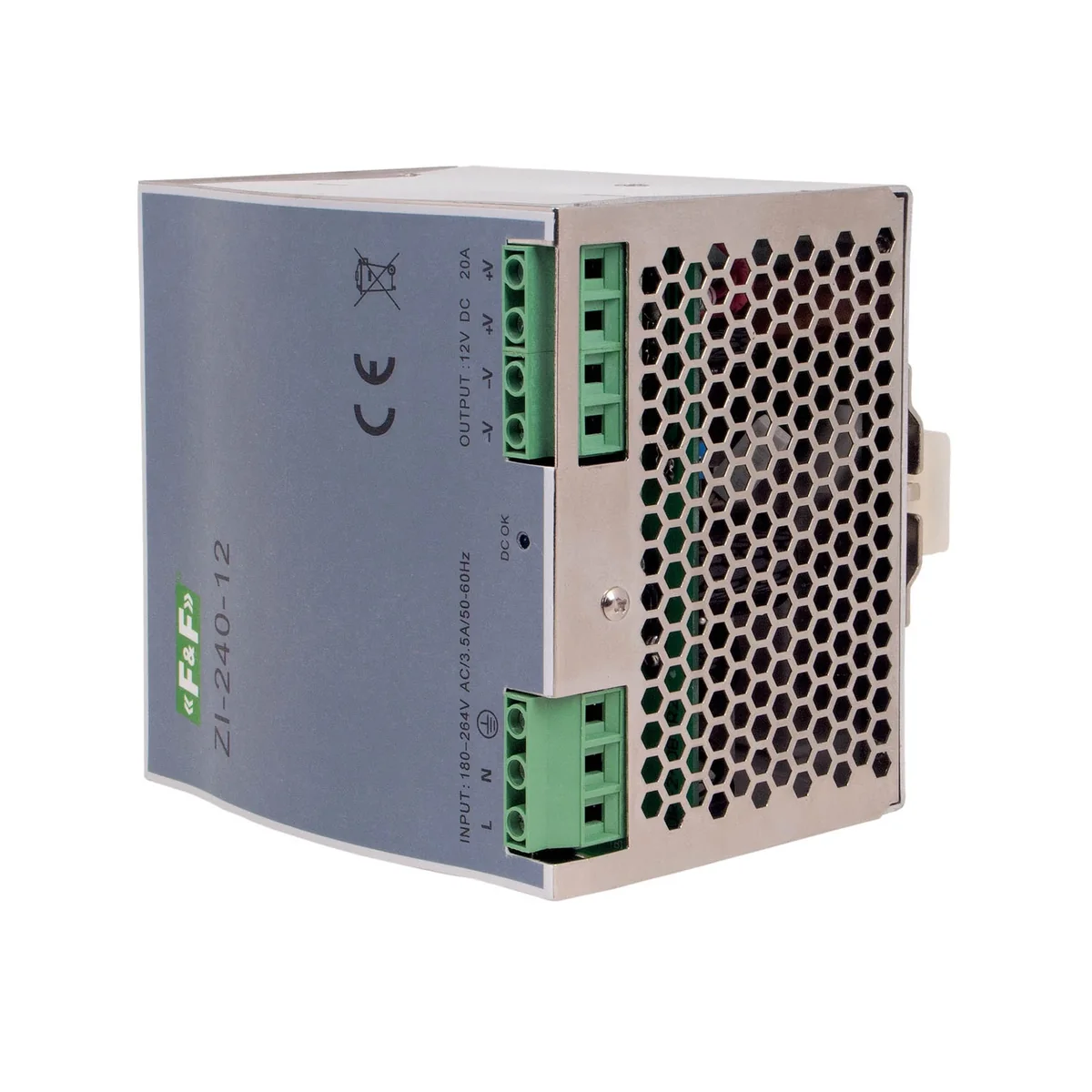

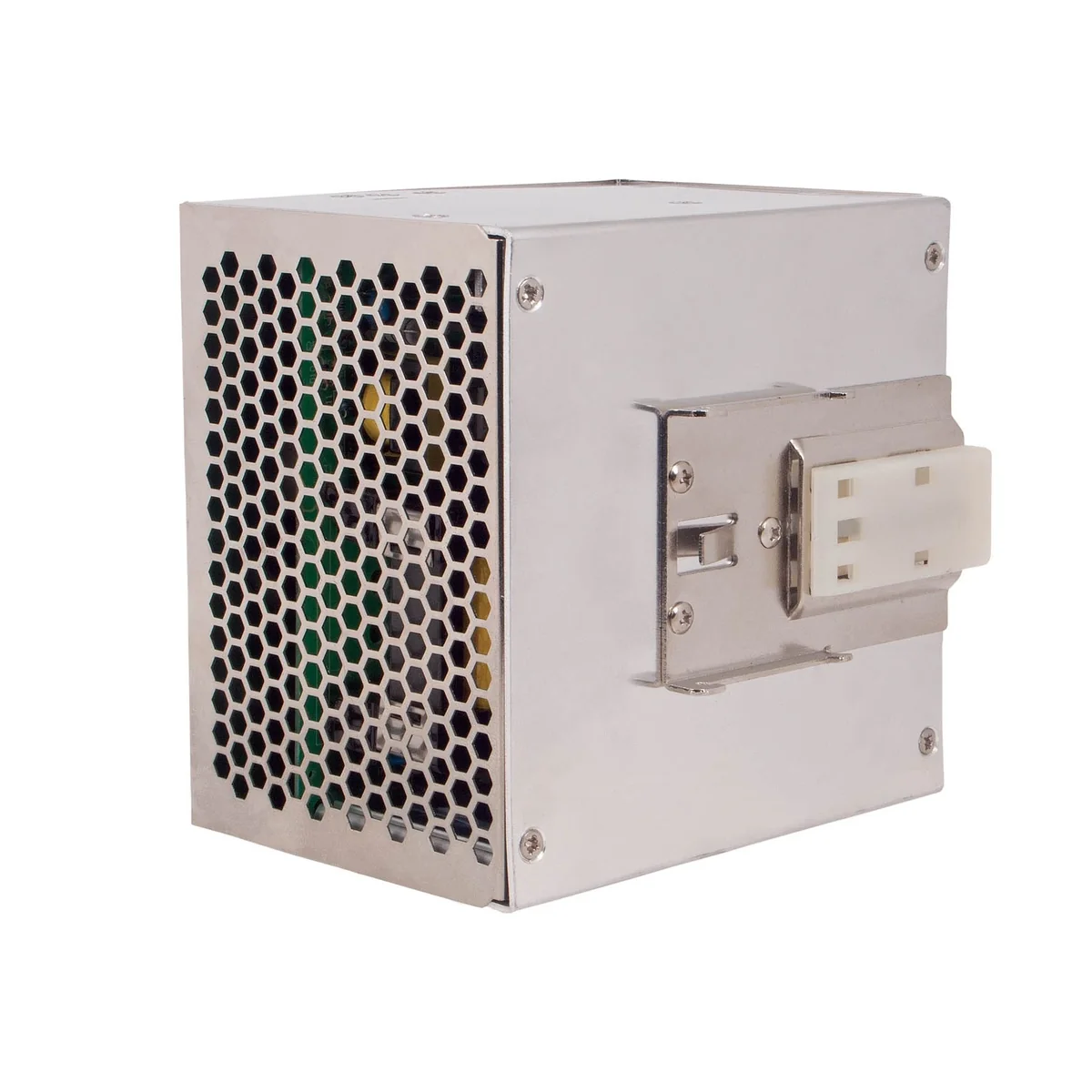

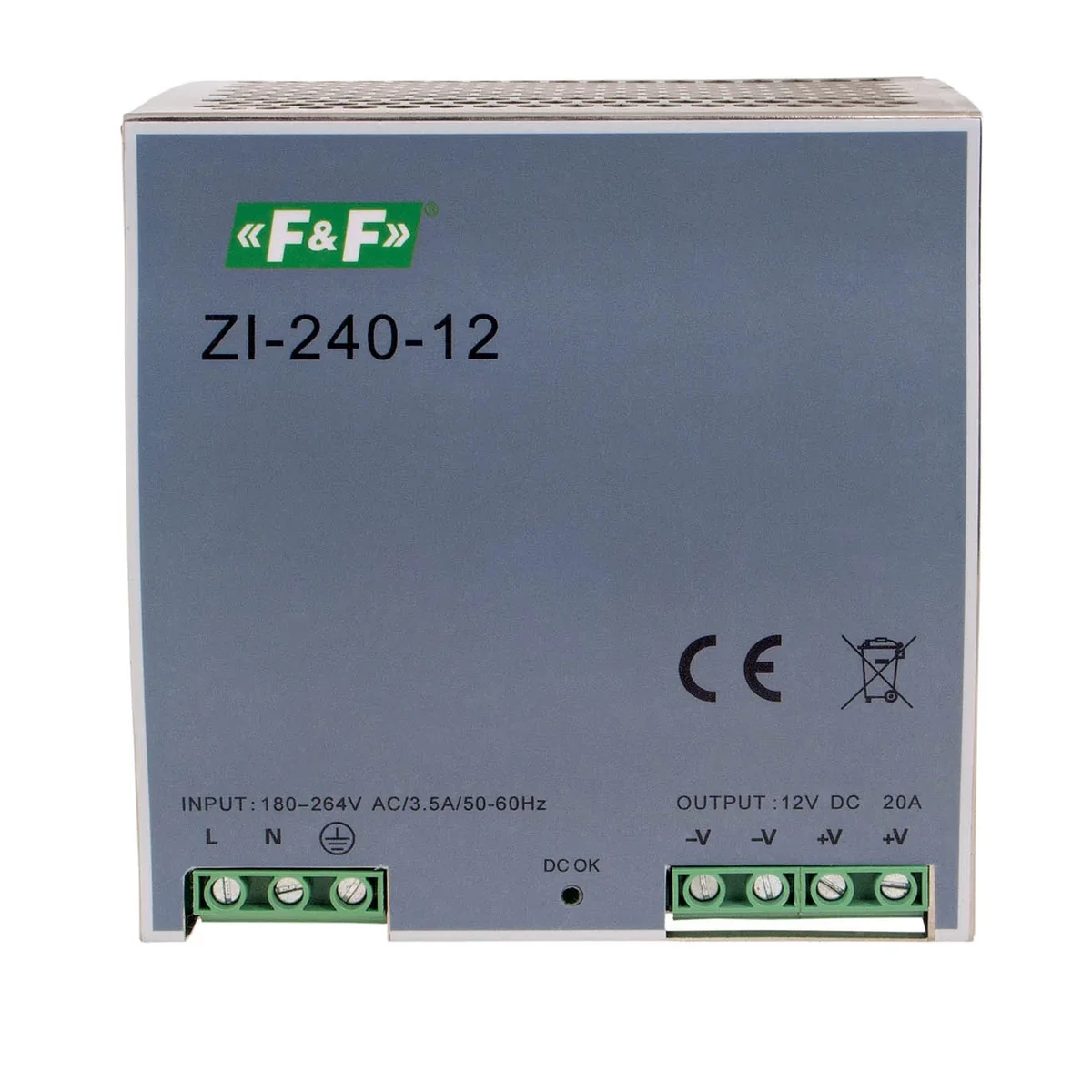

Industrial switching power supply 90÷264V-AC 120÷370V-DC 240W 12V-DC ZI-240-12V

local index:
AUD007FIFQ
Catalog No:
ZI-240-12V
EAN code:
5908312599494
Manufacturer: F&F
Power [W]: 240
Input voltage [V]: 12
Level of security: IP20
Price:
120,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Industrial switching power supply with input voltage 90÷264V AC/120÷370V DC, output voltage 12V DC and moy equal to 240W

Technical data

  • Power [W]
    240
  • Level of security
    IP20
  • Input voltage [V]
    12
  • PKWIU
    27.11.42.0

Other technical data

  • Voltage type (supply voltage)
    AC
  • Secondary voltage adjustable
    Yes
  • Rated supply voltage AC 50 Hz
    180 ... 264 V
  • Power consumption
    2 VA
  • Stabilized
    Yes
  • Rail mounting possible
    Yes
  • Modular version
    Yes
  • Built-in width
    67 mm
  • Direct mounting possible
    No
  • Height
    130 mm
  • Degree of protection (IP)
    IP20
  • Max. output current 1
    20 A
  • Nominal value output voltage 1
    12 V
  • Output voltage stabilized
    Yes
  • Power output
    240 W
  • Type of electric connection
    Screw connection
  • Wall mounting possible
    No
  • Width in number of modular spacings
    4
  • Built-in height
    130 mm
  • Width
    67 mm
  • Depth
    115 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,960
Width (m) 0,150
Length (m) 0,160
Depth (m) 0,140
