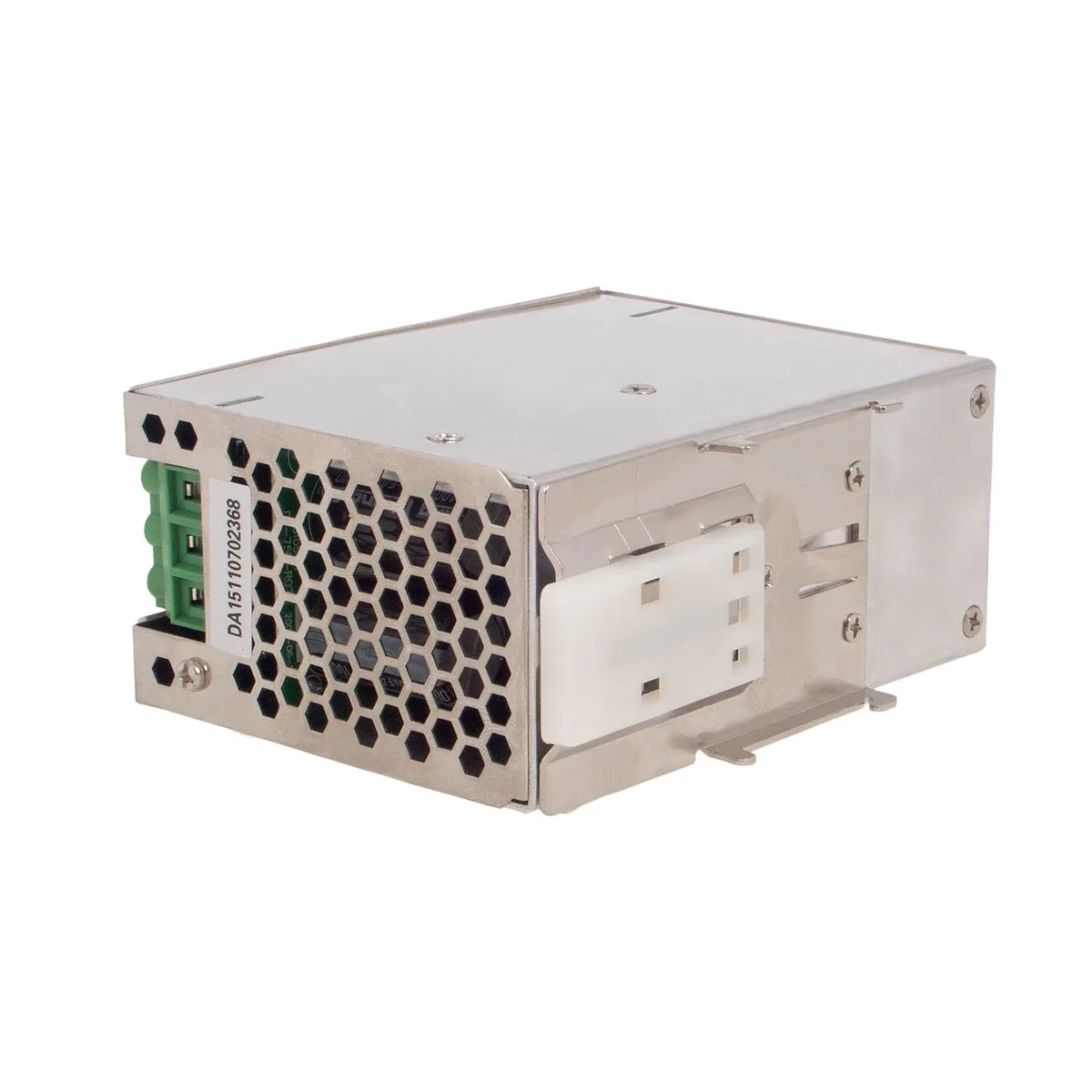

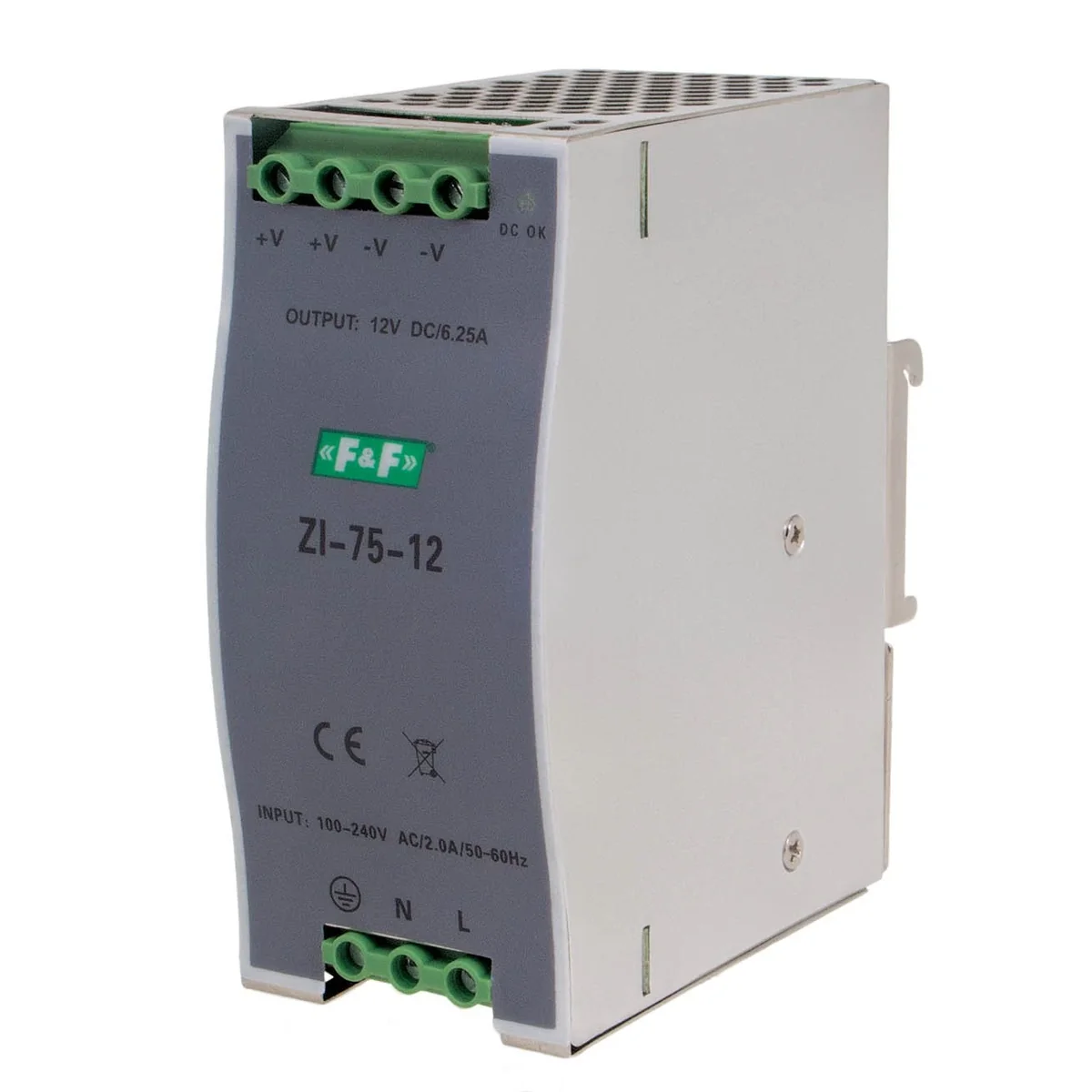

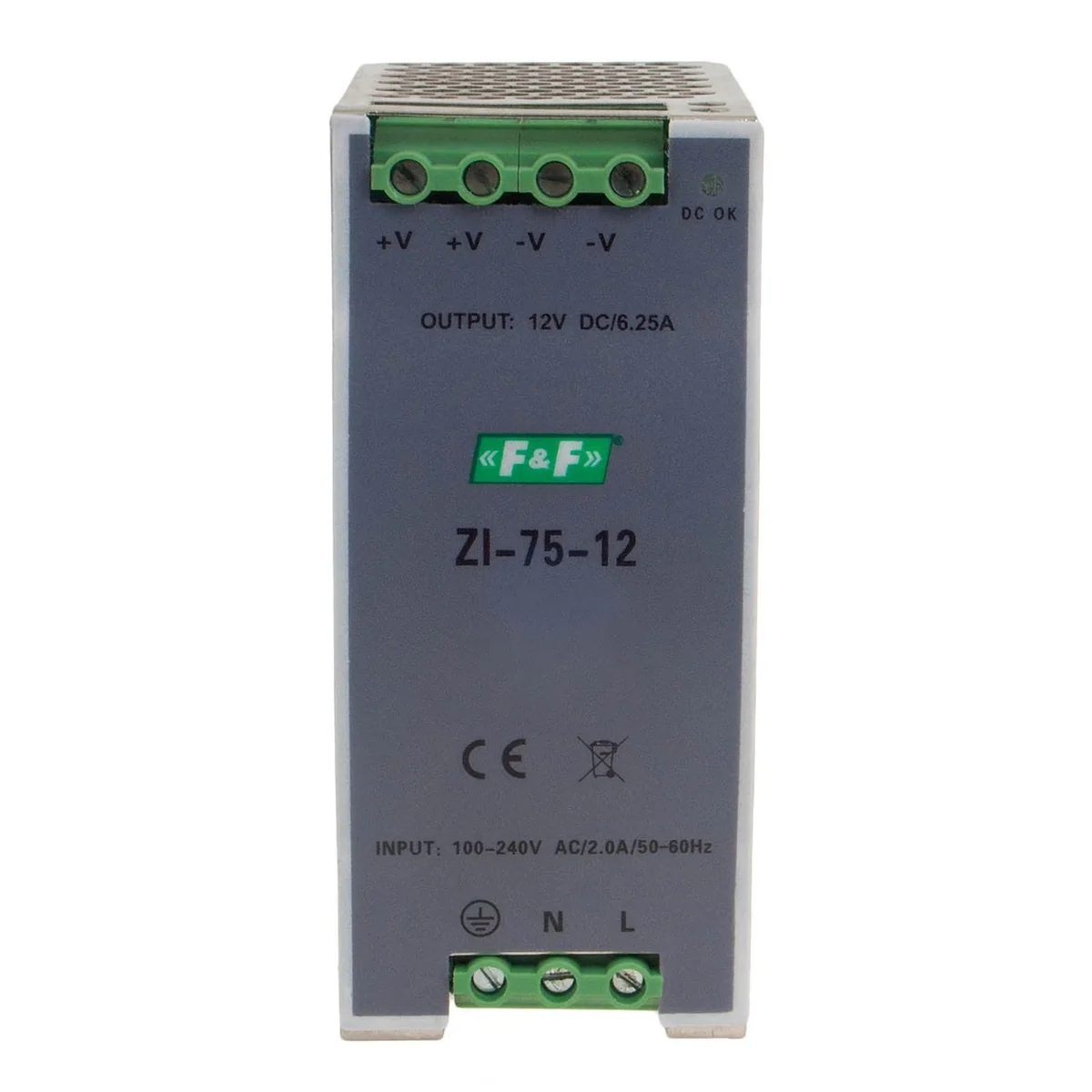

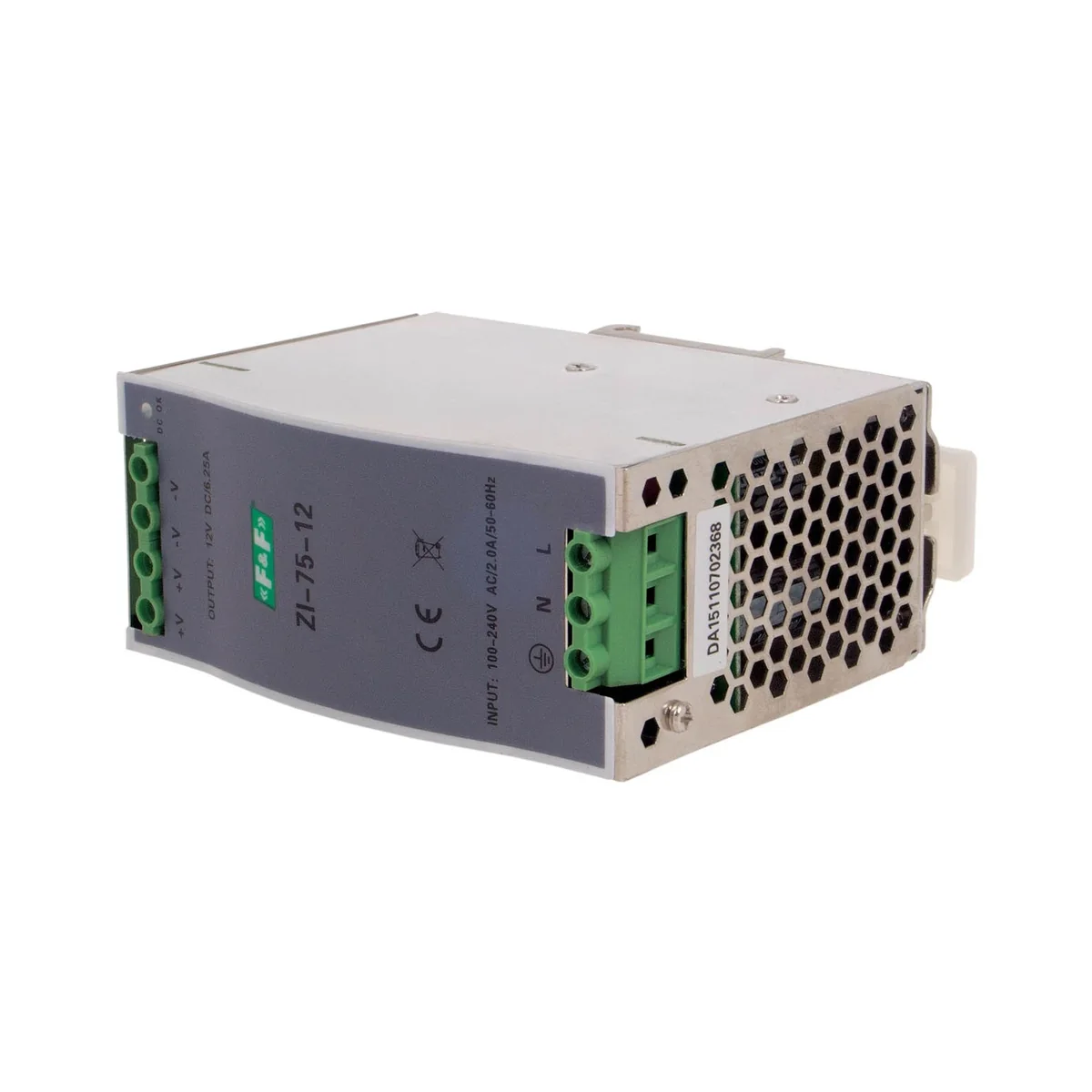

Industrial impulse power supply. input 90÷264V AC/120÷370V DC P=75W voltage out 12V DC ZI-75-12V
local index:
AUD008FIFQ
Catalog No:
ZI-75-12V
EAN code:
5908312599500
Price:
53,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Industrial switching power supply with input voltage 90÷264V AC/120÷370V DC, output voltage 12V DC and moy equal to 75W
Technical data
-
Power [W]75
-
Level of securityIP20
-
Input voltage [V]12
-
PKWIU27.11.42.0
Other technical data
-
Voltage type (supply voltage)AC
-
Secondary voltage adjustableYes
-
Rated supply voltage AC 50 Hz180 ... 264 V
-
Power output75 W
-
Type of electric connectionScrew connection
-
Wall mounting possibleNo
-
Width in number of modular spacings4
-
Built-in height130 mm
-
Width57 mm
-
Depth115 mm
-
Max. output current 16.25 A
-
Nominal value output voltage 112 V
-
Output voltage stabilizedYes
-
StabilizedYes
-
Rail mounting possibleYes
-
Modular versionYes
-
Built-in width57 mm
-
Direct mounting possibleNo
-
Height130 mm
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,530 |
| Width (m) | 0,085 |
| Length (m) | 0,160 |
| Depth (m) | 0,140 |
