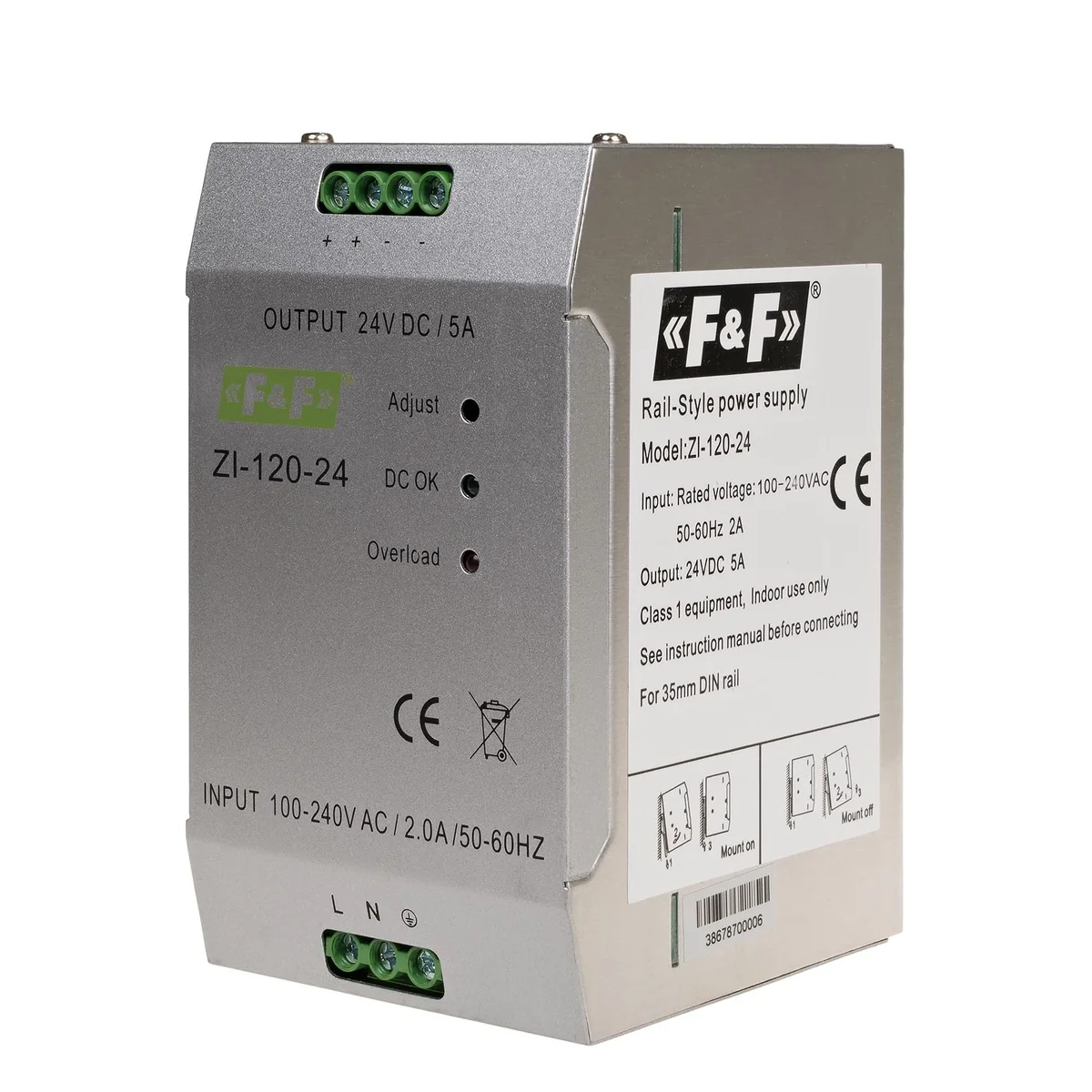

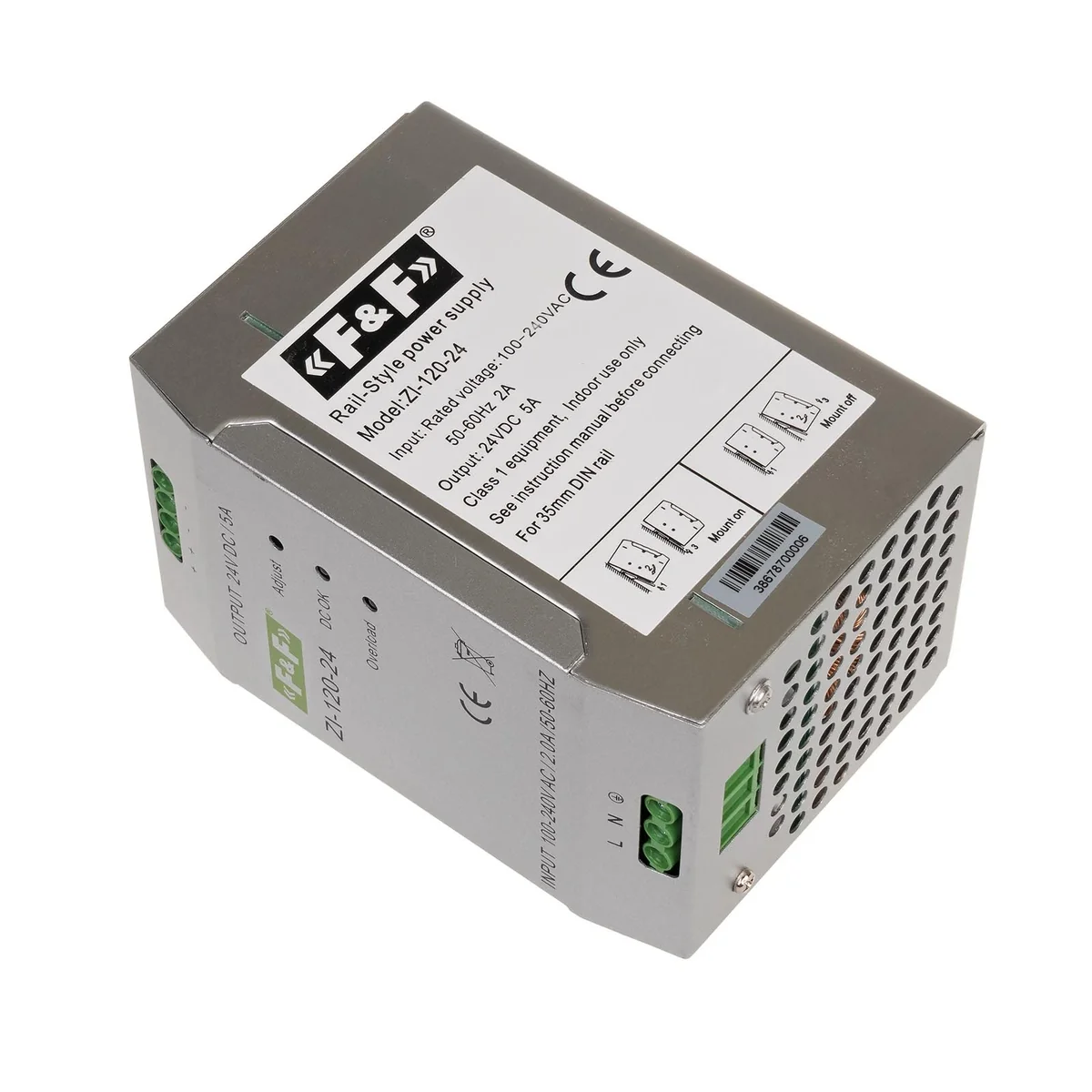

Industrial impulse power supply. input 90-264V AC/120-370V DC P=120W voltage out 24VDC ZI-120-24V
local index:
AUU001FIFQ
Catalog No:
ZI-120-24V
EAN code:
5908312595793
Price:
88,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Intended use
For power supply systems for electrical and electronic devices in industrial automation systems and IT networks. Operation

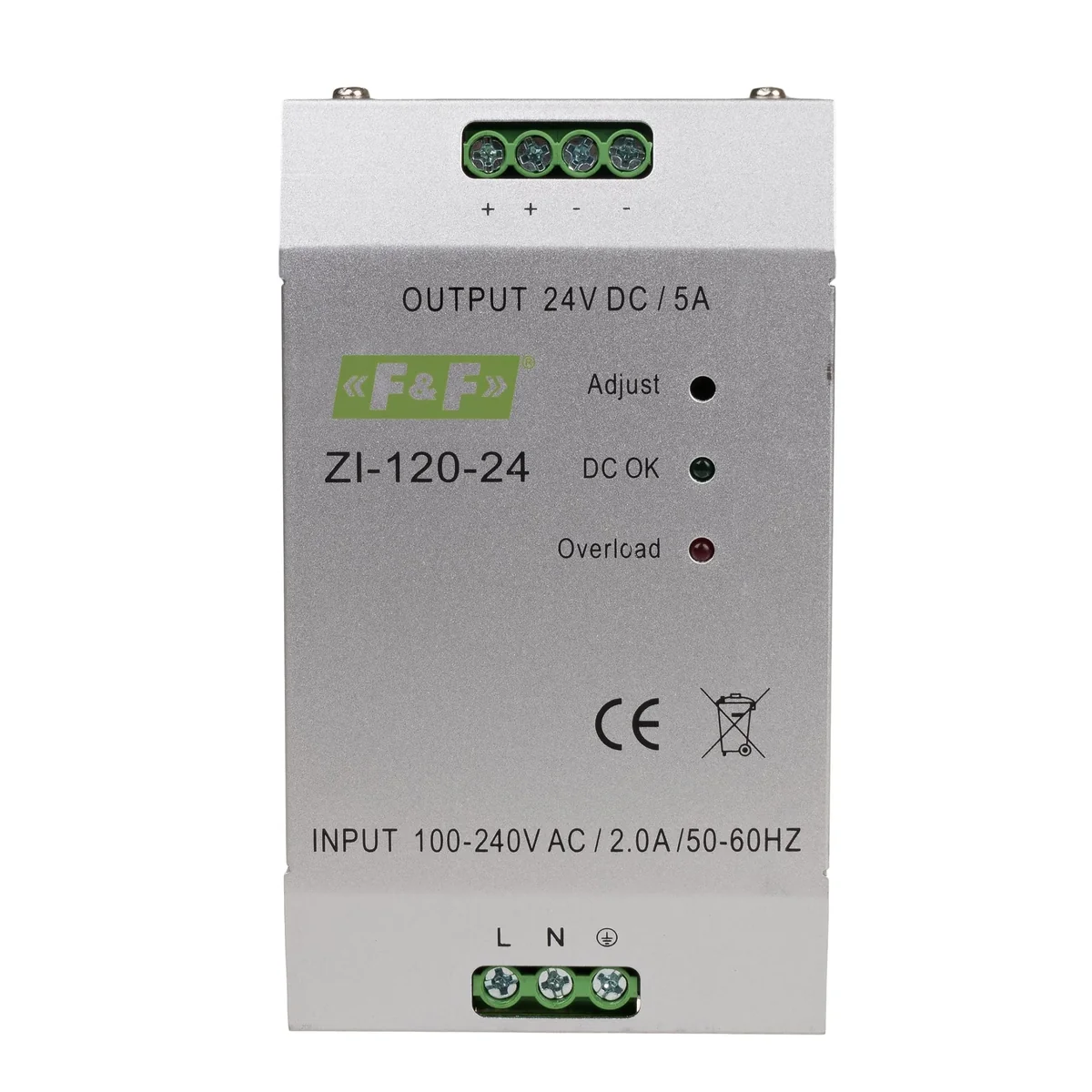

The power supply has an adjustment knob [Adjust] that allows you to adjust the output voltage in the range of 22÷27V. The green LED DC OK indicates the correctness of the power supply at the output. Red LED Overload indicates current overload or voltage overshoot of the output. The power supply has internal short-circuit, overload, overvoltage and temperature protection.
Technical data
-
CoolingGravitational
-
Switching frequency [kHz]230
-
InstallationOn the TH-35 rail
-
Output current [A]2.5/5/10
-
connection4.0mm screw terminals
-
Power indicationLED green
-
Voltage tolerance [%]1
-
Voltage regulation range [V]22-27
-
Package width [mm]110
-
I/O breakdown voltage [kV]3
-
Frequency [Hz]47-63
-
Power [W]240
-
Input voltage [V]90-264/120-370
-
Current overload150%/3min
-
Overload/overvoltage indicationred LED
-
Working temperature [°C]-10-70
-
Dimensions130×50/75/110×90
-
Package height [mm]130
-
Package weight [kg]1
-
PKWIU27.11.42.0
Other technical data
-
Voltage type (supply voltage)AC/DC
-
Max. output current 15 A
-
Short-circuit-proofYes
-
Rated supply voltage AC 60 Hz90 ... 264 V
-
Output voltage stabilizedYes
-
StabilizedYes
-
Rail mounting possibleYes
-
Modular versionYes
-
Built-in height90 mm
-
Width75 mm
-
Depth90 mm
-
1st secondary output voltage22 ... 28 V
-
Secondary voltage adjustableYes
-
Rated supply voltage AC 50 Hz90 ... 264 V
-
Rated supply voltage DC120 ... 370 V
-
Power output120 W
-
Type of electric connectionScrew-/spring clamp connection
-
Wall mounting possibleNo
-
Width in number of modular spacings6
-
Direct mounting possibleNo
-
Height130 mm
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,630 |
| Width (m) | 0,160 |
| Length (m) | 0,135 |
| Depth (m) | 0,107 |
