Product benefits
Ramp down controller
Operating protection during the entire partial load range for long lamp life
Areas of application
Effect and accent lighting
Living rooms
Object lighting
Rooms
Restaurants
Recessed and surface-mounted furniture luminaires
Shop lighting
Club rooms
Product features
Line frequency: 50…60 Hz
RI attenuation: in accordance with PN- EN 55015 (A1: 2007)/CISPR 15, PN-EN 55022
Harmonic current:u according to PN-EN 61000-3-2
Energy efficiency: ≥ 91% (according to ErP 2012/1194/EC)
Safety: according to PN-EN 61347
Protection against short-circuit, overload, overheating: electronic reversible
Electrical insulation between primary and secondary winding
Illegal switching between electronic transformer and lamp

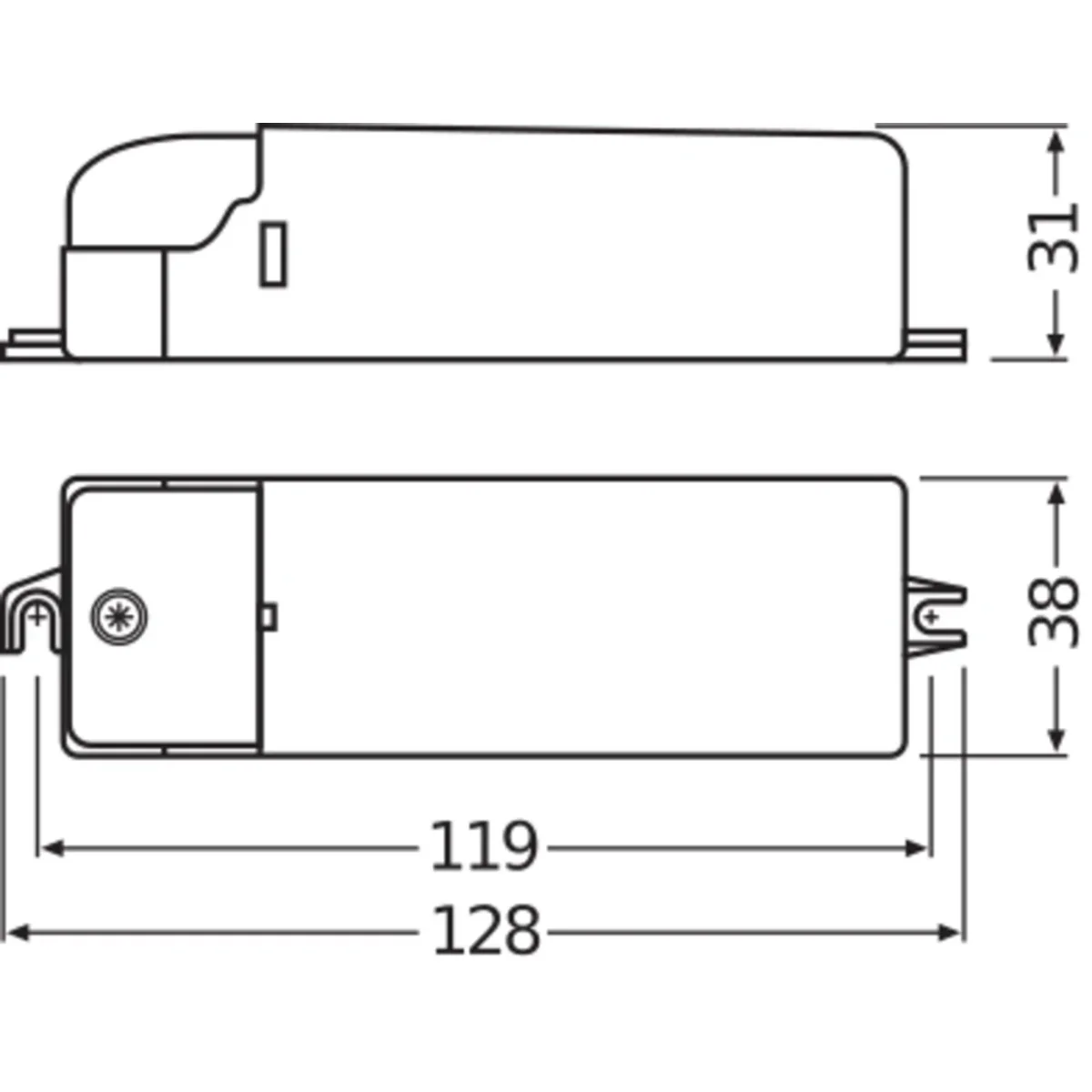

Length [mm]

128
Input voltage [V]

230
Width [mm]

38
PKWIU

27.11.50

Power [W]

70
Rated current [A]

0.3
Height [mm]

31

Other technical data

Type of transformer

Electronic transformer
Output voltage

11.9 ... 12.0 V
Dimming 1-10 V

No
Dimming DSI

No
Dimming potentiometer (integrated)

No
Dimming LineSwitch

No
Dimming mains voltage modulation

No
Dimming phase cut-on

Yes
Dimming RF

No
Dimming Touch and Dim

No
Dimming with push-button

No
No dim function

No
Surface-mounted

Yes
Housing material

Plastic
Short-circuit protected

Yes
Overtemperature protection

Yes
Number of output positions (pairs)

2
Height

31.0 mm

Safety transformer

Yes
Dimming 0-10 V

No
Dimming DALI

No
Dimming DMX

No
Ściemniacz GPRS

No
Dimming manufacturer's proprietary system

No
Dimming phase cut-off

Yes
Dimming programmable

No
Dimming Sine Wave Reduction

No
Dimming Zigbee

No
Degree of protection (NEMA)

1
Connection type secondary side

Screw connection
Built-in

Yes
Dimmable

Yes
Overload protection

Yes
With secondary automatic circuit breaker

Yes
Length

128.0 mm
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

LEDVANCE GmbH
Address

85748 Garching Parkring 29-33 Niemcy
Phone number

+4989780673100
E-mail

InfoPL@ledvance.com

A kind of package		Torebka	Karton
Quantity	1 pcs.	1 pcs.	50 pcs.
Weight (kg)	0,115	0,115	6,221
Volume (m3)	-	0,000	0,015
Width (m)	-	0,040	0,230
Length (m)	-	0,130	0,290
Depth (m)	-	0,030	0,220
