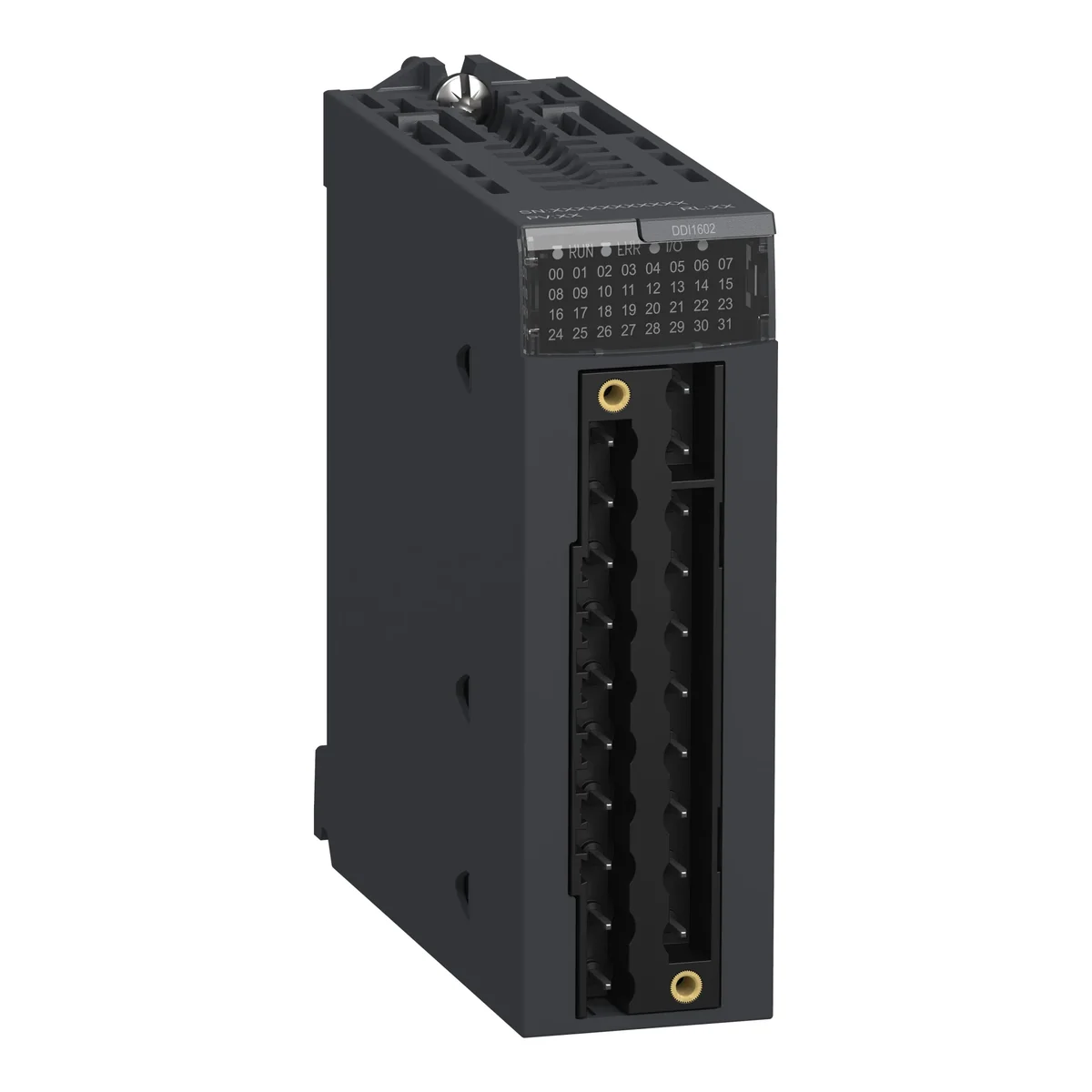

Digital input module 16 inputs 24 VDC negative logic BMXDDI1602

local index:
AUS027SCHN
Catalog No:
BMXDDI1602
EAN code:
3595863910001
Manufacturer: SCHNEIDER ELECTRIC
Discrete input current [mA]: 3.5
Price:
265,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Digital input module 16 inputs 24 VDC negative logic

Technical data

  • Discrete input current [mA]
    3.5
  • PKWIU
    26.20.16.0

Other technical data

  • Supply voltage DC
    24 ... 24 V
  • Number of digital inputs
    16
  • Digital inputs configurable
    No
  • Input current at signal 1
    3.5 mA
  • Type of voltage (input voltage)
    DC
  • Permitted voltage at output
    19 ... 30 V
  • Short-circuit protection, outputs available
    No
  • Type of electric connection
    Plug-in connection
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    100 mm
  • Voltage type (supply voltage)
    DC
  • Number of digital outputs
    0
  • Digital outputs configurable
    No
  • Permitted voltage at input
    19 ... 30 V
  • Type of digital output
    None
  • Type of output voltage
    DC
  • Redundancy
    No
  • Time delay at signal change
    4 ... 7 ms
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    33 mm
  • Depth
    150 mm
