Current transformer size BG 513 600/5 5VA class 1 SRJ06005
local index:
AUK082HAGE
Catalog No:
SRJ06005
EAN code:
4049857250011
Price:
167,65 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

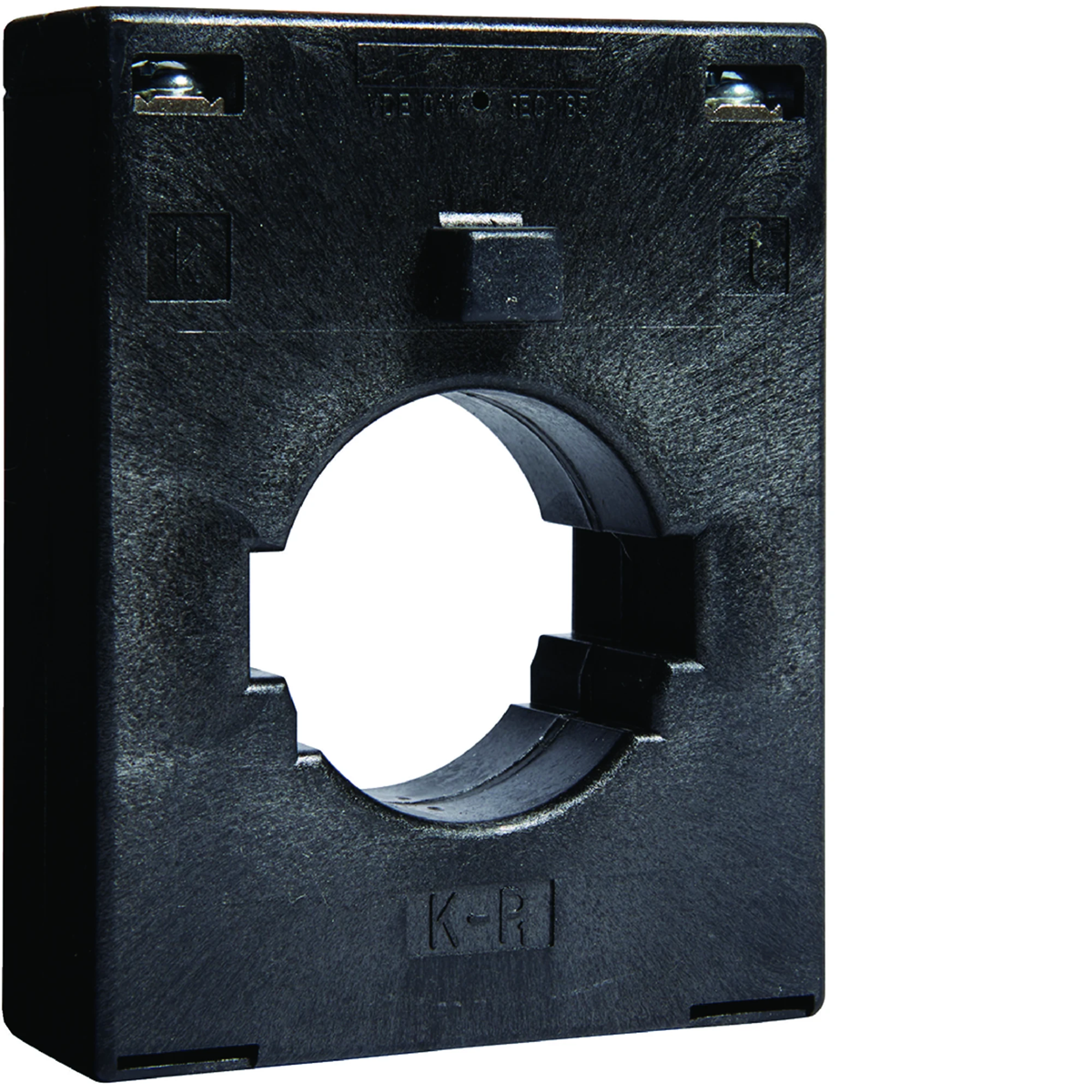

Current transformer size BG 513 600/5 5VA class 1
Technical data
-
Rated frequency [Hz]60
-
Power [VA]5
-
InstallationOn the TH-35 rail
-
power loss [W]4.5
-
Connection typeScrew connection
-
Operating temperature range [°C]from -40 to 40
-
Gear600;5
-
Opening diameter [mm]45
-
Opening height [mm]45
-
Wire cross-section (cord) [mm²]1.5 - 6
-
PKWIU27.11.42.0
-
Depth [mm]thirty
-
Input power [VA]5
-
Level of securityIP10
-
Width [mm]85
-
Height [mm]108
-
Accuracy [s]1
-
Opening width [mm]50
-
storage temperature [°C]from -40 to 40
-
Rated insulation voltage [kV]3
-
Conductor cross-section (wire) [mm²]1.5 - 6
Other technical data
-
ModelAttachable current transformer
-
Rated secondary current5 A
-
Overcurrent limiting factorFS 5
-
Opening diameter45 mm
-
With copper railNo
-
Rated primary current600 A
-
Rated secondary apparent power5 VA
-
With shock protectionYes
-
Snap mountingYes
-
Number of primary inputs1
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 1 pcs. | 864 pcs. |
| Weight (kg) | 0,330 | 288,570 |
| Width (m) | 0,110 | 0,800 |
| Length (m) | 0,060 | 0,420 |
| Depth (m) | 0,140 | 1,200 |
