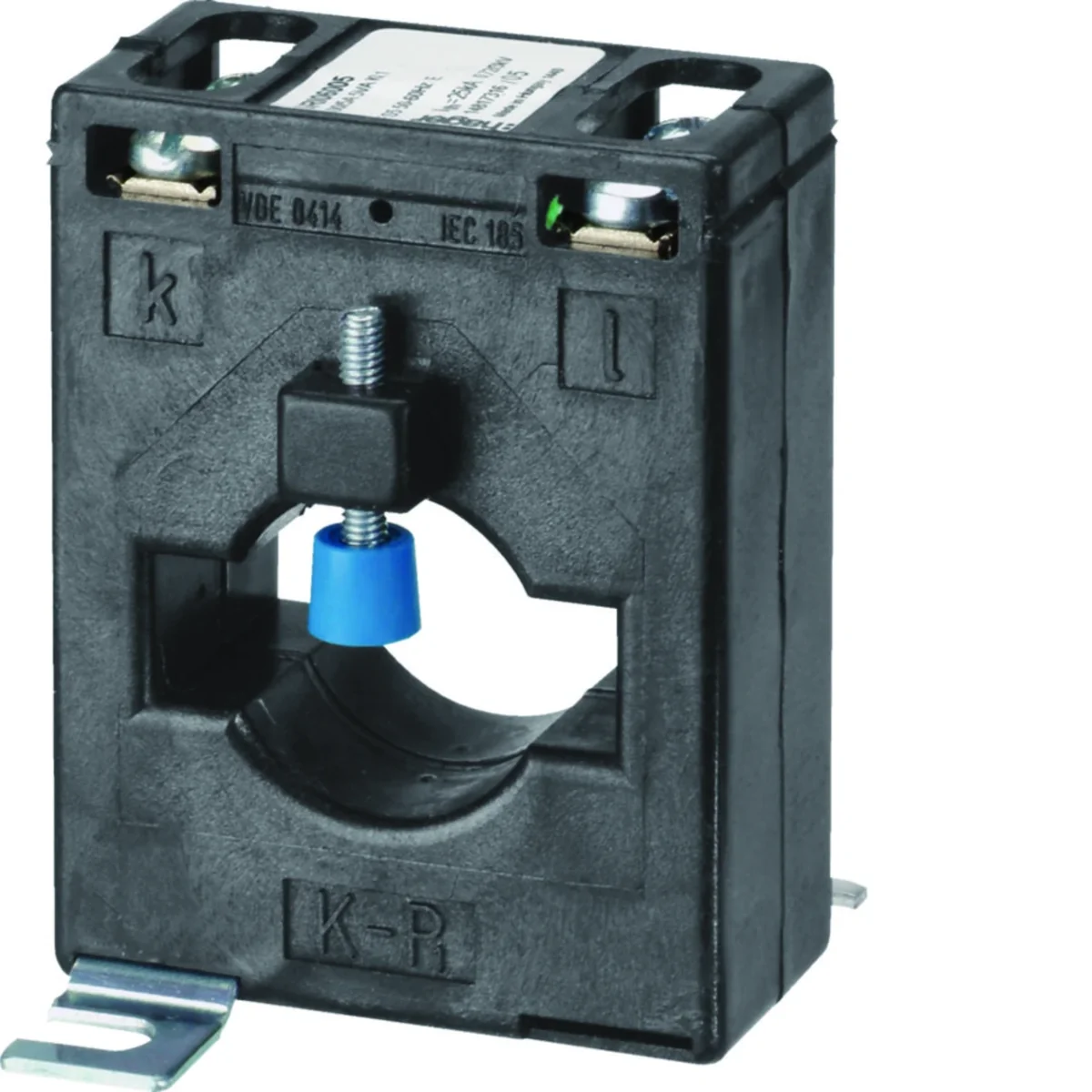

Current transformer size BG 413 600/5 5VA class 1 SRI06005

local index:
AUK081HAGE
Catalog No:
SRI06005
EAN code:
4049857063871
Manufacturer: HAGER
Rated frequency [Hz]: 60
Depth [mm]: thirty
Power [VA]: 5
Price:
37,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Current transformer size BG 413 600/5 5VA class 1

Technical data

  • Rated frequency [Hz]
    60
  • Power [VA]
    5
  • Installation
    On the TH-35 rail
  • power loss [W]
    4.2
  • Connection type
    Screw connection
  • Operating temperature range [°C]
    from -40 to 40
  • Gear
    600;5
  • Opening diameter [mm]
    28
  • Opening height [mm]
    28
  • Wire cross-section (cord) [mm²]
    1.5 - 6
  • PKWIU
    27.11.42.0
  • Depth [mm]
    thirty
  • Input power [VA]
    5
  • Level of security
    IP10
  • Width [mm]
    60
  • Height [mm]
    78
  • Accuracy [s]
    1
  • Opening width [mm]
    40
  • storage temperature [°C]
    from -40 to 40
  • Rated insulation voltage [kV]
    3
  • Conductor cross-section (wire) [mm²]
    1.5 - 6

Other technical data

  • Model
    Attachable current transformer
  • Rated secondary current
    5 A
  • Overcurrent limiting factor
    FS 5
  • Opening diameter
    28 mm
  • With copper rail
    No
  • Rated primary current
    600 A
  • Rated secondary apparent power
    5 VA
  • With shock protection
    Yes
  • Snap mounting
    Yes
  • Number of primary inputs
    1

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 960 pcs.
Weight (kg) 0,170 0,210 12,900 229,400
Width (m) 0,060 0,065 0,300 0,800
Length (m) 0,078 0,050 0,155 0,630
Depth (m) 0,030 0,080 0,410 1,200
