Current transformer 60/5A 1VA class 1 SRA00605

Name: Current transformer 60/5A 1VA class 1
Brand: HAGER
SKU: AUK027HAGE
Price: 40.70 PLN

local index:

AUK027HAGE

Catalog No:

SRA00605

EAN code:

4049857139279

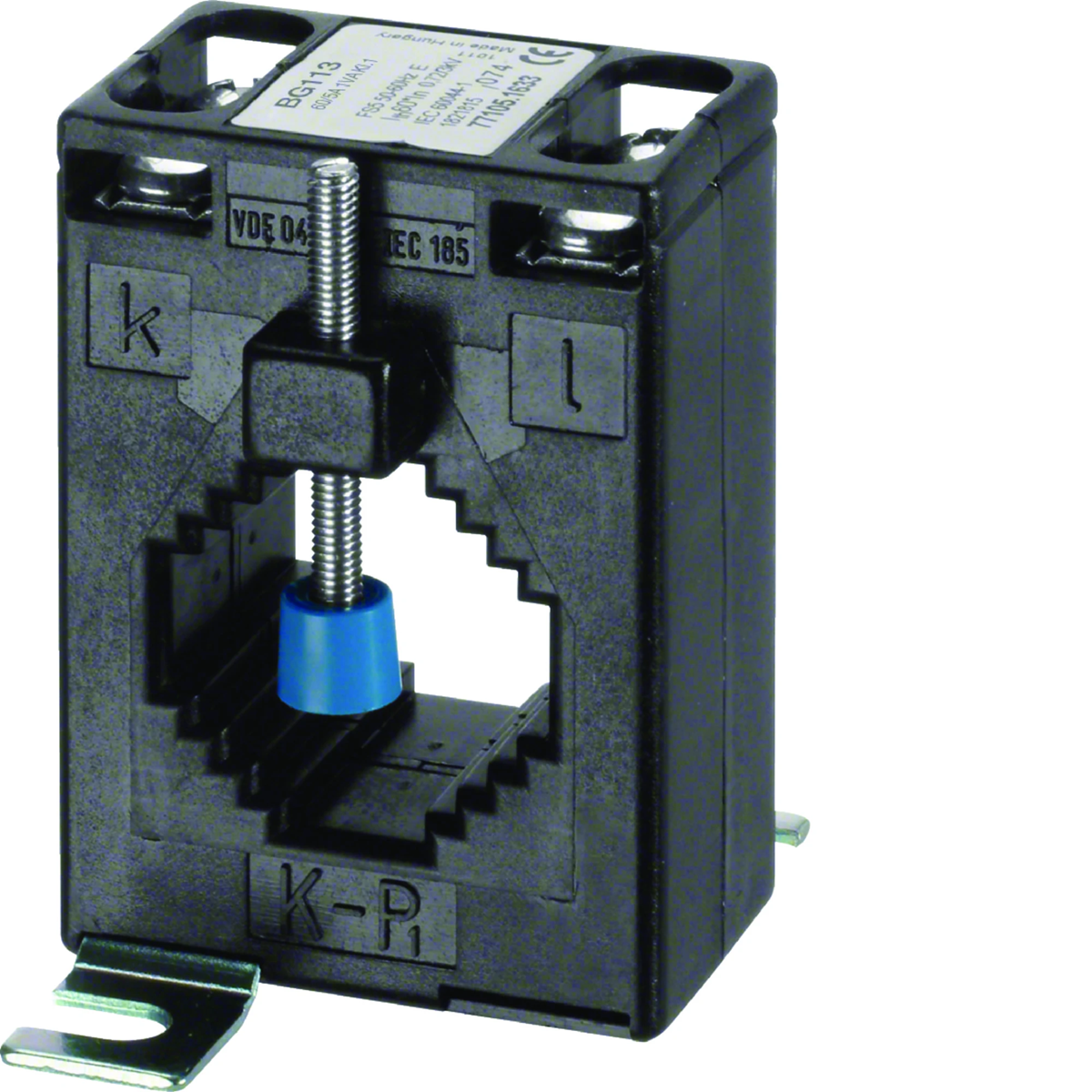

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 50/60

Depth [mm]: 50

Accuracy class: 1

See full description

Price:

40,70 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Current transformers
secondary current: 5 A,
primary side current range: from 50 to 2000 A,
used in indirect current measurement systems (electricity meters, multifunction meters),
accuracy class of current transformers: from 0.5 to 3 - depends on the power consumption of the secondary circuit of the transformer,
measuring input (primary side of the transformer) for round conductors and busbars,
can be mounted on a flat surface or on a 35 mm DIN rail.

Technical data

Rated frequency [Hz]

50/60
Accuracy class

1
Type

Formed
Working temperature [°C]

-40 to 40
Connection type

Screw connection
PKWIU

27.11.42.0

Depth [mm]

50
Rated insulation voltage [V]

3000
Width [mm]

49.5
Height [mm]

70
Gear

60;5

Other technical data

Model

Attachable current transformer
Rated secondary current

5 A
Overcurrent limiting factor

FS 5
Snap mounting

Yes
Number of primary inputs

1

Rated primary current

60 A
Rated secondary apparent power

1 VA
With shock protection

Yes
With copper rail

No

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	250 pcs.	1 pcs.	250 pcs.
Weight (kg)	0,195	71,750	0,195	71,750
Width (m)	0,055	0,800	0,055	0,800
Length (m)	0,050	0,420	0,050	0,420
Depth (m)	0,075	1,200	0,075	1,200
