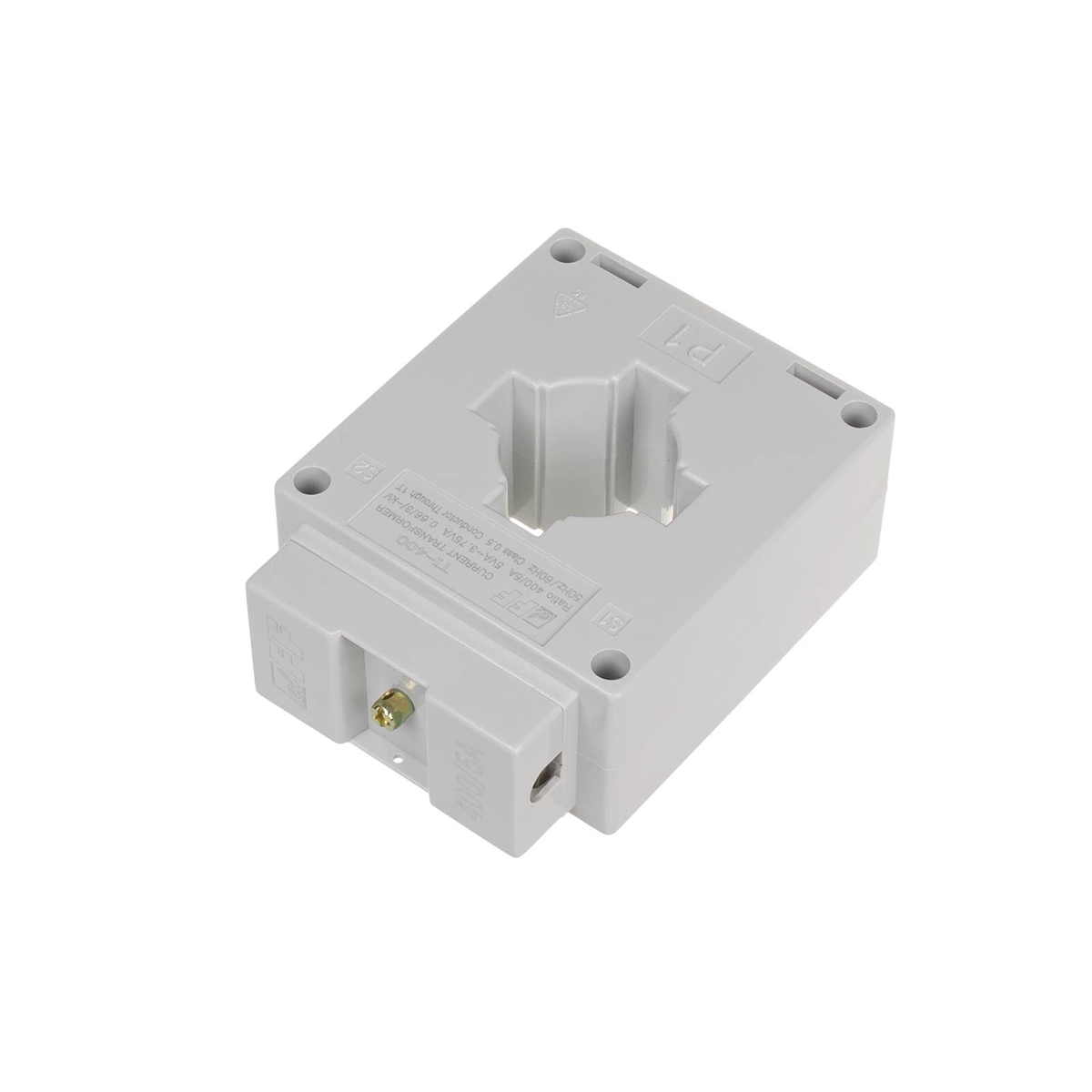

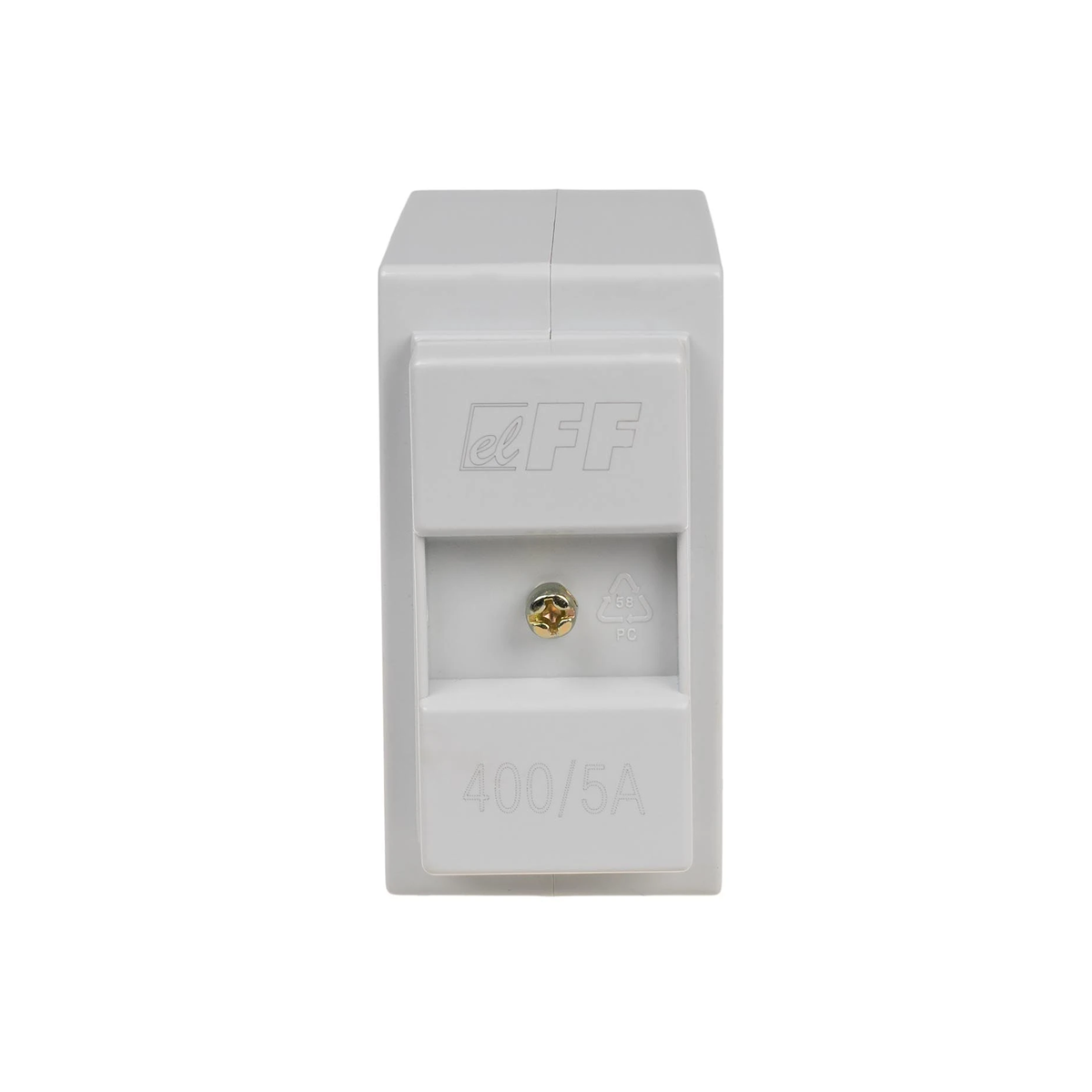

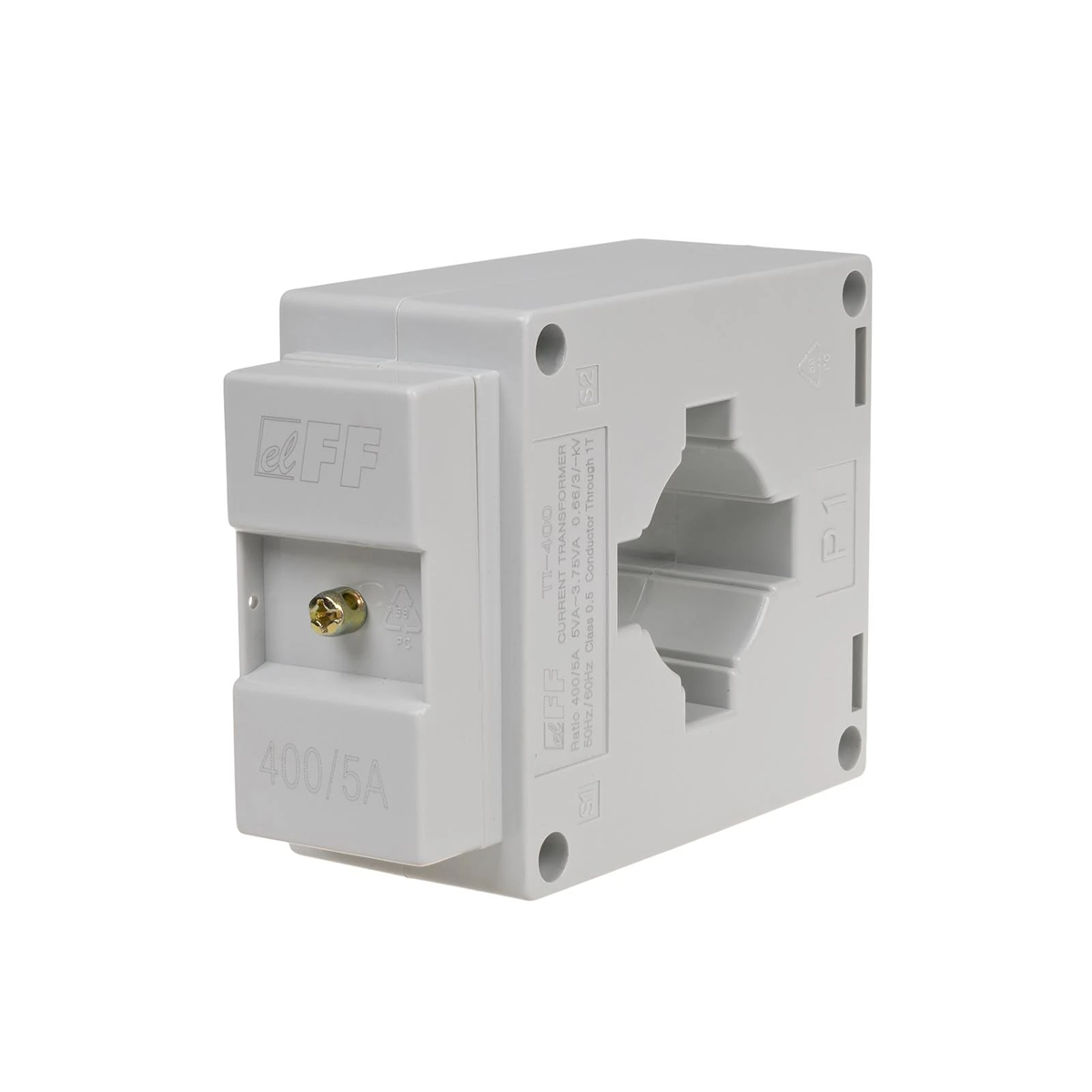

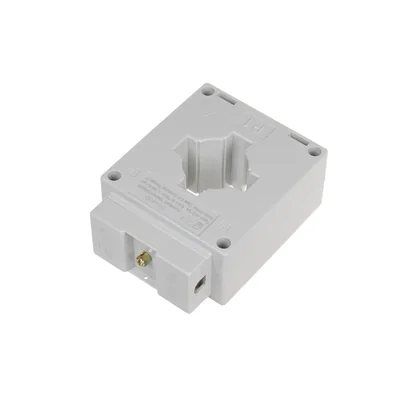

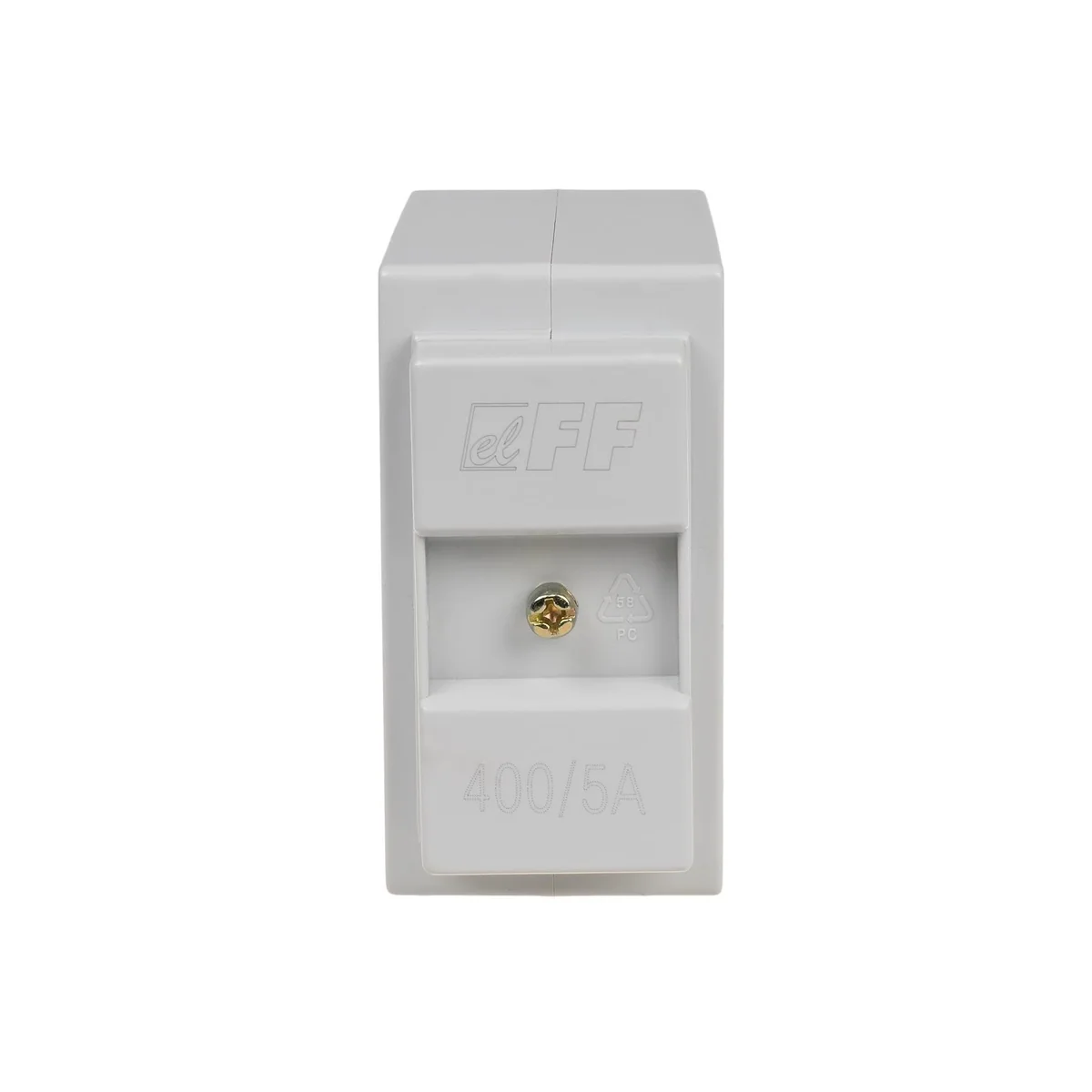

Current transformer 400/5A TI-400-5
local index:
AUK120FIFQ
Catalog No:
TI-400-5
EAN code:
5908312595007
Price:
18,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The current transformer is used to proportionally change high currents to lower values, adapted to the measuring ranges of control and measuring devices.
Technical data
-
Depth [mm]34
-
Rated voltage [kV]0.66
-
Mounting methodFor screws
-
Width [mm]81
-
Height [mm]61
-
Package height [mm]61
-
Package weight [kg]0.31
-
PKWIU27.11.42.0
-
Breakdown voltage [kV]3kV/1min
-
connection4mm screw terminals
-
Level of securityIP20
-
Working temperature [°C]-5-40
-
Rated primary current In [A]400
-
Package width [mm]81
-
Nominal secondary current Is [A]5
Other technical data
-
ModelAttachable current transformer
-
Rated secondary current5 A
-
Opening diameter30 mm
-
With copper railNo
-
Number of primary inputs1
-
Rated primary current400 A
-
Rated secondary apparent power10 VA
-
Snap mountingNo
-
Secondary connectionScrew connection
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,324 |
| Width (m) | 0,043 |
| Length (m) | 0,100 |
| Depth (m) | 0,095 |
