el12
Power sources
Current and voltage transformers
el12
sale
El12 and HAGER

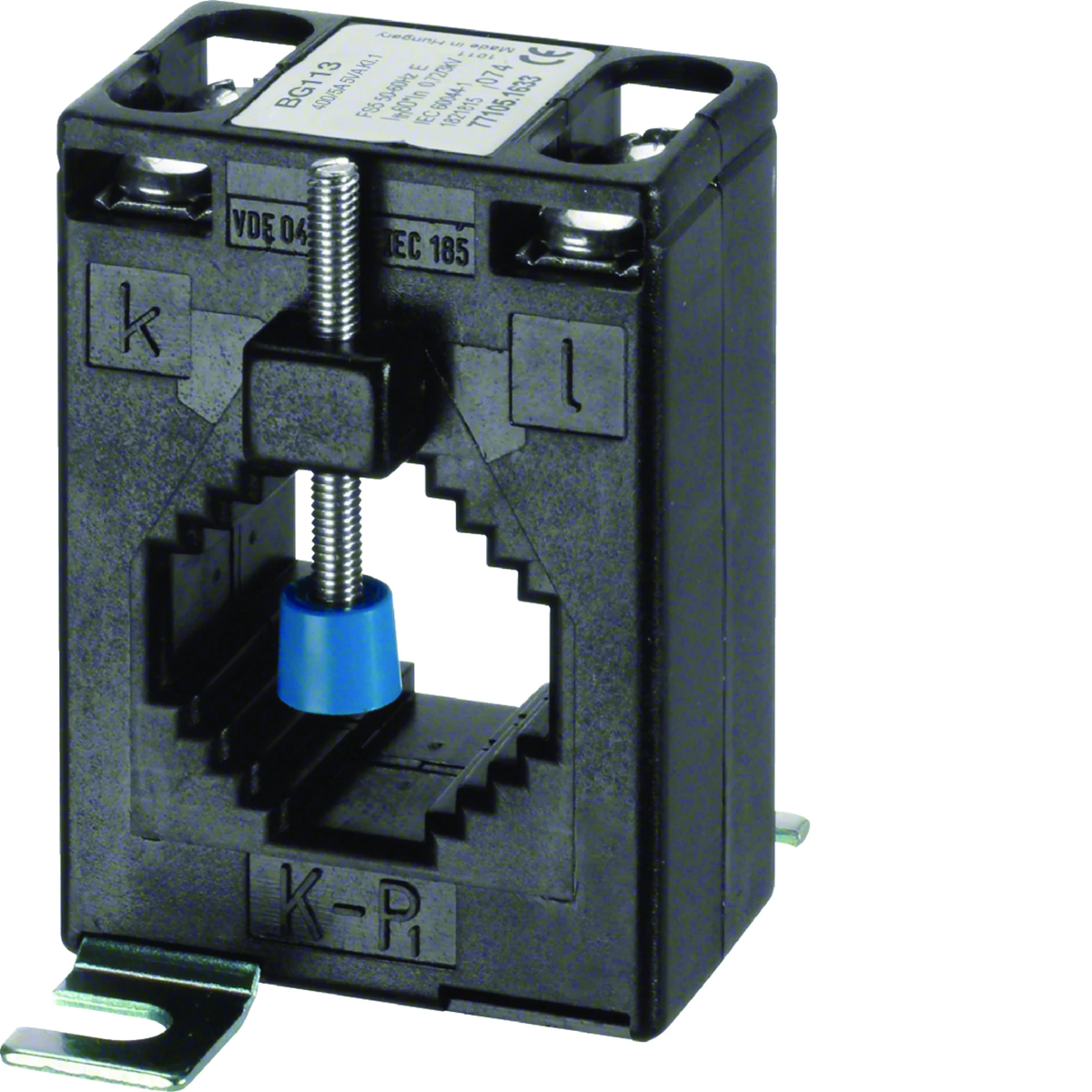

Current transformer 400/5A 5VA class 1 SRC04005
local index:
AUK008HAGE
Catalog No:
SRC04005
EAN code:
4049857139361
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
50/60
Depth [mm]:
thirty
Accuracy class:
1
See full description
Price:
41,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Files to download
Product description
Current transformers
Secondary current: 5 A,
Primary current range: 50 to 2000 A,
used in indirect current measurement systems (electricity meters, multifunction meters),
accuracy class of current transformers: from 0.5 to 3 - depends on the power consumption of the secondary circuit of the transformer,
measuring input (primary side of the transformer) for round conductors and bars,
can be mounted on a flat surface or on a 35 mm DIN rail.
Expand full description ▼
Technical data
Rated frequency [Hz]
50/60
Accuracy class
1
Connection
Screw
Height [mm]
70
PKWIU
27.11.42.0
Depth [mm]
thirty
Rated insulation voltage [V]
3000
Width [mm]
49.5
Gear
400:5
Other technical data
Model
Attachable current transformer
Rated secondary current
5 A
Overcurrent limiting factor
FS 5
Snap mounting
Yes
Number of primary inputs
1
Rated primary current
400 A
Rated secondary apparent power
5 VA
With shock protection
Yes
With copper rail
No
Expand Technical Data ▼
Manufacturer details
Manufacturer
HAGER POLO Sp. z o. o.
Address
43-100 Tychy Fabryczna 10
Tax identification number
6460015532
Bulk packaging
A kind of package
Karton
Pakiet
Paleta
Quantity
1 pcs.
60 pcs.
1440 pcs.
Weight (kg)
0,220
13,655
350,720
Width (m)
0,055
0,295
0,800
Length (m)
0,050
0,160
1,050
Depth (m)
0,075
0,400
1,200
Files to download
SRC04005.pdf
