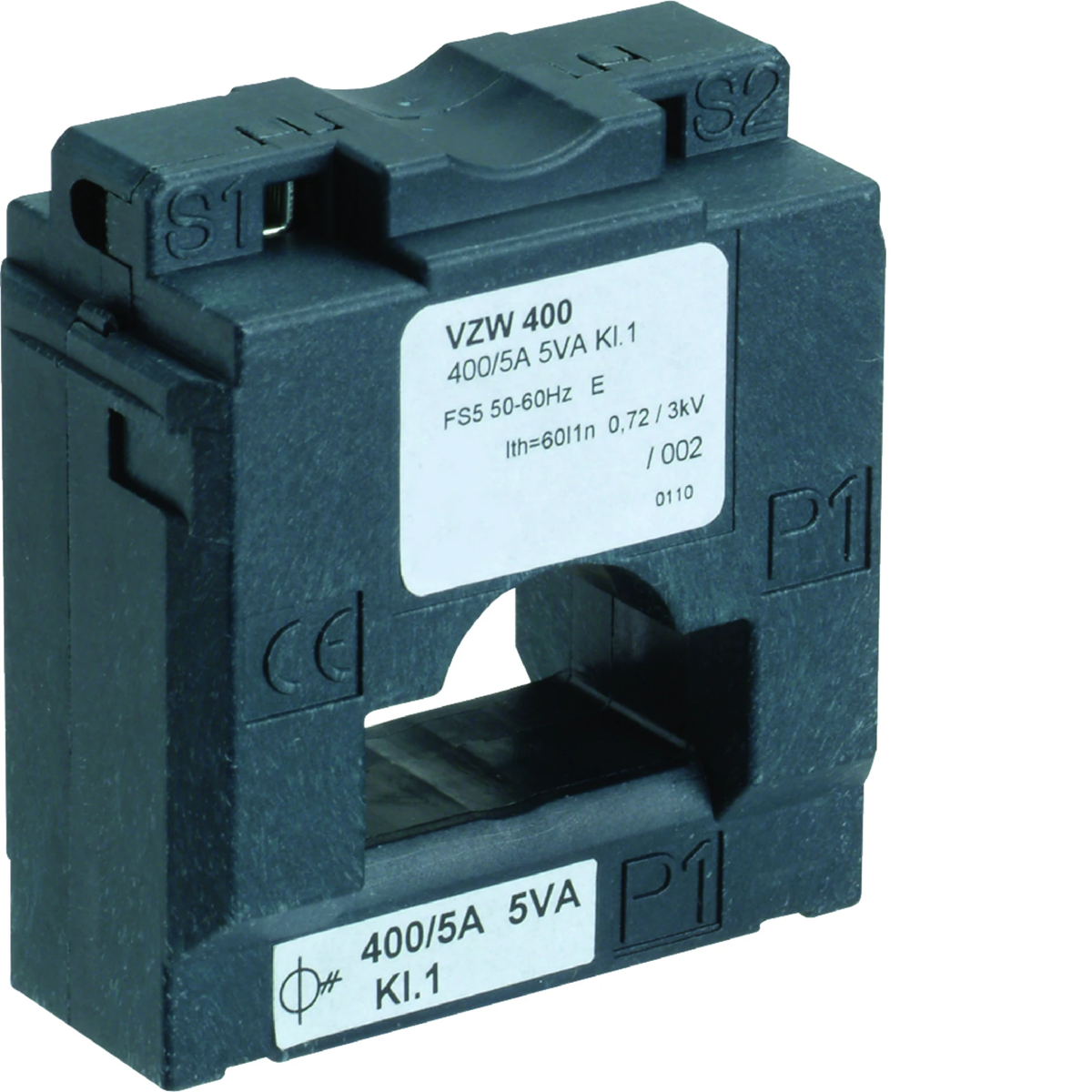

Current transformer 400/5A 5VA class 1 LVZW400
local index:
AUK058HAGE
Catalog No:
LVZW400
EAN code:
4049857123230
Price:
48,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Current transformer for LVSG NH1/2/3 series fuse switch disconnectors:
- 400/5A,
- mounting: busbar system ,
- accuracy class: 1,
- rail size: Rundleiter d= max. 21mm.
Technical data
-
Rated frequency [Hz]60
-
Depth [mm]30.1
-
Input power [VA]5
-
FamilyLV
-
Width [mm]59.5
-
Height [mm]63.5
-
Accuracy [s]1
-
Opening diameter [mm]21
-
Rated insulation voltage [kV]3
-
Conductor cross-section (wire) [mm²]1.5 - 4
-
Length [mm]59.5
-
Power [VA]5
-
InstallationOn the TH-35 rail
-
Level of securityIP10
-
Connection typeScrew connection
-
Operating temperature range [°C]from -40 to 40
-
Gear400;5
-
storage temperature [°C]from -40 to 75
-
Wire cross-section (cord) [mm²]1.5 - 4
-
PKWIU27.11.42.0
Other technical data
-
ModelAttachable current transformer
-
Rated secondary current5 A
-
Overcurrent limiting factorFS 5
-
Opening diameter21 mm
-
Number of primary inputs1
-
Rated primary current400 A
-
Rated secondary apparent power5 VA
-
With shock protectionYes
-
With copper railNo
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 2000 pcs. |
| Weight (kg) | 0,160 | 0,165 | 353,000 |
| Width (m) | 0,060 | 0,065 | 0,800 |
| Length (m) | 0,064 | 0,050 | 0,670 |
| Depth (m) | 0,030 | 0,080 | 1,200 |
