Current transformer 4000/5A 15VA class 1 SRG40005

Name: Current transformer 4000/5A 15VA class 1
Brand: HAGER
SKU: AUK023HAGE
Price: 142.18 PLN

local index:

AUK023HAGE

Catalog No:

SRG40005

EAN code:

4049857139491

Current transformer 4000/5A 15VA class 1

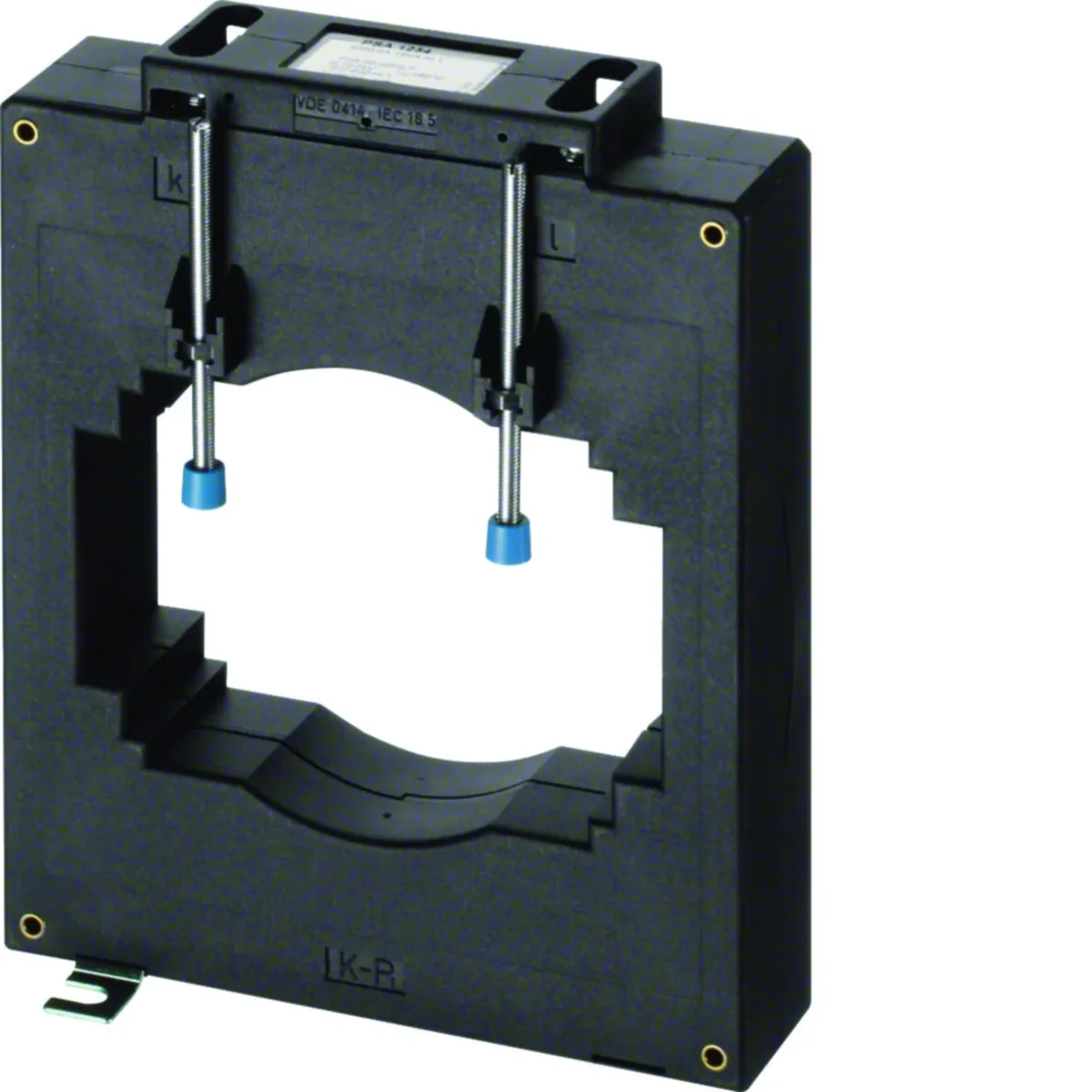

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 50/60

Depth [mm]: 40

Accuracy class: 1

See full description

Price:

142,18 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Current transformers
secondary current: 5 A,
primary side current range: from 50 to 2000 A,
used in indirect current measurement systems (electricity meters, multifunction meters),
accuracy class of current transformers: from 0.5 to 3 - depends on the power consumption of the secondary circuit of the transformer,
measuring input (primary side of the transformer) for round conductors and busbars,
can be mounted on a flat surface or on a 35 mm DIN rail.

Technical data

Rated frequency [Hz]

50/60
Accuracy class

1
Type

Formed
Working temperature [°C]

-40 to 40
Connection type

Screw connection
PKWIU

27.11.42.0

Depth [mm]

40
Rated insulation voltage [V]

3000
Width [mm]

160
Height [mm]

198
Gear

4000;5

Other technical data

Model

Attachable current transformer
Rated secondary current

5 A
Overcurrent limiting factor

FS 5
Opening diameter

98 mm
With copper rail

No

Rated primary current

4000 A
Rated secondary apparent power

15 VA
With shock protection

Yes
Snap mounting

Yes
Number of primary inputs

1

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	144 pcs.
Weight (kg)	0,860	1,080	178,520
Width (m)	0,160	0,170	0,800
Length (m)	0,198	0,095	0,862
Depth (m)	0,040	0,210	1,200
