Power sources
Current and voltage transformers

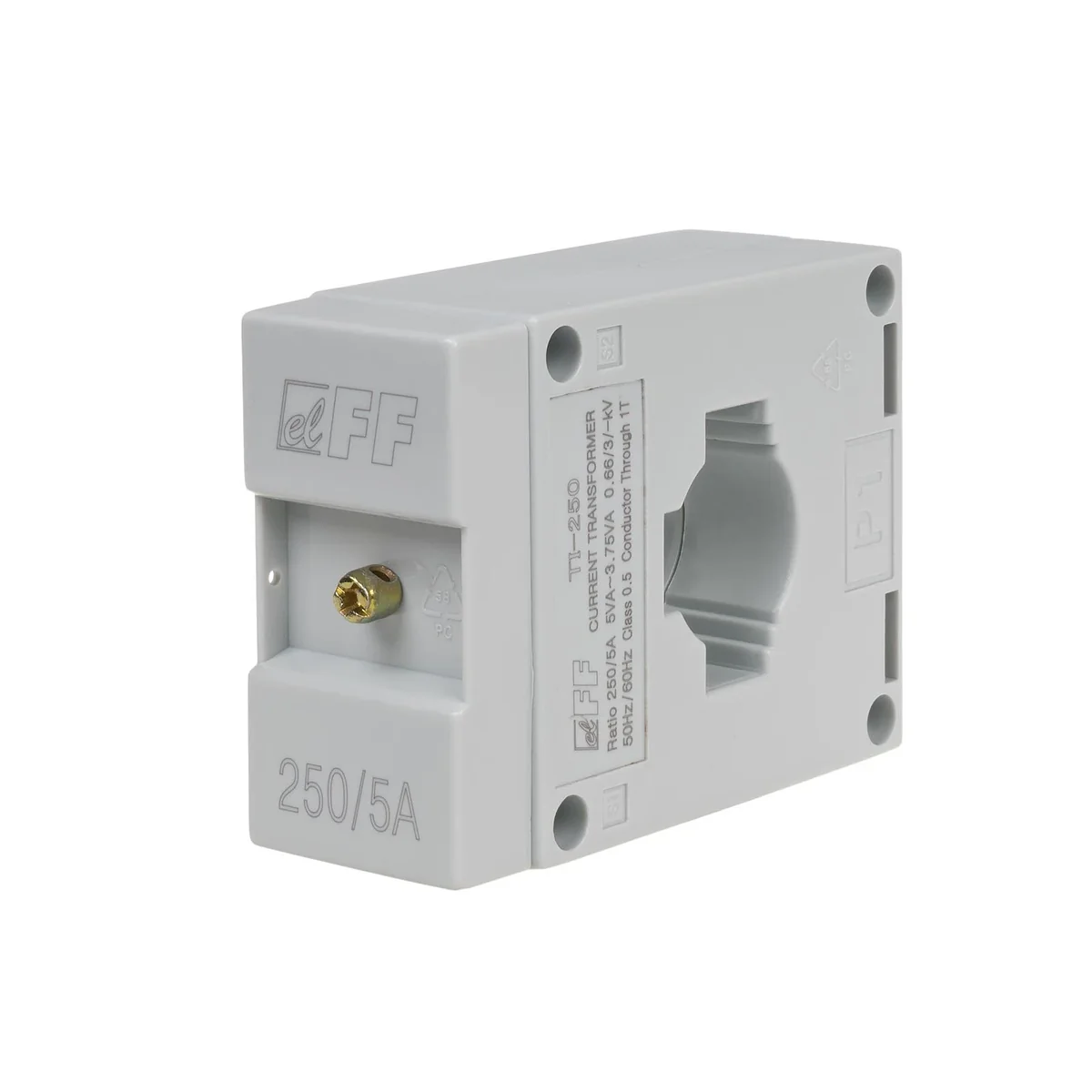

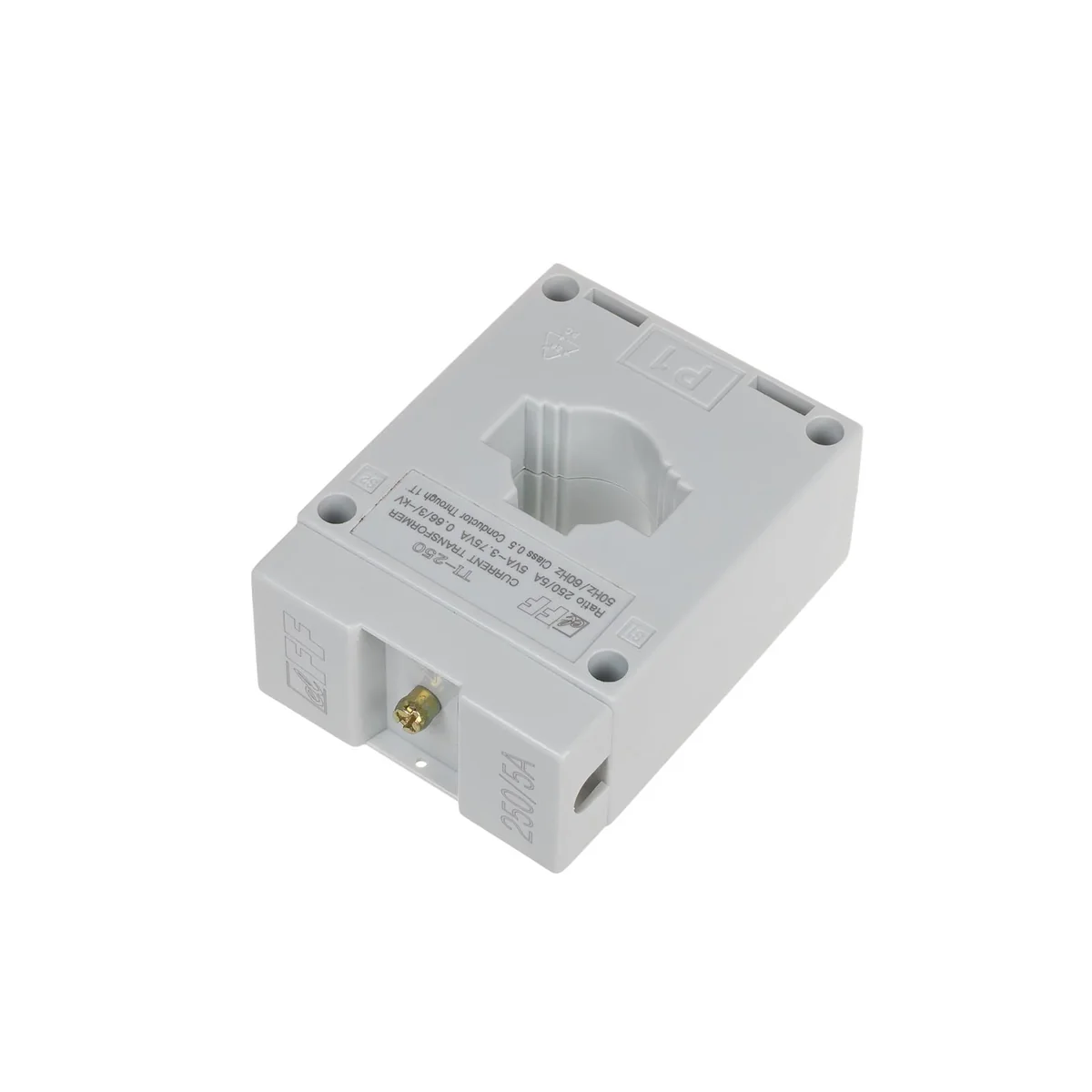

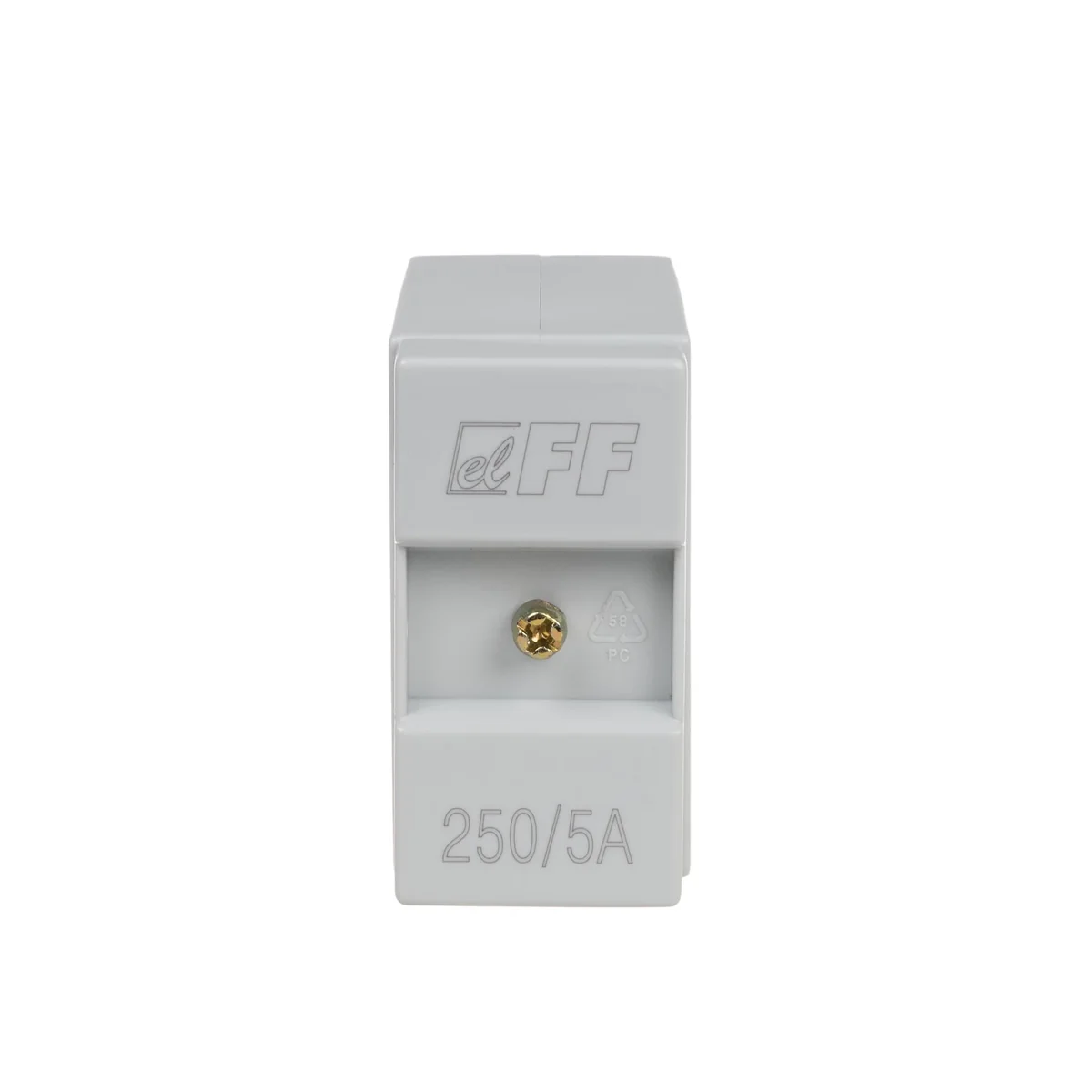

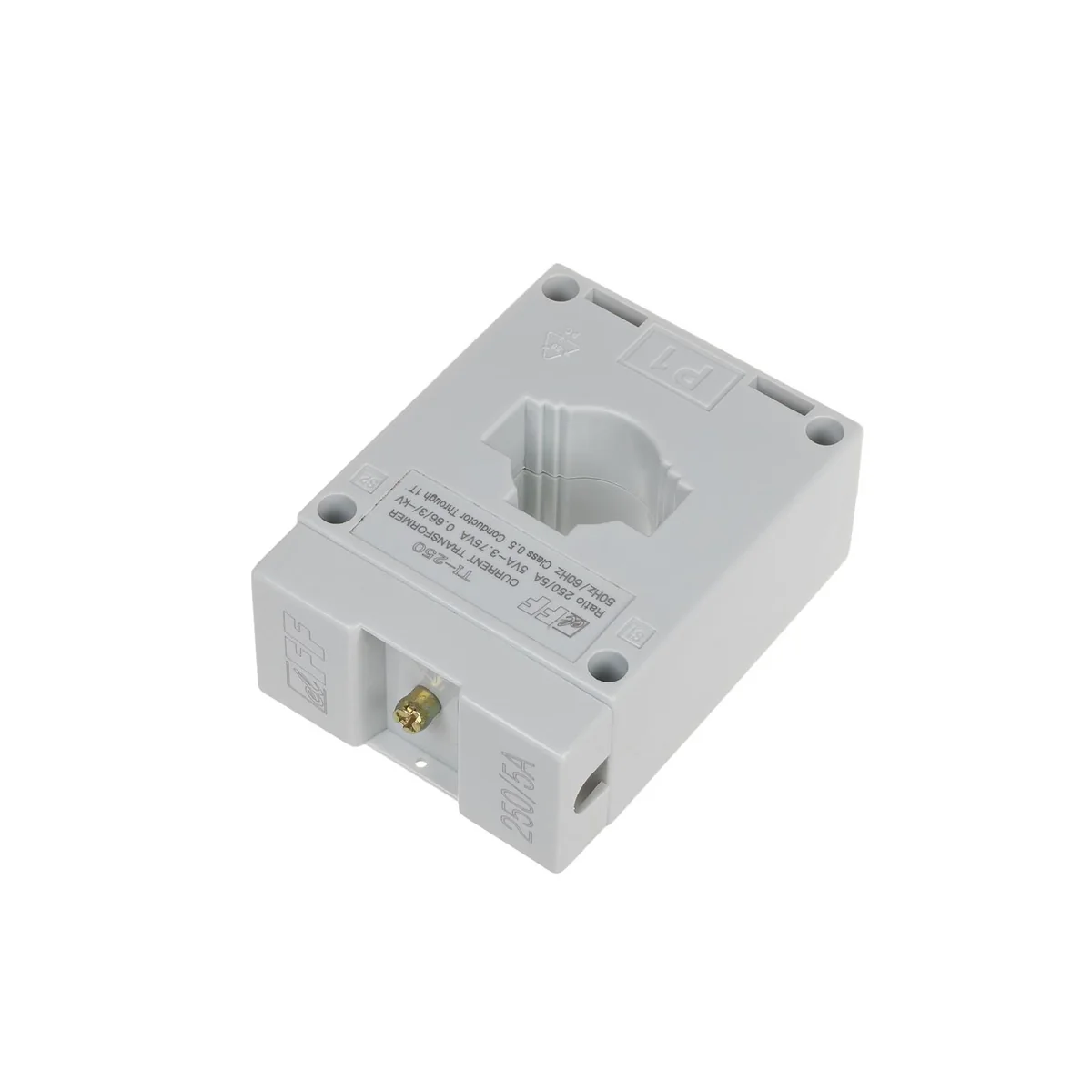

Current transformer 250/5A TI-250-5
local index:
AUK122FIFQ
Catalog No:
TI-250-5
EAN code:
5908312594987
Click on the photo to enlarge
Manufacturer:
F&F
Depth [mm]:
40
Breakdown voltage [kV]:
3kV/1min
Rated voltage [kV]:
0.66
See full description
Price:
18,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
Current transformer 250/5A. The current transformer is used to proportionally change high currents to lower values, adapted to the measuring ranges of control and measuring devices.
Technical data
Depth [mm]
40
Rated voltage [kV]
0.66
Mounting method
For screws
Width [mm]
99
Height [mm]
75
Package height [mm]
75
Package weight [kg]
0.24
PKWIU
27.11.42.0
Breakdown voltage [kV]
3kV/1min
connection
4mm screw terminals
Level of security
IP20
Working temperature [°C]
-5-40
Rated primary current In [A]
250
Package width [mm]
99
Nominal secondary current Is [A]
5
Other technical data
Model
Attachable current transformer
Rated secondary current
5 A
Opening diameter
22 mm
With copper rail
No
Number of primary inputs
1
Rated primary current
250 A
Rated secondary apparent power
5 VA
Snap mounting
No
Secondary connection
Screw connection
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Weight (kg)
0,236
Width (m)
0,035
Length (m)
0,085
Depth (m)
0,080
Files to download
TI-30÷TI-80_karta_katalogowa_161003_PL.pdf
FF_RoHS_2022.pdf
UE_FF040_18_TI_dek_zgod_CE.pdf
TI-30÷TI-80_karta_katalogowa_161003_PL.pdf
FF_RoHS_2022.pdf
UE_FF040_18_TI_dek_zgod_CE.pdf
