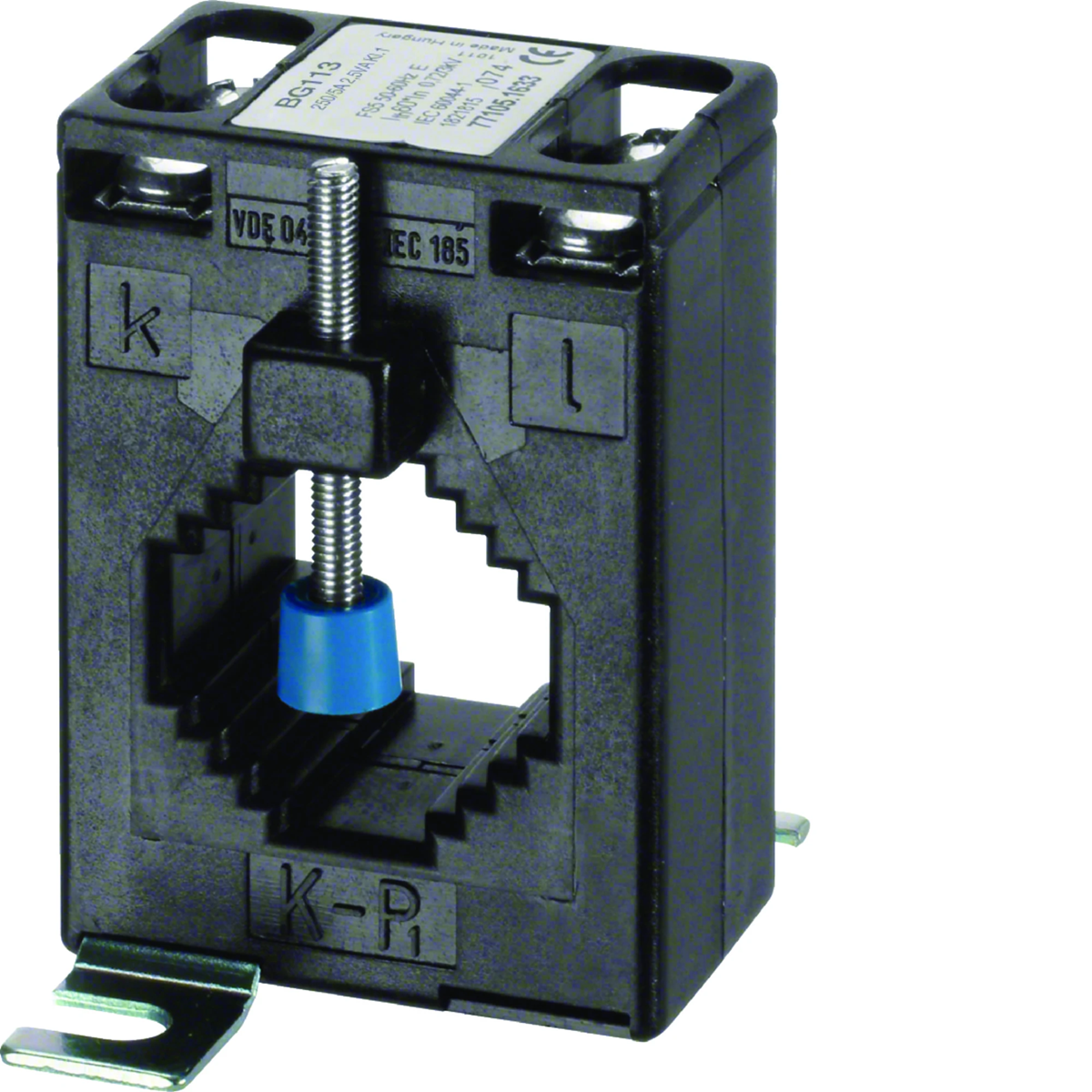

Current transformer 250/5A 2.5VA class 1 SRA02505

Index local:
AUK007HAGE
Numéro de catalogue:
SRA02505
Code EAN:
4049857139354
Producteur: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: thirty
Accuracy class: 1
Prix:
176,92 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Current transformers

  • Secondary current: 5 A,
  • Primary current range: 50 to 2000 A,
  • used in indirect current measurement systems (electricity meters, multifunction meters),
  • accuracy class of current transformers: from 0.5 to 3 - depends on the power consumption of the secondary circuit of the transformer,
  • measuring input (primary side of the transformer) for round conductors and bars,
  • can be mounted on a flat surface or on a 35 mm DIN rail.

Données techniques

  • Rated frequency [Hz]
    50/60
  • Accuracy class
    1
  • Connection
    Screw
  • Height [mm]
    70
  • PKWIU
    27.11.42.0
  • Depth [mm]
    thirty
  • Rated insulation voltage [V]
    3000
  • Width [mm]
    49.5
  • Gear
    250:5

Autres données techniques

  • Model
    Attachable current transformer
  • Rated secondary current
    5 A
  • Overcurrent limiting factor
    FS 5
  • Snap mounting
    Yes
  • Number of primary inputs
    1
  • Rated primary current
    250 A
  • Rated secondary apparent power
    2.5 VA
  • With shock protection
    Yes
  • With copper rail
    No

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta Karton Pakiet Paleta
Quantité 1 pcs. 60 pcs. 1440 pcs. 1 pcs. 60 pcs. 1440 pcs.
poids (kg) 0,180 10,800 259,200 0,180 10,800 259,200
Largeur (m) 0,060 0,300 0,800 0,060 0,300 0,800
Longueur (m) 0,050 0,160 0,550 0,050 0,160 0,550
Profondeur (m) 0,070 0,400 1,200 0,070 0,400 1,200
