Power sources
Current and voltage transformers

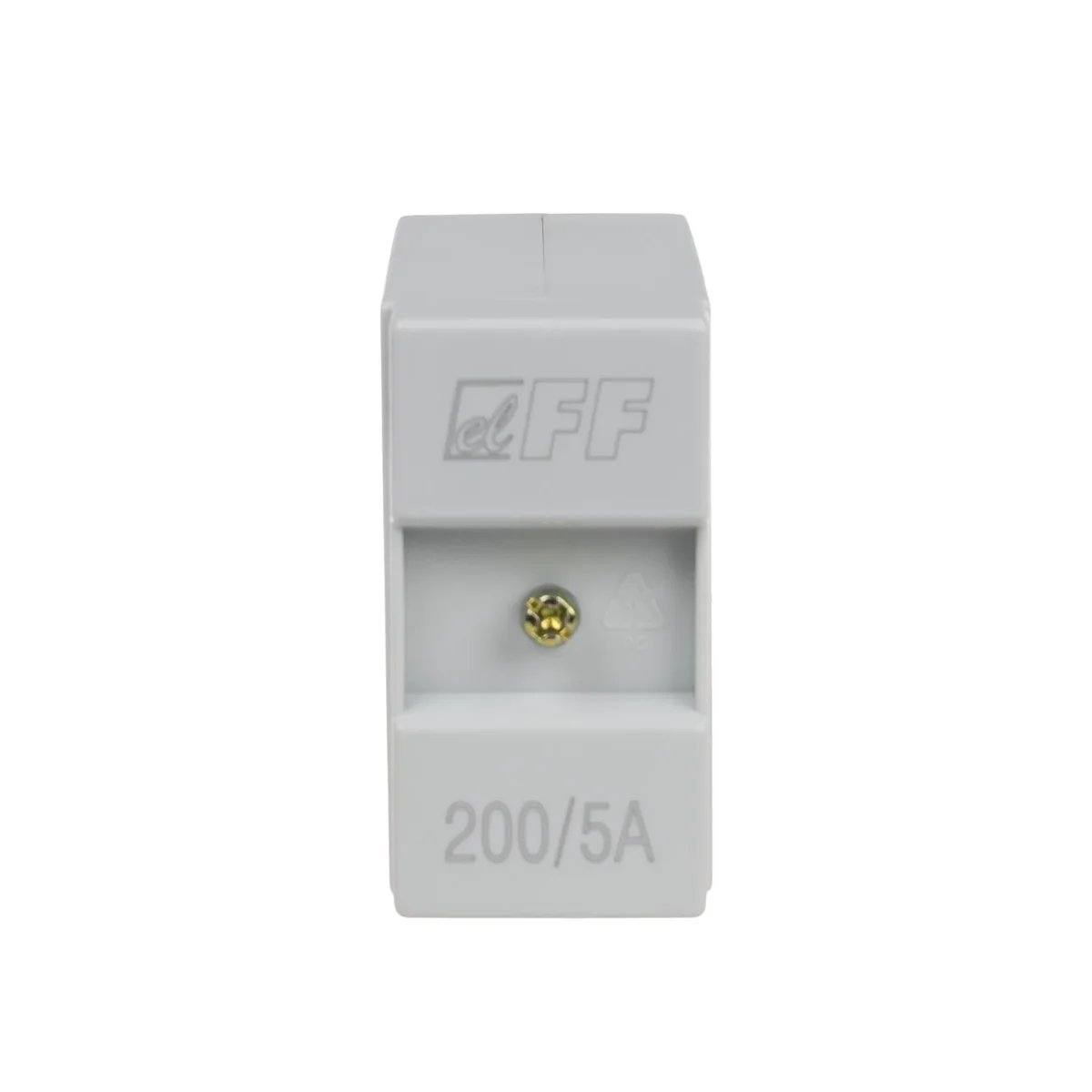

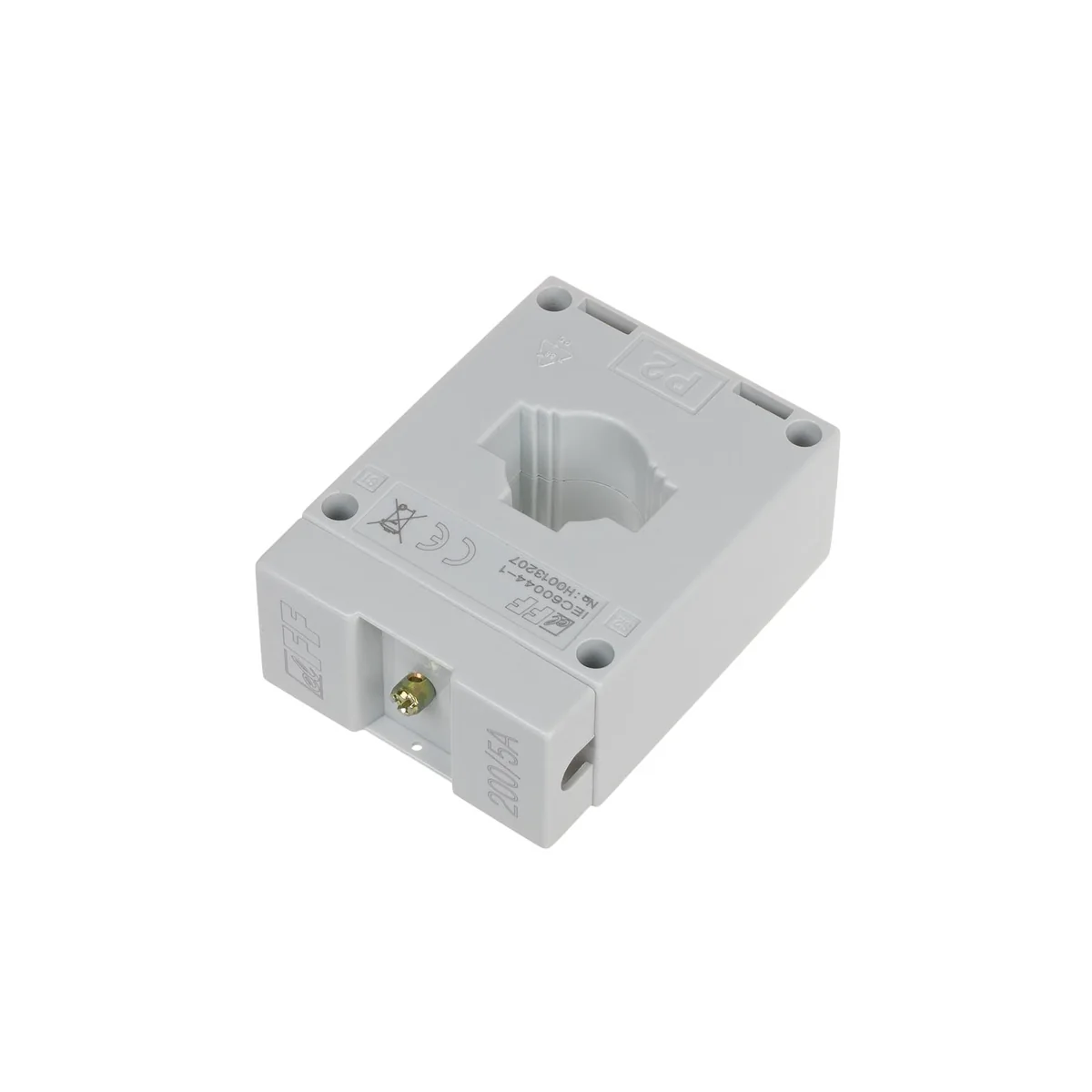

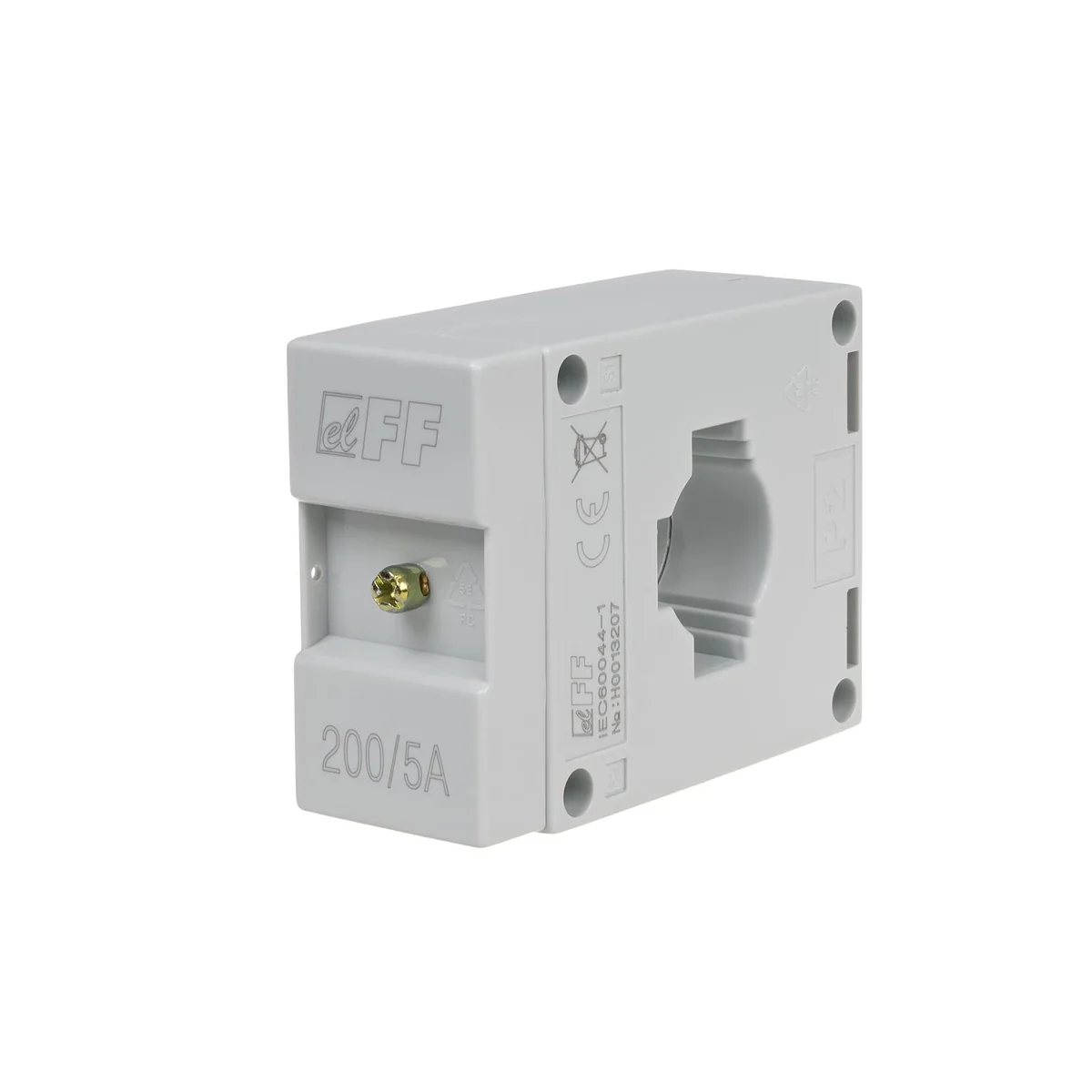

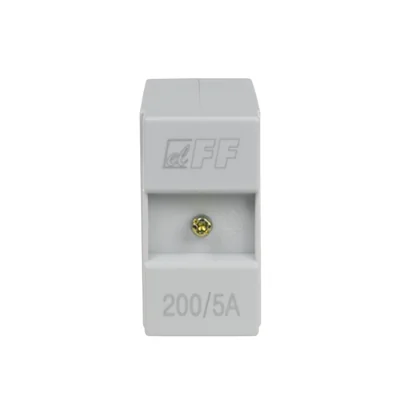

Current transformer 200/5A TI-200-5
local index:
AUK116FIFQ
Catalog No:
TI-200-5
EAN code:
5908312594970
Click on the photo to enlarge
Manufacturer:
F&F
Depth [mm]:
34
Breakdown voltage [kV]:
3kV/1min
Rated voltage [kV]:
0.66
See full description
Price:
18,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 28 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
The current transformer is used to proportionally change high currents to lower values, adapted to the measuring ranges of control and measuring devices.
Technical data
Depth [mm]
34
Rated voltage [kV]
0.66
Mounting method
For screws
Width [mm]
81
Height [mm]
61
Package height [mm]
61
Package weight [kg]
0.24
PKWIU
27.11.42.0
Breakdown voltage [kV]
3kV/1min
connection
4mm screw terminals
Level of security
IP20
Working temperature [°C]
-5-40
Rated primary current In [A]
200
Package width [mm]
81
Nominal secondary current Is [A]
5
Other technical data
Model
Attachable current transformer
Rated secondary current
5 A
Opening diameter
22 mm
With copper rail
No
Number of primary inputs
1
Rated primary current
200 A
Rated secondary apparent power
5 VA
Snap mounting
No
Secondary connection
Screw connection
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Weight (kg)
0,236
Width (m)
0,035
Length (m)
0,085
Depth (m)
0,080
Files to download
TI-30÷TI-80_karta_katalogowa_161003_PL.pdf
FF_RoHS_2022.pdf
UE_FF040_18_TI_dek_zgod_CE.pdf
TI-30÷TI-80_karta_katalogowa_161003_PL.pdf
FF_RoHS_2022.pdf
UE_FF040_18_TI_dek_zgod_CE.pdf
