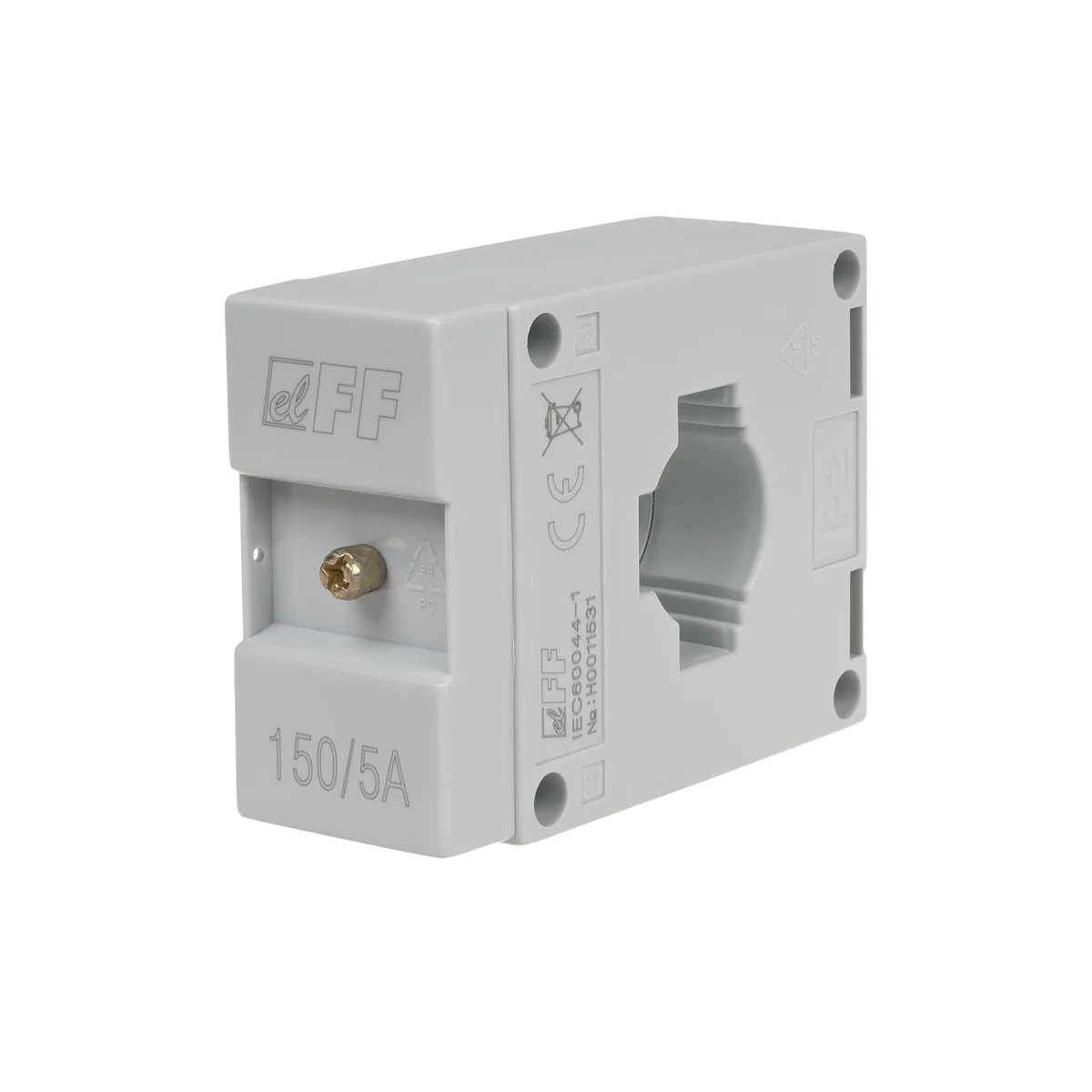

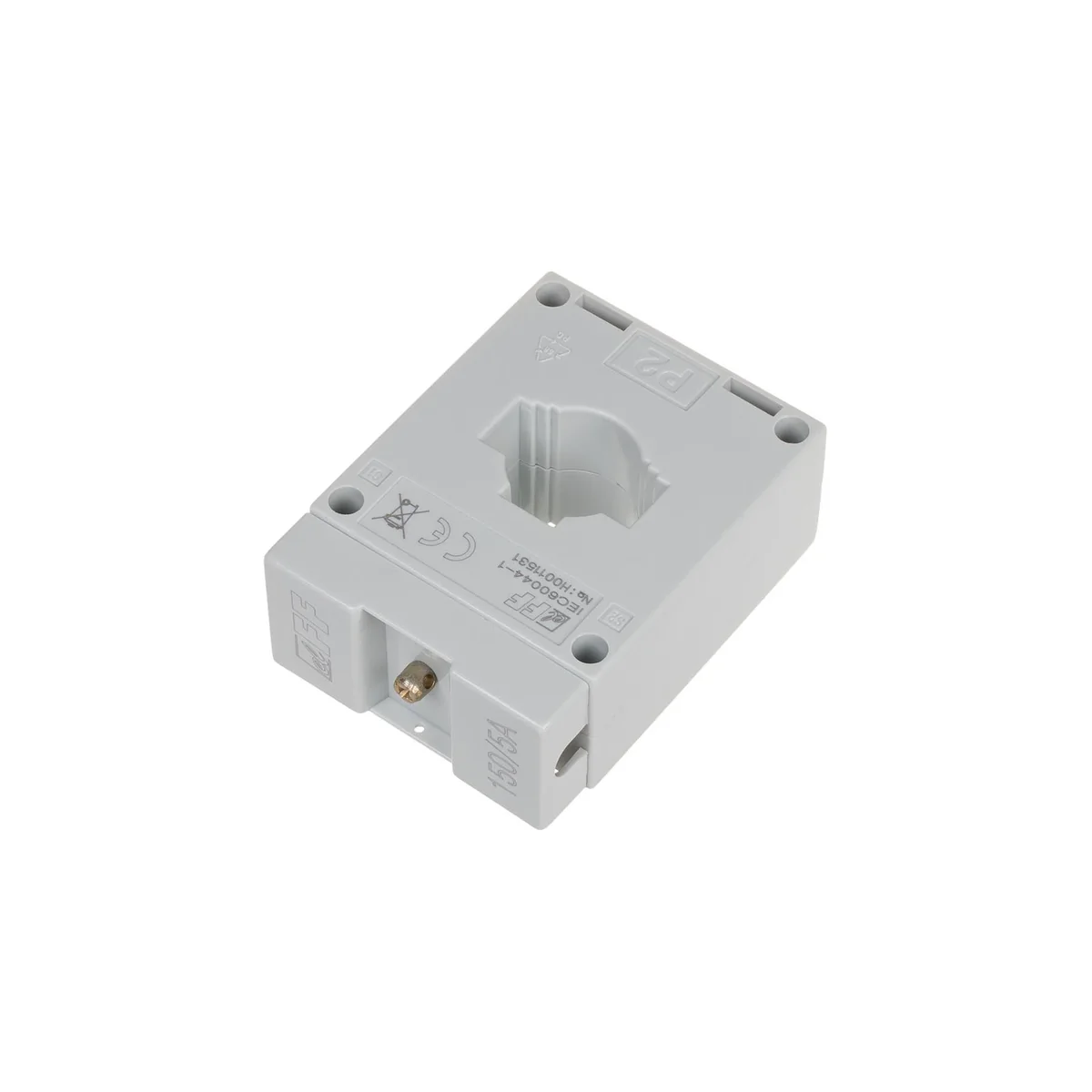

Current transformer 150/5A TI-150-5
local index:
AUK117FIFQ
Catalog No:
TI-150-5
EAN code:
5908312594963
Price:
19,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Current transformer 150/5A. The current transformer is used to proportionally change high currents to lower values, adapted to the measuring ranges of control and measuring devices.
Technical data
-
Depth [mm]34
-
Rated voltage [kV]0.66
-
Mounting methodFor screws
-
Width [mm]81
-
Height [mm]61
-
Package height [mm]61
-
Package weight [kg]0.24
-
PKWIU27.11.42.0
-
Breakdown voltage [kV]3kV/1min
-
connection4mm screw terminals
-
Level of securityIP20
-
Working temperature [°C]-5-40
-
Rated primary current In [A]150
-
Package width [mm]81
-
Nominal secondary current Is [A]5
Other technical data
-
ModelAttachable current transformer
-
Rated secondary current5 A
-
Opening diameter22 mm
-
With copper railNo
-
Number of primary inputs1
-
Rated primary current150 A
-
Rated secondary apparent power2.5 VA
-
Snap mountingNo
-
Secondary connectionScrew connection
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,238 |
| Width (m) | 0,035 |
| Length (m) | 0,085 |
| Depth (m) | 0,080 |
