F&F

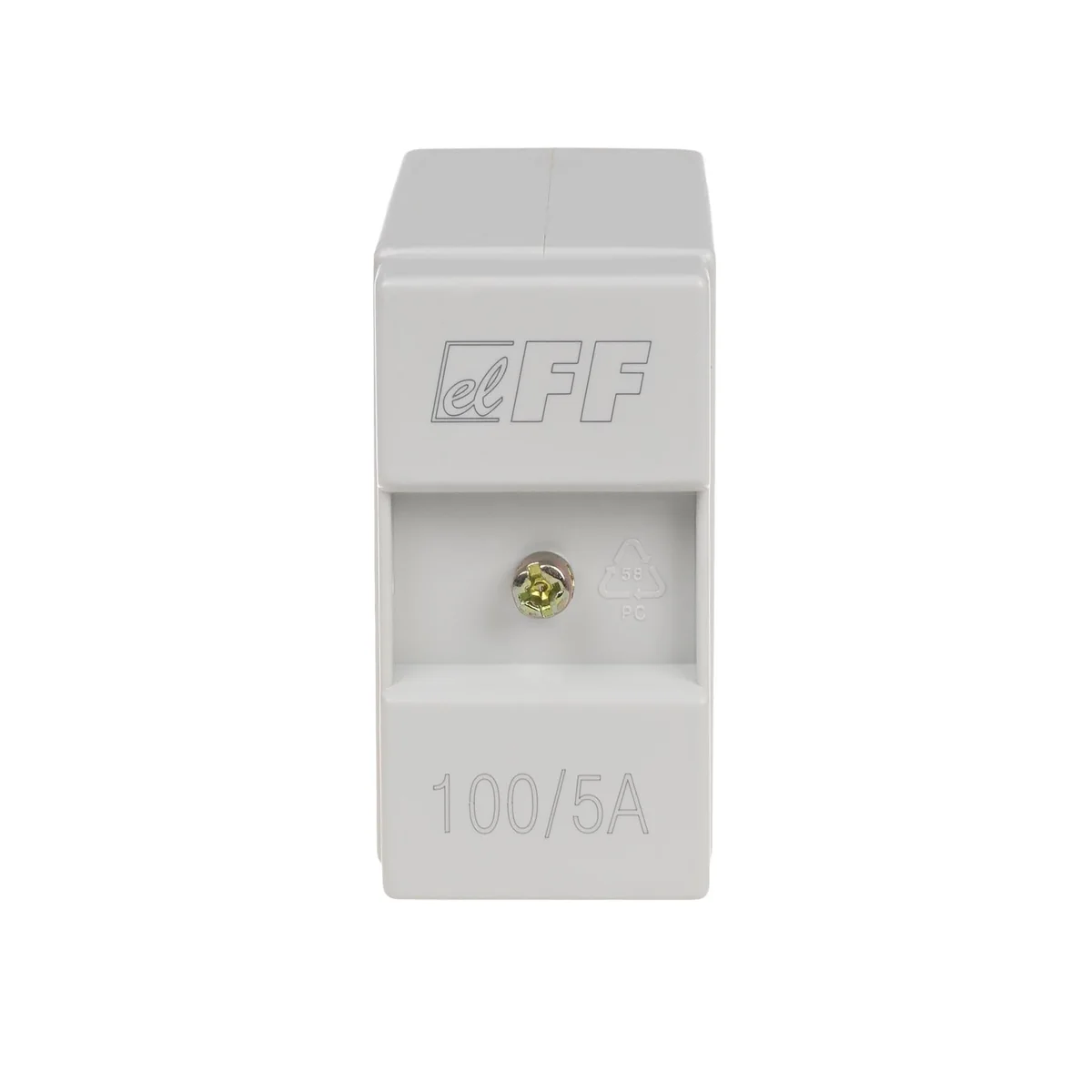

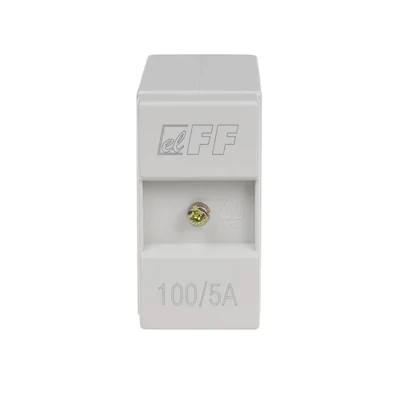

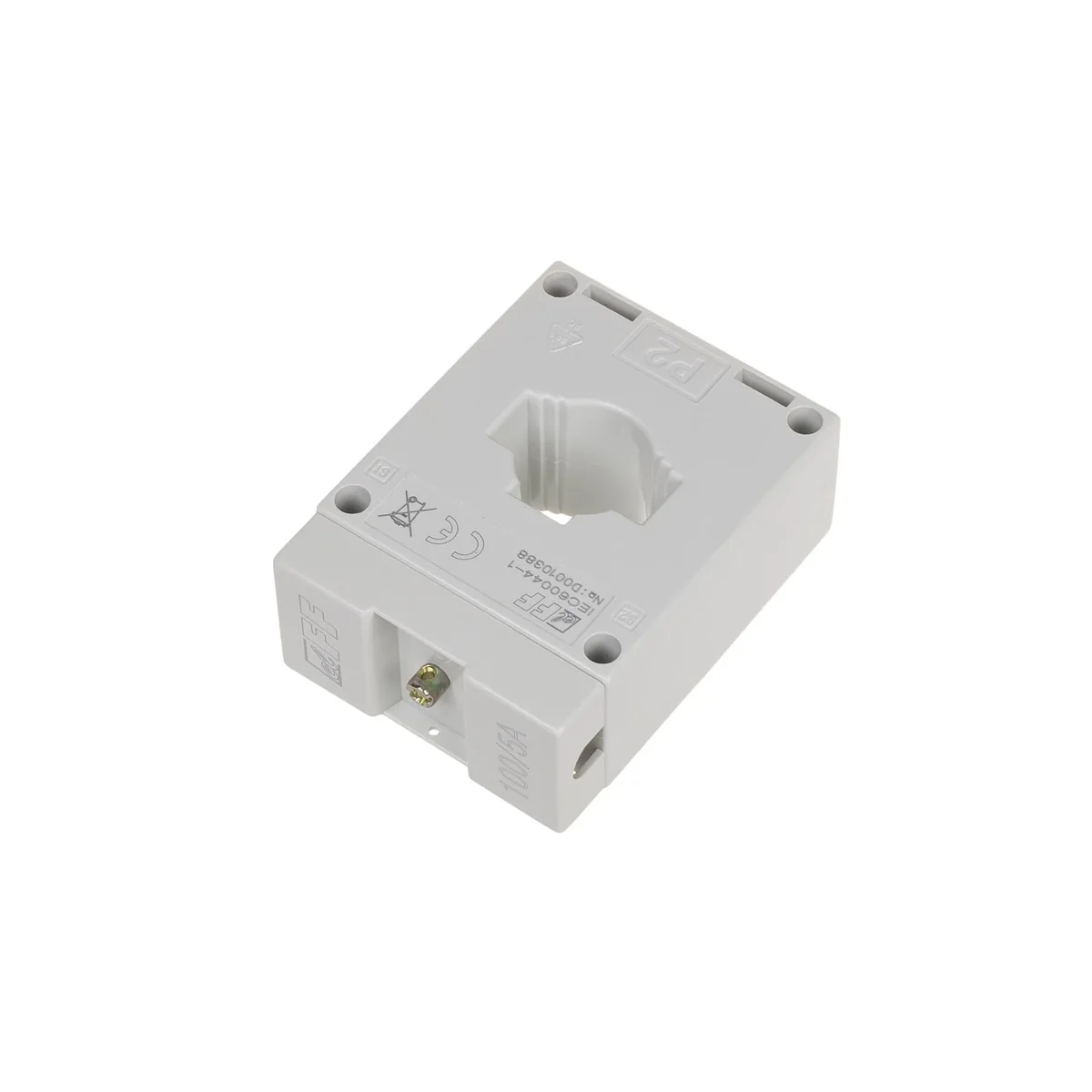

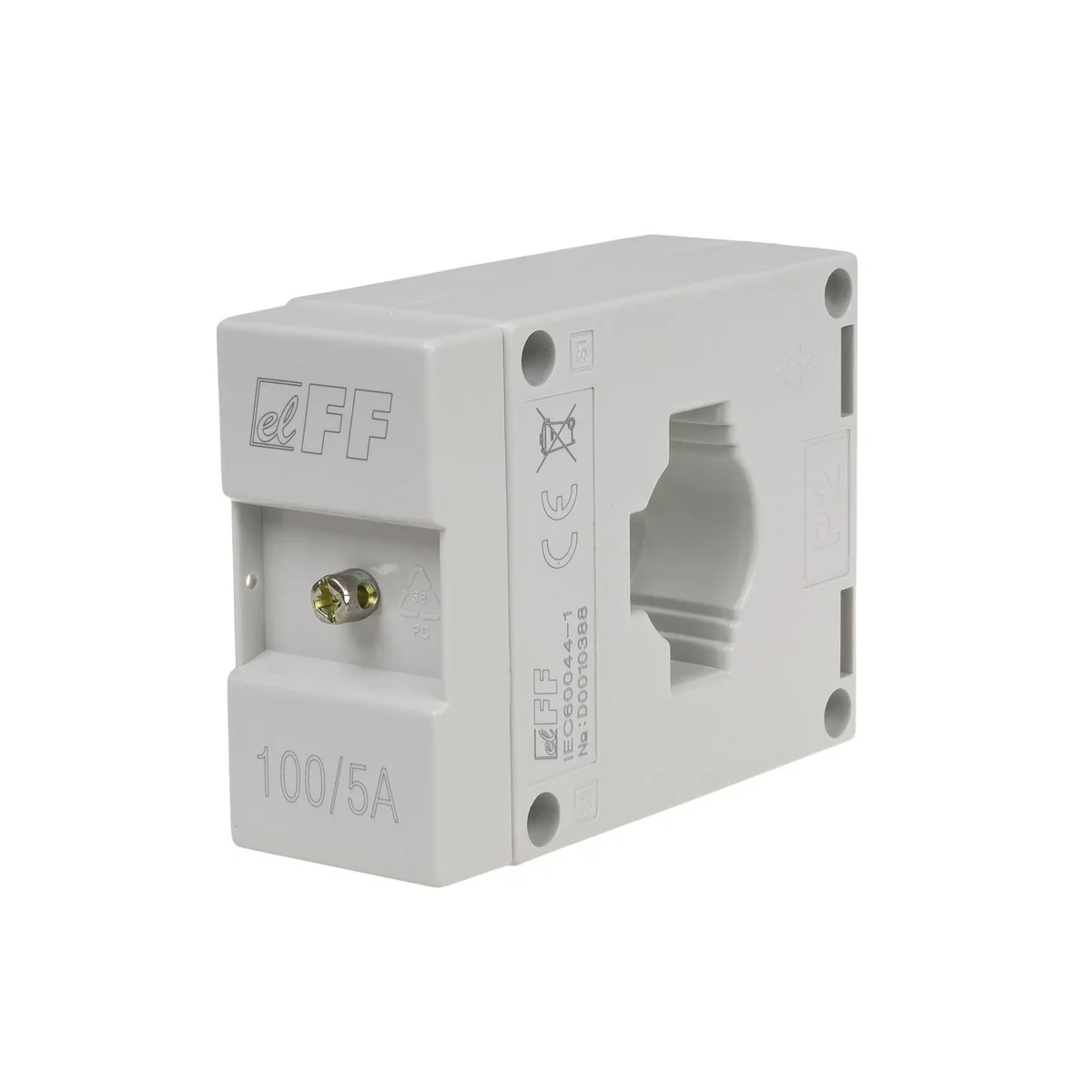

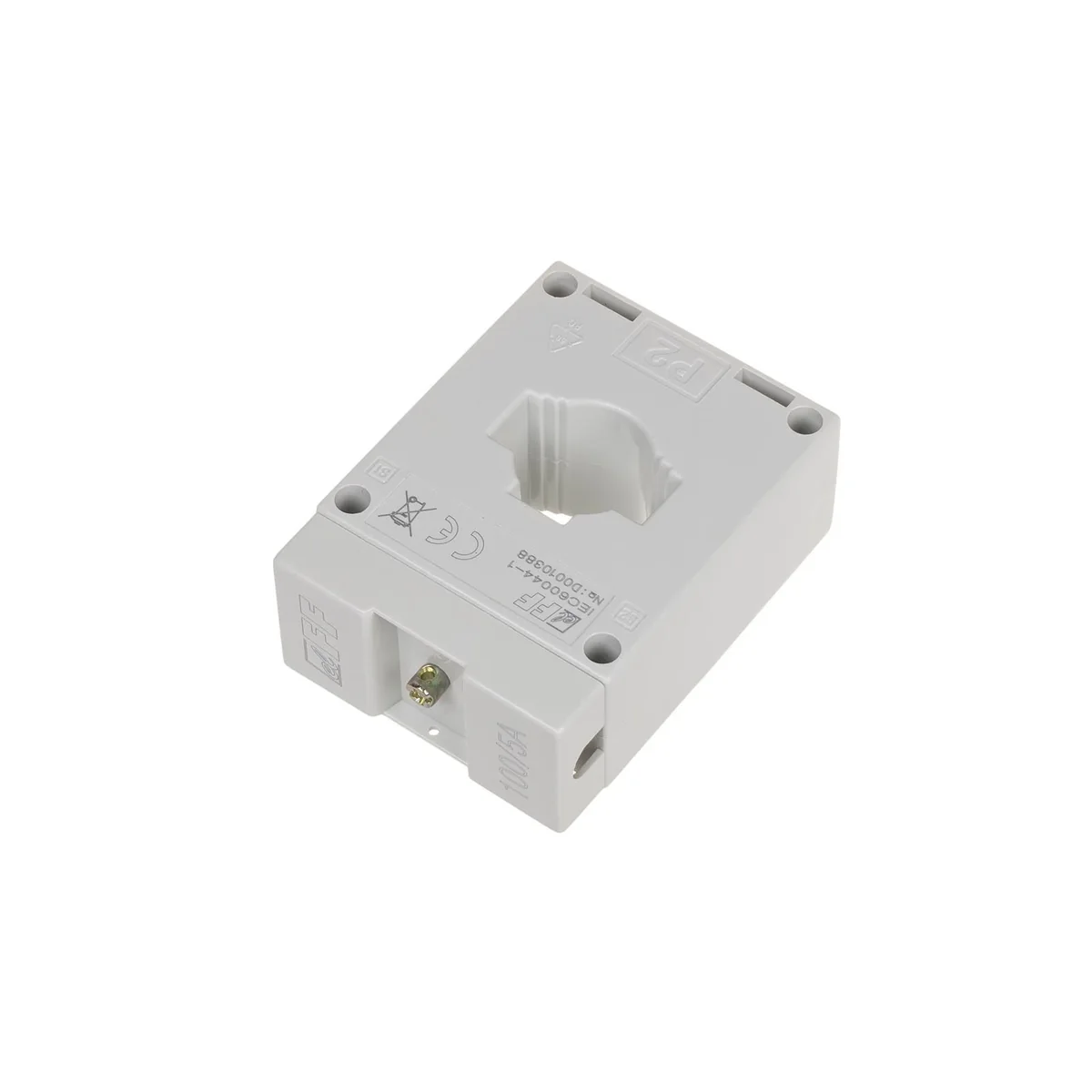

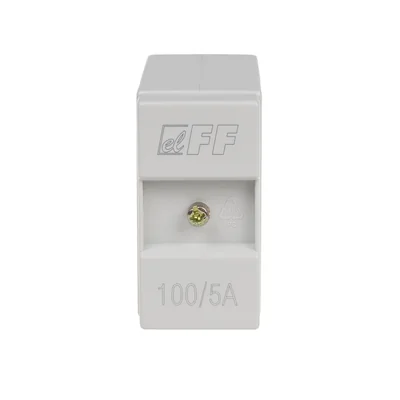

Current transformer 100/5A TI-100-5

local index:
AUK119FIFQ
Catalog No:
TI-100-5
EAN code:
5908312594956
Price:
18,67 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 23 pcs.
Delivery:
From 3,71 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The current transformer is used to proportionally change high currents to lower values, adapted to the measuring ranges of control and measuring devices.

Technical data

  • Depth [mm]
    34
  • Rated voltage [kV]
    0.66
  • Mounting method
    For screws
  • Width [mm]
    81
  • Height [mm]
    61
  • Package height [mm]
    61
  • Package weight [kg]
    0, 24
  • Breakdown voltage [kV]
    3kV/1min
  • connection
    4mm screw terminals
  • Level of security
    IP20
  • Working temperature [°C]
    -5-40
  • Rated primary current In [A]
    100
  • Package width [mm]
    81
  • Nominal secondary current Is [A]
    5

Other technical data

  • Model
    Attachable current transformer
  • Rated secondary current
    5 A
  • Opening diameter
    22 mm
  • With copper rail
    no
  • Number of primary inputs
    1
  • Rated primary current
    100 A
  • Rated secondary apparent power
    2.5 VA
  • Snap mounting
    no
  • Secondary connection
    Screw connection
